2001 TOYOTA COROLLA trunk

'01 Corolla U (L/O 0005)
1502001MY_COROLLA_U (OM12720U)
Engine exhaust cautions
CAUTION

Avoid inhaling the engine exhaust.
It contains carbon monoxide, which
is a colorless and odorless gas. It
can cause unconsciousness or even
death.

Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.

Do not run the engine in a garage
or enclosed area except for the
time needed to drive the vehicle in
or out. The exhaust gases cannot
escape, making this a particularly
dangerous situation.

Do not remain for a long time in a
parked vehicle with the engine run-
ning. If it is unavoidable, however,
do so only in an unconfined area
and adjust the heating or cooling
system to force outside air into the
vehicle.

Keep the trunk lid closed while
driving. An open or unsealed trunk
lid may cause exhaust gases to be
drawn into the vehicle.

To allow proper operation of your
vehicle's ventilation system, keep
the inlet grilles in front of the wind-
shield clear of snow, leaves, or oth-
er obstructions.

If you smell exhaust fumes in the
vehicle, drive with the windows
open and the trunk lid closed. Have
the cause immediately located and
corrected.
FUNCTIONS OF ENGINE OIL
Engine oil has the primary functions of
lubricating and cooling the inside of the
engine, and plays a major role in main-
taining the engine in proper working order.
ENGINE OIL CONSUMPTION
It is normal that an engine should con-
sume some engine oil during normal
engine operation. The causes of oil
consumption in a normal engine are as
follows.

Oil is used to lubricate pistons, piston
rings and cylinders. A thin film of oil
is left on the cylinder wall when a pis-
ton moves downwards in the cylinder.
High negative pressure generated when
the vehicle is decelerating sucks some
of this oil into the combustion chamber.
This oil as well as some part of the oil
film left on the cylinder wall is burned
by the high temperature combustion
gases during the combustion process.
Facts about engine oil
consumption
ProCarManuals.com

'01 Corolla U (L/O 0005)
1552001MY_COROLLA_U (OM12720U)
Brake pad wear limit indicators
The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to where
replacement is required.
If you hear a squealing or scraping noise
while driving, have the brake pads
checked and replaced by your Toyota
dealer as soon as possible. Expensive ro-
tor damage can result if the pads are not
replaced when necessary.
Luggage stowage precautions
When stowing luggage or cargo in the
vehicle, observe the following:

Put luggage or cargo in the trunk when
at all possible. Be sure all items are
secured in place.

Be careful to keep the vehicle bal-
anced. Locating the weight as far for-
ward as possible helps maintain bal-
ance.

For better fuel economy, do not carry
unneeded weight.
CAUTION

To prevent luggage or packages
from sliding forward during braking,
do not stack anything in the en-
larged trunk. Keep luggage or pack-
ages low, as close to the floor as
possible.

Never allow anyone to ride in the
enlarged trunk. It is not designed
for passengers. They should ride in
their seats with their seat belts
properly fastened. Otherwise, they
are much more likely to suffer seri-
ous bodily injury, in the event of
sudden braking or a collision.

Do not place anything on the pack-
age tray behind the rear seatback.
Such items may be thrown about
and possibly injure people in the
vehicle during sudden braking or an
accident.

Do not drive with objects left on
top of the instrument panel. They
may interfere with the driver's field
of view. Or they may move during
sharp vehicle acceleration or turn-
ing, and impair the driver's control
of the vehicle. In an accident they
may injure the vehicle occupants.
NOTICE
Do not load the vehicle beyond the
vehicle capacity weight specified in
Section 8.
ProCarManuals.com

'01 Corolla U (L/O 0005)
1972001MY_COROLLA_U (OM12720U)
If you are a skilled do±it±yourself mechan-
ic, the Toyota service manuals are recom-
mended. Please be aware that do±it±your-
self maintenance can affect your warranty
coverage. See ªOwner 's Warranty Informa-
tion Bookletº or ªOwner 's Manual Supple-
mentº for the details.
General maintenance
Listed below are the general maintenance
items that should be performed as fre-
quently as specified. In addition to check-
ing the items listed, if you notice any
unusual noise, smell or vibration, you
should investigate the cause or take your
vehicle to your Toyota dealer or a quali-
fied service shop immediately. It is recom-
mended that any problem you notice be
brought to the attention of your dealer or
the qualified service shop for their advice.
CAUTION
Make these checks only where ade-
quate ventilation can be obtained if
you run the engine.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Tire pressure
Check the pressure with a gauge every
two weeks, or at least once a month. See
Section 7±2 for additional information.Tire surface and wheel nuts
Check the tires carefully for cuts, damage
or excessive wear. See Section 7±2 for
additional information. When checking the
tires, make sure no nuts are missing, and
check the nuts for looseness. Tighten
them if necessary.
Tire rotation
Rotate the tires according to the mainte-
nance schedule. (For scheduled mainte-
nance information, please refer to the sep-
arate ªScheduled Maintenance Guideº or
ªOwner 's Manual Supplementº.). See Sec-
tion 7±2 for additional information.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all doors including trunk lid
operate smoothly and all latches lock se-
curely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
ProCarManuals.com

'01 Corolla U (L/O 0005)
2372001MY_COROLLA_U (OM12720U)
Tires
Tire size:
Compact spare tire
T115/70D14
T125/70D14
Except compact spare tire
P175/65SR14
P185/65SR14
Tire pressure, kPa (kgf/cm
2 or bar, psi):
Compact spare tire
420 (4.2, 60)
Except compact spare tire
210 (2.1, 30)
Wheel size:
Compact spare tire
14
4T
Except compact Spare tire
14
5.5JJ
Wheel nut torque, N´m (kgf´m, ft´lbf):
102.9 (10.5, 76)
NOTE: For a complete information on
tires (e.g. replacing tires or re-
placing wheels), see ªChecking
tire pressureº through ªAluminum
wheel precautionsº in Section 7±2.
Fuses
Engine compartment
Fuses (type A)
1. A/C 7.5 A: Air conditioning system,
electric cooling fan
2. SPARE 5 A: Spare fuse
3. SPARE 10 A: Spare fuse
4. SPARE 15 A: Spare fuse
5. DOME 15 A: Car audio system, interior
light, personal light, trunk light, clock,
daytime running light system
6. HAZARD 10 A: Turn signal lights,
emergency flashers
Engine compartment
7. AM2 15 A: Starter system, ªSTº and
ªIGNº fuses
8. HEAD (LH) or HEAD (LH±UPR) 15 A:
Left±hand headlight (high beam)
9. ALT±S 5 A: Charging system
10. HEAD (RH) or HEAD (RH±UPR) 15 A:
Right±hand headlight (high beam)
11. EFI or F±HTR 15 A: Multiport fuel in-
jection system/sequential multiport fuel
injection system
12. HORN 10 A: Horn
ProCarManuals.com

'01 Corolla U (L/O 0005)
92001MY_COROLLA_U (OM12720U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 2
ProCarManuals.com

'01 Corolla U (L/O 0005)
102001MY_COROLLA_U (OM12720U)
Keys
Your vehicle is supplied with two kinds
of keys.
1. Master keyÐThis key works in every
lock.
2. Sub keyÐThis key will not work in the
trunk.
To protect things locked in the trunk when
you have your vehicle parked, leave the
sub key with the attendant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
Side doors
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock systemÐAll
the doors lock and unlock simultaneously
with either front door. In the driver 's door
lock, turning the key once will unlock the
driver's door and twice in succession will
unlock all the doors simultaneously.
ProCarManuals.com

'01 Corolla U (L/O 0005)
142001MY_COROLLA_U (OM12720U)

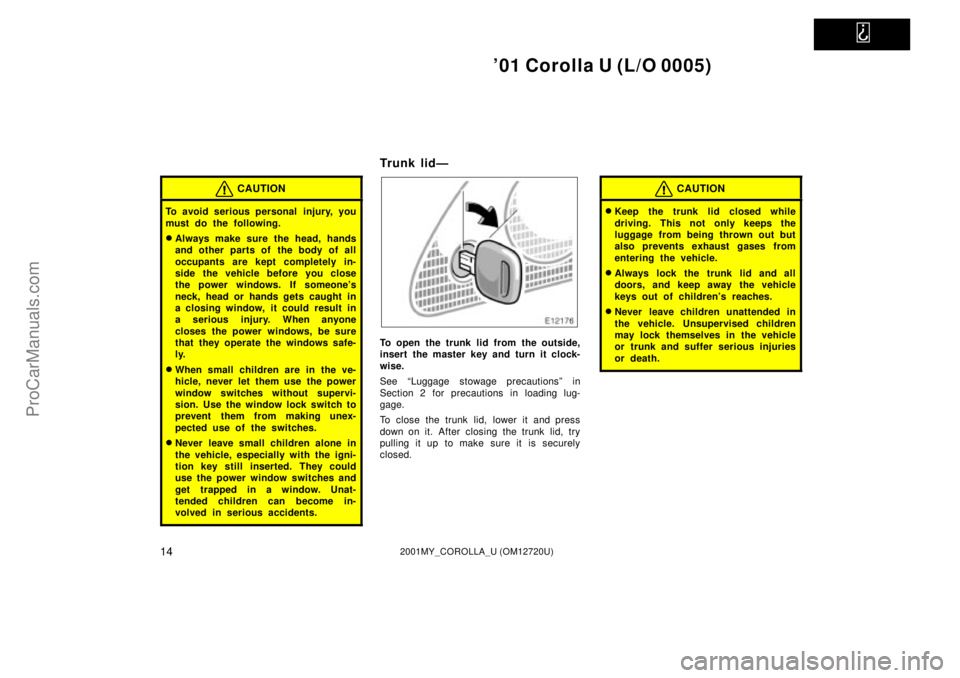

CAUTION
To avoid serious personal injury, you
must do the following.

Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone's
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.

When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.

Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
Trunk lidÐ
To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See ªLuggage stowage precautionsº in
Section 2 for precautions in loading lug-
gage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
CAUTION

Keep the trunk lid closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.

Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children's reaches.

Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
ProCarManuals.com

'01 Corolla U (L/O 0005)
152001MY_COROLLA_U (OM12720U)
ÐLock release lever
To open the trunk lid from the driver's
seat, pull up on the lock release lever.After closing the trunk lid, insert the
master key and turn it counterclockwise
to deactivate the lock release lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.If a person is locked in the trunk, pull
down the phosphorescent handle lever
on the inside of trunk lid in case of
emergency to open the trunk lid.
ÐLock release lever
cancelling systemÐInternal trunk release
handle
ProCarManuals.com
