Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-11 Remote Keyless Entry System (If Equipped)
2
-14 Trunk
2
-17 Theft
2
-18 Passlock

2-19 New Vehicle ªBreak-Inº
2
-19 Ignition Positions
2
-20 Starting Your Engine
2
-22 Engine Coolant Heater (Option)
2
-23 Automatic Transaxle Operation
2
-27 Manual Transaxle Operation
2
-29 Parking Brake
2
-30 Shifting Into PARK (P)
(Automatic Transaxle Only)
2
-32 Shifting Out of PARK (P)
(Automatic Transaxle Only)2
-33 Parking Your Vehicle/Key Removal
(Manual Transaxle Models Only)
2
-33 Parking Over Things That Burn
2
-34 Engine Exhaust
2
-34 Running Your Engine While You're Parked
(Automatic Transaxle)
2
-35 Tilt Wheel
2
-36 Turn Signal/Multifunction Lever
2
-43 Exterior Lamps
2
-46 Interior Lamps
2
-48 Mirrors
2
-49 Storage Compartments
2
-50 Ashtray and Cigarette Lighter (If Equipped)
2
-50 Sun Visors
2
-51 Sunroof (Option)
2
-52 The Instrument Panel -- Your
Information System
2
-56 Warning Lights, Gages and Indicators

2-6

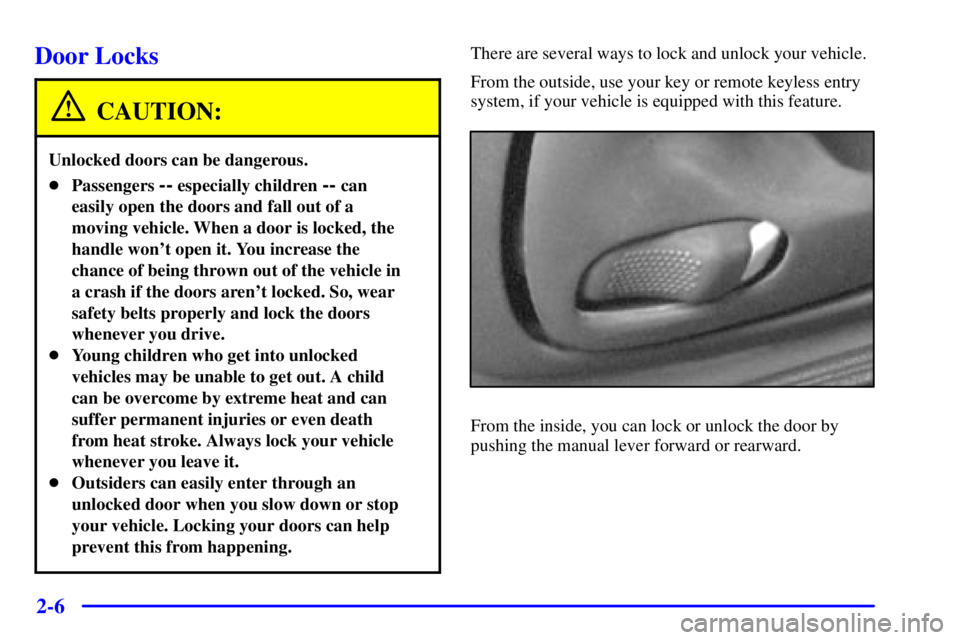

Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use your key or remote keyless entry
system, if your vehicle is equipped with this feature.
From the inside, you can lock or unlock the door by
pushing the manual lever forward or rearward.

2-7 Power Door Locks
With the power door locks, you can unlock or lock all
of the doors on your vehicle from the driver's or front
passenger's door lock switch.
Push the top of the switch to unlock all of the doors.
Push the bottom of the switch to lock all the doors.
Programmable Automatic Door Locks
Just close the doors and turn on the ignition. All of the
doors will lock when you move the shift lever out of
PARK (P) to REVERSE (R) on vehicles with an
automatic transaxle. All of the doors will lock when the
vehicle speed is greater than 5 mph (8 km/h) on vehicles
with a manual transaxle.
If someone needs to get out while the vehicle is running,
have that person use the door lock. When the door is
closed again, it will lock automatically when the vehicle
reaches about 5 mph (8 km/h).
All doors will automatically unlock when the shift lever
is moved to PARK (P) on vehicles with an automatic
transaxle or to REVERSE (R) on vehicles with a manual
transaxle and the key is turned to OFF.Customizing the Automatic Door Locks
One of four operating modes may be selected and
programmed by the driver on vehicles with an
automatic transaxle:

Mode 1: All doors automatically lock when the
transaxle is shifted out of PARK (P). The doors will
remain locked unless manually unlocked or the lock
button is pressed. All doors will unlock when the
transaxle is shifted into PARK (P) and the key is
turned to OFF.

Mode 2: This mode is only available with the remote
keyless entry transmitter. All doors automatically
lock when the transaxle is shifted out of PARK (P).
Automatic driver's door only unlock when the
transaxle is shifted into PARK(P) and the key is
turned to OFF.

Mode 3: All doors automatically lock when the
transaxle is shifted out of PARK (P). No automatic
door unlock.

Mode 4: No automatic door lock or unlock.

2-8
One of the four operating modes may be selected
and programmed by the driver on vehicles with a
manual transaxle:

Mode 1: All doors automatically lock when the
vehicle speed is greater than 5 mph (8 km/h). The
doors will remain locked unless manually unlocked
or the lock button is pressed. All doors will unlock
when the transaxle is shifted into REVERSE (R) and
the key is turned to OFF.

Mode 2: This mode is only available with the remote
keyless entry transmitter. All doors automatically
lock when the vehicle speed is greater than 5 mph
(8 km/h). Automatic driver's door only unlock when
the transaxle is shifted into REVERSE (R) and the
key is turned to OFF.

Mode 3: All doors automatically lock when the
vehicle speed is greater than 5 mph (8 km/h).
No automatic door unlock.

Mode 4: No automatic door lock or unlock.When your vehicle was shipped from the factory it was
programmed in Mode 1. To determine the current mode
or to change to a different mode, do the following:
1. Put an automatic transaxle in PARK (P) or a manual
transaxle in REVERSE (R) with the parking brake
engaged and turn the ignition to ON.
2. Press and hold LOCK on the power door lock switch
for 10 seconds. Release the switch when you hear
the chime.
3. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is in.
You can change the mode by pressing and holding
LOCK on the power door lock switch (two chimes
for Mode 2, three chimes for Mode 3 and
four chimes for Mode 4).
4. Repeat Step 2 until you hear the number of chimes
that matches the mode you want.
The mode you selected is now set.

2-9 Delayed Locking
This feature will allow the driver to delay the actual
locking of the vehicle. This feature will not operate if
the key is left in the ignition. See ªAnti
-Lockout
Protectionº later in this section.
When LOCK on the driver's power door lock switch
is pressed, with the key removed from the ignition and
the driver's door open, three chimes will be heard. The
doors will not lock. Seven seconds after the driver's
door has been closed, all of the doors will lock and the
parking lamps will flash. The horn will also chirp if the
horn chirp feature is enabled. See ªProgrammable Horn
Chirpº in the Index for more information.
If the driver opens another door before the seven
seconds, the doors will not lock until seven seconds after
the last door is closed.
If the power door lock switch is pressed to LOCK twice
when leaving the vehicle, or the LOCK button on the
remote keyless entry transmitter is pressed, the doors
will lock immediately.
If the power door lock switch is pressed to unlock, the
doors will not lock automatically.
Rear Door Security Locks (4-Door Models)
Your vehicle is equipped
with rear door security
locks that help prevent
passengers from opening
the rear doors on your
vehicle from the inside.
The switch is located on the inside of the rear door.
To use the security locks, do the following:
1. Move the switch up.
2. Close the door.
3. Do the same thing on the other rear door.

2-10
The rear doors on your vehicle cannot be opened from
the inside when this feature is in use. If you want to
open a rear door when the security lock is on, do
the following:
1. Unlock the door from the inside.
2. Then open the door from the outside.
If you don't cancel the security lock feature, adults or
older children who ride in the rear won't be able to open
the rear door from the inside. You should let adults and
older children know how these security locks work, and
how to cancel the locks.
To cancel the rear door lock, do the following:
1. Unlock the door from the inside and open it from
the outside.
2. Move the switch down.
3. Do the same for the other rear door.
The rear doors will now work normally.Anti-Lockout Protection
Anti-Lockout Protection is a standard feature intended
to provide enhanced security and convenience. This
feature prevents a driver who has left the keys in the
ignition from locking the doors, using the power door
locks while any door is open.
To override this feature, when the key is in the ignition
and a door is open, hold the power door lock switch for
three seconds.
This feature cannot guarantee that you will never be
locked out of your vehicle. If you don't leave the keys
in the ignition, or if you use the manual door lock,
or if you use the remote keyless entry transmitter
(if equipped), you could still lock your keys inside your
vehicle. Always remember to take your keys with you.
Leaving Your Vehicle
If you are leaving your vehicle, open your door and
set the locks from the inside, then get out and close
the door.

2-11
Remote Keyless Entry System
(If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about 3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.Changes or modifications to this system by other than
an authorized service facility could void authorization
to use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the left
or right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.
