2001 PEUGEOT EXPERT wiring

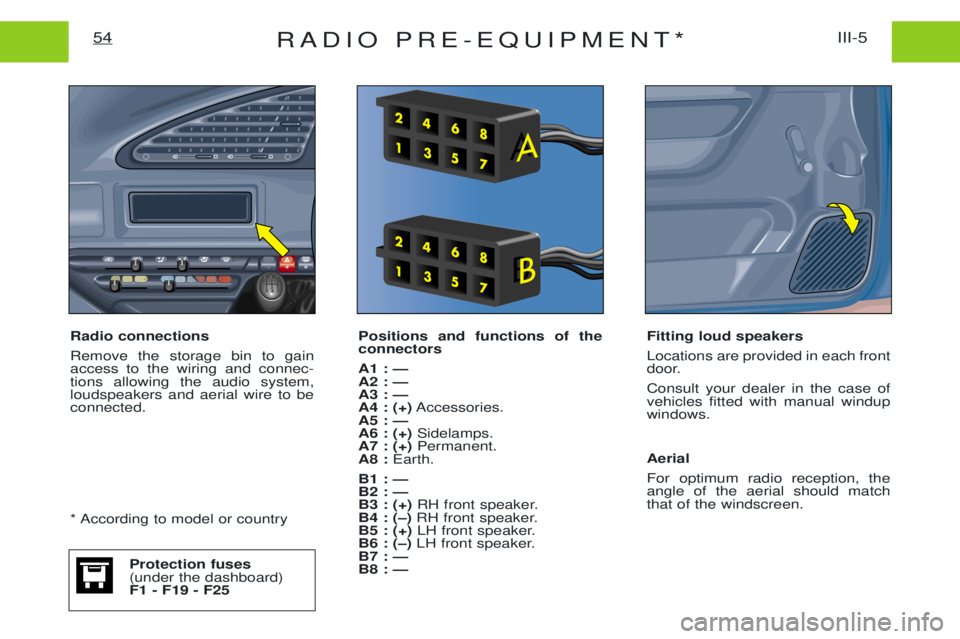

RADIO PRE-EQUIPMENT*III-5
54
Positions and functions of the connectors A1 : Ñ A2 : ÑA3 : ÑA4 : (+) Accessories.
A5 : ÑA6 : (+) Sidelamps.
A7 : (+) Permanent.
A8 : Earth.
B1 : ÑB2 : ÑB3 : (+) RH front speaker.
B4 : (Ð) RH front speaker.
B5 : (+) LH front speaker.
B6 : (Ð) LH front speaker.
B7 : ÑB8 : Ñ Fitting loud speakers Locations are provided in each front
door. Consult your dealer in the case of vehicles fitted with manual windupwindows. Aerial For optimum radio reception, the angle of the aerial should matchthat of the windscreen.
Radio connections Remove the storage bin to gain access to the wiring and connec-tions allowing the audio system,loudspeakers and aerial wire to beconnected.
* According to model or country
Protection fuses (under the dashboard)F1 - F19 - F25

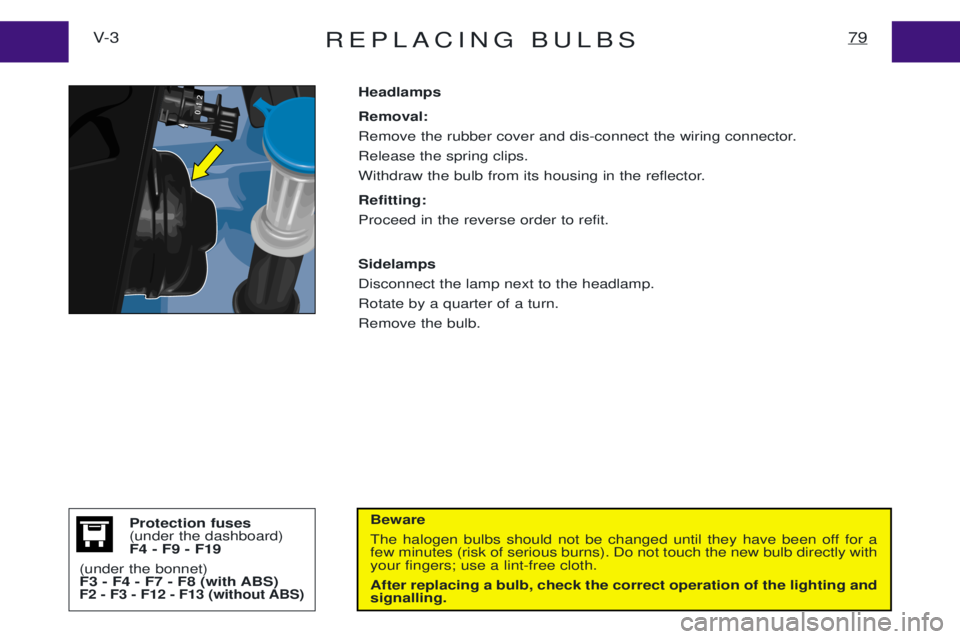

REPLACING BULBS79V- 3
Beware
The halogen bulbs should not be changed until they have been off for a few minutes (risk of serious burns). Do not touch the new bulb directly withyour fingers; use a lint-free cloth. After replacing a bulb, check the correct operation of the lighting and signalling.
Headlamps Removal:
Remove the rubber cover and dis-connect the wiring connector.Release the spring clips.
Withdraw the bulb from its housing in the reflector. Refitting: Proceed in the reverse order to refit. Sidelamps Disconnect the lamp next to the headlamp.Rotate by a quarter of a turn.Remove the bulb.Protection fuses (under the dashboard)F4 - F9 - F19
(under the bonnet)
F3 - F4 - F7 - F8 (with ABS)
F2 - F3 - F12 - F13 (without ABS)

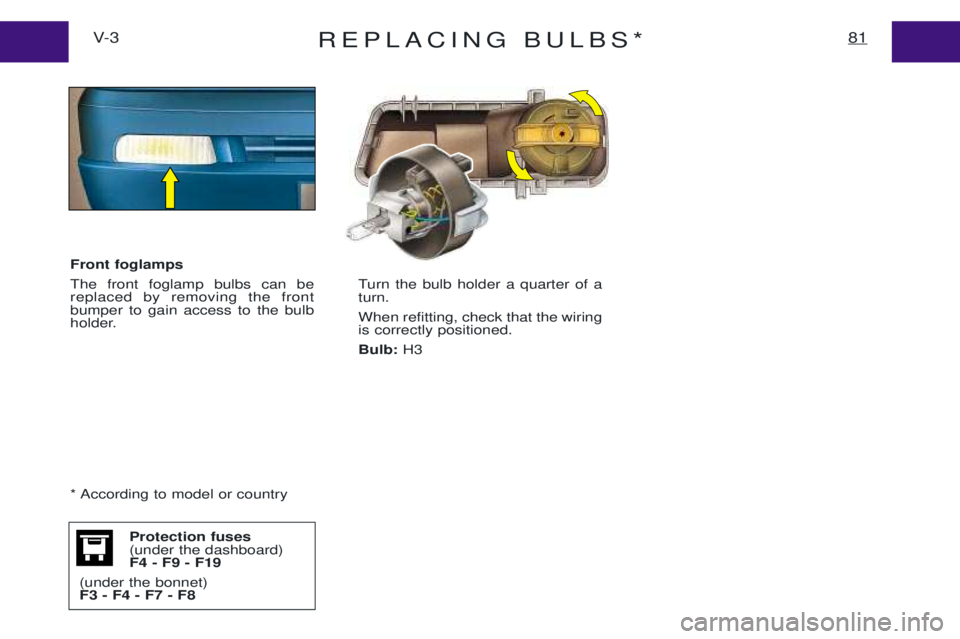

REPLACING BULBS*81V- 3Turn the bulb holder a quarter of a turn. When refitting, check that the wiring is correctly positioned. Bulb:H3
Protection fuses (under the dashboard)F4 - F9 - F19
(under the bonnet)F3 - F4 - F7 - F8
Front foglamps The front foglamp bulbs can be replaced by removing the frontbumper to gain access to the bulb
holder.
* According to model or country
