DASHBOARD*23I-11
1 Left hand air vent & Side glass demister vent.
2 Storage space
3 Radio housing or oddments pocket.
4 Centre air vents.
5 Controls for: ¥ Lighting ¥ Direction indicators ¥ Horn ¥ Foglamp 6
Instrument panel.
7 Controls for: ¥ Windscreen wash ¥ Windscreen wiper
8 Right hand air vent & Side glass demister vent.
9 Bonnet release lever.
10 Adjusting the headlamps.
11 Steering lock and ignition switch. 12
Controls for: ¥ Hazard warning lamps.
¥ Heated glass of hinged rear
doors.
¥ Air conditioning
¥ Demisting and defrosting of the rear view mirrors.
13 Gear lever.
14 Ashtray & Cigar lighter.
15 Heating/ventilation controls.
16 ¥ Glovebox. ¥ Fuse box access.
* According to model or country

WARNING LAMPS*29I-13LH direction indicator See Ç Signalling È Dipped beam See Ç Signalling È
All the direction indicators flash simultaneously when the hazard war- ning lamps are switched on.
Anti-lock Braking System On switching on the igni-
tion, the ABS lamp will
light for approximately 2 seconds. If it stays on there may be a fault in the system. See Chapter II Ç Brakes È RH direction indicatorSee Ç Signalling È Main beam See Ç Signalling È Front brake pad wear If it lights when pressing the brake pedal, have thebrake pads checked and
replaced if necessary.
Diesel Preheater See the instructions for starting the engine. Refer to section II - Driving
- Ç Starting È. Rear screen demister
See Ç Visibility È Foglamp See Ç Signalling È Engine auto-diagnosis If it flashes or comes on while you are driving, thisindicates a fault in either
the injection, ignition or emissionsystems. Contact the dealer network as soon as possible.
Water-in-fuel Drain the fuel filter as soon as possible.
Front airbag warninglamp Refer to the section
Ç Airbag È
* According to model or country

SIGNALLING*I-14
32
Vehicles fitted with front fog lamps and a rear fog lamp (ring C)
Front fog lamps.
These function with the side lightsand the dipped beam headlamps.
Front fog lampsand rear fog lamp
These function with the side lightsand the dipped and main beamheadlamps.
Fog lamps off.
Vehicles fitted with a rear foglamp (ring B) Rear fog lamp.
This operates with the dipped/mainbeam headlamps.
THE LIGHTS STALK Front and rear lights Selection is by turning ring
A.
Lights off Side lights on
Dipped/main beam headlamps
Dipped/ main beam change Pull the stalk fully towards you. Note: with the ignition off, an
audible signal will sound upon ope-
ning the driverÕs door, if you haveleft your lights on. Front fog lamps* and rear fog lamp Rotate the ring forwards to switch
on and backwards to switch off. Thestatus is confirmed by the light onthe instrument panel.
BA
In good or rainy weather, both day and night, the rear foglamp is dazzling and is prohi-bited. Do not forget to switch it off as soon as it is no longer needed.
C
* According to model or country

TABLE OF FUSES
(According to model or country)73V- 2
Number Rating Functions
F15 30 A PCPU (central locking Ð ceiling lights)
F16 20 A Cigar lighter - Permanent + position
F16A 20 A Cigar lighter - Accessories + position
F17 15 A Coolant temperature control unit - Cooling fan assembly
F18 10 A Foglamp
F19 10 A Instrument panel lighting - Audio system - Sidelamps
F20 30 A Air conditioning - Air blower
F21 20 A Heated seats
F22 20 A Accessories + position - Unused
F23 SHUNT F14 - F15 - F25 - F27
F24 30 A Windscreen washer - Windscreen wiper
F25 10 A Air conditioning - Interior lamp - Radio memory - Digital clock
F26 15 A Hazard warning lamps
F27 30 A Heated rear screen
F28 15 A Electric window - Charge warning lamp
F29 30 A Electric window
F30 15 A Interior lighting - Direction indicators - Clock - Electric rear view mirror

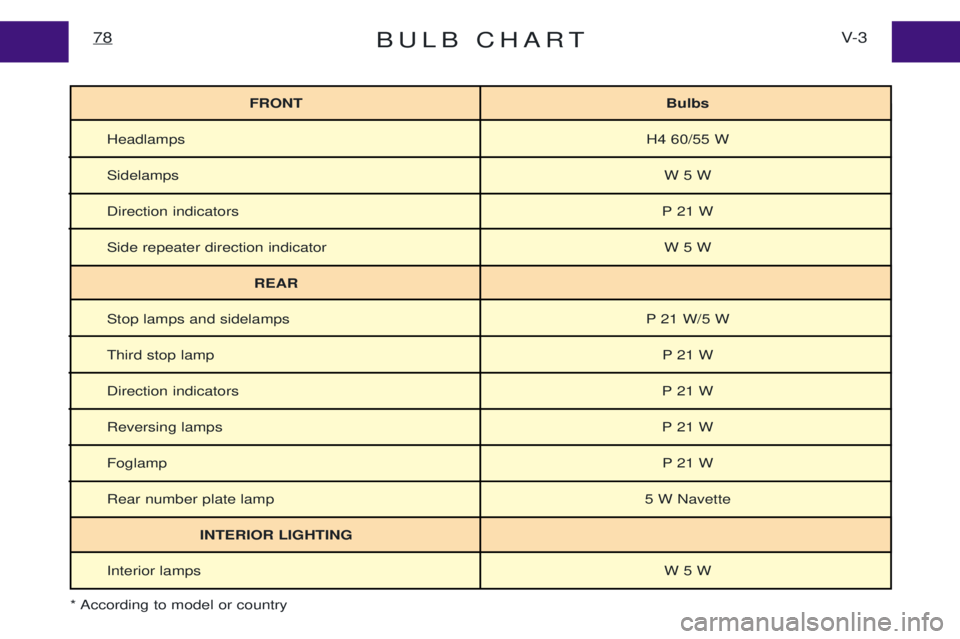

BULB CHARTV- 3
78
FRONT Bulbs
Headlamps H4 60/55 W
Sidelamps W 5 W
Direction indicators P 21 W
Side repeater direction indicator W 5 W
REAR
Stop lamps and sidelamps P 21 W/5 W
Third stop lamp P 21 W
Direction indicators P 21 W
Reversing lamps P 21 W
Foglamp P 21 W
Rear number plate lamp 5 W Navette
INTERIOR LIGHTING
Interior lamps W 5 W
