2001 Peugeot 306 C tow bar

PARTS AND ACCESSORIES 15
For your PEUGEOT, use only accessories and original parts approved by the manufacturer.
These accessories and parts are all suitable for your PEUGEOT, after being tested and approved for reliability and
safety.
A wide choice of original accessories, approved by PEUGEOT, is available through the network.
They all carry the PEUGEOT guarantee. Safety: Anti-theft alarm, engraving of window, wheel anti-theft devices, first aid kitÉ
Comfort : Telephone console, armrests, seat covers compatible with side airbags, mats, boot tray, sunroof, luggage net, door deflectors, storage under rear parcel shelfÉ
Communication : Audio equipment, telephone, CD changer, audio accessories, CB, speakers, naviga-tion...
Personalisation : Alloy wheels, wheel trims, long range lights, fog lamps, sports exhaust, mud flaps,...
Leisure: Towbar, roof box,É
Children: Booster seats and child seats, side blinds and rear blind...
Maintenance products: Windscreen wiper fluid, internal and external cleaning and maintenance products...

16
1 YOUR 306 CABRIOLET AT A GLANCE1 15
PEUGEOT Servicing
PEUGEOT Servicing ...............................................18Special features.......................................................19
Types of service ......................................................20
The maintenance cycle of your 306 cabriolet ..........20
PEUGEOT servicing levels A and C ........................21
Tables of lubricants..................................................22 Routine maintenance
Checking levels .......................................................26Changing a wheel....................................................28
Changing a bulb ......................................................32
Changing a fuse ......................................................35
Charging a battery ...................................................40
Fitting audio equipment ...........................................41
Towing your vehicle .................................................42
Using a tow bar .......................................................43
Bodywork maintenance ...........................................44
2 CONTENTS
16 17
3 MAINTENANCE OF YOUR 306 CABRIOLET18 45

Fuse No. Rating*Functions*
15 20A Tow-bar socket
16 30A Front windows relay
17 20A Horn
18 10A Front fog lamps
19 10A Right tail light
20 30A Blower
21 10A Left tail light - Number plate light - Front sidelights
22 10A Blower relay - Heated rear screen and mirrors
23 20A Lighter
24 10A Radio
25 10A Electric hood Ð Central air conditioning and switch
26 30A Windscreen wiper and screen-wash pump control - Windscreen wiper motor - Windscreen wiper timer
27 15A Glove box lighting - Direction indicators Ð Electric mirrors control Ð Map reader light Ð Vanity mirror Ð Passenger compartment temperature sensor
28 15A Instrument panel - Clock - Electric windows relay and heated seats 37
MAINTENANCE OF YOUR 306 CABRIOLET
* According to specification.
Fascia fuse box

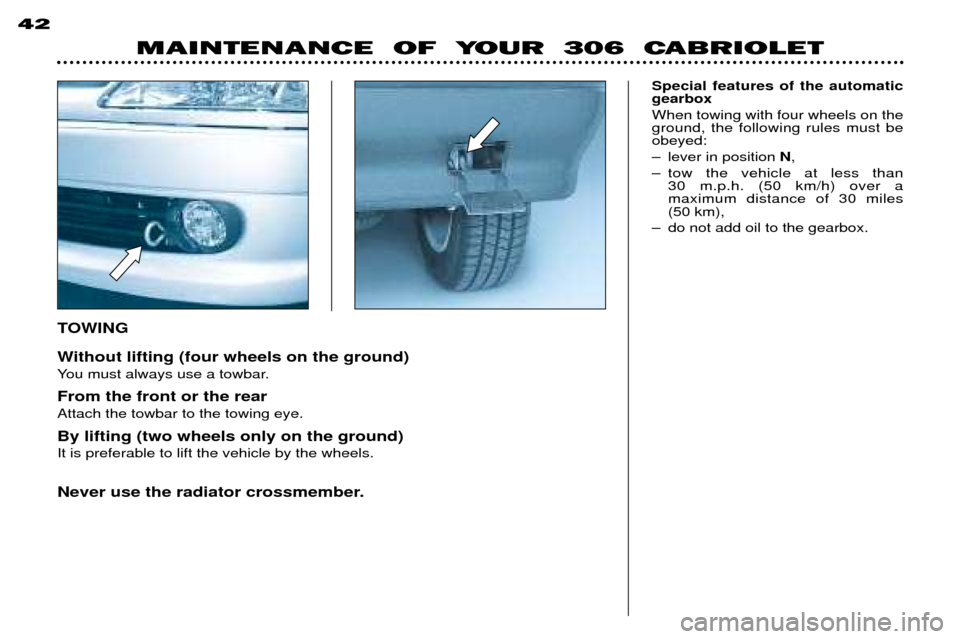

TOWING
Without lifting (four wheels on the ground)
You must always use a towbar. From the front or the rear Attach the towbar to the towing eye. By lifting (two wheels only on the ground) It is preferable to lift the vehicle by the wheels.
Never use the radiator crossmember.
MAINTENANCE OF YOUR 306 CABRIOLET
42
Special features of the automatic gearbox When towing with four wheels on the ground, the following rules must beobeyed:
Ð lever in position N,
Ð tow the vehicle at less than 30 m.p.h. (50 km/h) over a maximum distance of 30 miles (50 km),
Ð do not add oil to the gearbox.

MAINTENANCE OF YOUR 306 CABRIOLET43
Driving advice Distribution of loads: distribute the load in the trailer so that the heaviestloads are as close as possible to theaxle and the nose weight is close tothe maximum authorised without,
however, exceeding it. Cooling:
towing a trailer on a slope
increases the coolant temperature. As the fan is electrically controlled, itscooling capacity is not dependent onthe engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. The maximum towing load on a long slope depends on the gradient andthe outside temperature. In all cases, pay attention to the coolant temperature. If the warning light comes on, stop the
vehicle and switch off the engine assoon as possible.
TOWING A TRAILER,
CARAVAN, BOAT ETC.
Only use original PEUGEOT towbars which have been tested and approvedfrom the design stage of your vehicle. The towbar must be fitted by a
PEUGEOT dealer.
Your vehicle is mainly designed for transporting people and luggage but it
may also be used to tow a trailer. Driving with a trailer subjects the towing vehicle to more significantforces and requires particular atten-
tion on the part of the driver. Air density decreases with altitude, thus also reducing engine perfor-
mance. Above 1000 metres, reducethe maximum towing load by 10 %and so on for each additional 1000 metres.
Tyres:
check the tyre pressures of the
towing vehicle and the trailer, obser-ving the recommended pressures. Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early, brake graduallyand avoid jerky braking. Lighting: adjust your headlamps so
as not to dazzle other road users. Check the electrical signalling on the
trailer. Side wind: sensitivity to side wind is
increased. Drive smoothly and at a moderate speed.

PARTS AND A CCESSORIES 15
For your PEUGEOT, use only accessories and original parts approved by the manufacturer.
These accessories and parts are all suitable for your PEUGEOT, after being tested and approved for reliability and
safety.
A wide choice of original accessories, approved by PEUGEOT, is available through the network.
They all carry the PEUGEOT guarantee. Safety: Anti-theft alarm, engraving of window, wheel anti-theft devices, first aid kitÉ
Comfort : Telephone console, armrests, seat covers compatible with side airbags, mats, boot tray, sunroof, luggage net, door deflectors, storage under rear parcel shelfÉ
Communication : Audio equipment, telephone, CD changer, audio accessories, CB, speakers, naviga-tion...
Personalisation : Alloy wheels, wheel trims, long range lights, fog lamps, sports exhaust, mud flaps,...
Leisure: Towbar, roof box,É
Children: Booster seats and child seats, side blinds and rear blind...
Maintenance products: Windscreen wiper fluid, internal and external cleaning and maintenance products...
