PRACTICAL ASPECTS OF YOUR VEHICLE
96
Changing a wheel
Park the vehicle on level, stable
ground which is not slippery.
 Apply the handbrake, engage first
gear or reverse (position Pon the
automatic gearbox) and switch offthe ignition.
 Chock the rear of the wheel withshim 2diagonally opposite the
wheel to be changed.

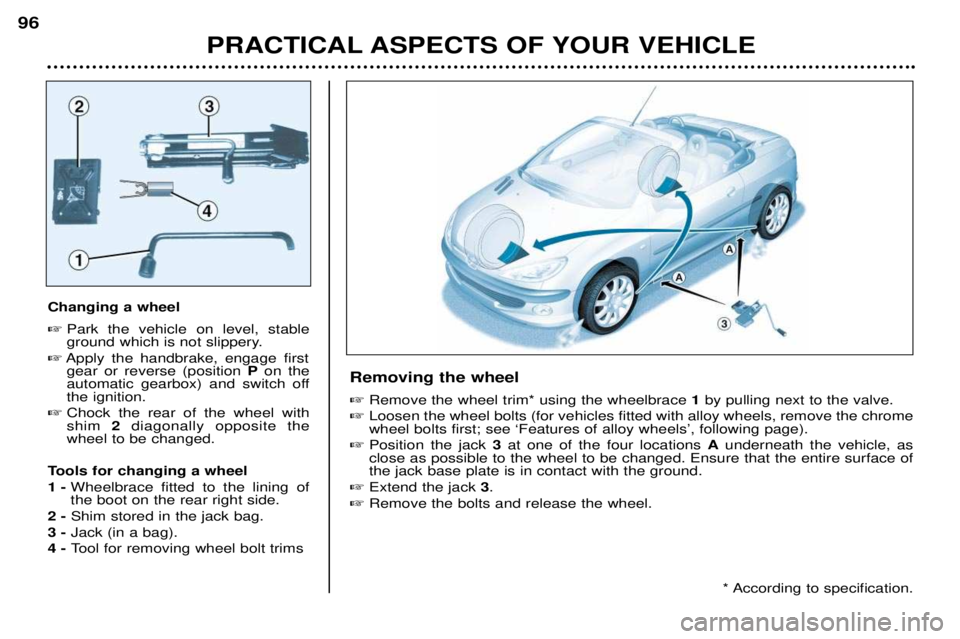

Tools for changing a wheel 1 - Wheelbrace fitted to the lining of the boot on the rear right side.
2 - Shim stored in the jack bag.
3 - Jack (in a bag).
4 - Tool for removing wheel bolt trims Removing the wheel
Remove the wheel trim* using the wheelbrace 1by pulling next to the valve.
 Loosen the wheel bolts (for vehicles fitted with alloy wheels, remove the chrome wheel bolts first; see ÔFeatures of alloy wheelsÕ, following page).
 Position the jack 3at one of the four locations Aunderneath the vehicle, as
close as possible to the wheel to be changed. Ensure that the entire surface ofthe jack base plate is in contact with the ground.
 Extend the jack 3.
 Remove the bolts and release the wheel.
* According to specification.

PRACTICAL ASPECTS OF YOUR VEHICLE97
Refitting the wheel
After positioning the wheel, pre-tighten the bolts using the wheelbrace 1.
 Compress the jack 3and release it.
 Fully tighten the bolts using the wheelbrace 1.
 Replace the wheel trim*, starting at the valve passage hole, and press on it using the palm of the hand.

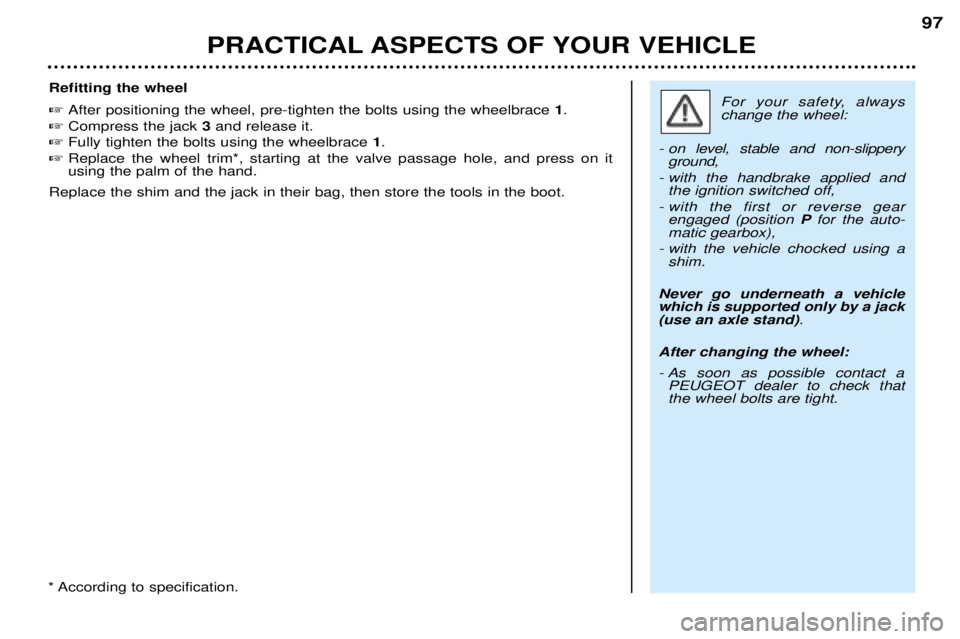

Replace the shim and the jack in their bag, then store the tools in the boot.For your safety, always change the wheel:
- on level, stable and non-slippery ground,
- with the handbrake applied and the ignition switched off,
- with the first or reverse gear engaged (position Pfor the auto-
matic gearbox),
- with the vehicle chocked using a shim.
Never go underneath a vehiclewhich is supported only by a jack(use an axle stand) .
After changing the wheel:
- As soon as possible contact a PEUGEOT dealer to check that the wheel bolts are tight.
* According to specification.

PRACTICAL ASPECTS OF YOUR VEHICLE103
Changing a fuse
The fuse boxes are located under the instrument panel and in the enginecompartment. Fascia fuse box Unscrew the catch a quarter turn using a coin, then remove the cover togain access to the fuses.Removing and refitting a fuse
Before changing a fuse, the cause of the fault must be found and remedied. The fuse numbers are indicated on the fuse box. Always replace a faulty fuse (fault registered depending on fuse) with a fuse of the same rating.
Correct
Incorrect
* According to specification.Fuse Rating Functions*
1 15A Heated seat - Alarm
4 20A Mulltifunction screen - Navigation control unit-
Boot lighting - Audiosystem - Retractableroof control unit
5 15A Automatic gearbox diagnostics
6 10A Coolant level - Auto- matic gearbox - Audio system

PRACTICAL ASPECTS OF YOUR VEHICLE103
Changing a fuse
The fuse boxes are located under the instrument panel and in the enginecompartment. Fascia fuse box Unscrew the catch a quarter turn using a coin, then remove the cover togain access to the fuses.Removing and refitting a fuse
Before changing a fuse, the cause of the fault must be found and remedied. The fuse numbers are indicated on the fuse box. Always replace a faulty fuse (fault registered depending on fuse) with a fuse of the same rating.
Correct
Incorrect
* According to specification.Fuse Rating Functions*
1 15A Heated seat - Alarm
4 20A Mulltifunction screen - Navigation control unit-
Boot lighting - Audiosystem - Retractableroof control unit
5 15A Automatic gearbox diagnostics
6 10A Coolant level - Auto- matic gearbox - Audio system

PRACTICAL ASPECTS OF YOUR VEHICLE
106
* According to specification
Fuse no. Rating*
Functions*
1 10A Reversing lights switch - Speed sensor
2 15A Canister - Fuel pump
3 10A ABS control unit
4 10A Automatic gearbox control unit - Engine control unit
5 Ñ Not used
7 20A Windscreen wash pump
8 20A Fan unit relay - Engine control unit - Engine management solenoid valve
9 15A Left-hand dipped beam
10 15A Right-hand dipped beam
11 10A Left-hand main beam
12 15A Right-hand main beam
13 15A Horns
14 10A Front windscreen wash pumps
15 30A Throttle unit heater - Oxygen sensor - Engine control unit - Air flow meter - Ignition coil - Engine
management solenoid valve - Injectors
16 30A Air pump relay
17 30A High and low speed windscreen wiper
18 40A Air conditioning fan

PRACTICAL ASPECTS OF YOUR VEHICLE109
Towing your vehicle
Without lifting (four wheels on the ground)
You must always use a tow bar. From the front or the rear Attach the tow bar to the towing eye. By lifting (two wheels only on the ground) It is preferable to lift the vehicle by the wheels.
Never use the radiator crossmember. Special features of the automatic gearbox When towing with all four wheels on the ground, the following rules mustbe adhered to:
Ð gear lever in position
N,
Ð tow the vehicle at a speed less than 30 mph (50 km/h) over a distance of not more than 30 miles (50 km),
Ð do not add oil to the gearbox. Boot luggage carrier*
A boot luggage carrier is available
from your PEUGEOT dealer. When it is used, take care not to con- ceal the third brake light. Follow the manufacturer's recommen- dations.
* Available as an accessory.

TECHNICAL DATA
116
Models Model codes
2DNFUF 2DNFUF 2DRFNF
ENGINES 1.6 litre 16V 2 litres 16V
Cubic capacity (cm 3
) 1587 1997
Bore x stroke (mm) 78.5 x 82 85 x 88
EU standard maximum power (kW) 80 100
Maximum power at engine speed (rpm) 5800 6000
EU standard maximum torque (Nm) 147 190
Maximum torque at engine speed (rpm) 4000 4100Fuel Unleaded Unleaded
Catalytic converter Yes Yes
Gearbox Manual Automatic Manual
(5 speed) (4 speed) (5 speed)
Unit capacities (in litres)
Engine (with cartridge replacement) 3 3 4.25Gearbox-Final drive 2 Ð 1.9
Engines and gearboxes

TECHNICAL DATA117
In accordance with directive 93/116 M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes driving of CO
2
by weight g/Km
1.6 litre 16V Manual 2DNFUF 9.5 5.7 7 166
1.6 litre 16V Automatic 2DNFUR 10.6 6 7.7 183
2 litres 16V Manual 2DRFNF 11.2 6.2 8 191
Consumption
Fuel consumption values correct at time of printing.
Engine 1.6 litre 16V 1.6 litre 16V 2 litres 16V
Gearbox Manual Automatic Manual
Model codes : 2DNFUF 2DNFUR 2DRFNF
¥ Kerb weight
1140 1177 1150
¥ Gross vehicle weight (GVW) 1535 1572 1562
¥ Gross train weight (GTW)* 2435 2472 2462
¥ Unbraked trailer
600 600 600
¥ Braked trailer (within GTW) 1100 1100 1100
Weights and towing loads (in kg)
* In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).
