Key position There are four positions of the ignition key in the lock: "S" Stop: ignition is off.
"A" Accessories: ignition is off but
accessories can operate. The battery charge warning lamp lights. "M" Run: ignition on. The following
warning lamps light:
- low engine oil pressure,
- coolant temperature,
- battery charge,
- pre-heater (DIESEL),
- handbrake, low brake ßuid,
- engine diagnostics*, - ABS* (lights for 3 seconds, the
warning lamp should always go out when the vehicle speed isover 8 m.p.h. [12 km/h]),
- Airbag*, the warning lamp lights for six seconds, then goes out.
"D" Starter: starts the engine.
The following warning lamps go out:
- low engine oil pressure,
- battery charge,
- engine diagnostics*. Starting Unlock the steering
Turn the steering wheel gently
while turning the key. Before starting it is advisable to: Press the clutch pedal while opera- ting the starter to aid starting of theengine. * According to speciÞcation
Y O U R 1 0 6 I N D E TA I L55
06-05-2002

Key position There are four positions of the ignition key in the lock: "S" Stop: ignition is off.
"A" Accessories: ignition is off but
accessories can operate. The battery charge warning lamp lights. "M" Run: ignition on. The following
warning lamps light:
- low engine oil pressure,
- coolant temperature,
- battery charge,
- pre-heater (DIESEL),
- handbrake, low brake ßuid,
- engine diagnostics*, - ABS* (lights for 3 seconds, the
warning lamp should always go out when the vehicle speed isover 8 m.p.h. [12 km/h]),
- Airbag*, the warning lamp lights for six seconds, then goes out.
"D" Starter: starts the engine.
The following warning lamps go out:
- low engine oil pressure,
- battery charge,
- engine diagnostics*. Starting Unlock the steering
Turn the steering wheel gently
while turning the key. Before starting it is advisable to: Press the clutch pedal while opera- ting the starter to aid starting of theengine. * According to speciÞcation
Y O U R 1 0 6 I N D E TA I L55
06-05-2002

P R A C T I C A L I N F O R M AT I O N7474
4
1
3
5
6
87 2
1124 cm
3
injection engine
1 .Air Þlter
2 .Brake ßuid
3 .Battery
4 .Power steering
5 .Dip stic k
6 .Eng ine oil Þller
7 .Coolant
8 .Reservoir for front/rear sc reen and
head lamp wash-wip e*
06-05-2002

P R A C T I C A L I N F O R M AT I O N75
4
1
3
5
6
87 2
9
75
1360 cm
3
injection engine
1 .Air Þlter
2 . Brake ßuid
3 .Battery
4 .Power steering
5 .Dip stic k
6 .Eng ine oil Þller
7 .Coolant
8 .Reservoir for front/rear sc reen and
head lamp wash-wip e*
9 .Automatic g earb ox
06-05-2002

P R A C T I C A L I N F O R M AT I O N7676
4
1
3
6
87 2
5
16-valves 1587 cm
3
engine
1 .Air Þlter
2 .Brake ßuid
3 .Battery
4 .Power steering
5 .Dip stic k
6 .Eng ine oil Þller
7 .Coolant
8 .Reservoir for front/rear sc reen and
head lamp wash-wip e*
06-05-2002

P R A C T I C A L I N F O R M AT I O N7777
4
1
3
5
6
87 2
1527 cm
3
diesel engine
1 .Air Þlter
2 .Brake ßuid
3 .Battery
4 .Power steering
5 .Dip stic k
6 .Eng ine oil Þller

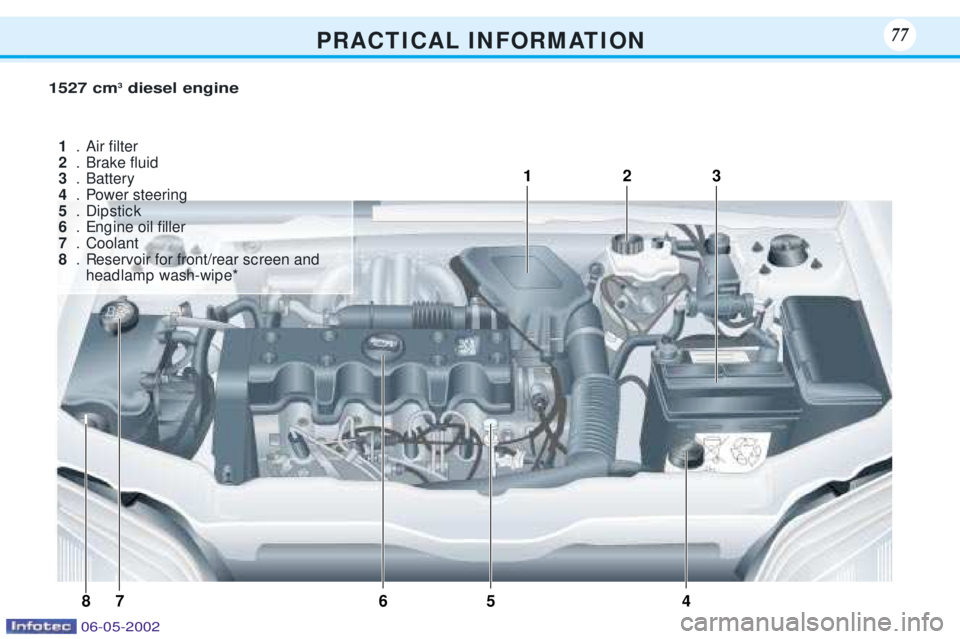

7 .Coolant
8 .Reservoir for front/rear sc reen and
head lamp wash-wip e*
06-05-2002

P R A C T I C A L I N F O R M AT I O N7878
CHECKING THE LEVELS 1. Air Þlter The air filter element must be changed at the recommendedintervals. If you drive in a dustyatmosphere, change it twice asoften. Follow the recommendations given in the maintenance schedule. 2. Brake ßuid The level must always be above the
DANGER mark on the reservoir. Inthe event of a signiÞcant drop in theßuid level, consult a PEUGEOT
dealer immediately. Use fluids
approved by the manufacturer,which conform to DOT 3 or DOT 4standards. 3. Battery
At the beginning of winter, have the battery checked by a PEUGEOT
dealer. In summer (30¡C and above) or if the battery is in heavy use, checkthe level of electrolyte; it must coverthe separator plates at all times. If
necessary, top up with distilled
water.4. Power steering* When the engine is cold, the level must always be above the MINmark, close to the MAX mark. 5. Dipstick Check the oil level on ßat ground, with the engine cold and preferably
before the Þrst journey of the day. Never exceed the maximum level.
Check the level regularly.
6. Topping up with oil
Your oil must be changed in accor- dance with the maintenance sche-dule. The oil must be topped up between oil changes. Regularly check and top-up the oil level. Maximum oil consumption is 0.5 litres per 600 miles (1000 km). 7. Coolant Engine cold: the coolant level must be between the min and max marksin the expansion chamber with the
cap removed. To close, turn the capto the second notch*.
Cooling circuit Always use the coolant which is approved by the manufacturer
(PROCOR TM108 / GLYSANTING33 or REVKOGEL 2000). If this isnot possible, top up with distilledwater and have the protection level
checked by a PEUGEOT dealer. When the engine is hot, the coolant temperature is regulated by the fan.As the fan can operate with theignition key removed, and as thecooling circuit is pressurised,
do
not carry out any work for atleast an hour after switching offthe engine .
Note: the coolant does not need tobe renewed.
8. Front/rear screen and headlamp wash reservoir*
For optimum cleaning quality and
for your safety, it is best to use clea-ning products approved by PEU-GEOT (capacity 4.5 litres withoutheadlamp wash, 5.5 litres withheadlamp wash). * According to speciÞcation
