2001 Oldsmobile Alero mirror controls

Table of Contents
Windows
Keys and Door Locks
Remote Keyless Entry System (If Equipped)
Remote Trunk Release
Automatic Transaxle (If Equipped)
Manual Transaxle (If Equipped)
Parking Brake
Tilt Wheel
Turn Signal/Multifunction LeverWindshield Wipers
Cruise Control
Exterior and Interior Lamps
Mirrors
Storage Compartments
Convenience Net (If Equipped)
Accessory Power Outlet
Sunroof (Option)
Instrument Panel, Warning Lights and Gages Seats and Seat Controls
Safety BeltsSupplemental Restraint System (SRS)
Restraints Systems for Children
Section
1
Section
2
Seats and Restraint Systems
Features and Controls
ii

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-11 Remote Keyless Entry System (If Equipped)
2
-16 Trunk
2
-19 Theft
2
-20 Passlock

2-20 New Vehicle ªBreak-Inº
2
-21 Ignition Positions
2
-22 Starting Your Engine
2
-24 Engine Coolant Heater (Option)
2
-26 Automatic Transaxle Operation
2
-29 Manual Transaxle Operation
2
-31 Parking Brake
2
-32 Shifting Into PARK (P)
(Automatic Transaxle Only)
2
-34 Shifting Out of PARK (P)
(Automatic Transaxle Only)2
-34 Parking Your Vehicle/Key Removal
(Manual Transaxle Models Only)
2
-35 Parking Over Things That Burn
2
-35 Engine Exhaust
2
-36 Running Your Engine While You're Parked
(Automatic Transaxle)
2
-37 Tilt Wheel
2
-37 Turn Signal/Multifunction Lever
2
-45 Exterior Lamps
2
-47 Interior Lamps
2
-49 Mirrors
2
-50 Storage Compartments
2
-51 Ashtray and Cigarette Lighter (If Equipped)
2
-51 Sun Visors
2
-52 Accessory Power Outlet
2
-53 Sunroof (Option)
2
-54 The Instrument Panel -- Your
Information System
2
-58 Warning Lights, Gages and Indicators

2-47

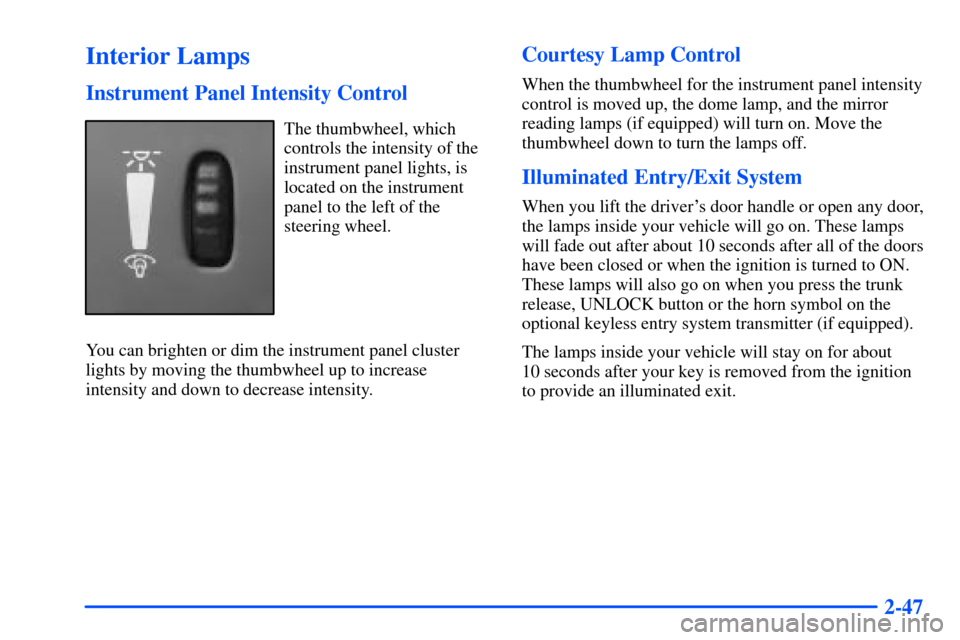

Interior Lamps
Instrument Panel Intensity Control
The thumbwheel, which
controls the intensity of the
instrument panel lights, is
located on the instrument
panel to the left of the
steering wheel.
You can brighten or dim the instrument panel cluster
lights by moving the thumbwheel up to increase
intensity and down to decrease intensity.
Courtesy Lamp Control
When the thumbwheel for the instrument panel intensity
control is moved up, the dome lamp, and the mirror
reading lamps (if equipped) will turn on. Move the
thumbwheel down to turn the lamps off.
Illuminated Entry/Exit System
When you lift the driver's door handle or open any door,
the lamps inside your vehicle will go on. These lamps
will fade out after about 10 seconds after all of the doors
have been closed or when the ignition is turned to ON.
These lamps will also go on when you press the trunk
release, UNLOCK button or the horn symbol on the
optional keyless entry system transmitter (if equipped).
The lamps inside your vehicle will stay on for about
10 seconds after your key is removed from the ignition
to provide an illuminated exit.

2-49
Mirrors
Inside Day/Night Rearview Mirror
The mirror can be adjusted two ways. First, to adjust
the height of the mirror, adjust the arm that connects
the mirror to the windshield. Then adjust the angle of
the mirror, by moving the mirror to a position that
allows you to see out of the back window.
To reduce glare from headlamps behind you, move the
lever toward you to the night position. To return the
mirror to the daytime position, move the lever away
from you.
Manual Remote Control Mirror
The outside rearview mirror should be adjusted so you
can see a little of the side of your vehicle when you are
sitting in a comfortable driving position.
Adjust the driver's outside mirror with the control lever
on the driver's door.
To adjust your passenger's mirror, sit in the driver's seat
and have a passenger adjust the mirror for you.
Power Remote Control Mirrors
(If Equipped)
These controls are located
on the driver's door.
Choose the mirror you want to adjust by moving the
selector to the right or to the left. Press any of the four
arrows located on the control pad to move the mirror in
the desired direction. Adjust each mirror so that you can
see a little of the side of your vehicle when you are
sitting in a comfortable driving position.
