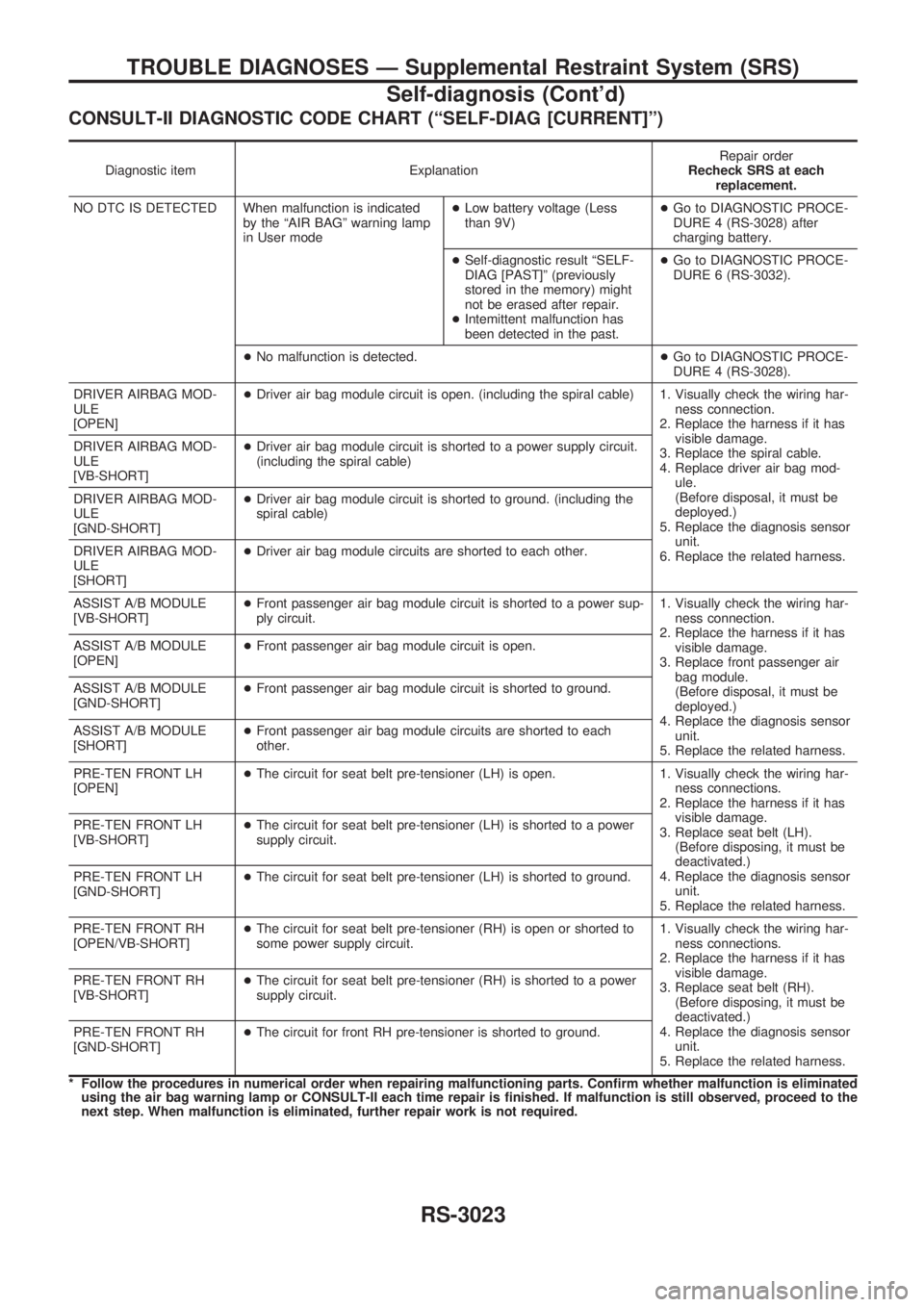

CONSULT-II DIAGNOSTIC CODE CHART (ªSELF-DIAG [CURRENT]º)
Diagnostic item ExplanationRepair order
Recheck SRS at each
replacement.
NO DTC IS DETECTED When malfunction is indicated
by the ªAIR BAGº warning lamp
in User mode+Low battery voltage (Less
than 9V)+Go to DIAGNOSTIC PROCE-
DURE 4 (RS-3028) after
charging battery.
+Self-diagnostic result ªSELF-
DIAG [PAST]º (previously
stored in the memory) might
not be erased after repair.
+Intemittent malfunction has
been detected in the past.+Go to DIAGNOSTIC PROCE-
DURE 6 (RS-3032).
+No malfunction is detected.+Go to DIAGNOSTIC PROCE-
DURE 4 (RS-3028).
DRIVER AIRBAG MOD-
ULE
[OPEN]+Driver air bag module circuit is open. (including the spiral cable) 1. Visually check the wiring har-
ness connection.
2. Replace the harness if it has
visible damage.
3. Replace the spiral cable.
4. Replace driver air bag mod-
ule.
(Before disposal, it must be
deployed.)
5. Replace the diagnosis sensor
unit.
6. Replace the related harness. DRIVER AIRBAG MOD-
ULE
[VB-SHORT]+Driver air bag module circuit is shorted to a power supply circuit.
(including the spiral cable)
DRIVER AIRBAG MOD-
ULE
[GND-SHORT]+Driver air bag module circuit is shorted to ground. (including the
spiral cable)
DRIVER AIRBAG MOD-
ULE
[SHORT]+Driver air bag module circuits are shorted to each other.
ASSIST A/B MODULE
[VB-SHORT]+Front passenger air bag module circuit is shorted to a power sup-
ply circuit.1. Visually check the wiring har-
ness connection.
2. Replace the harness if it has
visible damage.
3. Replace front passenger air
bag module.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor
unit.
5. Replace the related harness. ASSIST A/B MODULE
[OPEN]+Front passenger air bag module circuit is open.
ASSIST A/B MODULE
[GND-SHORT]+Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]+Front passenger air bag module circuits are shorted to each
other.
PRE-TEN FRONT LH
[OPEN]+The circuit for seat belt pre-tensioner (LH) is open. 1. Visually check the wiring har-
ness connections.
2. Replace the harness if it has
visible damage.
3. Replace seat belt (LH).
(Before disposing, it must be
deactivated.)
4. Replace the diagnosis sensor
unit.
5. Replace the related harness. PRE-TEN FRONT LH
[VB-SHORT]+The circuit for seat belt pre-tensioner (LH) is shorted to a power
supply circuit.
PRE-TEN FRONT LH
[GND-SHORT]+The circuit for seat belt pre-tensioner (LH) is shorted to ground.
PRE-TEN FRONT RH
[OPEN/VB-SHORT]+The circuit for seat belt pre-tensioner (RH) is open or shorted to
some power supply circuit.1. Visually check the wiring har-
ness connections.
2. Replace the harness if it has
visible damage.
3. Replace seat belt (RH).
(Before disposing, it must be
deactivated.)
4. Replace the diagnosis sensor
unit.
5. Replace the related harness. PRE-TEN FRONT RH
[VB-SHORT]+The circuit for seat belt pre-tensioner (RH) is shorted to a power
supply circuit.
PRE-TEN FRONT RH
[GND-SHORT]+The circuit for front RH pre-tensioner is shorted to ground.
* Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated
using the air bag warning lamp or CONSULT-II each time repair is finished. If malfunction is still observed, proceed to the
next step. When malfunction is eliminated, further repair work is not required.
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Self-diagnosis (Cont'd)
RS-3023

9. Diagnostic code is displayed on ªTROUBLE DIAG
RECORDº.
10. Touch ªPRINTº.
11. Compare diagnostic codes to the INTERMITTENT MAL-
FUNCTION DIAGNOSTIC CODE CHART, page RS-3034.
12. Touch ªBACKº key of CONSULT-II until SELECT SYSTEM
appears, then turn off CONSULT-II.
13. Turn ignition switch ªOFFº, then turn off and disconnect
CONSULT-II and both battery cables.
14. Repair the system as outlined by the ªRepair orderº in
INTERMITTENT MALFUNCTION DIAGNOSTIC CODE
CHART, that corresponds to the self-diagnosis result. For
replacement procedure of component parts, refer to RS-3005
and ªRemoval and Installationº in RS section of Service
Manual (Pub. No. SM9E-D22BE0E) for details.
15. Go to DIAGNOSTIC PROCEDURE 4, page RS-3028.

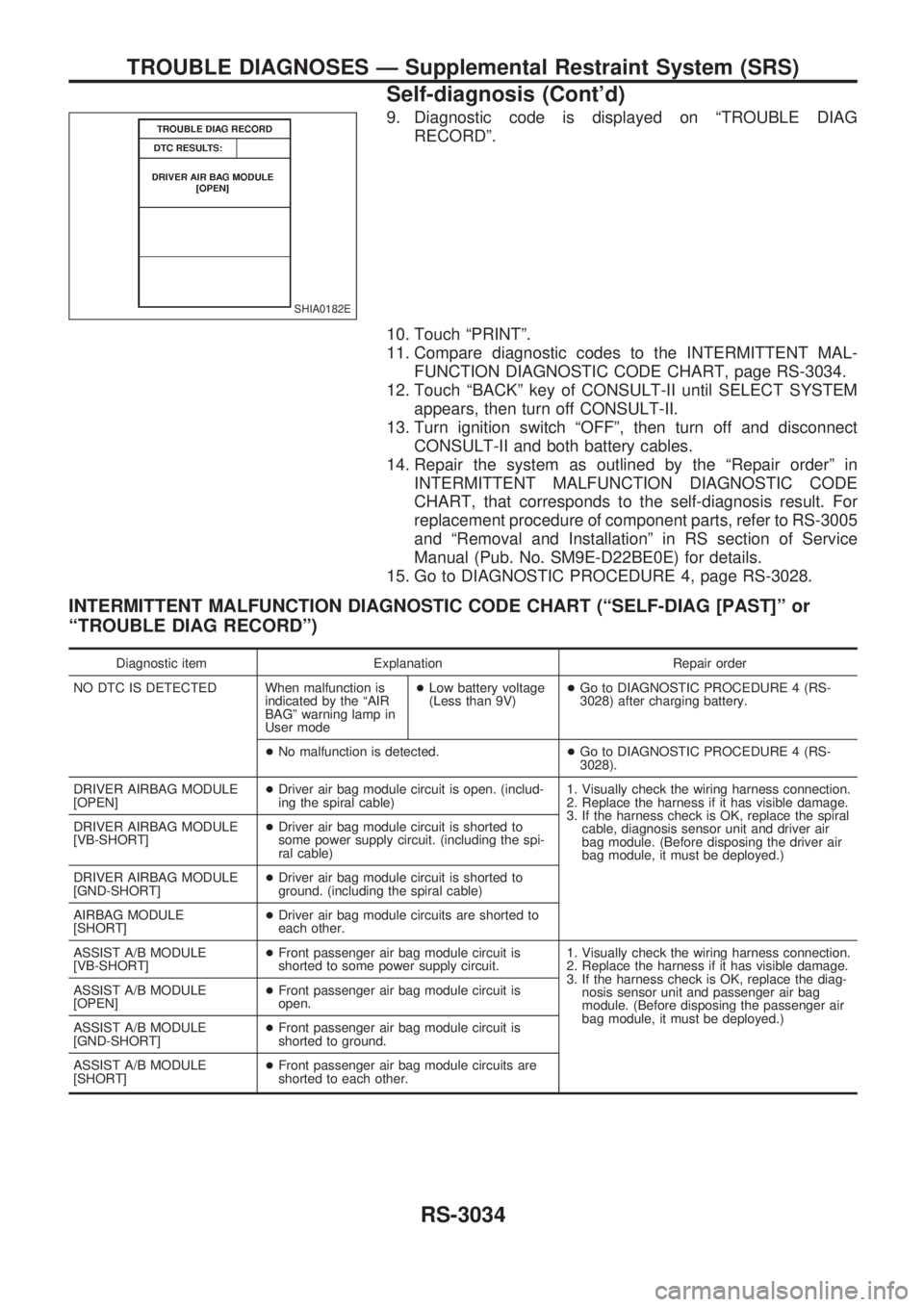

INTERMITTENT MALFUNCTION DIAGNOSTIC CODE CHART (ªSELF-DIAG [PAST]º or
ªTROUBLE DIAG RECORDº)
Diagnostic item Explanation Repair order
NO DTC IS DETECTED When malfunction is
indicated by the ªAIR
BAGº warning lamp in
User mode+Low battery voltage
(Less than 9V)+Go to DIAGNOSTIC PROCEDURE 4 (RS-
3028) after charging battery.
+No malfunction is detected.+Go to DIAGNOSTIC PROCEDURE 4 (RS-
3028).
DRIVER AIRBAG MODULE
[OPEN]+Driver air bag module circuit is open. (includ-
ing the spiral cable)1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. If the harness check is OK, replace the spiral
cable, diagnosis sensor unit and driver air
bag module. (Before disposing the driver air
bag module, it must be deployed.) DRIVER AIRBAG MODULE
[VB-SHORT]+Driver air bag module circuit is shorted to
some power supply circuit. (including the spi-
ral cable)
DRIVER AIRBAG MODULE
[GND-SHORT]+Driver air bag module circuit is shorted to
ground. (including the spiral cable)
AIRBAG MODULE
[SHORT]+Driver air bag module circuits are shorted to
each other.
ASSIST A/B MODULE
[VB-SHORT]+Front passenger air bag module circuit is
shorted to some power supply circuit.1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. If the harness check is OK, replace the diag-
nosis sensor unit and passenger air bag
module. (Before disposing the passenger air
bag module, it must be deployed.) ASSIST A/B MODULE
[OPEN]+Front passenger air bag module circuit is
open.
ASSIST A/B MODULE
[GND-SHORT]+Front passenger air bag module circuit is
shorted to ground.
ASSIST A/B MODULE
[SHORT]+Front passenger air bag module circuits are
shorted to each other.
SHIA0182E
