Diagnostic ProcedureNEEC0142
1 CHECK POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 1 harness connector.
SEF331VC
3. Turn ignition switch ON.
4. Check voltage between terminal 3 and ground with CONSULT-II or tester.
SEF732Z
Voltage: Battery voltage
OK or NG
OK©GO TO 3.
NG©GO TO 2.
2 DETECT MALFUNCTIONING PART
Check the following.
+10A fuse
+Harness for open or short between heated oxygen sensor 1 and 10A fuse
©Repair harness or connectors.
3 CHECK OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between heated oxygen sensor 1 terminal 1 and ECM terminal 119. Refer to the Wiring Dia-
gram.
Continuity should exist.
4. Also check harness for short to ground or short to power.
OK or NG
OK©GO TO 4.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
DTC P0031, P0032 HO2S1 HEATERKA24DE (EURO OBD)
Diagnostic Procedure
EC-3136

Diagnostic ProcedureNEEC0186
1 CHECK POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Turn ignition switch ON.
4. Check voltage between terminal 2 and ground.
SEF218W
Voltage: Battery voltage
OK or NG
OK©GO TO 3.
NG©GO TO 2.
2 DETECT MALFUNCTIONING PART
Check the following.
+10A fuse
+Harness for open or short between heated oxygen sensor 2 and 10A fuse
©Repair harness or connectors.
3 CHECK OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between heated oxygen sensor 2 terminal 3 and ECM terminal 122. Refer to the Wiring Dia-
gram.
Continuity should exist.
4. Also check harness for short to ground or short to power.
OK or NG
OK©GO TO 4.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
DTC P0037, P0038 HO2S2 HEATERKA24DE (EURO OBD)
Diagnostic Procedure
EC-3141

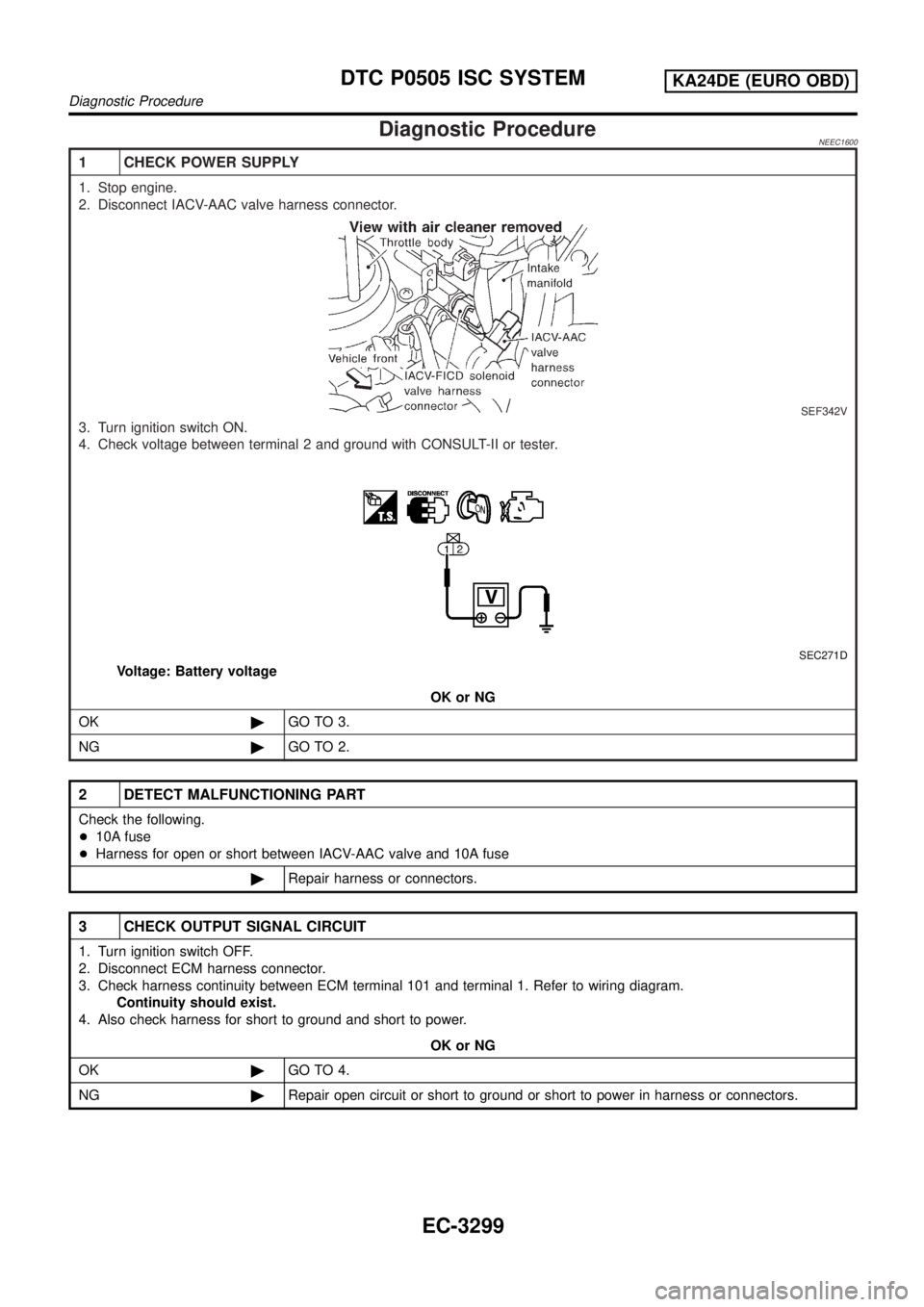

Diagnostic ProcedureNEEC1600
1 CHECK POWER SUPPLY
1. Stop engine.
2. Disconnect IACV-AAC valve harness connector.
SEF342V
3. Turn ignition switch ON.
4. Check voltage between terminal 2 and ground with CONSULT-II or tester.
SEC271D
Voltage: Battery voltage
OK or NG
OK©GO TO 3.
NG©GO TO 2.
2 DETECT MALFUNCTIONING PART
Check the following.
+10A fuse
+Harness for open or short between IACV-AAC valve and 10A fuse
©Repair harness or connectors.
3 CHECK OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 101 and terminal 1. Refer to wiring diagram.
Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 4.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
DTC P0505 ISC SYSTEMKA24DE (EURO OBD)
Diagnostic Procedure
EC-3299

Diagnostic ProcedureNEEC0293
1 CHECK POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect throttle position switch harness connector.
SEF158S
3. Turn ignition switch ON.
4. Check voltage between terminal 5 and engine ground with CONSULT-II or tester.
SEF715U
Voltage: Battery voltage
OK or NG
OK©GO TO 3.
NG©GO TO 2.
2 DETECT MALFUNCTIONING PART
Check the following.
+10A fuse
+Harness for open or short between throttle position switch and 10A fuse
©Repair harness or connectors.
DTC P0510 CTP SWITCHKA24DE (EURO OBD)
Diagnostic Procedure
EC-3304

4 CHECK POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect ignition coil harness connector.
SEC276D
3. Turn ignition switch ON.
4. Check voltage between terminal 7 and ground with CONSULT-II or tester.
AEC698
Voltage: Battery voltage
OK or NG
OK©GO TO 6.
NG©GO TO 5.
5 DETECT MALFUNCTIONING PART
Check the following.
+Harness connectors E101, M5
+Harness for open or short between ignition coil and ECM relay
+Harness for open or short between ECM relay and fuse
©Repair harness or connectors.
6 CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power transistor harness connector.
3. Check harness continuity between power transistor terminal 2 and engine ground. Refer to Wiring Diagram.
Continuity should exist.
4. Also check harness for short to power.
OK or NG
OK©GO TO 7.
NG©Repair open circuit or short to power in harness or connectors.
IGNITION SIGNALKA24DE (EURO OBD)
Diagnostic Procedure
EC-3366

2 CHECK POWER SUPPLY
1. Stop engine.
2. Disconnect injector harness connector.
3. Turn ignition switch ON.
4. Check voltage between injector terminal 2 and ground with CONSULT-II or tester.
SEC277D
Voltage: Battery voltage
OK or NG
OK©GO TO 4.
NG©GO TO 3.
3 DETECT MALFUNCTIONING PART
Check the following.
+10A fuse
+Harness for open or short between injector and fuse
©Repair harness or connectors.
4 CHECK OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between injector terminal 1 and ECM terminals 102, 104, 109, 111. Refer to Wiring Diagram.
Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 6.
NG©GO TO 5.
5 DETECT MALFUNCTIONING PART
Check the harness for open or short between ECM and injector.
©Repair open circuit or short to ground or short to power in harness or connectors.
INJECTORKA24DE (EURO OBD)
Diagnostic Procedure
EC-3372

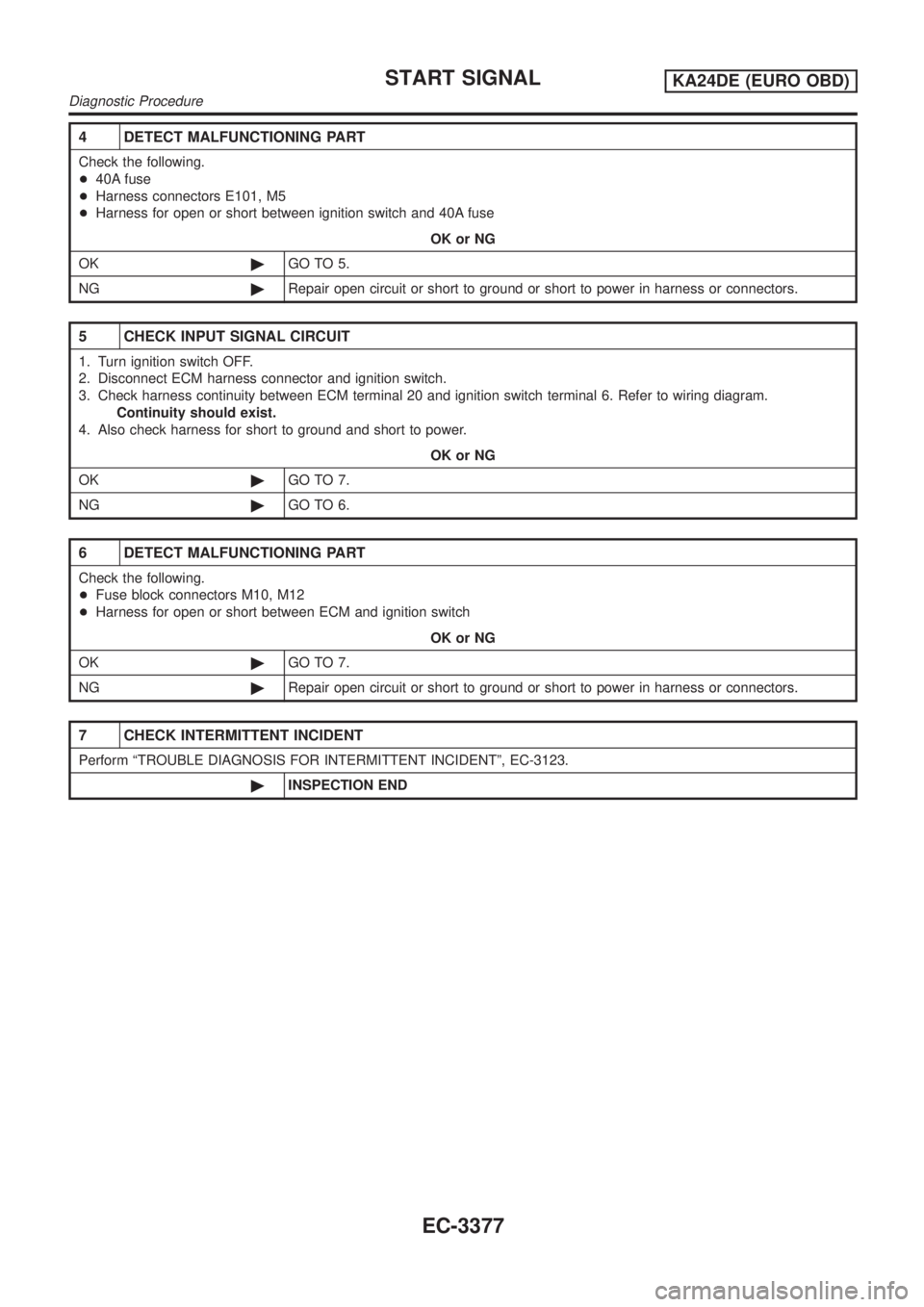

4 DETECT MALFUNCTIONING PART
Check the following.
+40A fuse
+Harness connectors E101, M5
+Harness for open or short between ignition switch and 40A fuse
OK or NG
OK©GO TO 5.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
5 CHECK INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and ignition switch.
3. Check harness continuity between ECM terminal 20 and ignition switch terminal 6. Refer to wiring diagram.
Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 7.
NG©GO TO 6.
6 DETECT MALFUNCTIONING PART
Check the following.
+Fuse block connectors M10, M12
+Harness for open or short between ECM and ignition switch
OK or NG
OK©GO TO 7.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
7 CHECK INTERMITTENT INCIDENT
Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-3123.
©INSPECTION END
START SIGNALKA24DE (EURO OBD)
Diagnostic Procedure
EC-3377

3 DETECT MALFUNCTIONING PART
Check the following.
+15A fuse
+Harness for open or short between fuse and fuel pump relay
©Repair harness or connectors.
4 CHECK FUEL PUMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect fuel level sensor unit and fuel pump harness connector.
SEF334VA
3. Check harness continuity between fuel pump terminal 4 and body ground, fuel pump terminal 2 and fuel pump relay
terminal 3. Refer to wiring diagram.
Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 6.
NG©GO TO 5.
5 DETECT MALFUNCTIONING PART
Check the following.
+Harness connectors M121, C9
+Harness for open or short between fuel pump and body ground
+Harness for open or short between fuel pump and fuel pump relay
©Repair open circuit or short to ground or short to power in harness or connectors.
6 CHECK OUTPUT SIGNAL CIRCUIT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 11 or (14)* and fuel pump relay terminal 1. Refer to wiring diagram.
*: Model with NATS (Nissan Anti-Theft System)
Continuity should exist.
3. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 8.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
FUEL PUMPKA24DE (EURO OBD)
Diagnostic Procedure
EC-3382
