Dashboard

23 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index 1Side air outlet, adjustable, see page 91
2Level control switch and wheel change switch,
see page 196
3Exterior lamp switch, see page 86
4Parking brake release, see page 175
5Hood lock release, see page 220
6Parking brake pedal, see page 175
7Combination switch, see page 86
8Cruise control switch, see page 184
9Horn
10Airbag, see page 60
11Voice recognition system switch, see separate
operating instructions
12Instrument cluster, see page 74
13Steering lock with ignition/starter switch,
see page 165
14Center air outlets adjustable, see page 91
15Heated air supply button - center air outlet,
see page 9116Non-heated/cooled air supply button - center air
outlet, see page 91
17Storage/eyeglasses compartment, see page 124
18Air volume control for left air outlet, see page 91
19Air volume control for center air outlets, see page 91
20Air volume control for right air outlet, see page 91
21Airbag off indicator lamp, see page 213
22Automatic climate control, see page 90
Rear window defroster switch, see page 95
23Audio system, see page 98
24Trunk lid release switch, see page 39
25Switch for tow-away alarm, see page 43
Indicator lamp for antitheft alarm system,
see page 42
26Central locking switch, see page 36
27Hazard warning flasher switch, see page 89
28Adaptive damping system adjustment switch,
see page 199
29ESP control switch, see page 194
30Roll bar operation switch, see page 118

24 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

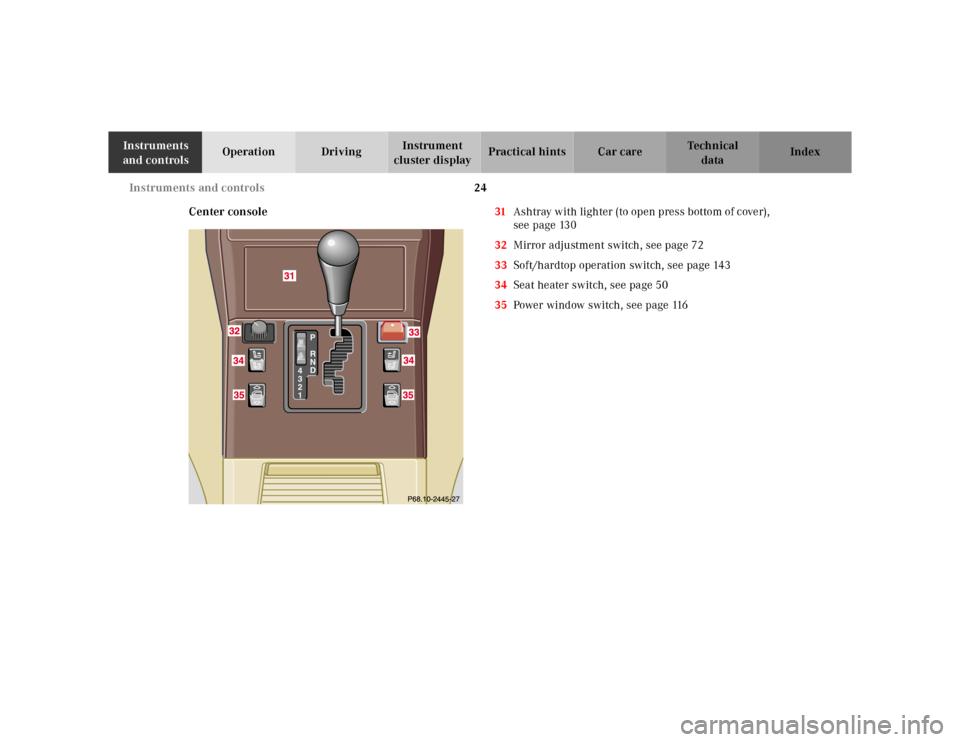

Center console31Ashtray with lighter (to open press bottom of cover),
see page 130
32Mirror adjustment switch, see page 72
33Soft/hardtop operation switch, see page 143
34Seat heater switch, see page 50
35Power window switch, see page 116

25 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

26 Contents - Operation
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Operation Vehicle keys ...................................... 28
Remote control with
folding master key ....................... 28
Central locking system ................... 29
Remote control ............................. 29
Locking and unlocking ................ 30
Choosing global or selective
mode on remote control .............. 31
Opening the trunk ....................... 31
Panic button .................................. 32
Start lock-out .................................... 33
General notes on the
central locking system ............... 33
Doors .................................................. 34
Central locking switch .................... 36
Automatic central locking .......... 37
Emergency unlocking in case of
accident ........................................ 38
Trunk ................................................. 38
Trunk lid release switch ................. 39
Trunk lid emergency release ......... 40
Power windows ................................. 41Antitheft alarm system ................... 42
Tow-away alarm ............................... 43
Power seats ....................................... 44
Storing position in memory ....... 46
Backrest ............................................ 48
Multicontour seats .......................... 49
Seat heater ........................................ 50
Seat belts and integrated
restraint system .......................... 52
Seat belts .......................................... 52
Seat belt nonusage
warning system ............................ 53
Fastening of seat belts ................ 54
BabySmart
TM airbag
deactivation system ................... 58
Self-test BabySmart
TM
without special child
seat installed ............................... 58
Supplemental restraint
system (SRS) ............................... 59
Emergency tensioning
retractor (ETR) ............................ 59
Airbags .............................................. 60
Front airbags ................................ 62Side impact airbags ..................... 62
Safety guidelines for the
seat belt, emergency tensioning
retractor and airbag ..................... 67
Infant and child
restraint systems .......................... 68
Adjusting steering column ............. 70
Storing steering column
position in memory ..................... 70
Rear view mirrors ............................ 71
Inside rear view mirror ............... 71
Antiglare night position .............. 71
Exterior rear view mirrors .......... 72
Storing mirror positions in
memory .......................................... 73
Instrument cluster ........................... 74
Flexible service system (FSS) ........ 80
Engine oil level indicator in odometer
display field ................................. 82
Fuel consumption gauge ................ 83
Engine oil temperature gauge ........ 83
Engine oil consumption .................. 83
Exterior lamp switch ....................... 84
Standing lamps ............................. 85

27 Contents - Operation
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Night security illumination ........ 85
Combination switch ........................ 86
Blocked windshield wiper .......... 88
Windshield wiper smears ........... 88
Windshield and
headlamp washer fluid
mixing ratio .................................. 88
Hazard warning flasher switch ..... 89
Automatic climate control .............. 90
Display and controls .................... 92
Basic setting -
automatic mode ............................ 93
Economy ........................................ 93
Special settings ............................ 94
Audio and telephone, operation .... 98
Power windows ................................116
Express opening of
door windows ...............................117
Synchronizing
power windows ............................117
Roll bar .............................................118Interior lighting ............................. 120
Interior lamps ............................. 120
Reading lamps ............................ 120
Entrance lamps in footwells,
exit lamps in doors .................... 120
Sunshade, manual ..........................121
Power sunshade ............................. 122
Sun visors ....................................... 123
Illuminated vanity mirror ............ 123
Interior ............................................ 124
Storage compartment
(eyeglasses compartment)
in the dashboard ...................... 124
Interior central
locking system ........................... 125
Integration with vehicle
central locking system .............. 126
Separate locking of storage
compartments ............................ 126
Armrest ........................................... 127
Console storage compartments ... 127Cup holder ...................................... 128
Parcel net in
passenger footwell .................... 128
Door pockets ................................... 129
Rear storage compartment ........... 129
Ashtray with lighter ...................... 130
Lighter ............................................. 131
Telephone, general ........................ 132
Garage door opener ....................... 133
Hardtop or panorama roof ............ 137
Removing hardtop ...................... 137
Attaching hardtop ...................... 140
Soft top ............................................ 143
Lowering soft top ........................ 144
Raising soft top ........................... 145
Wind screen .................................... 148
Antenna ........................................... 151

28 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Ve h i c l e k ey s
Included with your vehicle are 2 remote controls with
folding master keys.Remote control with folding master key
The remote control operates all locks on the vehicle.
To release the key, press button (1). The key unfolds
from the holder by itself.
The transmitter for the remote control is located in the
ke y ho ld e r.
The infrared receivers are located in the door handles.
Wa r n i n g !
When leaving the vehicle always remove the key
from the steering lock, and lock your vehicle. Do
not leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause serious
personal injury.
1

29 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Note:
Do not give the master key to an unauthorized person.
Obtaining replacement keys
Your vehicle is equipped with a theft deterrent locking
system requiring a special key manufacturing process.
For security reasons, replacement keys can only be
obtained from your authorized Mercedes-Benz Center.
Central locking system
Remote control
Due to the extended operational range of the remote
control, it could be possible to unintentionally lock or
unlock the vehicle by pressing the transmit button.
The vehicle doors, trunk, storage compartment in
armrest, and fuel filler flap can be centrally locked and
unlocked via remote control.1Transmit button
‹ Locking
ΠUnlocking
ŠOpening trunk
2PANIC button
3Release button for master key
4Transmitter eye and lamp for battery check
