2001 MAZDA MODEL TRIBUTE 4WD fog light

These are some of the symbols you may see on your vehicle.Vehicle Symbol Glossary
Safety Alert
See Owner's Guide
Fasten Safety BeltAir Bag-Front
Air Bag-SideChild Seat
Child Seat Installation
WarningChild Seat Tether
Anchorage
Brake SystemAnti-Lock Brake System
Brake Fluid -
Non-Petroleum BasedTraction Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Power Windows
Front/RearPower Window Lockout
Introduction
4

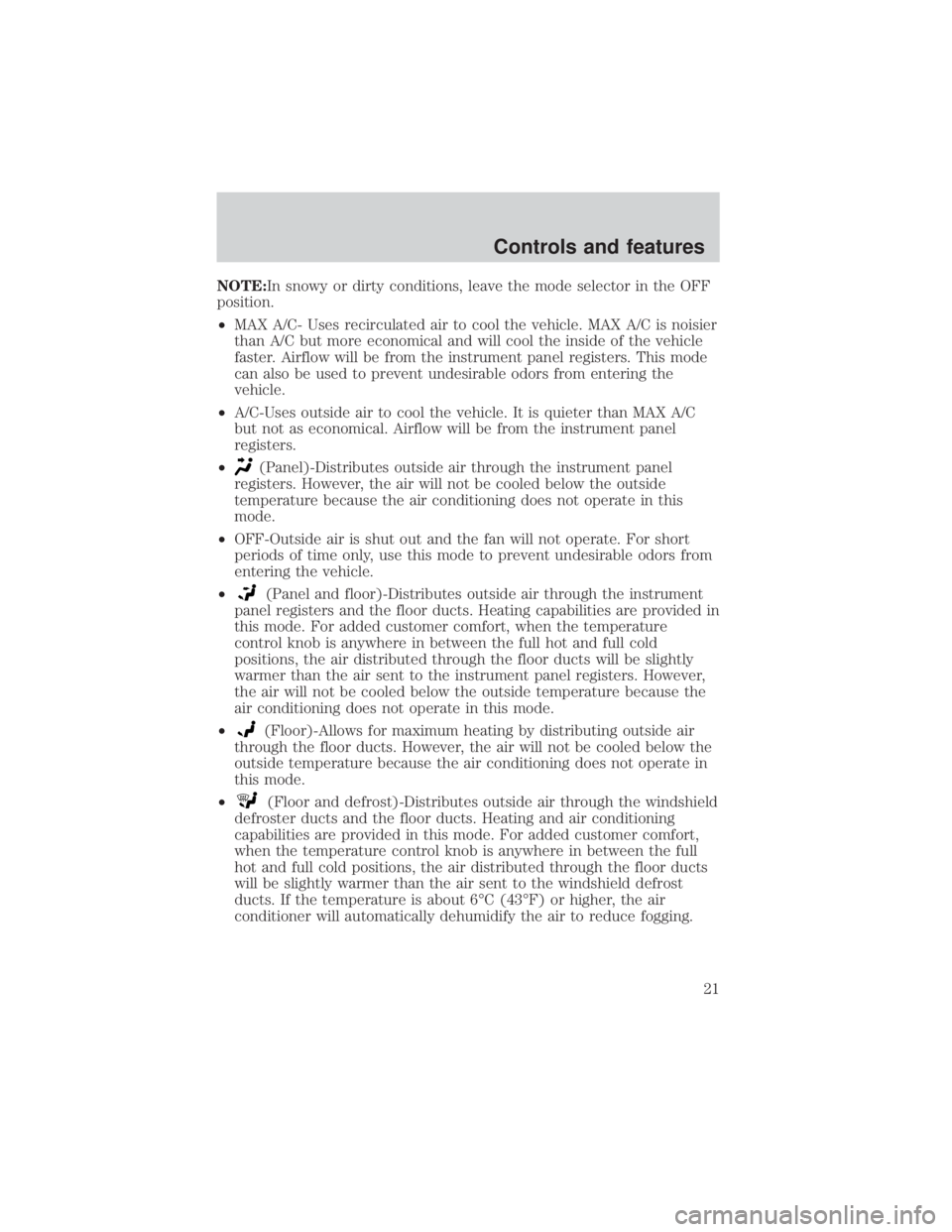

NOTE:In snowy or dirty conditions, leave the mode selector in the OFF
position.
²MAX A/C- Uses recirculated air to cool the vehicle. MAX A/C is noisier
than A/C but more economical and will cool the inside of the vehicle
faster. Airflow will be from the instrument panel registers. This mode
can also be used to prevent undesirable odors from entering the
vehicle.
² A/C-Uses outside air to cool the vehicle. It is quieter than MAX A/C
but not as economical. Airflow will be from the instrument panel
registers.
²
(Panel)-Distributes outside air through the instrument panel
registers. However, the air will not be cooled below the outside
temperature because the air conditioning does not operate in this
mode.
² OFF-Outside air is shut out and the fan will not operate. For short
periods of time only, use this mode to prevent undesirable odors from
entering the vehicle.
²
(Panel and floor)-Distributes outside air through the instrument
panel registers and the floor ducts. Heating capabilities are provided in
this mode. For added customer comfort, when the temperature
control knob is anywhere in between the full hot and full cold
positions, the air distributed through the floor ducts will be slightly
warmer than the air sent to the instrument panel registers. However,
the air will not be cooled below the outside temperature because the
air conditioning does not operate in this mode.
²
(Floor)-Allows for maximum heating by distributing outside air
through the floor ducts. However, the air will not be cooled below the
outside temperature because the air conditioning does not operate in
this mode.
²
(Floor and defrost)-Distributes outside air through the windshield
defroster ducts and the floor ducts. Heating and air conditioning
capabilities are provided in this mode. For added customer comfort,
when the temperature control knob is anywhere in between the full
hot and full cold positions, the air distributed through the floor ducts
will be slightly warmer than the air sent to the windshield defrost
ducts. If the temperature is about 6ÉC (43ÉF) or higher, the air
conditioner will automatically dehumidify the air to reduce fogging.
Controls and features
21

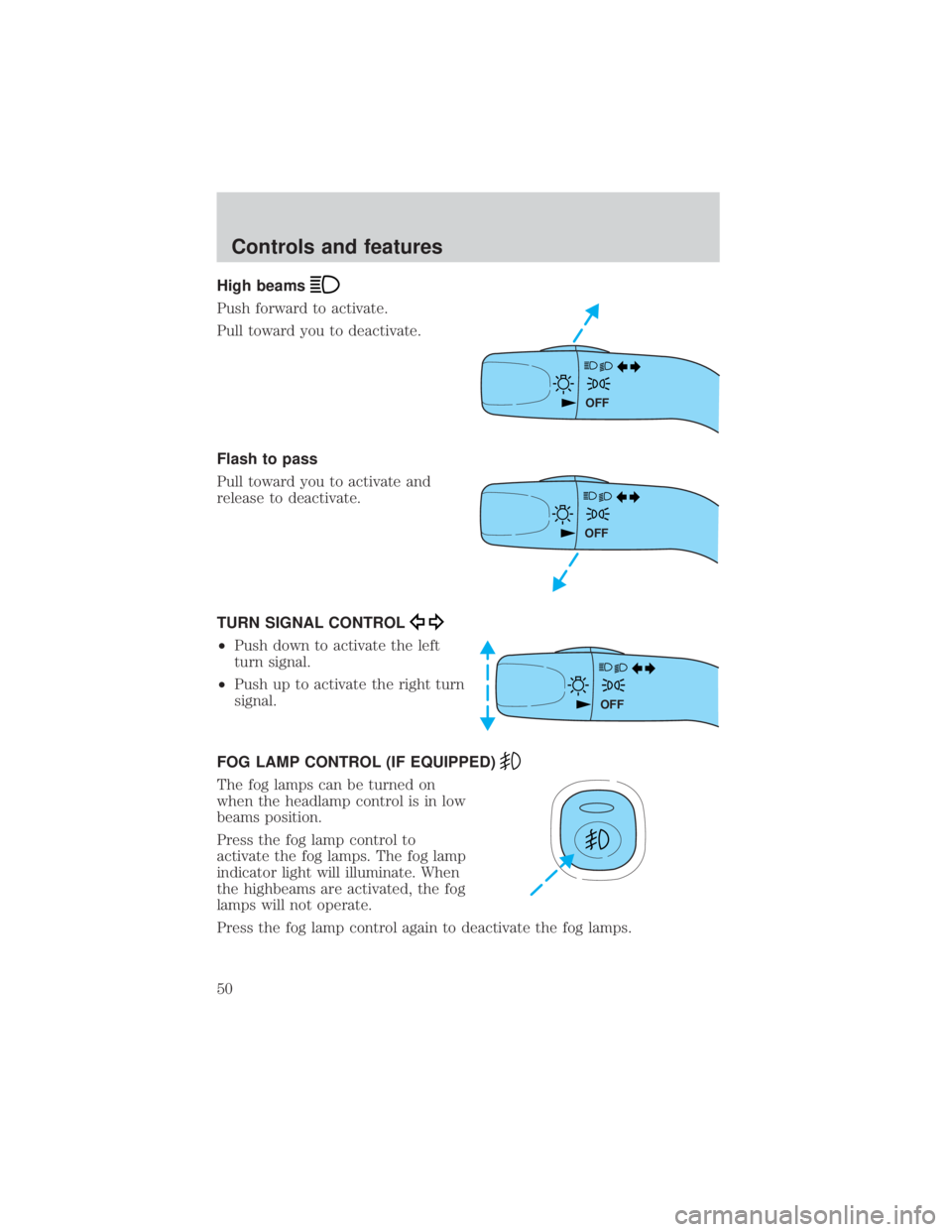

High beams
Push forward to activate.
Pull toward you to deactivate.
Flash to pass
Pull toward you to activate and
release to deactivate.
TURN SIGNAL CONTROL
²Push down to activate the left
turn signal.
² Push up to activate the right turn
signal.
FOG LAMP CONTROL (IF EQUIPPED)
The fog lamps can be turned on
when the headlamp control is in low
beams position.
Press the fog lamp control to
activate the fog lamps. The fog lamp
indicator light will illuminate. When
the highbeams are activated, the fog
lamps will not operate.
Press the fog lamp control again to deactivate the fog lamps.
OFF
OFF
OFF
Controls and features
50

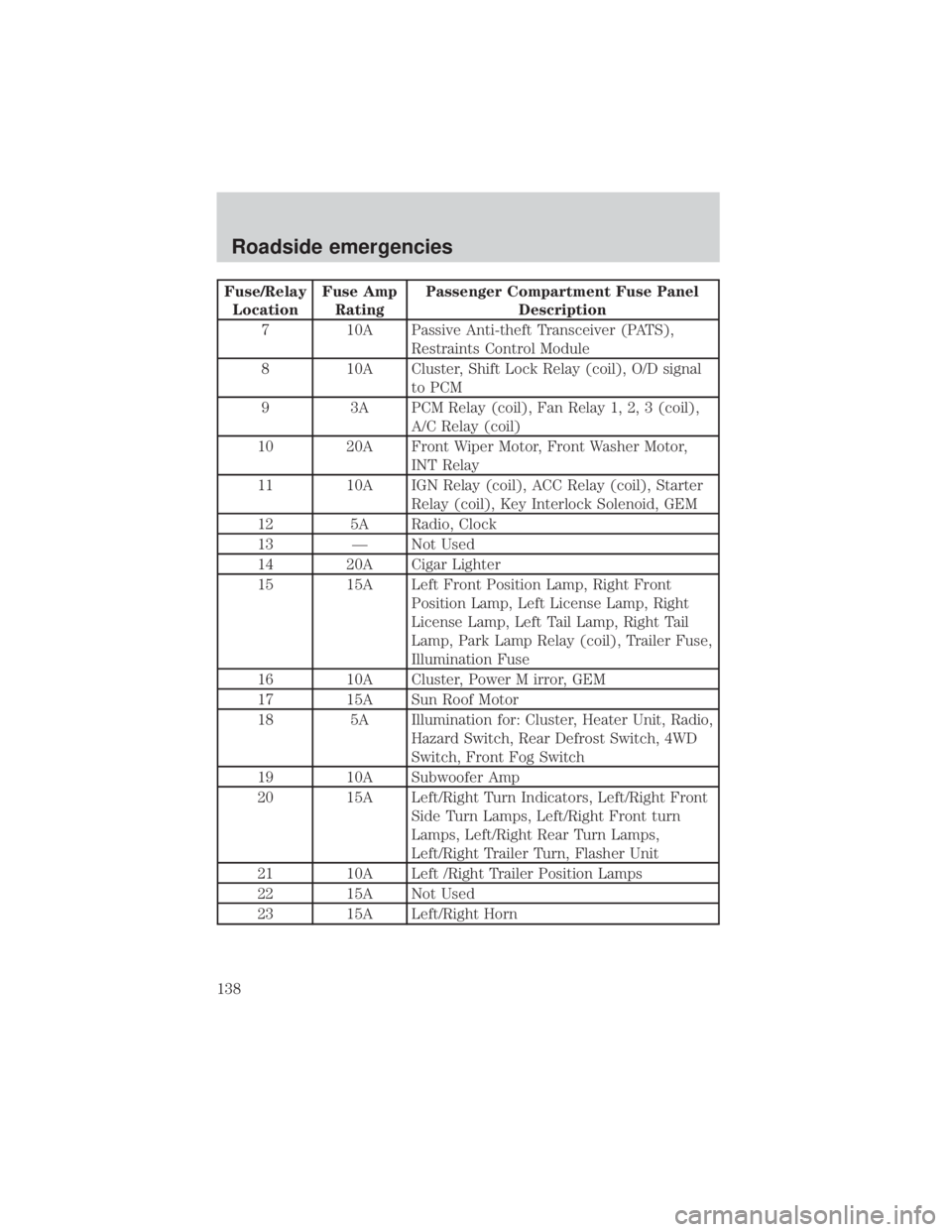

Fuse/RelayLocation Fuse Amp
Rating Passenger Compartment Fuse Panel
Description
7 10A Passive Anti-theft Transceiver (PATS), Restraints Control Module
8 10A Cluster, Shift Lock Relay (coil), O/D signal to PCM
9 3A PCM Relay (coil), Fan Relay 1, 2, 3 (coil), A/C Relay (coil)
10 20A Front Wiper Motor, Front Washer Motor, INT Relay
11 10A IGN Relay (coil), ACC Relay (coil), Starter Relay (coil), Key Interlock Solenoid, GEM
12 5A Radio, Clock
13 Ð Not Used
14 20A Cigar Lighter
15 15A Left Front Position Lamp, Right Front Position Lamp, Left License Lamp, Right
License Lamp, Left Tail Lamp, Right Tail
Lamp, Park Lamp Relay (coil), Trailer Fuse,
Illumination Fuse
16 10A Cluster, Power M irror, GEM
17 15A Sun Roof Motor
18 5A Illumination for: Cluster, Heater Unit, Radio, Hazard Switch, Rear Defrost Switch, 4WD
Switch, Front Fog Switch
19 10A Subwoofer Amp
20 15A Left/Right Turn Indicators, Left/Right Front Side Turn Lamps, Left/Right Front turn
Lamps, Left/Right Rear Turn Lamps,
Left/Right Trailer Turn, Flasher Unit
21 10A Left /Right Trailer Position Lamps
22 15A Not Used
23 15A Left/Right Horn
Roadside emergencies
138

Fuse/RelayLocation Fuse Amp
Rating Power Distribution Box Description
DIODE Ð Ð
H/L RELAY MICRO Ð Headlamp (High/Low, Right/Left Relay)
ÐÐÐ
INJ 30A** EEC (VPWR), EVR, MAF, IAC, Bulkhead
MAIN 120A Main ALT 15A* Alternator/ Regulator
(DRL) 15A* DRL Unit (feed), DRL Relay
(DRLZ)
(HELV) 15A*(DRLZ)
10A(HLEV) Daytime Running Lamps (DRL) Module,
HLEV
PWR 1 15A* Auxiliary Power Point FOG 20A* Foglamps RH/LH, Foglamp IndicatorA/C 15A* A/C Clutch
(ABS) 25A* Anti-Lock Brake System SOL
PWR 2 15A* Auxiliary Power Point
IG MAIN 40A** Starter HTR 40A** Blower Motor, Blower Motor Relay
BTN 1 40A** JB Ð Acc. Relay, Radio, Cigar Lighter, Cluster, Power Mirror, GEM, Electronic
Flasher Control
(ABS) 60A** Anti-Lock Brake System Motor
BTN 2 40A** JB Ð Radio, Cluster, Dome Lamps, Map Lamps, Cargo Lamps, Cruise Control, Power
Seat, Horn
MAIN FAN 40A** (2.0L)
50A(3.0L) Main Fan
R DEF 30A** Rear Defroster
ADD FAN 40A**(2.0L) 50A(3.0L)Add Fan
EEC MAIN ISO Ð EEC Relay
Roadside emergencies
141

Replacing front parking lamp/turn signal bulbs
For bulb replacement, see an authorized Mazda dealer.
Replacing high-mount brake lamp bulbs
For bulb replacement, see an authorized Mazda dealer.
Replacing the interior bulbs
Check the operation of the following interior bulbs frequently:
²interior overhead lamp
² map lamp
For bulb replacement, see an authorized Mazda dealer.
USING THE RIGHT BULBS
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized ªD.O.T.º for North America and an
ªEº for Europe to assure lamp performance, light brightness and pattern
and safe visibility.
NOTE: The correct bulbs will not damage the lamp assembly or void the
lamp assembly warranty and will provide quality bulb burn time.
Function Number of bulbs Trade number
Park/turn lamps (front) 2 3157 AK (amber)
Headlamps 2 9007
Rear stop/tail lamps 2 3157K
Rear turn lamps 2 3156K
Rear license plate lamps 2 3156K/168
Backup lamp 2 3156K
Rear/turn/sidemarker 2 916NA (amber)
Fog lamp (if equipped) 2 899
Cargo lamp 1 211-2
Interior overhead lamp 1 912 (906)
Front door courtesy lamp 1 168
Map lamps 2 168 (T10)
Ashtray lamp 1 161
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your dealer.
Maintenance and care
204

interior .....................................210
mirrors .....................................211
plastic parts ............................209
safety belts ..............................211
washing ....................................206
waxing .....................................207
wheels ......................................209
windows ..................................211
wiper blades ............................209
woodtone trim ........................211
Climate control (see Air
conditioning or Heating) ............20
Clock ......................................28, 37
Clutch fluid ..........................................170
operation while driving ..........116
recommended shift speeds ....117
Console ........................................53 overhead ....................................46
Controls power seat .................................68
Coolant checking and adding ..............171
refill capacities ................175, 212
specifications ..........................214
Cruise control
(see Speed control) ....................40
Customer Assistance ........217±218
D
Daytime running lamps
(see Lamps) ................................49
Defrost rear window ..............................19
Dipstick automatic transmission
fluid ..........................................177 engine oil .................................165
Doors door ajar warning .....................12
Driving under special
conditions ..................................123 mud ..........................................122
sand .........................................122
snow and ice ...................122, 124
through water .................122, 126
E
Emergencies, roadside jump-starting ..........................147
Emission control system ..........198
Engine ........................................214 check engine/service engine
soon light ....................................8
cleaning ...................................208
coolant .....................................171
idle speed control ...................179
lubrication specifications .......214
refill capacities ........................212
service points ..................163±164
starting after a collision .........134
Engine block heater .................105
Engine oil ..................................165 checking and adding ..............165
dipstick ....................................165
filter, specifications ................168
recommendations ...................168
refill capacities ........................212
specifications ..........................214
Exhaust fumes ..........................106
F
Fluid capacities .........................212
Foglamps .....................................50
Index
226

Instrument panelcleaning ...................................210
cluster ..........................................8
lighting up panel and
interior .......................................18
location of components ..............8
J
Jack ............................................142 positioning ...............................142
storage .....................................142
Jump-starting your vehicle ......147
K
Keys .......................................61±63 key in ignition chime ...............14
positions of the ignition ...........39
L
Lamps bulb replacement
specifications chart ................204
cargo lamps ...............................18
daytime running light ...............49
fog lamps ...................................50
headlamps .................................49
headlamps, flash to pass ..........50
instrument panel, dimming .....18
interior lamps ...................48, 204
replacing bulbs .......200, 202±204
Lane change indicator
(see Turn signal) ........................50
Liftgate ........................................56
Lights, warning and indicator ......8 air bag ........................................10
anti-lock brakes (ABS) ....10, 108
anti-theft ...................................11 brake ..........................................10
charging system ........................12
cruise indicator .........................11
door ajar ....................................12
fuel cap light .............................14
high beam .................................11
low coolant ................................13
low fuel ........................................9
oil pressure ...............................12
overdrive off ..............................13
safety belt .................................10
service engine soon ....................8
turn signal indicator .................11
Load limits .................................124 GAWR ......................................124
GVWR ......................................124
trailer towing ..........................124
Loading instructions .................126
Locks childproof ..................................53
doors ..........................................52
Lubricant specifications ...........214
M
Manual transaxle .......................116 fluid, checking and adding ....179
reverse .....................................118
Manual transmission fluid capacities ........................212
Mirrors cleaning ...................................211
fold away ...................................19
side view mirrors (power) .......18
Moon roof ....................................47
Motorcraft parts ........................194
Index
228
