CLIMATE CONTROLS
Always check the Owner’s Manual for more operating information and safety features
Climate
Controls
Console/
Trunk
Quick Tips 2001 Mazda Millenia page 14
page 15
Revised January 9, 2001
Trunk
To open: Use key or remote
keyless entry fob
Remote trunk release,
see Driver’s View
Remote trunk release
lock-out
To enable/disable: Press left/
right side of switch (located
in glovebox)5. Temporary spare tire
To change flat tire:
Follow instructions in
Owner’s Manual
WARNING: Do not exceed
50 mph with temporary
spare
6. Lugwrench and jack
handle
7. Jack
Interior luggage
compartment
release
Allows you to escape
should you become
locked in trunk
To open: Pull “T” handle; “T”
handle will glow if it has been
exposed to light
2
34
1
5
7
6
8
Automatic climate control
1. Auto
Press to select automatic
system operation
2. Temperature control
Rotate left/right for
colder/warmer
3. Mode
Press to select
= air to dash
= air to dash and floor
= air to floor
= air to floor and
windshield
4. Off
Press to turn off climate
control system
5. Fan control
Press to cycle through four
speed settings
Center console
1. Parking brake
To engage: Pull up
To release: Pull up slightly
while depressing button at
front of lever, lower parking-
brake lever
2. Cup holders
3. Accessory socket
For accessories only
4. Storage bin6. Ambient temperature
Press to display outside
temperature
7. Air intake control
Press for
recirculated/outside air
8. Air Conditioning
Press to manually select
normal, economical or off
9. Defrost
Press to direct air to windshield
10. Rear window
defogger
Press to turn on/off
11. Clock
12. Clock controls
To set: Press (H) hour/
(M) minutes; press RESET
to clear minutes
Tip: Fan speed, A/C selection
and mode selection are
indicated in display (13)
H SET M RESET
4:20F72
REAR FRONT
69431058712111213
PULL
8

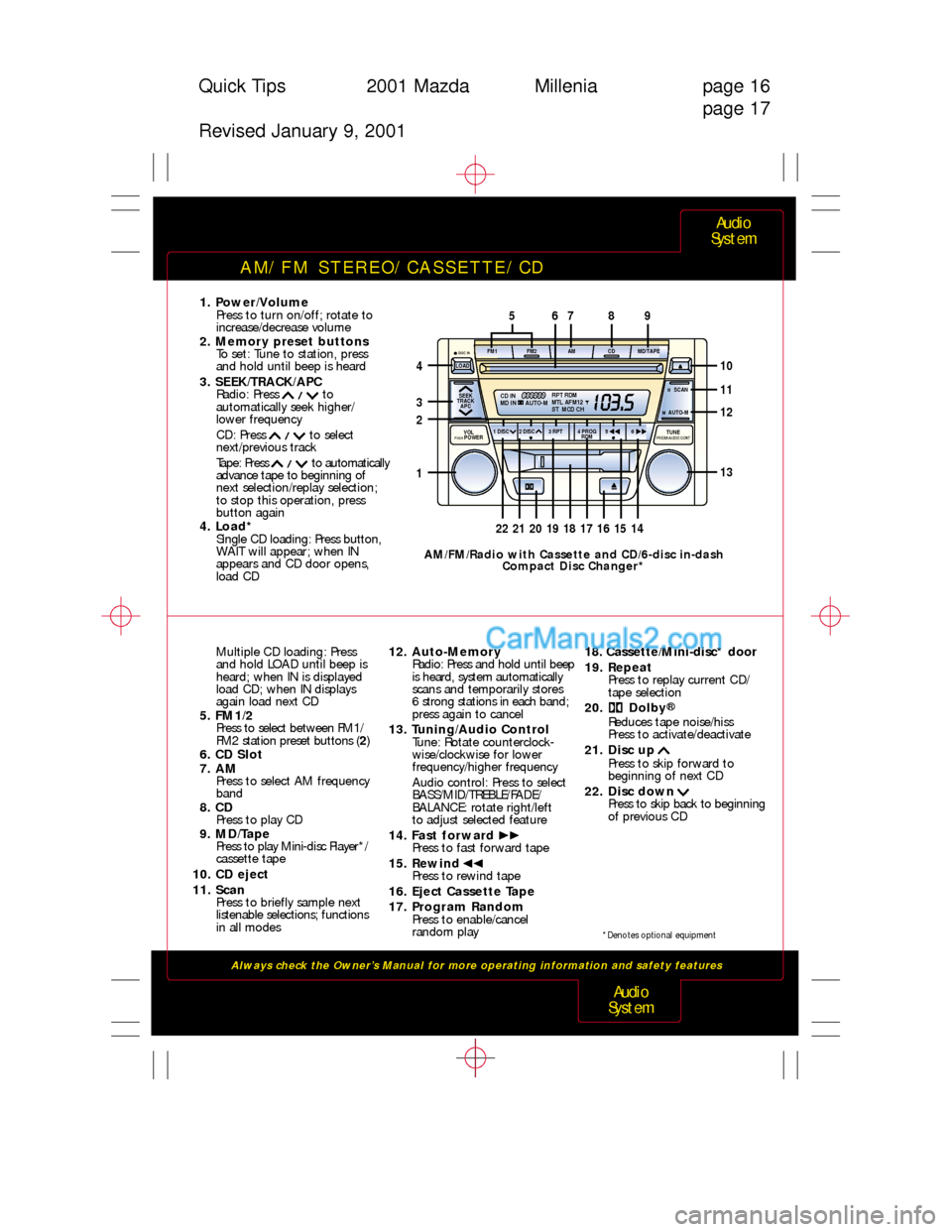

AM/FM STEREO/CASSETTE/CD
Always check the Owner’s Manual for more operating information and safety features
Audio
System
Audio
System
Quick Tips 2001 Mazda Millenia page 16
page 17
Revised January 9, 2001
12. Auto-Memory
Radio: Press and hold until beep
is heard, system automatically
scans and temporarily stores
6 strong stations in each band;
press again to cancel
13. Tuning/Audio Control
Tune: Rotate counterclock-
wise/clockwise for lower
frequency/higher frequency
Audio control: Press to select
BASS/MID/TREBLE/FADE/
BALANCE: rotate right/left
to adjust selected feature
14. Fast forward
Press to fast forward tape
15. Rewind
Press to rewind tape
16. Eject Cassette Tape
17. Program Random
Press to enable/cancel
random play Multiple CD loading: Press
and hold LOAD until beep is
heard; when IN is displayed
load CD; when IN displays
again load next CD
5. FM1/2
Press to select between FM1/
FM2 station preset buttons (2)
6. CD Slot
7. AM
Press to select AM frequency
band
8. CD
Press to play CD
9. MD/Tape
Press to play Mini-disc Player*/
cassette tape
10. CD eject
11. Scan
Press to briefly sample next
listenable selections; functions
in all modes18. Cassette/Mini-disc* door
19. Repeat
Press to replay current CD/
tape selection
20. Dolby
®Reduces tape noise/hiss
Press to activate/deactivate
21. Disc up
Press to skip forward to
beginning of next CD
22. Disc down
Press to skip back to beginning
of previous CD
1. Power/Volume
Press to turn on/off; rotate to
increase/decrease volume
2. Memory preset buttons
To set: Tune to station, press
and hold until beep is heard
3. SEEK/TRACK/APC
Radio: Press to
automatically seek higher/
lower frequency
CD: Press to select
next/previous track
Tape: Press to automatically
advance tape to beginning of
next selection/replay selection;
to stop this operation, press
button again
4. Load*
Single CD loading: Press button,
WAIT will appear; when IN
appears and CD door opens,
load CD
*Denotes optional equipment
SEEK
TRACK
APC
1 DISC 2 DISC 3 RPT 4 PROG
RDM56 FM1 FM2 AM CD MD/TAPEH SCAN
M AUTO-M
TUNE
PRESS AUDIO CONTVOLPUSH POWER
DISC IN
RPT RDM
MTL AFM12
ST MCD CH CD IN
MD IN AUTO-M123456
LOAD4
3
2
15
7689
161718192021221514
13
11
12
10
AM/FM/Radio with Cassette and CD/6-disc in-dash
Compact Disc Changer*
