2001 GMC YUKON XL DENALI ignition

2-86

You can just let the SIC exit the personalization
mode on its own by waiting approximately
15 seconds without touching any buttons.
The SIC will then display the day/date.

Or you can press the MENU key to move on to
the next programmable feature.
The following is a list of the personal settings that can
be changed:
Automatic Door Lock

Enabled: Doors automatically lock when vehicle
speed is above 15 mph for two seconds.

Disabled: Doors do not lock automatically.
Automatic Door Unlock

Driver: Driver's door unlocks when the key is
removed from the ignition.

All: All doors unlock when the key is removed from
the ignition.

Disabled: Doors do not unlock automatically.Remote Lock Feedback

Horn: Horn chirps on second press of the LOCK
button on the keyless entry transmitter.

Lamps: Parking lamps flash on each press of the
LOCK button on the keyless entry transmitter.

Horn and Lamps: Parking lamps flash on each
press, horn chirps on second press of UNLOCK on
the keyless entry transmitter.

None: No horn or lamp feedback to the LOCK
button on the keyless entry transmitter.
Remote Unlock Feedback

Horn: Horn chirps on second press of the UNLOCK
button on the keyless entry transmitter.

Lamps: Parking lamps flash on each press of the
UNLOCK button on the keyless entry transmitter.

Horn and Lamps: Parking lamps flash on each
press, horn chirps on the second press of the
UNLOCK button on the keyless entry transmitter.

None: No horn or lamp feedback will occur when
the UNLOCK button on the keyless entry transmitter
is pressed.

2-87
Headlamp Delay

None: Headlamps do not stay on after the ignition is
turned to OFF.

10/20/30/60/120/180 Seconds: Amount of time
headlamps stay on after the ignition is turned to
OFF when it is dark (switch must be in auto
headlamp position).
Perimeter Lamps

Enabled: Parking lamps, headlamps and puddle
lamps turn on for 40 seconds with the UNLOCK
button on the keyless entry transmitter. This feature
only operates when it is dark.

Disabled: Feature disabled, no perimeter lamps will
come on.Alarm Warning

Horn: Horn will sound when alarm is active.

Lamps: Headlamps and park lamps will cycle on
and off when alarm is activated.

Horn and Lamps : Horn and lamps will alternate
when the alarm is activated.

None: No alarm warning will come on.
Language

English: All information displayed in English.

French: All information displayed in French.

Spanish: All information displayed in Spanish.

Arabic: All information displayed in Arabic.
Display Units

English: Units displayed in English units.

Metric: Units displayed in metric units.

3-9 Defogging and Defrosting
On cool, humid days, use defrost to keep the windshield
and side windows clear. Use defrost to remove fog or ice
from the windshield in extremely humid or cold
conditions. Use defrost with the temperature knob
toward the red area and the fan control turned all the
way to the right.
Rear Window Defogger
The lines running across the rear window are the
window defogger grids. The lines warm the glass.
To turn on the rear window
defogger, press this button
located next to the fan knob.The rear window defogger will only work if the ignition
is in RUN. For best results, clear the window of as much
snow or ice as possible first.
The defogger will shut itself off after several minutes.
If you need additional warming time, press the button
again. You can turn the defogger off at any time by
pressing the button.
The rear window defogger button will also activate the
heated outside mirrors.
Do not attach a temporary vehicle license, tape or decals
across the defogger grid on the rear window.
NOTICE:
Don't use a razor blade or something else sharp
on the inside of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn't be covered by your warranty.

3-11
Ventilation Tips

Keep the hood and front air inlet free of ice, snow or
any other obstruction (such as leaves). The heater
and defroster will work far better, reducing the
chance of fogging the inside of your windows.

When you enter a vehicle in cold weather, turn the
fan knob all the way to the right for a few moments
before driving. This helps clear the intake ducts of
snow and moisture, and reduces the chance of
fogging the inside of your windows.

Keep the air path under the front seats clear of
objects. This helps air to circulate throughout
your vehicle.

The use of hood air deflectors may adversely
affect the performance of the heating and air
conditioning system.Audio Systems
Your audio system has been designed to operate easily
and give years of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audio system can do and how
to operate all its controls, to be sure you're getting the
most out of the advanced engineering that went into it.
Your vehicle has a feature called Retained Accessory
Power (RAP). With RAP, you can play your audio
system even after the ignition is off. See ªRetained
Accessory Powerº in the Index.
Setting the Clock
Press and hold HR until the correct hour appears on the
display. Press and hold MN until the correct minute
appears on the display. To display the clock with the
ignition off, press RECALL or HR/MN and the time
will be displayed for a few seconds. There is an initial
two
-second delay before the clock goes into the
time
-set mode.

3-12 AM-FM Stereo with Cassette Tape Player
Included with the AM-FM Stereo with Cassette Tape
Player are ten Bose
high performance speakers, an
Acoustimass
bass module and a seven channel Bose
amplifier. Please see your dealer for details.
Playing the Radio
PWR VOL: Press this knob to turn the system on and
off. To increase volume, turn the knob clockwise. Turn
it counterclockwise to decrease volume. The knob is
capable of being turned continuously.
REAR DSPL: When the main radio is turned on, press
this button to turn on the rear seat audio display on the
main radio. Press it again to turn the rear seat audio
display off.RECALL: Display the time with the ignition off by
pressing this button. When the radio is playing, press
this button to recall the station frequency.
SCV: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV, your
audio system adjusts automatically to make up for road
and wind noise as you drive. Set the volume at the
desired level. Turn the control ring behind the upper
knob clockwise to adjust the SCV. Then, as you drive,
SCV automatically increases the volume, as necessary,
to overcome noise at any particular speed. The volume
level should always sound the same to you as you drive.
If you don't want to use SCV, turn the control all the
way down. Each notch on the control ring allows for
more volume compensation at faster vehicle speeds.
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display will show your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back into its stored
position when you're not using it.
SEEK: Press the right arrow to tune to the next
higher station and the left arrow to tune to the next
lower station and stay there. The sound will mute
while seeking.

3-14
FADE: Press lightly on this knob to release it from its
stored position. Turn the control clockwise to adjust the
sound to the front speakers and counterclockwise for the
rear speakers. The middle position balances the sound
between the speakers.
Push these knobs back into their stored positions when
you're not using them.
Playing a Cassette Tape
Your tape player is built to work best with tapes that
are up to 30 to 45 minutes long on each side. Tapes
longer than that are so thin they may not work well in
this player.
To load a cassette tape with the ignition off, press
EJECT or RECALL. Then, insert the cassette tape.
If the ignition is on but the radio is off, the tape will
begin playing.
Once the tape is playing, use the VOL, BAL, FADE,
BASS and TREB controls just as you do for the radio.
The tape symbol and a direction arrow will be on the
display whenever a tape is being played. Anytime a
tape is inserted, the top side is selected for play first.
The player automatically senses if the cassette tape is
metal or CrO
2 and adjusts for best playback sound.PREV (1): Press the PREV button or the SEEK left
arrow to search for the previous selection. A minimum
three second blank gap is required for the player to stop
at the beginning of the selection. The tape direction
arrow will blink during the SEEK operation.
PROG (2): Press this button to switch from one side of
the tape to the other.
NEXT (3): Press the NEXT button or the SEEK right
arrow to search for the next selection. A minimum
three second blank gap is required for the player to stop
at the beginning of the selection. The tape direction
arrow will blink during the SEEK operation. The sound
will mute while searching for the next selection.
REV (4): Press this button to rapidly reverse the tape
to the beginning of the cassette or until you press REV
again. The radio will play the last selected station while
reversing the tape. The tape direction arrow will blink
during the reverse operation.

(5): Press this button to reduce cassette tape noise.
The double
-D symbol will appear on the display while
the player is in this mode.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double
-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.

3-15
FWD (6): Press this button to rapidly forward the tape
to the end of the cassette or until you press FWD again.
The radio will play the last selected station while
forwarding the tape. The tape direction arrow will blink
during the forward operation.
AM FM: Press this button to switch from a tape or CD
to the radio.
CD TAPE: Press this button if you have a tape loaded
in the cassette tape player and the radio is turned on, to
play a tape. Press AM FM to return to the radio when a
tape is playing. Press CD TAPE to switch between the
tape player, remote CD and console
-mounted CD
changer if all are loaded. When a tape is playing, a
lighted arrow will appear on the display and show the
direction of play. (If the radio is turned off, the tape
stays in the player and will resume playing at the point
where it stopped.)
EJECT: Press this button to remove the tape.
The radio will now play. EJECT can be used with either
the ignition or radio off. To load a cassette tape with
the ignition or radio off, press EJECT before loading
the cassette.CLN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index. After you clean
the player, press and hold EJECT for five seconds to
reset the CLN indicator. The radio will display
--- to
show the indicator was reset.
CD Adapter Kits
It is possible to use a portable CD player adapter kit
with your cassette tape player after activating the bypass
feature on your tape player.
To activate the bypass feature, perform the
following steps:
1. Turn the ignition to RUN or ACCESSORY.
2. Turn the radio off.
3. Press and hold the CD TAPE button for five seconds.
The tape symbol on the display will flash for
two seconds, indicating the feature is active.
4. Insert the adapter into the cassette slot. It will power
up the radio and begin playing.
This override routine will remain active until EJECT
is pressed.

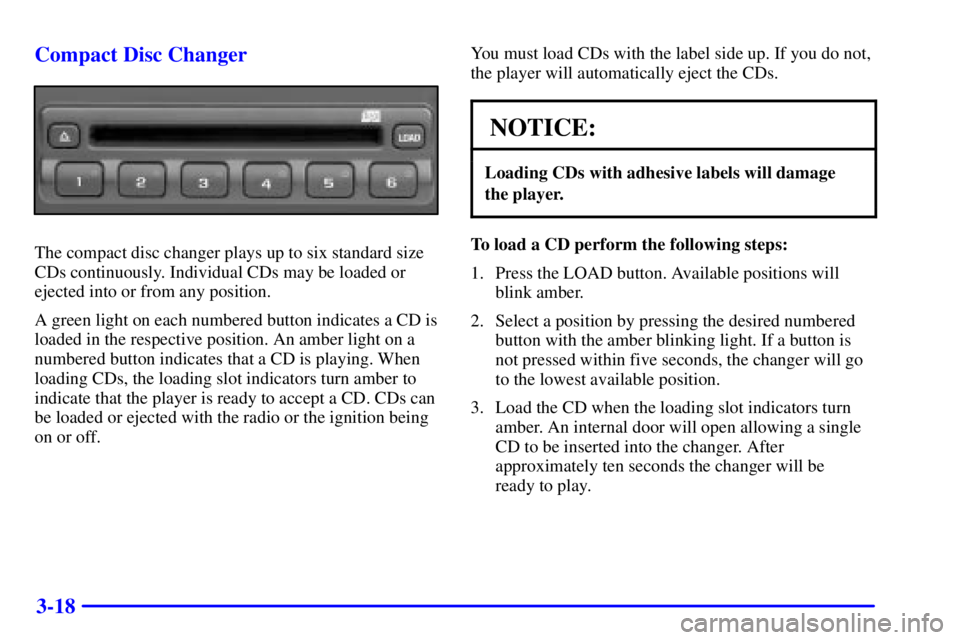

3-18 Compact Disc Changer
The compact disc changer plays up to six standard size
CDs continuously. Individual CDs may be loaded or
ejected into or from any position.
A green light on each numbered button indicates a CD is
loaded in the respective position. An amber light on a
numbered button indicates that a CD is playing. When
loading CDs, the loading slot indicators turn amber to
indicate that the player is ready to accept a CD. CDs can
be loaded or ejected with the radio or the ignition being
on or off.You must load CDs with the label side up. If you do not,
the player will automatically eject the CDs.
NOTICE:
Loading CDs with adhesive labels will damage
the player.
To load a CD perform the following steps:
1. Press the LOAD button. Available positions will
blink amber.
2. Select a position by pressing the desired numbered
button with the amber blinking light. If a button is
not pressed within five seconds, the changer will go
to the lowest available position.
3. Load the CD when the loading slot indicators turn
amber. An internal door will open allowing a single
CD to be inserted into the changer. After
approximately ten seconds the changer will be
ready to play.
