2001 GMC SAVANA bulb

6-37

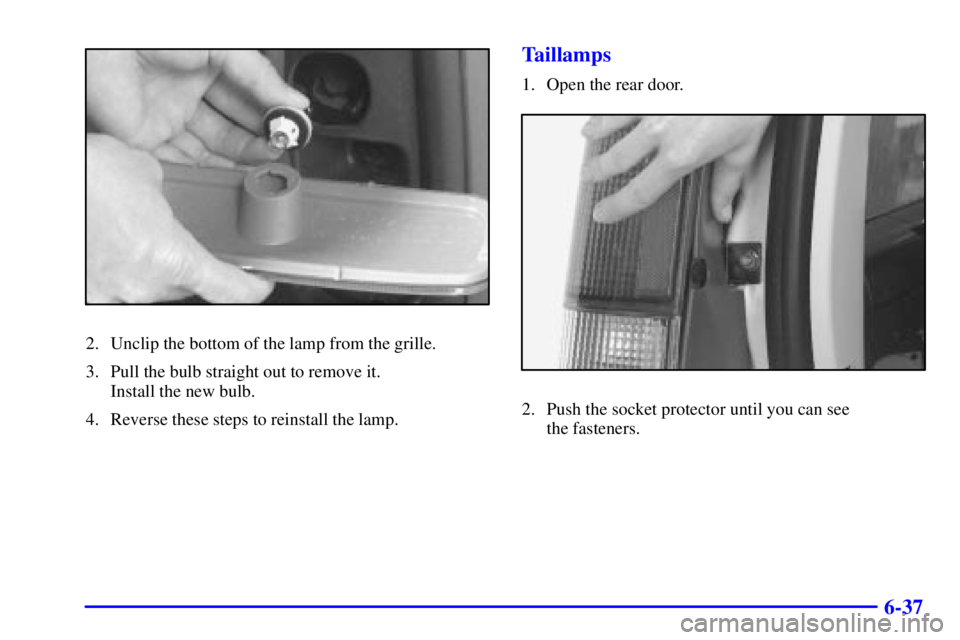

2. Unclip the bottom of the lamp from the grille.
3. Pull the bulb straight out to remove it.
Install the new bulb.
4. Reverse these steps to reinstall the lamp.
Taillamps
1. Open the rear door.
2. Push the socket protector until you can see
the fasteners.

6-40
7. Turn the old bulb counterclockwise to remove it.
Install the new bulb.
8. Reverse the above steps to reinstall the lamp.
Windshield Wiper
Blade Replacement
Windshield wiper blades should be inspected at least
twice a year for wear and cracking. See ªWiper Blade
Checkº in the Index for more information.
Replacement blades come in different types and are
removed in different ways. To remove the type with a
release clip, do the following:
1. Lift the wiper arm until it locks into a
vertical position.

6-66
Replacement Bulbs
LAMP OR BULB QTY NUMBER
Sealed Beam Headlamps 2 H6054
Composite
Low
-Beam Headlamps2 6052
Composite High
-Beam
Headlamps2 9005
Front Sidemarker Lamp 2 194
Front Parking and
Turn Lamp4 2357NA
Rear Parking Lamp 2 3057
Rear Stop and Turn Lamp 2 3057LAMP OR BULB QTY NUMBER
Back
-up Lamp2 3156
Back
-up Lamp2 1156
Rear Parking, Stop, and
Turn Lamp2 1157
CHMSL 2 921
License Plate Lamp 1 194
Underhood Lamp 1 232
Reel Lamp 1 232
Reading Lamps 6
211
-2
Sunshade Vanity Mirror 4 74
