2001 GMC ENVOY keyless entry

ii

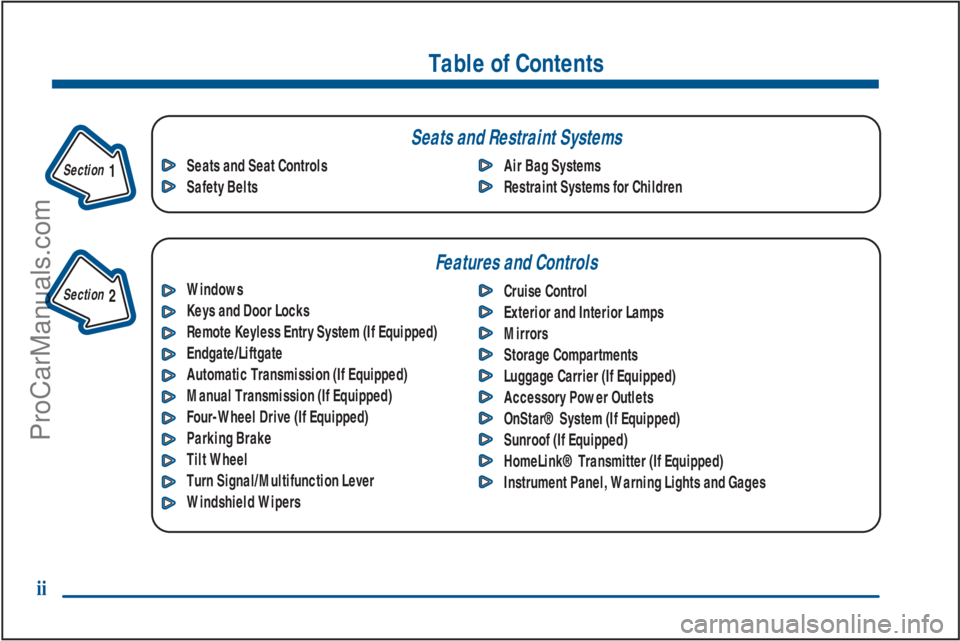

Table of Contents
Windows
Keys and Door Locks
Remote Keyless Entry System (If Equipped)
Endgate/Liftgate
Automatic Transmission (If Equipped)
Manual Transmission (If Equipped)
Four-Wheel Drive (If Equipped)
Parking Brake
Tilt Wheel
Turn Signal/Multifunction Lever
Windshield WipersCruise Control
Exterior and Interior Lamps
Mirrors
Storage Compartments
Luggage Carrier (If Equipped)
Accessory Power Outlets
OnStar® System (If Equipped)
Sunroof (If Equipped)
HomeLink® Transmitter (If Equipped)
Instrument Panel, Warning Lights and Gages Seats and Seat Controls
Safety BeltsAir Bag Systems
Restraint Systems for Children
Section
1
Section
2
Seats and Restraint Systems
Features and Controls
ProCarManuals.com

1-4
Moving the whole control up or down raises or lowers
the whole seat.
Vertical Control: Move the reclining front seatback
forward or rearward by moving the control toward the
front or rear of the vehicle.
Power Lumbar Control (If Equipped)
If your vehicle has this
feature, it is located on the
outboard side of the seat(s).
Press and hold the front of the control until you have
the desired lumbar support. To decrease lumbar support,
press and hold the rear of the control.
Memory Seat (If Equipped)
If your vehicle has this
feature, the control located
on the outboard side of the
driver's seat looks like this.
Use this memory function to save your seat cushion and
seatback settings by using the following procedure:
1. Adjust the driver's seat to a safe and comfortable
driving position.
2. Press the SET button and then one of the two
numbered memory buttons. You will hear a chime
for each button pushed to confirm that your settings
have been placed in memory.
3. To program your keyless entry transmitter, if equipped,
press the UNLOCK button within five seconds of
programming the memory button. You will hear a
chime to confirm programming of the transmitter.
ProCarManuals.com

1-5
When your vehicle is in PARK (P) for an automatic
transmission or the parking brake is engaged for a
manual transmission, push and release the numbered
memory button you just stored. The seat will move to
the set position. You will hear one chime.
Pressing the UNLOCK button of a keyless entry
transmitter will adjust the seat to the corresponding
stored memory position. You will hear one chime.
Repeat Steps 1 and 2 to readjust the seat. The transmitter
need not be reprogrammed unless it needs to correspond
to the other numbered memory button.
To set the seat for a second driver, follow the previous
steps, but use the other numbered button and the other
keyless entry transmitter.
If there is a third driver, use the seat adjuster switch to
adjust the seat. Pressing any of the seat adjuster switches,
the SET button or pressing the desired memory button
twice will cause the seat to stop moving.
If you push the numbered button to adjust the seat
and start the vehicle while the seat is still adjusting,
adjustment will pause while the ignition is in START.
Adjustment will resume after the ignition is in RUN.Heated Front Seats (If Equipped)
If your vehicle has this
feature, the controls are
located on the outboard
side of the seats.
This feature will quickly heat the lower cushion and
lower back of the driver's and front passenger's seats
for added comfort.
Press the lower part of the switch to turn the heater on
low. Press the upper part of the switch to turn the heater
on high. Put the switch in the center position to turn the
heater off.
The passenger's safety belt must be engaged for the
heated seat feature to work on the passenger's seat.
ProCarManuals.com

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-5 Keys
2
-7 Door Locks
2
-11 Keyless Entry System (If Equipped)
2
-14 Endgate/Liftgate
2
-18 Theft
2
-19 Content Theft-Deterrent (If Equipped)
2
-20 Passlock

2-21 New Vehicle ªBreak-Inº
2
-21 Ignition Positions
2
-23 Starting Your Engine
2
-25 Engine Coolant Heater (If Equipped)
2
-26 Automatic Transmission Operation
2
-29 Manual Transmission Operation
2
-31 Four-Wheel Drive (If Equipped)
2
-38 Parking Brake
2
-39 Shifting Into PARK (P)
(Automatic Transmission Only)2
-43 Shifting Out of PARK (P)
(Automatic Transmission Only)
2
-44 Parking Over Things That Burn
2
-44 Engine Exhaust
2
-45 Running Your Engine While You're Parked
(Automatic Transmission)
2
-46 Locking Rear Axle
2
-47 Turn Signal/Multifunction Lever
2
-53 Exterior Lamps
2
-56 Interior Lamps
2
-58 Mirrors
2
-61 Storage Compartments
2
-76 Accessory Power Outlets
2
-80 Sunroof (If Equipped)
2
-80 HomeLink
Transmitter (If Equipped)
2
-84 The Instrument Panel--Your
Information System
2
-89 Warning Lights, Gages and Indicators
ProCarManuals.com

2-7
Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can easily
open the doors and fall out of a moving
vehicle. When a door is locked, the handle
won't open it. You increase the chance of
being thrown out of the vehicle in a crash
if the doors aren't locked. So, wear safety
belts properly and lock the doors whenever
you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle:

You can use the keyless entry system, if your vehicle
has this feature.

You can use your key to unlock your door from
the outside.

You can use the power lock switch (if equipped) to
lock or unlock the doors.

To manually lock a door from the inside, slide the
manual lever on your door down. To manually
unlock a door from the inside, slide the lever on
the door up. You will see a colored area on the lever
when the door is unlocked.
ProCarManuals.com

2-8
Power Door Locks (If Equipped)
If your vehicle has power door locks, the switches are
located on the driver's and passenger's front armrests.
Remove the ignition key and press LOCK to lock all the
doors at once. To unlock the doors, press the raised area
to the right of the key symbol.
On four
-door models use the manual door lock/unlock
lever on each rear door to lock or unlock those doors
from the rear seating area.
Programmable Automatic Door Locks
(If Equipped)
If your vehicle has power door locks, it will be equipped
with an auto lock/unlock feature which enables you to
program your vehicle's power door locks.
The following is the list of available programming options:

All doors lock/Driver's door unlocks only: Press
the lock side of the power lock switch on the door
panel once and then the unlock side once. This
option is unavailable on most vehicles not equipped
with keyless entry.

All doors lock/All doors unlock: Press the lock
side of the power lock switch on the door panel once,
and then press the unlock side twice.

All doors lock/None of the doors unlock: Press the
lock side of the power lock switch on the door panel
once, and then press the unlock side of the switch
three times.

No doors lock/None of the doors unlock: Press the
lock side of the power lock switch on the door panel
twice. This turns off the automatic lock feature
(this is the factory setting).
ProCarManuals.com

2-11
Keyless Entry System (If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors from about 3 feet (1 m) up to 30 feet (9 m)
away using the remote keyless entry transmitter supplied
with your vehicle.
If your vehicle has this feature, you can lock and unlock
your doors and rear endgate from about 3 feet (1 m) up
to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.
ProCarManuals.com

2-12
Operation
UNLOCK: When you press UNLOCK, the driver's
door will unlock automatically, the parking lamps will
flash and the interior lamps will go on. If you press
UNLOCK again within three seconds, the remaining
doors will unlock, the parking lamps will flash and the
interior lamps will go on.
LOCK: Press LOCK to lock all the doors. Press LOCK
again within three seconds and the horn will chirp.
REAR: When you press the REAR button twice within
three seconds to release the rear liftgate glass, the
parking lamps will flash and the interior lamps will go
on. If your vehicle has an automatic transmission, the
transmission must be in PARK (P) or NEUTRAL (N).
If your vehicle has a manual transmission, you must
engage the parking brake.
Remote Panic Alarm
When the button with the horn symbol on the key
transmitter is pressed, the horn will sound and the
headlamps and taillamps will flash for up to 30 seconds.
This can be turned off by pressing the horn button again,
waiting for 30 seconds, or starting the vehicle.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
ProCarManuals.com
