3-27
AUTO TONE: Press this button to select among the
six preset equalization settings and tailor the sound to
the music or voice being heard. Each time you press the
button, the selection will switch to one of the preset
settings of CLASSIC, NEWS, ROCK, POP, C/W
(Country/Western) or JAZZ. To return to the manual
mode, press and release this button until the AUTO
TONE display goes blank. This will return the tone
adjustment to the BASS and TREB controls. If a
BASS or TREB control is turned, the AUTO TONE
display will go blank. Use PUSHBUTTONS to program
AUTO TONE.
Adjusting the Speakers
BAL: Press lightly on this knob to release it from its
stored position. Turn the control clockwise to adjust
sound to the right speakers and counterclockwise to
adjust sound to the left speakers. The middle position
balances the sound between the speakers.
FADE: Press lightly on this knob to release it from its
stored position. Turn the control clockwise to adjust the
sound to the front speakers and counterclockwise for the
rear speakers. The middle position balances the sound
between the speakers.
Push these knobs back into their stored positions when
you're not using them.Playing a Compact Disc
PWR: Press this knob to turn the system on.
(You can also turn the system on when you insert a
compact disc into the player with the ignition on.)
Insert a disc partway into the slot, label side up.
The player will pull it in. Wait a few seconds and
the disc should play. CD and a CD symbol will also
appear on the display. Anytime you are playing a CD,
the letters CD will be next to the CD symbol.
If the disc comes back out and ERR appears on the
display, it could be that:

You are driving on a very rough road.
(The disc should play when the road gets smoother.)

The disc is upside down.

It is dirty, scratched or wet.

It is very humid. (If so, wait about an hour
and try again.)

The disc player is very hot.
Press RECALL to make ERR go off the display.
PREV (1): Press PREV or the SEEK left arrow to
search for the previous selection. If you hold this button
or press it more than once, the disc will advance further.
Sound is muted in this mode.
ProCarManuals.com

3-28
RDM (2): Press this button to play the tracks on the disc
in random order. While in the RDM mode, RANDOM
appears on the display. Press RDM again to return to
normal play.
NEXT (3): Press NEXT or the SEEK right arrow to
search for the next selection. If you hold this button or
press it more than once, the disc will advance further.
The next track number will appear on the display.
Sound is muted in this mode.
REV (4): Press and hold REV to return rapidly to a
favorite passage. You will hear the disc selection play at
high speed while you press the REV button. This allows
you to listen and find out when the disc is at the desired
selection. Release REV to resume playing.
FWD (6): Press and hold this button to advance rapidly
within a track. You will hear the disc selection play at
high speed while you press the FWD button. This allows
you to listen and find out when the disc is at the desired
selection. Release FWD to resume playing.
RECALL: Press this button to see what track is playing.
Press it again within five seconds to see how long the
CD has been playing that track. Elapsed time is
displayed in minutes and seconds. The track number
will also appear when a new track begins to play.
Press RECALL again to return to the time display.AM FM: While in the CD mode, press this button to
stop playing the CD and play the radio. The CD symbol
will still display but the word CD will be replaced with
either AM, FM1 or FM2. (If the radio is turned off,
the disc stays in the player and will resume playing at
the point where it stopped.)
CD AUX: To switch between the player and the radio
when a disc is playing, press the AM
-FM button.
To return to the player, press CD AUX. When a disc is
playing, the letters CD and the CD symbol will appear
on the display. (If the radio is turned off, the disc stays
in the player and will resume playing at the point where
it stopped.)
EJECT: Press this button to eject the disc from the
player and play the radio. When the same or a new disc
is inserted, the disc will start playing on track one.
If a compact disc is left sitting in the opening for more
than a few seconds, the player will pull the CD back in.
The radio will continue playing. When the ignition is
off, press this button to load a CD.
ProCarManuals.com

3-29 AM-FM Stereo with Compact Disc Player
(Bose

) (If Equipped)
Included with the AM-FM Stereo with Compact Disc
Player are six Bose high performance speakers and a six
channel Bose amplifier. Please see your dealer for details.
Playing the Radio
PWR
-VOL: Press this knob to turn the system on
and off. To increase volume, turn this knob clockwise.
Turn it counterclockwise to decrease volume. The knob
is capable of turning continuously.MUTE: Press this button to silence the system.
Press it again to turn on the sound.
REAR DSPL (Vehicles with Rear Seat Audio):
If your vehicle has rear seat audio, then it will have a
button labeled REAR DSPL instead of the MUTE
button. When the main radio is turned on, press this
button to turn the rear seat audio display on the
main radio. Press it again to turn the rear seat audio
display off.
RECALL: Display the time with the ignition off
by pressing this button. When the radio is playing,
press this button to recall the station frequency.
SCV: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV,
your audio system adjusts automatically to make up
for road and wind noise as you drive. Set the volume at
the desired level. Turn the control ring behind the upper
knob clockwise to adjust the SCV. Then, as you drive,
SCV automatically increases the volume, as necessary,
to overcome noise at any particular speed. The volume
level should always sound the same to you as you drive.
If you don't want to use SCV, turn the control all the
way down. Each notch on the control ring allows for
more volume compensation at faster vehicle speeds.
ProCarManuals.com

3-30
Finding a Station
AM FM: Press this button to switch between AM,
FM1 and FM2. The display will show your selection.
TUNE: Press this knob lightly so it extends.
Turn it to choose radio stations. Push the knob back
into its stored position when you're not using it.
SEEK: Press the right arrow to tune to the next
higher station and the left arrow to tune to the next
lower station and stay there. The sound will mute
while seeking.
SCAN: Press and hold SEEK for two seconds until
SCAN appears on the display. SCAN allows you to
listen to stations for a few seconds. The receiver will
continue to scan and momentarily stop at each station
until you press the button again. The sound will mute
while scanning.PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press and hold one of the six pushbuttons.
The sound will mute. When it returns, release the
button. Whenever you press that numbered button,
the station you set will return.
5. Repeat the steps for each pushbutton.
P.SCAN: The preset scan button lets you scan through
your favorite stations stored on your pushbuttons.
Select either the AM, FM1 or FM2 mode and then
press P.SCAN. It will scan through each station stored
on your pushbuttons and stop for a few seconds before
continuing to scan through all of the pushbuttons.
Press P.SCAN again or one of the pushbuttons to stop
scanning to listen to a specific stored station. P.SCAN
will light up on the display while in this mode. If one
of the stations stored on a pushbutton is too weak for
the location you are in, the radio display will show the
channel number (P1 through P6) for several seconds
before advancing to the next preset station.
ProCarManuals.com

3-31
Setting the Tone
BASS: Press lightly on this knob to release it from its
stored position. Turn the knob clockwise to increase
bass and counterclockwise to decrease bass.
TREB: Press lightly on this knob to release it
from its stored position. Turn the knob clockwise to
increase treble and counterclockwise to decrease treble.
If a station is weak or noisy, you may want to decrease
the treble.
Push these knobs back into their stored positions when
you're not using them.
Adjusting the Speakers
BAL: Press lightly on this knob to release it from its
stored position. Turn the control clockwise to adjust
sound to the right speakers and counterclockwise to
adjust sound to the left speakers. The middle position
balances the sound between the speakers.
FADE: Press lightly on this knob to release it from its
stored position. Turn the control clockwise to adjust the
sound to the front speakers and counterclockwise for the
rear speakers. The middle position balances the sound
between the speakers.
Push these knobs back into their stored positions when
you're not using them.Playing a Compact Disc
PWR: Press this knob to turn the system on.
(You can also turn the system on when you insert a
compact disc into the player with the ignition on.)
Insert a disc partway into the slot, label side up.
The player will pull it in. Wait a few seconds and the
disc should play. The letters CD and a CD symbol will
appear on the display. Anytime you are playing a CD,
the letters CD will be next to the CD symbol.
If the disc comes back out and ERR appears on the
display, it could be that:

You are driving on a very rough road.
(The disc should play when the road gets smoother.)

The disc is upside down.

It is dirty, scratched or wet.

It is very humid. (If so, wait about an hour
and try again.)

The disc player is very hot.
Press RECALL to make ERR go off the display.
PREV (1): Press PREV or the SEEK left arrow to
search for the previous selection. If you hold this button
or press it more than once, the disc will advance further.
Sound is muted in this mode.
ProCarManuals.com

3-32
RDM (2): Press this button to play the tracks on the disc
in random order. While in the RDM mode, RANDOM
appears on the display. Press RDM again to return to
normal play.
NEXT (3): Press NEXT or the SEEK right arrow to
search for the next selection. If you hold this button or
press it more than once, the disc will advance further.
The next track number will appear on the display.
Sound is muted in this mode.
REV (4): Press and hold REV to return rapidly to a
favorite passage. You will hear the disc selection play at
high speed while you press the REV button. This allows
you to listen and find out when the disc is at the desired
selection. Release REV to resume playing.
FWD (6): Press and hold this button to advance rapidly
within a track. You will hear the disc selection play at
high speed while you press the FWD button. This allows
you to listen and find out when the disc is at the desired
selection. Release FWD to resume playing.
RECALL: Press this button to see what track is playing.
Press it again within five seconds to see how long the
CD has been playing that track. Elapsed time is
displayed in minutes and seconds. The track number
will also appear when a new track begins to play.
Press RECALL again to return to the time display.AM-FM: While in the CD mode, press this button to
stop playing the CD and play the radio. The CD symbol
will still display but the word CD will be replaced with
either AM, FM1 or FM2. (If the radio is turned off,
the disc stays in the player and will resume playing at
the point where it stopped.)
CD AUX: Press this button if you have a disc loaded
in the CD player and the radio is turned on, to play a
compact disc. Press AM
-FM to return to the radio when
a compact disc is playing. Press CD AUX to switch
between the compact disc player and console
-mounted
CD changer if both are loaded. When a disc is playing,
the letters CD and the CD symbol will appear on the
display. (If the radio is turned off, the disc stays in
the player and will resume playing at the point where
it stopped.)
EJECT: Press this button to eject the disc from the
player and play the radio. When the same or a new
disc is inserted, the disc will start playing on track one.
If a compact disc is left sitting in the opening for more
than a few seconds, the player will pull the CD back in.
The radio will continue playing. When the ignition is
off, press this button to load a CD.
ProCarManuals.com

3-34
(5): Press this pushbutton to turn Dolby NR on
and off. Dolby NR is active when a tape is inserted in
the remote cassette. The double
-D symbol will appear
on the display.
Dolby Noise Reduction is manufactured under a
license from Dolby Laboratories Licensing Corporation.
Dolby and the double
-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
FWD (6): Press this button to rapidly advance the tape.
The tape will rapidly advance to the end of the cassette
reel or until you press FWD again. The radio plays the
last selected station during FWD.
PROG: Press this button on the remote player to go
from one side of the tape to the other.
TAPE: Press the AM
-FM button to switch from the
player and the radio when a tape is playing. To return to
the tape player, press CD AUX. The lighted arrow will
appear next to the symbol and show the direction of
play when a tape is active.
EJECT: Press this button on the remote player to
remove the tape. EJECT can be used with either the
ignition or radio off. Also, you must press EJECT before
loading a cassette with the radio off to allow loading.
Rear Seat Audio (RSA) (If Equipped)
This feature allows rear seat passengers to listen to and
control any of the music sources, including AM
-FM,
cassette tapes and CDs, through the Rear Seat Audio
(RSA) controller. However, the rear seat passengers
can only control the music sources that the front seat
passengers are not listening to.
ProCarManuals.com

3-39

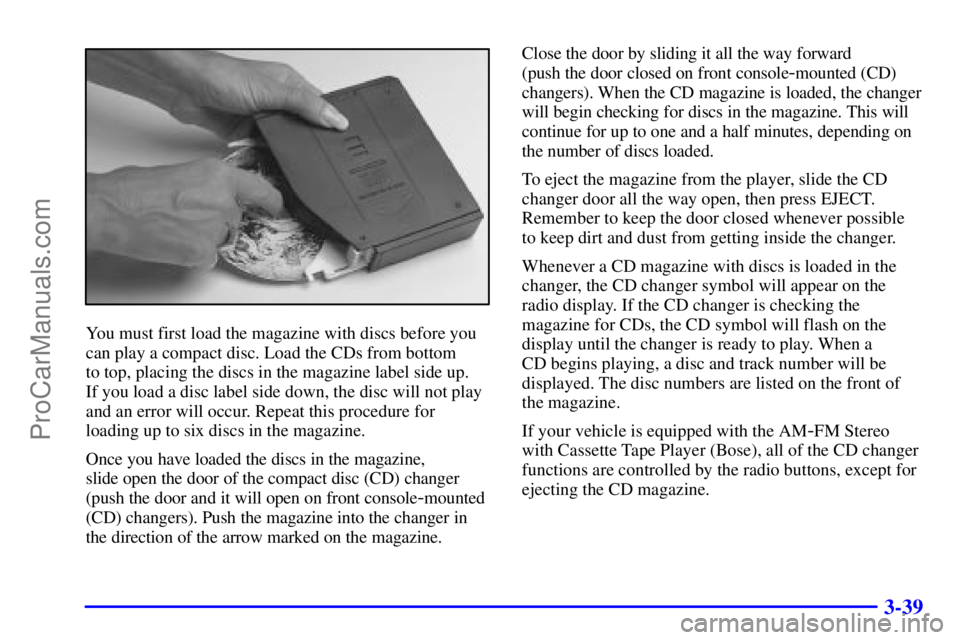

You must first load the magazine with discs before you
can play a compact disc. Load the CDs from bottom
to top, placing the discs in the magazine label side up.
If you load a disc label side down, the disc will not play
and an error will occur. Repeat this procedure for
loading up to six discs in the magazine.
Once you have loaded the discs in the magazine,
slide open the door of the compact disc (CD) changer
(push the door and it will open on front console
-mounted
(CD) changers). Push the magazine into the changer in
the direction of the arrow marked on the magazine.Close the door by sliding it all the way forward
(push the door closed on front console
-mounted (CD)
changers). When the CD magazine is loaded, the changer
will begin checking for discs in the magazine. This will
continue for up to one and a half minutes, depending on
the number of discs loaded.
To eject the magazine from the player, slide the CD
changer door all the way open, then press EJECT.
Remember to keep the door closed whenever possible
to keep dirt and dust from getting inside the changer.
Whenever a CD magazine with discs is loaded in the
changer, the CD changer symbol will appear on the
radio display. If the CD changer is checking the
magazine for CDs, the CD symbol will flash on the
display until the changer is ready to play. When a
CD begins playing, a disc and track number will be
displayed. The disc numbers are listed on the front of
the magazine.
If your vehicle is equipped with the AM
-FM Stereo
with Cassette Tape Player (Bose), all of the CD changer
functions are controlled by the radio buttons, except for
ejecting the CD magazine.
ProCarManuals.com
