2001 GMC ENVOY CD player

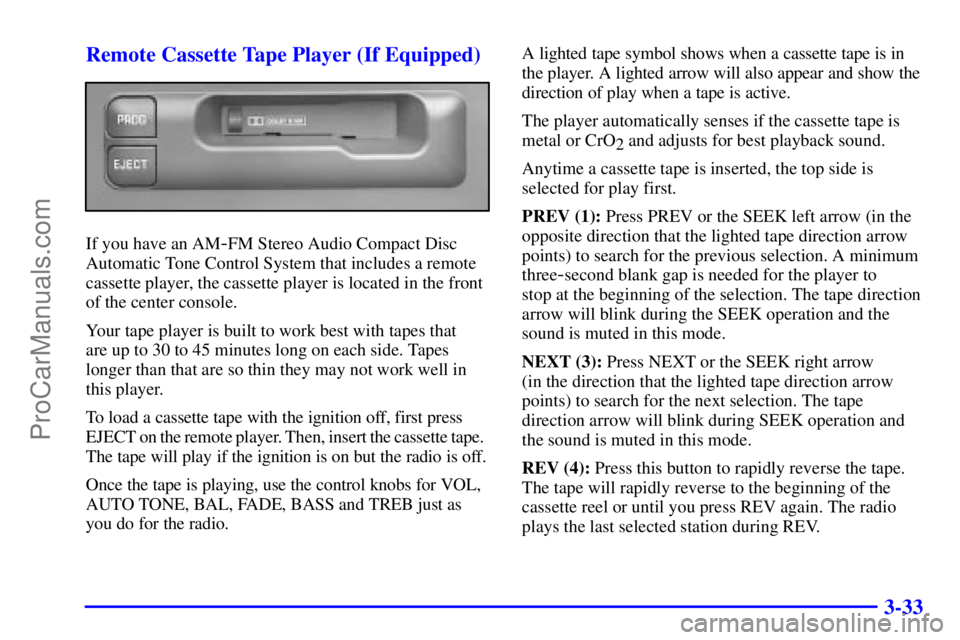

3-33 Remote Cassette Tape Player (If Equipped)
If you have an AM-FM Stereo Audio Compact Disc
Automatic Tone Control System that includes a remote
cassette player, the cassette player is located in the front
of the center console.
Your tape player is built to work best with tapes that
are up to 30 to 45 minutes long on each side. Tapes
longer than that are so thin they may not work well in
this player.
To load a cassette tape with the ignition off, first press
EJECT on the remote player. Then, insert the cassette tape.
The tape will play if the ignition is on but the radio is off.
Once the tape is playing, use the control knobs for VOL,
AUTO TONE, BAL, FADE, BASS and TREB just as
you do for the radio. A lighted tape symbol shows when a cassette tape is in
the player. A lighted arrow will also appear and show the
direction of play when a tape is active.
The player automatically senses if the cassette tape is
metal or CrO
2 and adjusts for best playback sound.
Anytime a cassette tape is inserted, the top side is
selected for play first.
PREV (1): Press PREV or the SEEK left arrow (in the
opposite direction that the lighted tape direction arrow
points) to search for the previous selection. A minimum
three
-second blank gap is needed for the player to
stop at the beginning of the selection. The tape direction
arrow will blink during the SEEK operation and the
sound is muted in this mode.
NEXT (3): Press NEXT or the SEEK right arrow
(in the direction that the lighted tape direction arrow
points) to search for the next selection. The tape
direction arrow will blink during SEEK operation and
the sound is muted in this mode.
REV (4): Press this button to rapidly reverse the tape.
The tape will rapidly reverse to the beginning of the
cassette reel or until you press REV again. The radio
plays the last selected station during REV.
ProCarManuals.com

3-34
(5): Press this pushbutton to turn Dolby NR on
and off. Dolby NR is active when a tape is inserted in
the remote cassette. The double
-D symbol will appear
on the display.
Dolby Noise Reduction is manufactured under a
license from Dolby Laboratories Licensing Corporation.
Dolby and the double
-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
FWD (6): Press this button to rapidly advance the tape.
The tape will rapidly advance to the end of the cassette
reel or until you press FWD again. The radio plays the
last selected station during FWD.
PROG: Press this button on the remote player to go
from one side of the tape to the other.
TAPE: Press the AM
-FM button to switch from the
player and the radio when a tape is playing. To return to
the tape player, press CD AUX. The lighted arrow will
appear next to the symbol and show the direction of
play when a tape is active.
EJECT: Press this button on the remote player to
remove the tape. EJECT can be used with either the
ignition or radio off. Also, you must press EJECT before
loading a cassette with the radio off to allow loading.
Rear Seat Audio (RSA) (If Equipped)
This feature allows rear seat passengers to listen to and
control any of the music sources, including AM
-FM,
cassette tapes and CDs, through the Rear Seat Audio
(RSA) controller. However, the rear seat passengers
can only control the music sources that the front seat
passengers are not listening to.
ProCarManuals.com

3-39
You must first load the magazine with discs before you
can play a compact disc. Load the CDs from bottom
to top, placing the discs in the magazine label side up.
If you load a disc label side down, the disc will not play
and an error will occur. Repeat this procedure for
loading up to six discs in the magazine.
Once you have loaded the discs in the magazine,
slide open the door of the compact disc (CD) changer
(push the door and it will open on front console
-mounted
(CD) changers). Push the magazine into the changer in
the direction of the arrow marked on the magazine.Close the door by sliding it all the way forward
(push the door closed on front console
-mounted (CD)
changers). When the CD magazine is loaded, the changer
will begin checking for discs in the magazine. This will
continue for up to one and a half minutes, depending on
the number of discs loaded.
To eject the magazine from the player, slide the CD
changer door all the way open, then press EJECT.
Remember to keep the door closed whenever possible
to keep dirt and dust from getting inside the changer.
Whenever a CD magazine with discs is loaded in the
changer, the CD changer symbol will appear on the
radio display. If the CD changer is checking the
magazine for CDs, the CD symbol will flash on the
display until the changer is ready to play. When a
CD begins playing, a disc and track number will be
displayed. The disc numbers are listed on the front of
the magazine.
If your vehicle is equipped with the AM
-FM Stereo
with Cassette Tape Player (Bose), all of the CD changer
functions are controlled by the radio buttons, except for
ejecting the CD magazine.
ProCarManuals.com

3-40
PREV (1): Press this button or the SEEK left arrow to
go to the previous track if the current selection has been
playing for less than eight seconds. If the PREV button
is pressed and the current selection has been playing for
more than eight seconds, it will go to the beginning of
the current selection. If you hold or press this button
more than once, the player will continue moving back
through the disc. The sound will mute while seeking.
PROG (2): Press this button to select a disc.
The disc number and track number will be displayed.
NEXT (3): Press this button or the SEEK right arrow
to go to the next track. If you hold the button or press it
more than once, the player will continue moving forward
through the disc. The sound will mute while seeking.
REV (4): Press and hold this button to reverse quickly
through a track selection. Release it to resume playing.
FWD (6): Press and hold this button to advance quickly
through a track selection. Release it to resume playing.
SEEK: Press the right arrow to seek to the next
selection on the CD. Press the left arrow to search for
the previous selection on the CD. The sound will mute
while seeking.P.SCAN: Press this button to hear the tracks in random,
rather than sequential, order. RANDOM will appear on
the display. Press P.SCAN again to turn off random play.
TAPE AUX: Press this button if you have a disc loaded
in the changer and the radio is turned on, to play a
compact disc. Press AM
-FM to return to the radio when
a compact disc is playing. Press TAPE AUX to switch
between the tape and console
-mounted CD changer
if both are loaded.
If your vehicle is equipped with the AM
-FM Stereo
with Compact Disc Player (Bose), all of the CD changer
functions are controlled by the radio buttons, except for
ejecting the CD magazine.
PREV (1): Press this button or the SEEK left arrow to
go to the previous track if the current selection has been
playing for less than eight seconds. If the PREV button
is pressed and the current selection has been playing for
more than eight seconds, it will go to the beginning of
the current selection. If you hold or press this button
more than once, the player will continue moving back
through the disc. The sound will mute while seeking.
RDM (2): Press this button to hear the tracks in random,
rather than sequential, order. RANDOM will appear on
the display. Press RDM again to turn off random play.
ProCarManuals.com

3-41
NEXT (3): Press this button or the SEEK right arrow
to go to the next track. If you hold the button or press it
more than once, the player will continue moving forward
through the disc. The sound will mute while seeking.
REV (4): Press and hold this button to reverse quickly
through a track selection. Release it to resume playing.
(5): Press this button to select a disc. The disc number
and track number will be displayed.
FWD (6): Press and hold this button to advance quickly
through a track selection. Release it to resume playing.
SEEK: Press the right arrow to seek to the next
selection on the CD. Press the left arrow to search for
the previous selection on the CD. The sound will mute
while seeking.
CD AUX: Press this button if you have a disc loaded
in the changer and the radio is turned on, to play a
compact disc. Press AM
-FM to return to the radio
when a compact disc is playing. Press CD AUX to
switch between the compact disc and console
-mounted
CD changer if both are loaded.Compact Disc Changer Errors
If ERR appears on the display, it could be that:

You are driving on a very rough road.
(The disc should play when the road gets smoother.)

A disc is upside down.

It is dirty, scratched or wet.

It is very humid. (If so, wait about an hour and
try again.)

The disc player is very hot.

The CD changer door is open. Completely close
the changer door to restore normal operation.

An empty magazine is inserted in the CD changer.
Try the magazine again with a disc loaded on one
of the trays.
Press RECALL to make ERR go off the display.
If any error occurs repeatedly or if an error cannot be
corrected, please contact your dealer.
ProCarManuals.com

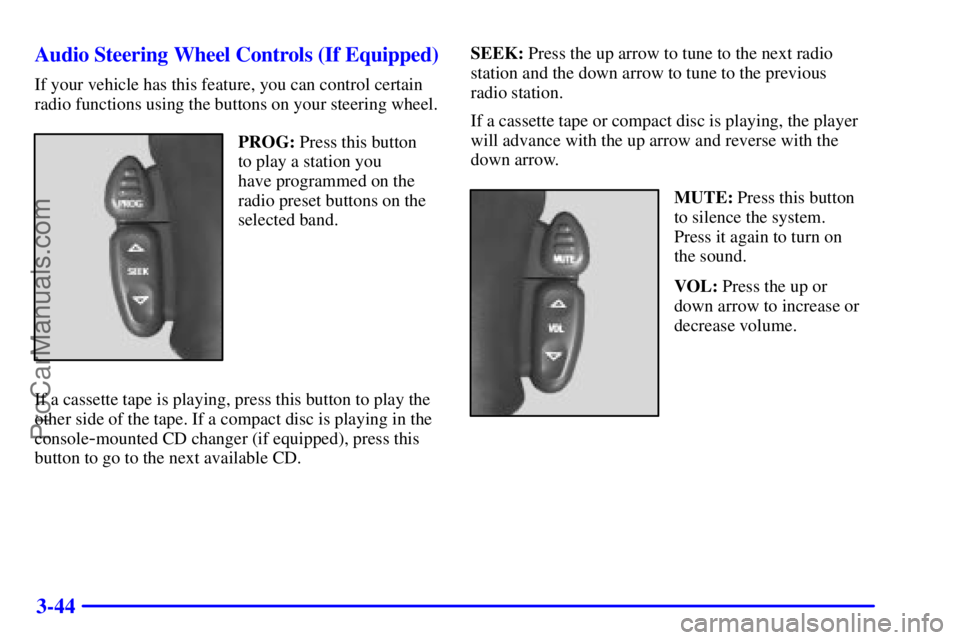

3-44 Audio Steering Wheel Controls (If Equipped)
If your vehicle has this feature, you can control certain
radio functions using the buttons on your steering wheel.
PROG: Press this button
to play a station you
have programmed on the
radio preset buttons on the
selected band.
If a cassette tape is playing, press this button to play the
other side of the tape. If a compact disc is playing in the
console
-mounted CD changer (if equipped), press this
button to go to the next available CD.SEEK: Press the up arrow to tune to the next radio
station and the down arrow to tune to the previous
radio station.
If a cassette tape or compact disc is playing, the player
will advance with the up arrow and reverse with the
down arrow.
MUTE: Press this button
to silence the system.
Press it again to turn on
the sound.
VOL: Press the up or
down arrow to increase or
decrease volume.
ProCarManuals.com

3-45 Understanding Radio Reception
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations to interfere with each other. AM can
pick up noise from things like storms and power lines.
Try reducing the treble to reduce this noise if you
ever get it.
FM Stereo
FM stereo will give you the best sound, but FM signals
will reach only about 10 to 40 miles (16 to 65 km). Tall
buildings or hills can interfere with FM signals, causing
the sound to come and go.
Tips About Your Audio System
Hearing damage from loud noise is almost undetectable
until it is too late. Your hearing can adapt to higher
volumes of sound. Sound that seems normal can be
loud and harmful to your hearing. Take precautions by
adjusting the volume control on your radio to a safe
sound level before your hearing adapts to it.To help avoid hearing loss or damage:

Adjust the volume control to the lowest setting.

Increase volume slowly until you hear comfortably
and clearly.
NOTICE:
Before you add any sound equipment to your
vehicle
-- like a tape player, CB radio, mobile
telephone or two
-way radio -- be sure you
can add what you want. If you can, it's very
important to do it properly. Added sound
equipment may interfere with the operation of
your vehicle's engine, Delphi Delco Electronics
radio or other systems, and even damage them.
Your vehicle's systems may interfere with the
operation of sound equipment that has been
added improperly.
So, before adding sound equipment, check with
your dealer and be sure to check Federal rules
covering mobile radio and telephone units.
ProCarManuals.com

3-46 Care of Your Cassette Tape Player
A tape player that is not cleaned regularly can cause
reduced sound quality, ruined cassettes or a damaged
mechanism. Cassette tapes should be stored in their
cases away from contaminants, direct sunlight and
extreme heat. If they aren't, they may not operate
properly or may cause failure of the tape player.
Your tape player should be cleaned regularly after every
50 hours of use. Your radio may display CLN to indicate
that you have used your tape player for 50 hours without
resetting the tape clean timer. If this message appears
on the display, your cassette tape player needs to be
cleaned. It will still play tapes, but you should clean it as
soon as possible to prevent damage to your tapes and
player. If you notice a reduction in sound quality, try a
known good cassette to see if it is the tape or the tape
player at fault. If this other cassette has no improvement
in sound quality, clean the tape player.The recommended cleaning method for your
cassette tape player is the use of a scrubbing action,
non-abrasive cleaning cassette with pads which scrub
the tape head as the hubs of the cleaner cassette turn.
The recommended cleaning cassette is available through
your dealer (GM Part No. 12344789).
When using a scrubbing action, non
-abrasive cleaning
cassette, it is normal for the cassette to eject because
your unit is equipped with a broken tape detection
feature and a cleaning cassette may appear as a broken
tape. To prevent the cleaning cassette from being
ejected, use the following steps.
ProCarManuals.com
