6-11 Engine Compartment Overview
When you open the hood on the 1.6L engine, you'll see:
A. Main Fuse Box
B. Engine Air/Cleaner Filter
C. Battery
D. Engine Oil DipstickE. Radiator Pressure Cap
F. Engine Oil Fill Cap
G. Clutch Master Cylinder
Reservoir (If Equipped)H. Power Steering Fluid Reservoir
I. Brake Fluid Reservoir
J. Engine Coolant Recovery Tank
K. Windshield Washer Reservoir

6-12
When you open the hood on the 2.0L engine, you'll see:
A. Main Fuse Box
B. Engine Air/Cleaner Filter
C. Battery
D. Power Steering Fluid Reservoir
E. Radiator Pressure CapF. Engine Oil Dipstick
G. Engine Oil Fill Cap
H. Hydraulic Clutch
Fluid ReserviorI. Brake Fluid Reservoir
J. Engine Coolant Recovery Tank
K. Windshield Washer Reservoir

6-13
When you open the hood on the 2.5L engine, you'll see:
A. Main Fuse Box
B. Engine Air/Cleaner Filter
C. Battery
D. Radiator Pressure CapE. Engine Oil Fill Cap
F. Automatic Transmission
Dipstick (If Equipped)
G. Engine Oil DipstickH. Power Steering Fluid Reservoir
I. Brake Fluid Reservoir
J. Engine Coolant Recovery Tank
K. Windshield Washer Reservoir

6-66 Instrument Panel Fuse Block

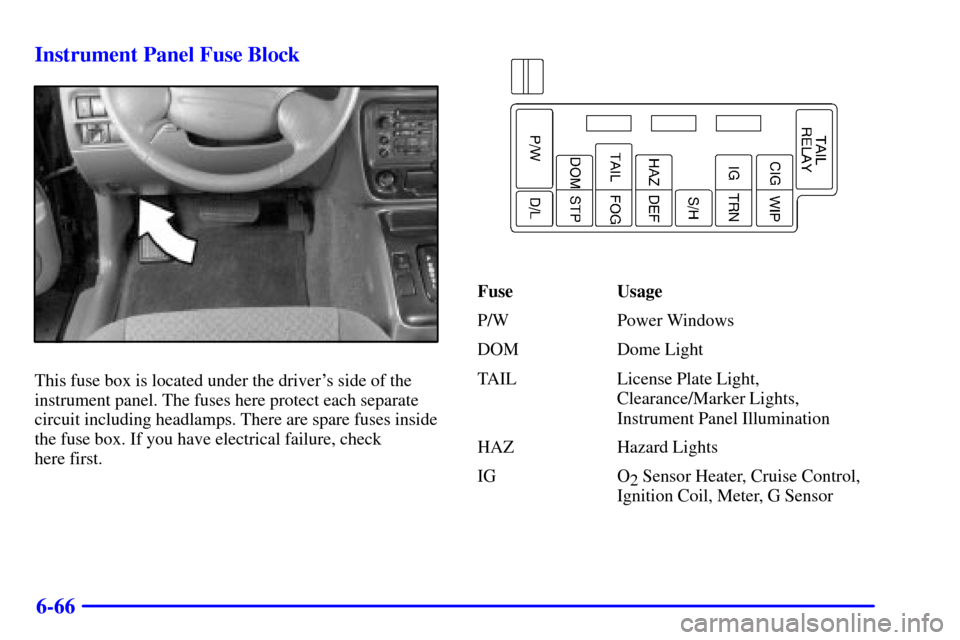

This fuse box is located under the driver's side of the
instrument panel. The fuses here protect each separate
circuit including headlamps. There are spare fuses inside
the fuse box. If you have electrical failure, check
here first.
Fuse Usage
P/W Power Windows
DOM Dome Light
TAIL License Plate Light,
Clearance/Marker Lights,
Instrument Panel Illumination
HAZ Hazard Lights
IG O
2 Sensor Heater, Cruise Control,
Ignition Coil, Meter, G Sensor

6-67
Fuse Usage
CIG Cigar/Cigarette Lighter, Radio,
Power Mirror
D/L Door Locks
STP Brake Light, Horn, Center
High
-Mounted Stop Lamp
FOG Not Used
DEF Rear Window Defogger, DRL
S/H Not Used
TRN Turn Signal, Back
-Up Light
WIP Windshield Wiper/Washer, Rear
Window Wiper/Washer
Fuses for the air bags are located next to the instrument
panel fuse block.
Engine Compartment Fuse Block
The main fuse box in your engine compartment
protects all electrical loads. See ªEngine Compartment
Overviewº in the Index for more information
on location.
For access to the main fuses, pull off the cover.
