2001 CHEVROLET IMPALA start stop button

1-34

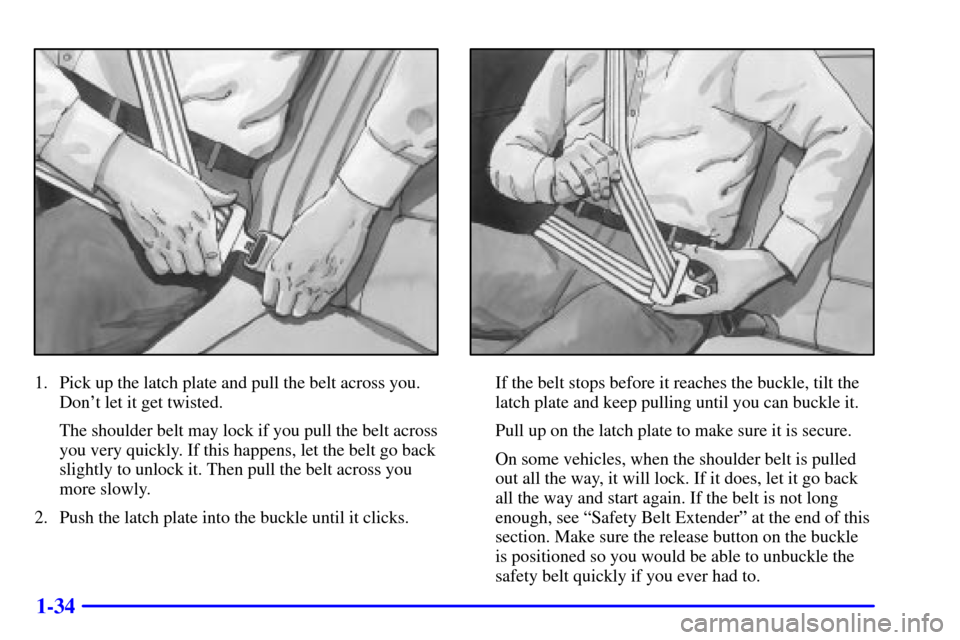

1. Pick up the latch plate and pull the belt across you.
Don't let it get twisted.
The shoulder belt may lock if you pull the belt across
you very quickly. If this happens, let the belt go back
slightly to unlock it. Then pull the belt across you
more slowly.
2. Push the latch plate into the buckle until it clicks.If the belt stops before it reaches the buckle, tilt the
latch plate and keep pulling until you can buckle it.
Pull up on the latch plate to make sure it is secure.
On some vehicles, when the shoulder belt is pulled
out all the way, it will lock. If it does, let it go back
all the way and start again. If the belt is not long
enough, see ªSafety Belt Extenderº at the end of this
section. Make sure the release button on the buckle
is positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.

2-28
3. Press the DISP button to start programming. When
the message PUSH FOB flashes, press and hold the
LOCK and UNLOCK buttons on the first transmitter
at the same time for 15 seconds. A chime will be
heard to verify the transmitter is learned.
4. Repeat Step 3 for each additional transmitter.
The transmitter is programmed now. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
EXIT (Exit Feature Customization Mode): This
feature allows you to exit the vehicle customization
programming. To exit do the following:

Scroll until EXIT appears on the display.

Press the DISP button to exit programming.
A chime will be heard to verify the exit.Passlock
Your vehicle is equipped with the Passlock
theft
-deterrent system.
Passlock is a passive theft
-deterrent system. Passlock
enables fuel if the ignition lock cylinder is turned with a
valid key. If a correct key is not used or the ignition lock
cylinder is tampered with, fuel is disabled and the
engine will not start.
During normal operation, the SECURITY message will
be displayed after the key is turned to the ON ignition
position. See ªMessage Center, Securityº in the Index.
If the engine stalls and the SECURITY message flashes,
wait until the light stops flashing before trying to restart
the engine.
If the engine is running and the SECURITY message
comes on, you will be able to restart the engine if you turn
the engine off. However, your Passlock system is not
working properly and must be serviced by your dealer.
Your vehicle is not protected by Passlock at this time. You
may also want to check the fuse (see ªFuses and Circuit
Breakersº in the Index). See your dealer for service.
In an emergency, contact Chevrolet Roadside
Assistance. See ªRoadside Assistanceº in the Index for
more information.

2-36
Make sure the shift lever is fully in PARK (P) before
starting the engine. Your vehicle has an automatic
transaxle shift lock control system. You must fully apply
your regular brakes before you can shift from PARK (P)
when the ignition is in ON. If you cannot shift out of
PARK (P), ease pressure on the shift lever by pushing it
all the way into PARK (P) while keeping the brake pedal
pushed down. Release the shift lever button if you have
a console shift. Then move the shift lever out of
PARK (P). See ªShifting Out of PARK (P)º in
the Index.
REVERSE (R): Use this gear to back up.
NOTICE:
Shifting to REVERSE (R) while your vehicle is
moving forward could damage your transaxle.
Shift to REVERSE (R) only after your vehicle
is stopped.
To rock your vehicle back and forth to get out of snow,
ice or sand without damaging your transaxle, see ªIf
You're Stuck: In Sand, Mud, Ice or Snowº in the Index.NEUTRAL (N): In this position, your engine
doesn't connect with the wheels. To restart when you're
already moving, use NEUTRAL (N) only. Also, use
NEUTRAL (N) when your vehicle is being towed.
CAUTION:
Shifting out of PARK (P) or NEUTRAL (N) while
your engine is ªracingº (running at high speed)
is dangerous. Unless your foot is firmly on the
brake pedal, your vehicle could move very
rapidly. You could lose control and hit people
or objects. Don't shift out of PARK (P) or
NEUTRAL (N) while your engine is racing.
NOTICE:
Damage to your transaxle caused by shifting out
of PARK (P) or NEUTRAL (N) with the engine
racing isn't covered by your warranty.

2-70 Programming the HomeLink

Transmitter
Do not use the transmitter with any garage door opener
that does not have the ªstop and reverseº feature. This
includes any garage door opener model manufactured
before April 1, 1982.
Be sure that people and objects are clear of the garage
door you are programming!
The engine should be turned off while programming the
HomeLink Transmitter. Follow these steps to program
up to three channels:
1. If you have not previously programmed a universal
channel, proceed to Step 2. Otherwise, hold down
the two outside buttons on the HomeLink
Transmitter until the indicator light begins to flash
rapidly (approximately 20 seconds). Then release the
buttons. This procedure initializes the memory and
erases any previous settings for all three channels.2. Hold the end of the hand
-held transmitter
approximately one to three inches (three to eight cm)
away from the HomeLink Transmitter making sure
that you can still see the display.
3. Decide which one of the three channels you want to
program. Using both hands, press the hand
-held
transmitter button and the desired button on the
HomeLink Transmitter. Continue to hold both
buttons through Step 4.
4. Hold down both buttons until you see the indicator
light on the HomeLink Transmitter flash, first slowly
then rapidly. The rapid flashing, which could take
up to 90 seconds, indicates that the HomeLink
Transmitter has been programmed. Release both
buttons once the light starts to flash rapidly.

2-82 Anti-Lock Brake System Warning Light
(If Equipped)
The anti-lock brake
system warning light
should come on for a
few seconds when
you turn the ignition
key to ON.
If the anti
-lock brake system warning light stays on longer
than normal after you've started your engine, turn the
ignition off. Or, if the light comes on and stays on when
you're driving, stop as soon as possible and turn the
ignition off. Then start the engine again to reset the
system. If the light still stays on, or comes on again while
you're driving, the anti
-lock brake system needs service
and you don't have anti
-lock brakes. The brake pedal may
be harder to push, or it may go to the floor. It may take
longer to stop. Adjust your driving accordingly.
The anti
-lock brake system warning light should come
on briefly when you turn the ignition key to ON. If the
light doesn't come on then, have it fixed so it will be
ready to warn you if there is a problem.
Traction Control System Warning Light
(3800 V6 Engine)
The traction control
system warning light
may come on for the
following reasons:

If you turn the system off by pressing the TRAC OFF
button located on the instrument panel, a chime will
sound and the warning light will come on and stay on.
To turn the system back on, press the button again.
The warning light should go off. See ªTraction Control
Systemº in the Index for more information.

If there's a brake system problem that is specifically
related to traction control, the traction control system
will turn off and the warning light will come on.
If your brakes begin to overheat, the traction control
system will turn off and the warning light will come
on until your brakes cool down.
If the traction control system warning light comes on
and stays on for an extended period of time when the
system is turned on, your vehicle needs service.

3-30
FWD (4): Press and hold this button to advance quickly
within a track. Press and hold this button for less than
two seconds to advance at six times the normal playing
speed. Press and hold it for more than two seconds to
advance at 17 times the normal playing speed. Release it
to play the passage. The display will show ET and the
elapsed time.
RDM (6): Press this button to hear the tracks in random,
rather than sequential, order. RDM ON will show on the
display. RDM T and the track number will appear on
the display when each track starts to play. Press RDM
again to turn off random play. RDM OFF will appear
on the display.
SEEK: Press the left facing triangle SEEK button to
go to the start of the current or previous track. Press the
right facing triangle, SEEK button to go to the start of
the next track. If either of the SEEK buttons is held or
pressed more then once, the player will continue moving
backward or forward through the CD.
DISP: Press this button to see how long the current
track has been playing. ET and the elapsed time will
appear on the display. To change what is normally
shown on the display (track or elapsed time), press
the button until you see the display you want, then
hold the button for two seconds until the display flashes.
The radio will produce one beep.AM FM: Press this button to play the radio when a disc
is in the player. The disc will stop but remain in the player.
CD AUX: With a CD in the player and the radio playing,
press this button to play a CD. Press AM FM to return
to the radio when a CD is playing. The inactive CD will
remain safely inside the radio for future listening.
EJT: Press this button located below the CD slot
to remove the disc. The radio will play. EJT may be
activated with either the ignition or radio off. CDs may
be loaded with the radio and ignition off if this button is
pressed first.
CAL ERR: This message is displayed when the radio
has not been calibrated properly for the vehicle. You must
return to the dealership for service.
LOCKED: This message is displayed when the
THEFTLOCK

system has locked up. You must
return to the dealership for service.
