2001 BUICK REGAL sensor

2-28
NEUTRAL (N): In this position, your engine
doesn't connect with the wheels. To restart when you're
already moving, use NEUTRAL (N) only. Also, use
NEUTRAL (N) when your vehicle is being towed.

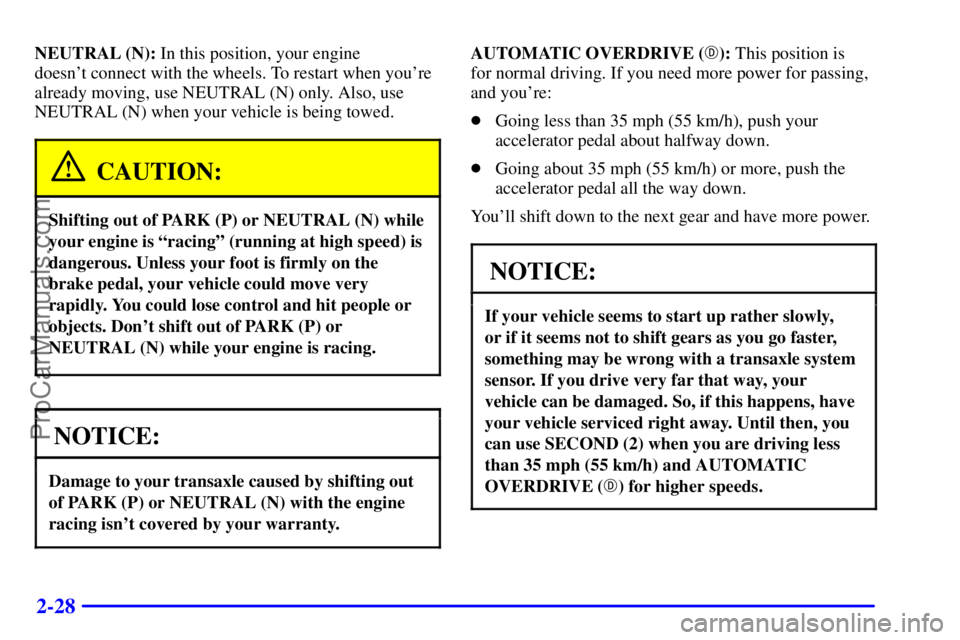

CAUTION:
Shifting out of PARK (P) or NEUTRAL (N) while
your engine is ªracingº (running at high speed) is
dangerous. Unless your foot is firmly on the
brake pedal, your vehicle could move very
rapidly. You could lose control and hit people or
objects. Don't shift out of PARK (P) or
NEUTRAL (N) while your engine is racing.
NOTICE:
Damage to your transaxle caused by shifting out
of PARK (P) or NEUTRAL (N) with the engine
racing isn't covered by your warranty.
AUTOMATIC OVERDRIVE (
): This position is
for normal driving. If you need more power for passing,
and you're:

Going less than 35 mph (55 km/h), push your
accelerator pedal about halfway down.

Going about 35 mph (55 km/h) or more, push the
accelerator pedal all the way down.
You'll shift down to the next gear and have more power.
NOTICE:
If your vehicle seems to start up rather slowly,
or if it seems not to shift gears as you go faster,
something may be wrong with a transaxle system
sensor. If you drive very far that way, your
vehicle can be damaged. So, if this happens, have
your vehicle serviced right away. Until then, you
can use SECOND (2) when you are driving less
than 35 mph (55 km/h) and AUTOMATIC
OVERDRIVE (
) for higher speeds.
ProCarManuals.com

2-43
Exterior Lamps
The lamp controls
are located on the
instrument panel.
They control these systems:

Headlamps

Taillamps

Parking Lamps

License Lamps

Sidemarker Lamps

Instrument Panel Lights

Courtesy Lamps

Cornering LampsIf you pull the knob out halfway, it will turn on your
parking lamps and your other operating lamps. If you
pull the knob all the way out, your headlamps will then
come on.
Push the knob in all the way to turn off the lamps.
A warning chime will sound if you open the driver's
door when you turn the ignition switch to OFF, LOCK
or ACCESSORY with the lamps on.
Daytime Running Lamps / Automatic
Headlamp Control
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving conditions,
but they can be especially helpful in the short periods after
dawn and before sunset. Fully functional daytime running
lights are required on all vehicles first sold in Canada.
A light sensor on top of the instrument panel makes the
DRL work, so be sure it isn't covered.
The DRL system will make your front turn signal lamps
come on when:

The ignition is on,

the headlamp switch is off and

the parking brake is released.
ProCarManuals.com

2-77 Low Oil Level Light
Your engine is equipped
with an oil level monitoring
system. When the ignition
key is turned on, the
LOW OIL light will
come on briefly.
If the light does not come on briefly, have it fixed so it
will be ready to warn you if there's a problem.
If the light stays on, stop the vehicle on a level surface
and turn the engine off. Check the oil level using the
engine oil dipstick. (See ªEngine Oilº in the Index.)
If the light does not come on briefly, have the low oil
level sensor system repaired so it will be ready to warn
you if there's a problem.
The oil level monitoring system only checks oil level
during the brief period between key on and engine
crank. It does not monitor engine oil level when the
engine is running. Additionally, an oil level check is
only performed if the engine has been turned off for a
considerable period of time, allowing the oil normally in
circulation to drain back into the oil pan.
Change Oil Soon Light
The CHANGE OIL SOON
light should come on briefly
as a bulb check when you
start the engine. If the
light doesn't come on,
have it serviced.
If the CHANGE OIL SOON light comes on and stays
on after you start the engine, have the oil changed.
For additional information, see ªEngine Oil, When to
Changeº in the Index. To reset the CHANGE OIL
SOON light, see ªOil Life Systemº in the Index.
ProCarManuals.com

6-71
Mini relay Description
9 Cooling Fan 2
10 Cooling Fan 3
11 Starter Solenoid
12 Cooling Fan 1
13 Ignition Main
14 Air Pump (Optional)
Mini relay Description
15 A/C Clutch
16 Horn
17 Fog Lamps
18 Fuel Pump, Speed Control (L67 only)
19 Fuel PumpMini fuse Description
20 Air Pump (Optional)
21 Generator
22 ECM
23 A/C Compressor Clutch
24 Cooling Fan
25 Electronic Ignition
26 Transaxle
27 Horn
28 Fuel Injector
29 Oxygen Sensor
30 Engine Emissions
31 Fog Lamps
32 Headlamp (Right)
33 Rear Compartment Release
ProCarManuals.com
