2001.5 Peugeot 206 CC service schedule

PEUGEOT SERVICING19
SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules. The air bags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).Note:
The engine coolant does not need to be replaced.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥ Continuous door-to-door use.
¥ Town use.¥ Repeated short journeys, with the engine cold in low temperatures.
Or prolonged stay under the following conditions: ¥ Countries with temperatures often above 30 ¡C.¥ Countries with temperatures often below minus Ð15 ¡C.¥ Countries with a dusty atmosphere.¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous conditions" servicing schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20,000 km) or every year.

PEUGEOT SERVICING
20

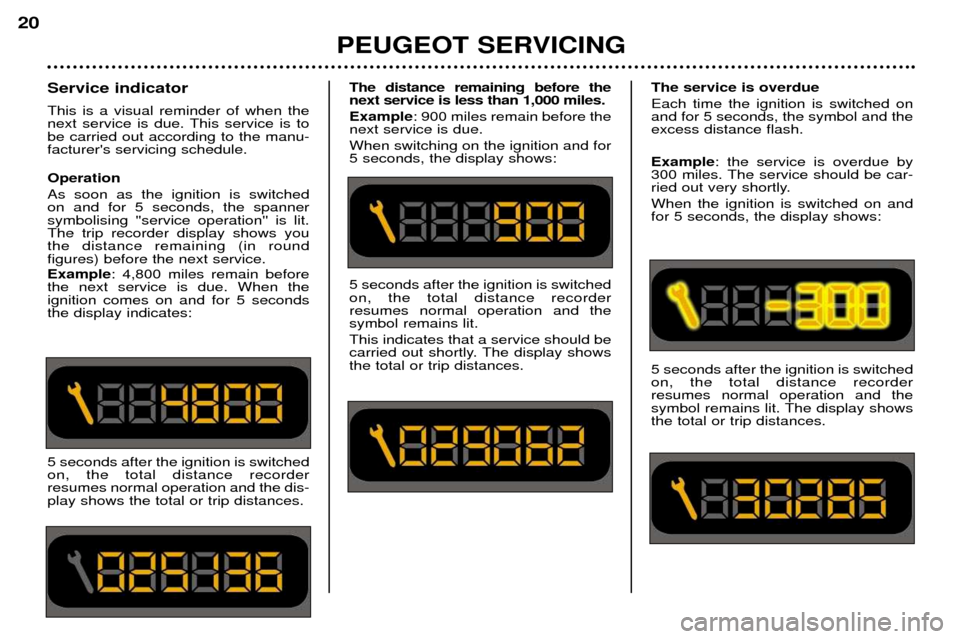

Service indicator This is a visual reminder of when the
next service is due. This service is tobe carried out according to the manu-facturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spannersymbolising ''service operation'' is lit.The trip recorder display shows youthe distance remaining (in roundfigures) before the next service. Example : 4,800 miles remain before
the next service is due. When the ignition comes on and for 5 secondsthe display indicates: The distance remaining before thenext service is less than 1,000 miles. Example
: 900 miles remain before the
next service is due. When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distance recorderresumes normal operation and thesymbol remains lit. This indicates that a service should be
carried out shortly. The display showsthe total or trip distances.
5 seconds after the ignition is switchedon, the total distance recorderresumes normal operation and the dis-play shows the total or trip distances.
5 seconds after the ignition is switched on, the total distance recorderresumes normal operation and the
symbol remains lit. The display showsthe total or trip distances.
The service is overdue Each time the ignition is switched on and for 5 seconds, the symbol and theexcess distance flash. Example : the service is overdue by
300 miles. The service should be car-
ried out very shortly. When the ignition is switched on and for 5 seconds, the display shows:

PEUGEOT SERVICING
22
SERVICING LEVELS Each vehicle possesses its servicing cycle, defined by the manufacturer in terms of the technical features.
This cycle consists in alternating beteen 2 levels A and C, intermediate visits and a few additional operations specific to your vehicle; they correspond to key stages in the life of your 206 CC. Service level B concerns servicing of less recent vehicles.At your first and each subsequent service, your dealer will advise you of the type and content of the next service due.
Intermediate top-up visit incorporated in the ServicingSchedule.
Automatic gearbox oil
level every 40,000 miles (60,000 km).
Replacement of brake fluidevery 2 years or 40,000 miles (60,000 km).
These fixed operations are carried out with synthetically based oil. Fuel Economy oil or
synthetic oil may also be used.
THE MAINTENANCE CYCLE FOR YOUR 206 CC
Service every 20,000 miles (30,000 km) or 2 years.
MILES (KM) 20,000 (30,000) 40,000 (60,000) 60,000 (90,000) 80,000 (120,000)
1st service at 6,000 miles
(10,000 km) or 6 months*. This is necessary in
order to benefit from the warranty.
100,000 (150,000) 120,000 (180,000) 140,000 (210,000) 160,000 (240,000) 180,000 (270,000)
+ replacement of timing belt
+ replacement of timing belt
* Whichever is first.

PEUGEOT SERVICING
24
PETROL
PETROL
(1) Minimum quality standard: Petrol engines: ACEA A3 and API SH/SJ - ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) - API = American Petroleum InstituteIf oil is used which does not conform to the ACEA A3-B3 standard, this requires the ÔArduous conditionsÕ servicing schedule to be followed, which involves shorter intervals between services.
TRADE NAMES OF APPROVED AND RECOMMENDED ENGINE LUBRICANTS IN EUROPE (1)

PEUGEOT SERVICING25
Recommendations for approved lubricants The oils which appear in the table opposite are suitable for most pur-poses. The diagram opposite states the optimum range of viscosity dependingon the temperatures at which the oilsare to be used. It is also possible to use "superior qua- lity" synthetic oils. In the absence of semi-synthetic
or synthetic oils, oils of API SH/SJquality may be used by following the "arduous conditions" servicingschedule which specifies shorter service intervals. Do not hesitate to ask for advice
from an approved PEUGEOT dealerto maintain driving pleasure and tominimise the maintenace cost of yourvehicle. For vehicles outside Europe, please
contact a local PEUGEOT dealer.
0W20 3040
50
20W
15W
10W
5W
ONLY ONLY
Manual gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W-80 PR 9736.41 75W-80
ONLY
AL4 Automatic ATF 4HP20-AL4
gearbox PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Brake fluide PEUGEOT DOT4 Coolant
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000ONLYProtection to minus Ð35 ¡C
Other approved products

PRACTICAL ASPECTS OF YOUR VEHICLE
94
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen wash reservoir For best quality cleaning and for your
safety, we recommend that you use pro-
ducts approved by PEUGEOT (capacity2.8 litres). Battery
At the start of winter, have your batte-
ry checked by a PEUGEOT dealer. Air filter Regular replacement of the filter element is essential. If you drive in very dustyconditions, change it twice as often. Brake pads Brake pad wear depends on the style of driving, in particular for vehicleswhich are used in town, for short jour-neys. It may be necessary to checkthe thickness of the pads even bet-ween services. Manual gearbox This does not need an oil change. Check the level according to the manufacturer'sservicing schedule. Autoadaptive automatic gearbox This does not need an oil change: have
the level checked by a PEUGEOT dea-ler according to the manufacturer's ser-vicing schedule.Only use products approved
by PEUGEOT.
To ensure best performance from components as impor-
tant as the power steering and the bra-king system, PEUGEOT selects andoffers quite specific products.
