Page 31 of 123
YOUR 206 CC IN DETAIL33

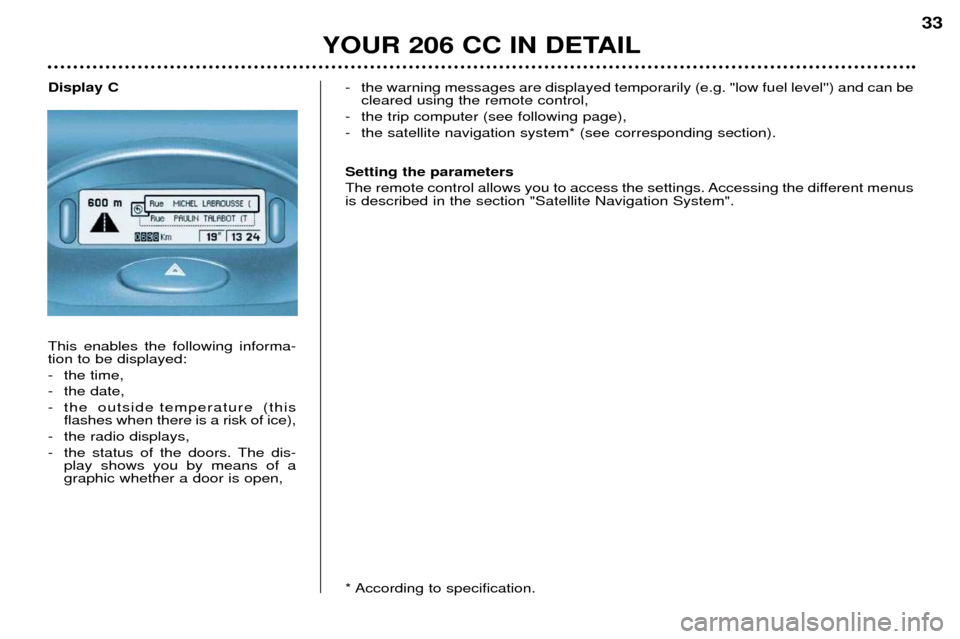

Display C This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (this
flashes when there is a risk of ice),
- the radio displays,
- the status of the doors. The dis- play shows you by means of a graphic whether a door is open, - the warning messages are displayed temporarily (e.g. "low fuel level'') and can be
cleared using the remote control,
- the trip computer (see following page),
- the satellite navigation system* (see corresponding section). Setting the parameters
The remote control allows you to access the settings. Accessing the different menus is described in the section "Satellite Navigation System".
* According to specification.
Page 42 of 123
YOUR 206 CC IN DETAIL
44
Direction arrows: These enable you to move around the screen and thus select a function.
On the welcome screen only, the Up and Down buttons enable the brightness of the screen to beadjusted.
menu : this button allows access to the main menu. It can be
used at any time.
esc : escape button
"Short press": cancels the current operation andreturns to the previous screen. "Press for more than 2 seconds": returns to the welcome screen. This button can be used in any menu. It is inactive during guidance.
mod : mode button
"Short press": changes between date, navigation andradio.
val : Confirmation button
Confirms the function selected.
THE SATELLITE NAVIGATION SYSTEM Introduction The satellite navigation system guides you to the destination of your choiceby means of vocal and visual instruc-
tions. The heart of the system lies inthe use of a map database and a GPS
system. The latter enables your posi-tion to be located by means of severalsatellites. The satellite navigation system consists of the following components:
Ð the remote control,
Ð the display,
Ð the control unit,
Ð the last voice message recall control,
Ð the CD ROM. The remote controlPointing this at the screen enables the information contained in the various menus to be selected.
A special compartment in the glove box permits storage of the remote control.
Some functions or services descri- bed may vary depending on the CDROM version or the country wherethe vehicle is sold.
Page 45 of 123
YOUR 206 CC IN DETAIL47
Main menu Switch on the ignition. Press the
"Menu"button to access the main menu.
Select a function using the direction arrows, then confirm ( "VAL" button).Navigation / Guidance Following selection of the "Navigation/guidance"menu, a
screen warns you about the use of the navigation system. Follow the regulations in force and do not use the remotecontrol while driving. Press the "VAL" button to access the next screen.
The "Navigation/guidance" menu offers various options for
selecting guidance:
Ð By entering the address of a new destination.
Ð By selecting a service (hotel, station, airport...) available in a town.
Ð By selecting an address stored in one of the two directories.
Ð By resuming a previously interrupted guidance or by stopping a current guidance. Two messages may be displayed depending on the previous actions: "Resume
guidance" or "Stop guidance" .
Ð The radio functions are suspended when the system is in guidance mode.
Page 46 of 123
YOUR 206 CC IN DETAIL47
Main menu Switch on the ignition. Press the
"Menu"button to access the main menu.
Select a function using the direction arrows, then confirm ( "VAL" button).Navigation / Guidance Following selection of the "Navigation/guidance"menu, a
screen warns you about the use of the navigation system. Follow the regulations in force and do not use the remotecontrol while driving. Press the "VAL" button to access the next screen.
The "Navigation/guidance" menu offers various options for
selecting guidance:
Ð By entering the address of a new destination.
Ð By selecting a service (hotel, station, airport...) available in a town.
Ð By selecting an address stored in one of the two directories.
Ð By resuming a previously interrupted guidance or by stopping a current guidance. Two messages may be displayed depending on the previous actions: "Resume
guidance" or "Stop guidance" .
Ð The radio functions are suspended when the system is in guidance mode.
Page 119 of 123
PRACTICAL ASPECTS OF YOUR VEHICLE115
206 CC Accessories
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safety, which
PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry the
PEUGEOT guarantee. Safety:
Anti-theft alarm, lift detection alarm, window engraving, wheel locks, signalling triangle, first aid kit, ...
Protection: Covers suitable for side air bags, carpets, boot storage tray, É
Communication: Telephone, satellite navigation system, CD changers*, audio systems, speakers, audio trim, ...
Personalisation: Alloy wheels, trims, mud flaps*, aluminium and wood panel trim...
Comfort: Centre armrest, can holder, CD or cassette storage, telephone console, Win stop, ...
Leisure: Towbar, boot rack , snow chains, ...
Children: Booster seats and child seats, ...
Maintenance products: Screenwash, interior and exterior maintenance and cleaning products.
* Available during the year.
