1Bonnet opening control
2 Fuse box
3 Storage
4 Steering wheel height adjust- ment control
5 Headlamp height adjustment
6 Lights and fog lamps stalk
7 Adjustable side vent
8 Heated seats switch*
9 Side windows demisting vents
10 Passenger air bag disarmingswitch*
11 Driver's air bag / horn
12 Instrument panel lighting rheostat
13 Windscreen wash/wipe stalk 14
Radio steering column stalk
15 Steering lock
16 Central adjustable vents
17 Hazard warning lights switch
18 Multifunction display
19 Audio equipment
20 Windscreen demisting vents
21 Passenger air bag
22 Glove box
23 Controls for heating, ventila-tion, air conditioning and rearscreen and mirrors demisting
24 Front ashtray
25 Gear lever
26 Lighter
27 Electric mirrors switch 28
Electric windows switch
29 Handbrake
30 Retractable roof switch
* According to specification.
3YOUR AT A GLANCE

YOUR 206 CC IN DETAIL
32

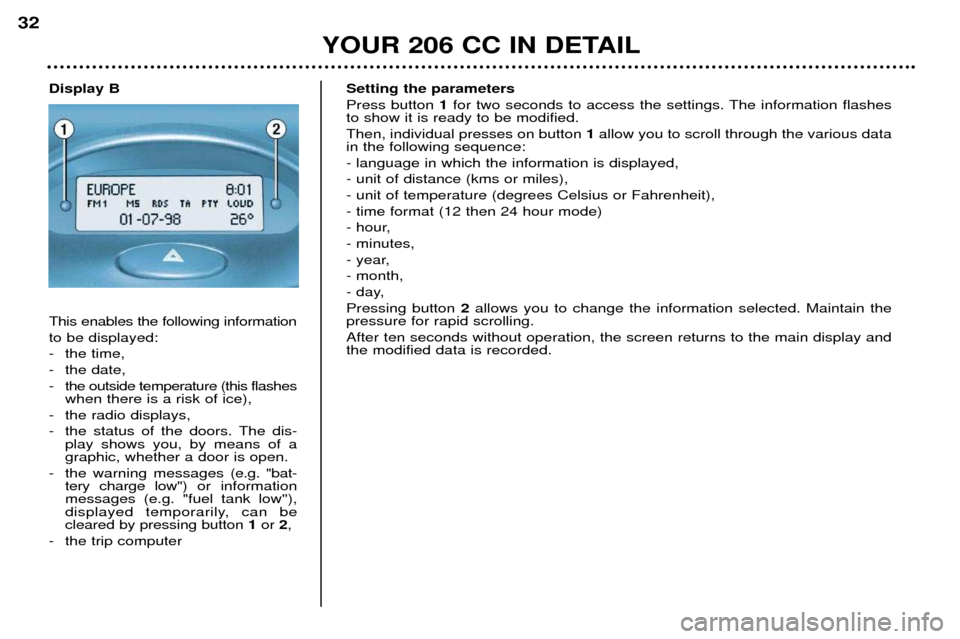

Setting the parameters Press button 1for two seconds to access the settings. The information flashes
to show it is ready to be modified.Then, individual presses on button 1allow you to scroll through the various data
in the following sequence:- language in which the information is displayed,- unit of distance (kms or miles),- unit of temperature (degrees Celsius or Fahrenheit),- time format (12 then 24 hour mode)
- hour,- minutes,
- year,- month,
- day,Pressing button 2allows you to change the information selected. Maintain the
pressure for rapid scrolling. After ten seconds without operation, the screen returns to the main display and the modified data is recorded.
Display B This enables the following information to be displayed:
- the time,
- the date,
- the outside temperature (this flashes when there is a risk of ice),
- the radio displays,
- the status of the doors. The dis- play shows you, by means of a graphic, whether a door is open.
- the warning messages (e.g. ''bat-
tery charge low'') or informationmessages (e.g. "fuel tank low''),
displayed temporarily, can becleared by pressing button 1or 2,
- the trip computer

YOUR 206 CC IN DETAIL33
Display C This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (this
flashes when there is a risk of ice),
- the radio displays,
- the status of the doors. The dis- play shows you by means of a graphic whether a door is open, - the warning messages are displayed temporarily (e.g. "low fuel level'') and can be
cleared using the remote control,
- the trip computer (see following page),
- the satellite navigation system* (see corresponding section). Setting the parameters
The remote control allows you to access the settings. Accessing the different menus is described in the section "Satellite Navigation System".
* According to specification.

YOUR 206 CC IN DETAIL
34

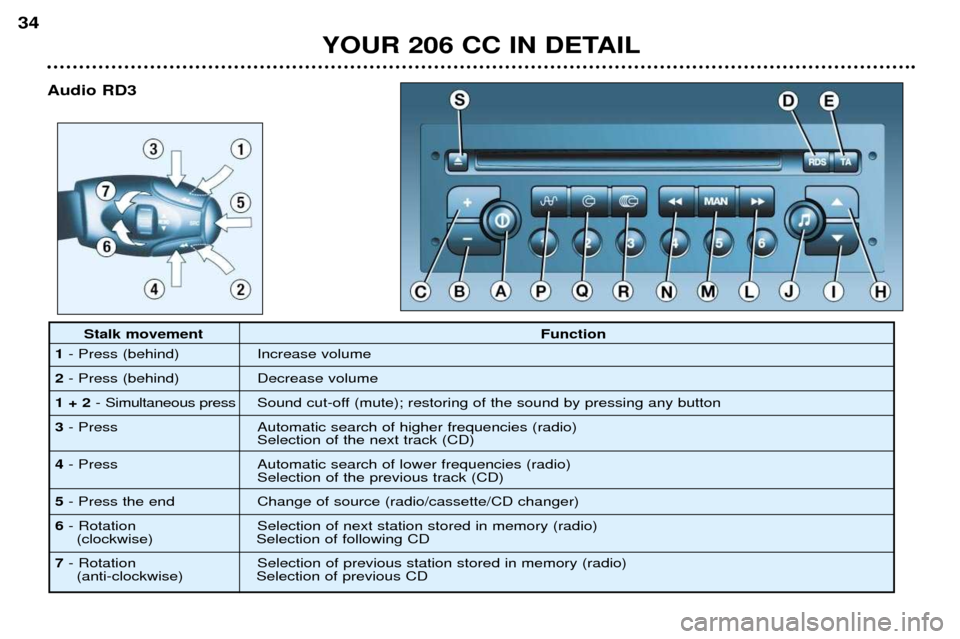

Audio RD3
Stalk movement Function
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button
3 - Press Automatic search of higher frequencies (radio)
Selection of the next track (CD)
4 - Press Automatic search of lower frequencies (radio)
Selection of the previous track (CD)
5 - Press the end Change of source (radio/cassette/CD changer)
6 - Rotation Selection of next station stored in memory (radio)
(clockwise) Selection of following CD
7 - Rotation Selection of previous station stored in memory (radio)
(anti-clockwise) Selection of previous CD

YOUR 206 CC IN DETAIL35
Button
Function
A Radio on/off
B-Reduction in volume
C+Increase in volume
D RDS RDS function on / off
Press for more than 2 seconds : regional following mode on/off
ET ATraffic information priority on/off
Press for more than 2 seconds: PTY function on/off
H Increase audio setting
I Decrease audio setting
J Adjustment of bass, treble, loudness, sound distribution and automatic . volume correction
L
kk Automatic search of higher frequencySelection of next CD track
M MAN
Manual/automatic operation of buttons Land N
N jj Automatic search of lower frequency
Selection of previous CD track
P Radio Selection of FM1, FM2, FMast and AM wavebands
Press for more than 2 seconds: automatic storing of stations in memory (autostore)
QC DSelection of CD
Press for more than 2 seconds: shuffle
R CH. CD Selection of CD changer
Press for more than 2 seconds: shuffle
SEjection of CD
1 to 6 Selection of station stored in memory
Press for more than 2 seconds: storing of a station in memory

YOUR 206 CC IN DETAIL
36
GENERAL FUNCTIONS On/off With the ignition key in the accessories or ignition position, press button Ato switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft system The audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Press the button Cto increase the volume, or button Bto decrease it.
Continuous pressure on buttons Band Callows a gradual adjustment of the volume.
AUDIO SETTINGS Press button Jseveral times in succession to access the bass (BASS), treble (TREB), loudness (LOUD),
fader (FAD) , balance (BAL)and automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button J
after configuration of the automatic volume correction. Note : bass and treble settings are specific to each source. It is possible to set them differently for radio, CD
or CD changer.

YOUR 206 CC IN DETAIL
38
RADIO Notes on radio reception
Your car radio is subject to phenomena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are
subject to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of th e
signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles (moun -
tains, hills, buildings etc), or of being in an area which is not covered by a transmitter. Selecting radio mode

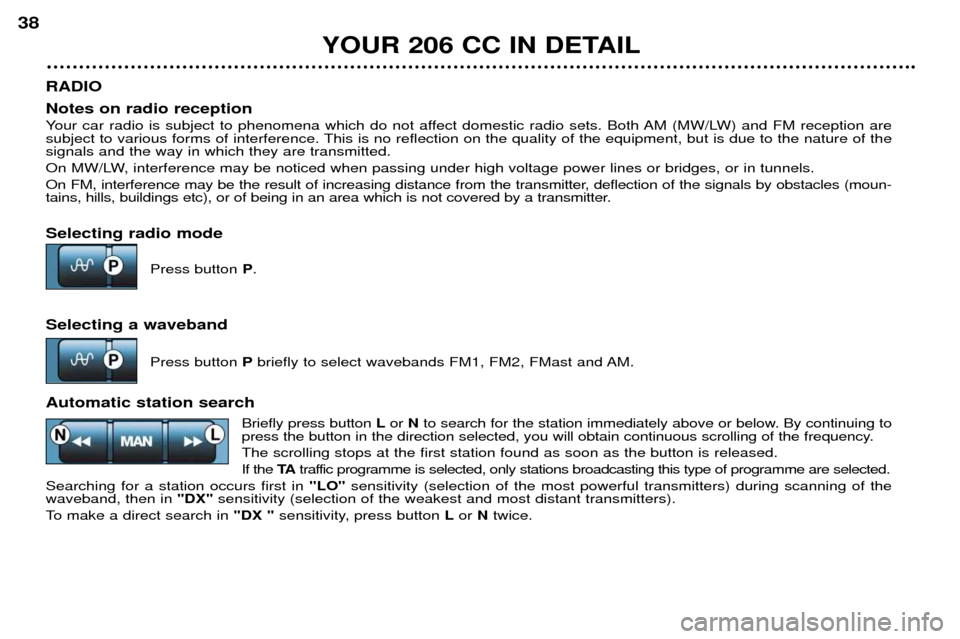

Press button P.
Selecting a waveband Press button Pbriefly to select wavebands FM1, FM2, FMast and AM.
Automatic station search Briefly press button Lor Nto search for the station immediately above or below. By continuing to
press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.If the TAtraffic programme is selected, only stations broadcasting this type of programme are selected.
Searching for a station occurs first in "LO"sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in "DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX "sensitivity, press button Lor Ntwice.

YOUR 206 CC IN DETAIL39
Manual station search Press the "MAN " button.
Briefly press button Lor Nto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory.
Automatic storing of FM stations in the memory (autostore)
Press button Pdown for more than two seconds.
Your radio automatically stores the six stations with the strongest signal in FM. These stations are stored in the FMast wave-
band.
If it is not possible to find six stations, the remaining memories are empty.
Recalling stations stored in the memory For each waveband, briefly press one of the buttons "1"to "6" to recall the corresponding station.
