Page 88 of 123
YOUR 206 CC IN DETAIL
88
FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in the
fascia for the front passenger. Theyare deployed simultaneously except incases where the air bag is disarmed. Front air bag fault If this warning light comes on, accom- panied by an audible signal and themessage
"Air bag fault" on the multi-
function display, contact a PEUGEOTdealer to have the system checked.
AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions. Itworks in conjunction with the force-limiting seat belts. The electronic detectors register and analyse any abrupt deceleration of thevehicle: if the triggering threshold isreached the air bags inflate instantlyand protect the occupants of thevehicle. Immediately after the impact, the air
bags deflate rapidly, so that they donot hinder the visibility of the occu-pants and their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are not
serious, for which the seat belt is suffi-cient to ensure maximum protection.The seriousness of a collisiondepends on the nature of the obstacleand the speed of the vehicle at themoment of the collision. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the
cushion can be a minor irritant. Disarming the passenger* air bag
To ensure the safety of your child, it is essential to disarm the passen-ger air bag when you install a rear-facing child seat on the front pas-senger seat.
Remove the ignition key, insert it into the passenger airbag switch 1
and turn it to the "OFF"position,
then remove it, maintaining thisposition. The ''OFF''warning light
switches on.
The air bag warning light onthe instrument panel is litthroughout the disarmingprocess.
* According to specification.
Page 89 of 123
YOUR 206 CC IN DETAIL89
In the
"OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as you remove the rear-fac- ing child seat from the front passengerseat, turn the air bag switch to the"ON" position, to arm the air bag
again and thus ensure the safety ofyour passenger in an impact. Operating check This is provided by an indicator light, accompanied by an audible signal anda message on the multifunction dis-
play. When the ignition is on (2nd notch on the ignition key), switching on of thiswarning light, accompanied by anaudible signal and the message ''Pas-
senger air bag disarmed'' on the
multifunction screen, indicates that thepassenger air bag is disarmed ( ''OFF''
position on the control).SIDE AIRBAGS* These are incorporated into the frame of the front seat back, on the doorside. They are deployed independently of each other depending on which sidethe collision occurs, in collisions whichcould cause injury to the chest, theabdomen or the head. Operating check This is confirmed by an indica-
tor light on the instrument panel. It comes on for 6 seconds, each time the ignition is switched on. If the indicator light:
Ð does not light up when the ignition is switched on, or
Ð does not go out after 6 seconds or,
Ð flashes for 5 minutes then stays on,
Contact a PEUGEOT dealer.
*According to specification
Page 91 of 123
YOUR 206 CC IN DETAIL89
In the
"OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as you remove the rear-fac- ing child seat from the front passengerseat, turn the air bag switch to the"ON" position, to arm the air bag
again and thus ensure the safety ofyour passenger in an impact. Operating check This is provided by an indicator light, accompanied by an audible signal anda message on the multifunction dis-
play. When the ignition is on (2nd notch on the ignition key), switching on of thiswarning light, accompanied by anaudible signal and the message ''Pas-
senger air bag disarmed'' on the
multifunction screen, indicates that thepassenger air bag is disarmed ( ''OFF''
position on the control).SIDE AIRBAGS* These are incorporated into the frame of the front seat back, on the doorside. They are deployed independently of each other depending on which sidethe collision occurs, in collisions whichcould cause injury to the chest, theabdomen or the head. Operating check This is confirmed by an indica-
tor light on the instrument panel. It comes on for 6 seconds, each time the ignition is switched on. If the indicator light:
Ð does not light up when the ignition is switched on, or
Ð does not go out after 6 seconds or,
Ð flashes for 5 minutes then stays on,
Contact a PEUGEOT dealer.
*According to specification
Page 118 of 123
PRACTICAL ASPECTS OF YOUR VEHICLE
114

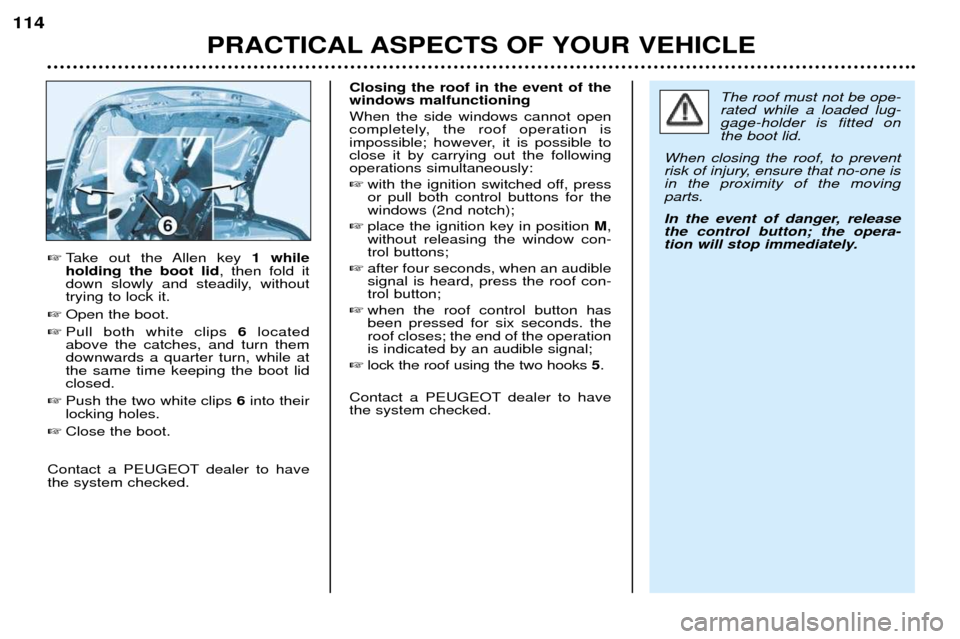

Take out the Allen key 1 while
holding the boot lid , then fold it
down slowly and steadily, without trying to lock it.
Open the boot.
Pull both white clips 6located
above the catches, and turn themdownwards a quarter turn, while atthe same time keeping the boot lidclosed.
Push the two white clips 6into their
locking holes.
Close the boot.
Contact a PEUGEOT dealer to havethe system checked.
The roof must not be ope- rated while a loaded lug-gage-holder is fitted onthe boot lid.
When closing the roof, to prevent
risk of injury, ensure that no-one isin the proximity of the movingparts.
In the event of danger, release the control button; the opera-
tion will stop immediately.Closing the roof in the event of the windows malfunctioning When the side windows cannot open
completely, the roof operation is
impossible; however, it is possible toclose it by carrying out the followingoperations simultaneously: with the ignition switched off, press or pull both control buttons for thewindows (2nd notch);
place the ignition key in position M,
without releasing the window con-trol buttons;
after four seconds, when an audiblesignal is heard, press the roof con-trol button;
when the roof control button hasbeen pressed for six seconds. theroof closes; the end of the operationis indicated by an audible signal;
lock the roof using the two hooks 5.
Contact a PEUGEOT dealer to havethe system checked.
