2001.5 Peugeot 206 CC Dag headlamp

PRACTICAL ASPECTS OF YOUR VEHICLE91
1 -
Power steering reservoir
2 - Windscreen and headlamp wash reservoir*
3 - Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Air filter 7 -
Dipstick
8 - Engine oil reservoir
* According to specification.
1.6 LITRE 16V ENGINE

PRACTICAL ASPECTS OF YOUR VEHICLE
92
1 -
Power steering reservoir
2 - Windscreen and headlamp wash reservoir*
3 - Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Air filter 7 -
Dipstick
8 - Engine oil reservoir
* According to specification.
2 LITRE 16 V ENGINE

PRACTICAL ASPECTS OF YOUR VEHICLE
94
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir* For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 2.8 litres or 6.6 litres withheadlamp wash). Battery
At the start of winter, have your batte-
ry checked by a PEUGEOT dealer. Air filter Regular replacement of the filter ele- ment is essential.
If you drive in very
dusty conditions, change it twice asoften. Brake pads Brake pad wear depends on the style of driving, in particular for vehicleswhich are used in town, for short jour-neys. It may be necessary to checkthe thickness of the pads even bet-ween services.
* According to specification. Manual gearbox This does not need an oil change. Check the level according to themanufacturer's servicing schedule. Autoadaptive automatic gearbox This does not need an oil change: have the level checked by a
PEUGEOT dealer according to themanufacturer's servicing schedule.Only use products appro-
ved by Automobiles
PEUGEOT.
To ensure best performan-
ce from components as important as the power steering and the bra-king system, PEUGEOTselects and offers quite specificproducts.

PRACTICAL ASPECTS OF YOUR VEHICLE99
Ð Pull tab
Aupwards and remove the protective cover.
Ð Disconnect the connector.
Ð Press the end of the securing clip to remove it. Change the faulty bulb.
Ð On fitting, ensure that the direction notches are in the cor- rect position and that the clip is secured correctly.
Ð Reconnect the connector.
Ð Replace the protective cover. Remarks
Ð Only touch the bulbs with a dry cloth.
Ð To replace the bulbs on the right-hand side, remove the wash-wipe reservoir filler pipe first.
Ð Condensation may form inside the headlamps. It will disap- pear when they are used.

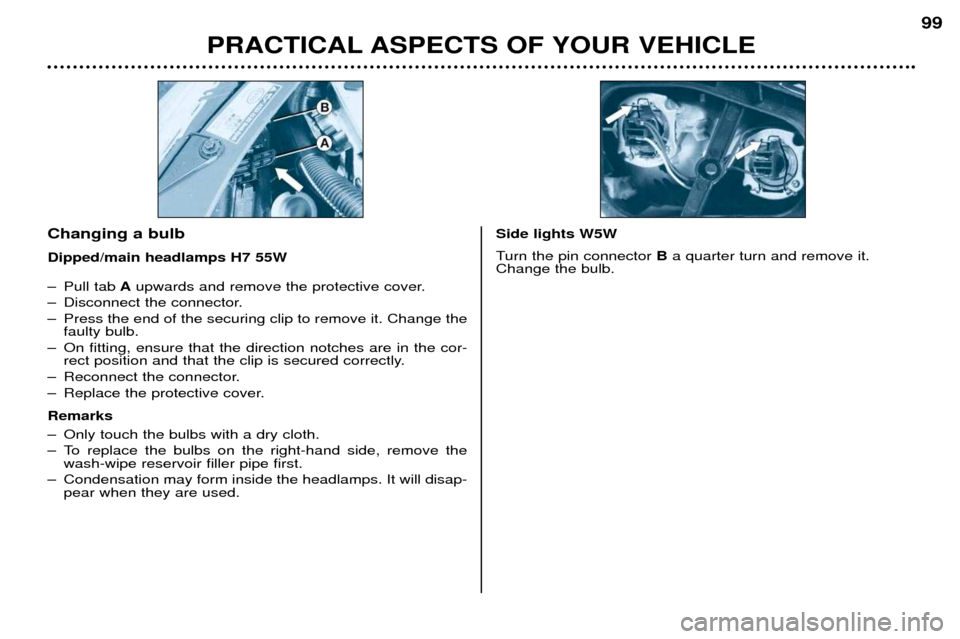

Changing a bulb Dipped/main headlamps H7 55WSide lights W5W
Turn the pin connector Ba quarter turn and remove it.
Change the bulb.

PRACTICAL ASPECTS OF YOUR VEHICLE
100
Amber direction indicators PY21W
Turn the pin connector
Ca quarter
turn and remove it. Change the bulb. Amber direction indicator side repeater WY5W Push the repeater forwards or back-
wards and release the assembly. Hold the connector and turn the trans- parent cover a quarter turn. Change the bulb.

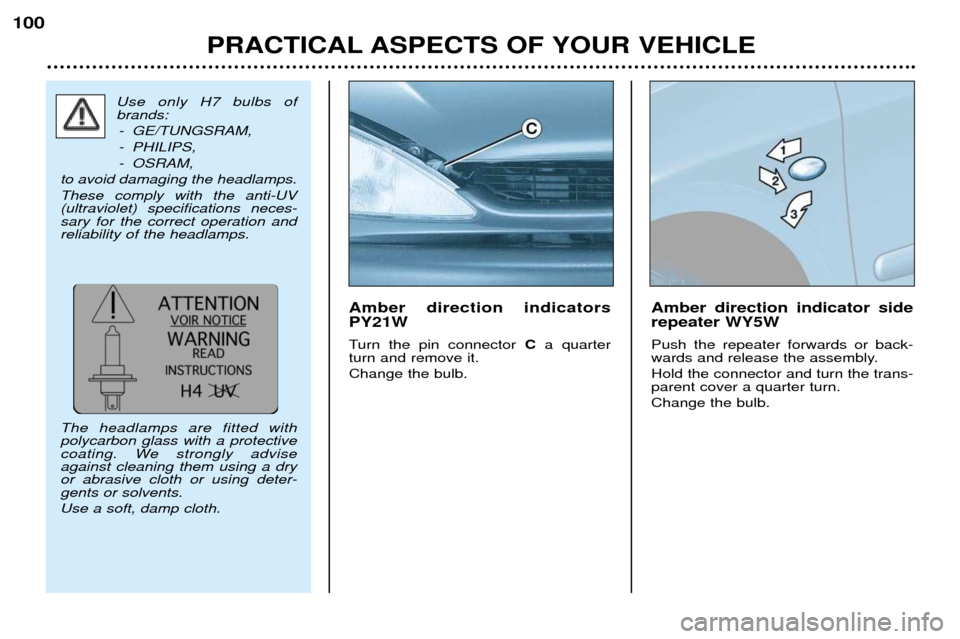

Use only H7 bulbs of brands:
- GE/TUNGSRAM,
- PHILIPS,
- OSRAM,
to avoid damaging the headlamps.These comply with the anti-UV (ultraviolet) specifications neces-sary for the correct operation andreliability of the headlamps. The headlamps are fitted with polycarbon glass with a protective
coating. We strongly adviseagainst cleaning them using a dryor abrasive cloth or using deter-gents or solvents. Use a soft, damp cloth.

PRACTICAL ASPECTS OF YOUR VEHICLE
110
Towing a trailer, caravan, boat etc.
Only use original PEUGEOT tow bars that have been tested and approvedfrom the design stage of your vehicle.The tow bar must be fitted by a
PEUGEOT dealer.
Your vehicle is mainly designed for transporting people and luggage but it
may also be used for towing a trailer. Driving with a trailer subjects the tow- ing vehicle to more significant stressand its driver must be particularlycareful. Air density decreases with altitude, thus reducing engine performance.The maximum towing load must bereduced by 10% for every1000 metres of altitude. Driving advice Distribution of loadsDistribute the load in the trailer so that the heaviest items are as close aspossible to the axle and the noseweight approaches the maximum per-mitted without exceeding it. Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependent onthe engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. The maximum towing load on a long slope depends on the gradient and theoutside temperature. Always pay attention to the coolant temperature. If the warning light comes on, stop the
vehicle and switch off the engine assoon as possible.
Tyres Check the tyre pressures of the towing
vehicle and of the trailer, observing therecommended pressures.
Braking
Towing increases the braking dis- tance. Lights Adjust your headlamps so that they do not dazzle other road users.Check the electrical signalling on the
trailer. Side wind
Take into acount the increased sensi- tivity to side wind.

PRACTICAL ASPECTS OF YOUR VEHICLE111
Bodywork maintenance
To preserve the paintwork and the plastic trim on your vehicle, we recom-
mend that you wash them regularly.
Ð by hand: there are no specific pre-
cautions to take;
Ð using an automatic car wash: repeated use of poorly maintained automatic car washes can lead tothe appearance of microscopicscratches which give the paintworka matt appearance (especiallyvisible on dark colours);
Ð using a high pressure washer: always follow the recommendationson the equipment (pressure andspraying distance). If there are damaged areas on the vehicle (painted bumpers, or head-lamps), it is not recommended todirect the high pressure jet onto
them. Wash these areas by hand. Also avoid the entry of water into the locks.

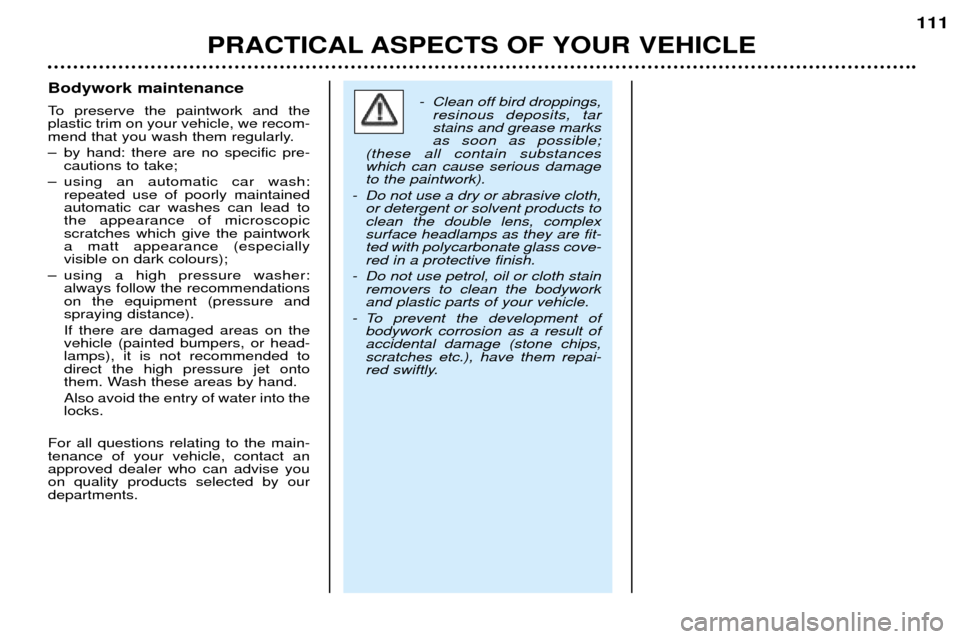

For all questions relating to the main-tenance of your vehicle, contact anapproved dealer who can advise youon quality products selected by ourdepartments.- Clean off bird droppings, resinous deposits, tar stains and grease marksas soon as possible;
(these all contain substanceswhich can cause serious damageto the paintwork).
- Do not use a dry or abrasive cloth, or detergent or solvent products toclean the double lens, complexsurface headlamps as they are fit-ted with polycarbonate glass cove-red in a protective finish.
- Do not use petrol, oil or cloth stain removers to clean the bodyworkand plastic parts of your vehicle.
- To prevent the development of bodywork corrosion as a result ofaccidental damage (stone chips,scratches etc.), have them repai-
red swiftly.
