2000 YAMAHA TTR125 engine

5 - 31
CHAS
EC560000
STEERING

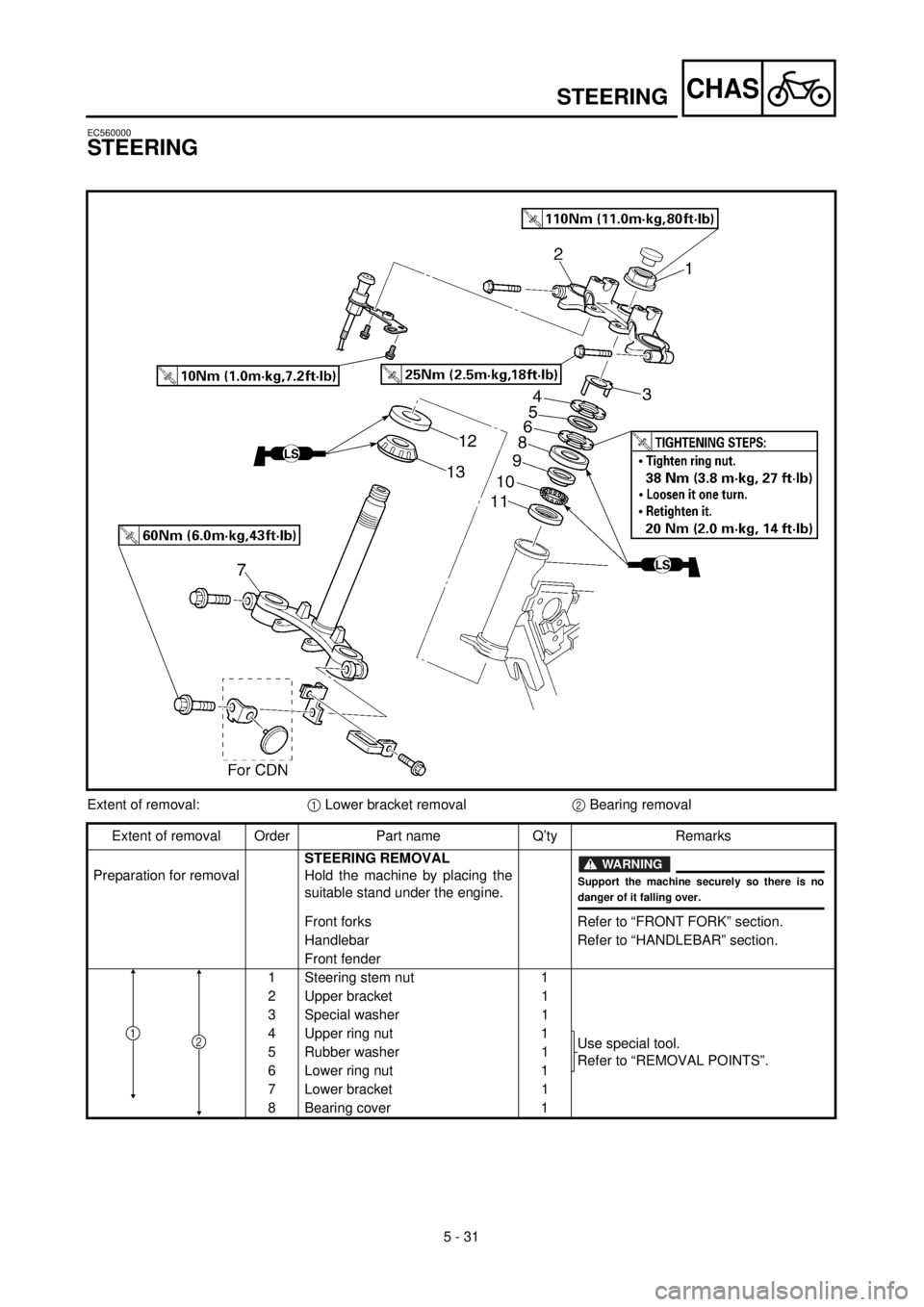

Extent of removal:1 Lower bracket removal2 Bearing removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removalSTEERING REMOVAL
Hold the machine by placing the
suitable stand under the engine.
Front forks Refer to “FRONT FORK” section.
Handlebar Refer to “HANDLEBAR” section.
Front fender
1 Steering stem nut 1
2 Upper bracket 1
3 Special washer 1
4 Upper ring nut 1
Use special tool.
Refer to “REMOVAL POINTS”. 5 Rubber washer 1
6 Lower ring nut 1
7 Lower bracket 1
8Bearing cover
1
WARNING
Support the machine securely so there is nodanger of it falling over.
21
STEERING

5 - 37
CHASSWINGARM
EC570000
SWINGARM
Extent of removal:1 Swingarm removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removalSWINGARM REMOVAL
Hold the machine by placing the
suitable stand under the engine.
Rear wheel Refer to “REAR WHEEL AND REAR
BRAKE” section.
1 Drive chain tensioner (upper) 1
2 Drive chain tensioner (lower) 1
3 Bolt (connecting arm-frame) 1
4 Bolt (rear shock absorber-relay arm) 1Hold the swingarm.
5 Pivot shaft 1
6 Swingarm 1
WARNING
Support the machine securely so there is nodanger of it falling over.
1

5 - 44
CHASREAR SHOCK ABSORBER
EC580000
REAR SHOCK ABSORBER
Extent of removal:1 Rear shock absorber removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removalREAR SHOCK ABSORBER
REMOVAL
Hold the machine by placing the
suitable stand under the engine.
Seat and side covers Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section.
1 Bolt (rear shock absorber-relay
arm)1 Hold the swingarm.
2 Bolt (rear shock absorber-frame) 1
3 Bushing 1 Refer to “REMOVAL POINTS”.
4Rear shock absorber
1
WARNING
Support the machine securely so there is nodanger of it falling over.
1

6 - 1
–+ELEC

ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC600000
ELECTRICAL
EC610000
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC611000
ELECTRICAL COMPONENTS
1
CDI unit
2
Engine stop switch
3
Ignition coil
4
CDI magneto
5
Spark plug
COLOR CODE
B...................... Black
Br .................... Brown
G ..................... Green
O ..................... Orange
R ..................... Red
W..................... WhiteB/R .................. Black/Red
B/W ................. Black/White
G/L .................. Green/Blue
G/W ................. Green/White
W/L .................. White/Blue
W/R ................. White/Red
EC612000
WIRING DIAGRAM
6

6 - 2
–+ELEC

IGNITION SYSTEM
EC620000
IGNITION SYSTEM
INSPECTION STEPS
Use the following steps for checking the possibility of the malfunctioning engine being attributable to
ignition system failure and for checking the spark plug which will not spark.
*marked: Only when the ignition checker is used.
NOTE:

l
Remove the following parts before inspection.
1) Seat
2) Fuel tank
l
Use the following special tools in this inspection.
Spark gap test*Clean or replace
spark plug.
Check entire ignition
system for connection.Repair or replace.
Check engine stop switch. Replace.
Check ignition coil. Primary coil Replace.
Secondary coilReplace.
Check CDI magneto. Pickup coil Replace.
Charging coil Replace.
Replace CDI unit.
Dynamic spark tester:
YM-34487
Ignition checker:
90890-06754
Pocket tester:
YU-03112/90890-03112
No Spark
OK
OK
OK
OK
Spark
No good
No good
No good
No good
No good
No good

6 - 3
–+ELEC

IGNITION SYSTEM
SPARK GAP TEST
1. Disconnect the spark plug cap from spark
plug.
2. Connect the dynamic spark tester
1
(ignition checker
2
) as shown.
l
Spark plug cap
3

l
Spark plug
4


For USA and CDN
õ
Except for USA and CDN
3. Kick the kickstarter crank.
4. Check the ignition spark gap.
5. Start engine, and increase spark gap
until misfire occurs. (for USA and CDN
only)
Minimum spark gap:
6.0 mm (0.24 in)

õ

EC624000
COUPLERS AND LEADS CONNECTION
INSPECTION
1. Check:
l
Couplers and leads connection
Rust/dust/looseness/short-circuit
®

Repair or replace.
ENGINE STOP SWITCH INSPECTION
1. Inspect:
l
Engine stop switch conduct.
Not continuous while being pushed
®

Replace.
Continuous while being freed
®
Replace.
Tester (+) lead
®
Black/White lead
1

Tester (–) lead
®
Black lead
2

B/W
1
B
2
Tester selec-
tor position
PUSH IN
W

´
1
FREE
