PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
12
*Swingarm• Check swingarm pivoting point for play.
• Correct if necessary.
• Lubricate with molybdenum disulfide grease every 24,000 km
or 24 months (whichever comes first).ÖÖ
13 Drive chain• Check chain slack.
• Adjust if necessary. Make sure that the rear wheel is properly aligned.
• Clean and lubricate. Every 500 km and after washing the
motorcycle or riding in the rain
14*Steering bearings• Check bearing play and steering for roughness.
• Correct accordingly.
• Lubricate with lithium soap base grease every 24,000 km
or 24 months (whichever comes first).ÖÖ
15*Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.ÖÖ
16 Sidestand• Check operation.
• Lubricate and repair if necessary.ÖÖ
17*Sidestand switch• Check operation.
• Replace if necessary.ÖÖÖ
18*Front fork• Check operation and for oil leakage.
• Correct accordingly.ÖÖ
19*Rear shock absorber
assembly• Check operation and shock absorber for oil leakage.
• Replace shock absorber assembly if necessary. ÖÖ
20*Rear shock absorber
assembly pivoting points• Check operation.
• Lubricate with molybdenum disulfide grease every 24,000 km
or 24 months (whichever comes first).ÖÖ
21*Carburetors• Check engine idling speed, synchronization and starter operation.
• Adjust if necessary.ÖÖÖ
22 Engine oil• Check oil level and vehicle for oil leakage.
• Correct if necessary.
• Change. (Warm engine before draining.)ÖÖÖ
23 Engine oil filter element
• Replace.ÖÖ NO. ITEM CHECKS AND MAINTENANCE JOBSINITIAL
(1,000 km)EVERY
6,000 km
or
6 months
(whichever
comes first)12,000 km
or
12 months
(whichever
comes first)
E_4tx_Periodic.fm Page 3 Saturday, October 16, 1999 9:37 AM
Page 50 of 99
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
* Since these items require special tools, data and technical skills, they should be serviced by a Yamaha dealer.
EAU02970*
NOTE:@ l
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
l
Hydraulic brake system
• When disassembling the master cylinder or caliper cylinder, always replace the brake fluid. Check the brake fluid level
regularly and fill as required.
• Replace the oil seals on the inner parts of the master cylinder and caliper cylinder every two years.
• Replace the brake hoses every four years or if cracked or damaged.
@24
*Cooling system• Check coolant level and vehicle for coolant leakage.
• Correct if necessary.
• Change coolant every 24,000 km or 24 months (whichever comes first).ÖÖ NO. ITEM CHECKS AND MAINTENANCE JOBSINITIAL
(1,000 km)EVERY
6,000 km
or
6 months
(whichever
comes first)12,000 km
or
12 months
(whichever
comes first)
E_4tx_Periodic.fm Page 4 Saturday, October 16, 1999 9:37 AM
Page 51 of 99
PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU01139
Cowling and panel removal
and installationThe cowlings and panels illustrated
need to be removed to perform some
of the maintenance described in this
chapter. Refer to this section each time
a cowling or panel has to be removed
or reinstalled.
EAU00484*
Cowlings A and BTo remove
Remove the screws and pull outward
as shown.
To install
Place the cowlings in the original posi-
tion and install the screws.
1. Cowling A
2. Panel A
1. Cowling B
2. Panel B
1. Screw (´ 3)
E_4tx_Periodic.fm Page 5 Saturday, October 16, 1999 9:37 AM
Page 52 of 99
PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6
EAU01691*
Panels A and BTo remove
1. Remove the seat. (See page 3-12
for removal and installation proce-
dures.)
2. Remove the screw.
To install
1. Place the panels in the original po-
sition and install the screw.
2. Install the seat.
EAU01668*
Spark plugsRemoval
1. Remove cowlings A and B. (See
page 6-5 for removal and installa-
tion procedures.)
2. Remove the spark plug caps.
3. Use the spark plug wrench in the
tool kit to remove the spark plugs
as shown.Inspection
The spark plug is an important engine
component and is easy to inspect. The
condition of the spark plug can indicate
the condition of the engine.
Normally, all spark plugs from the
same engine should have the same
color on the white insulator around the
center electrode. The ideal color at this
point is a medium-to-light tan color for a
motorcycle that is being ridden normal-
ly. If one spark plug shows a distinctly
different color, there could be some-
thing wrong with the engine.
1. Screw
1. Spark plug cap
1. Spark plug wrench
E_4tx_Periodic.fm Page 6 Saturday, October 16, 1999 9:37 AM
Page 53 of 99
PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6Do not attempt to diagnose such prob-
lems yourself. Instead, take the motor-
cycle to a Yamaha dealer. You should
periodically remove and inspect the
spark plugs because heat and deposits
will cause any spark plug to slowly
break down and erode. If electrode ero-
sion becomes excessive, or if carbon
and other deposits are excessive, you
should replace the spark plug with the
specified plug.Installation
1. Measure the electrode gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
2. Clean the gasket surface. Wipe off
any grime from the threads.
3. Install the spark plugs and tighten
them to the specified torque.
NOTE:@ If a torque wrench is not available when
you are installing a spark plug, a good
estimate of the correct torque is 1/4 to
1/2 turn past finger tight. Have the
spark plug tightened to the specified
torque as soon as possible. @4. Install the spark plug caps.
5. Install the cowling. Specified spark plug:
DPR8EA-9 (NGK) or
X24EPR-U9 (DENSO)
a. Spark plug gap
Spark plug gap:
0.8 ~ 0.9 mm
Tightening torque:
Spark plug:
18 Nm (1.8 m·kg)
E_4tx_Periodic.fm Page 7 Saturday, October 16, 1999 9:37 AM
Page 54 of 99
PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6
EAU01692
Engine oilOil level inspection
1. Place the motorcycle on a level
place. Warm up the engine at idle
for 15 minutes.NOTE:@ Be sure the motorcycle is positioned
straight up when checking the oil level.
A slight tilt toward the side can result in
false readings. @
2. The oil tank is located behind the
engine cylinders. With the engine
stopped, check the oil level
through the level window located
on the right side of the oil tank.
3. The oil level should be between
the maximum and minimum
marks. If the level is low, fill engine
with sufficient oil to raise it to the
specified level.Engine oil and oil filter element re-
placement
1. Warm up the engine for a few min-
utes.
2. Stop the engine. Place an oil pan
under the engine and remove the
oil filler cap.
3. Remove the drain bolts and drain
the oil.
4. Remove the oil filter cover bolts
and oil filter.
1. Oil level window
2. Minimum level mark
3. Maximum level mark
1. Engine oil filler cap
1. Engine oil drain bolt a
E_4tx_Periodic.fm Page 8 Saturday, October 16, 1999 9:37 AM
Page 55 of 99
PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
65. Install the drain bolts and tighten
them to the specified torque.
6. Install the new oil filter, O-rings
and the filter cover. Tighten the oil
filter cover bolts to the specified
torque.
NOTE:@ Make sure the O-rings are seated prop-
erly. @7. Fill engine with oil. Install the oil fill-
er cap and tighten.
EC000066
CAUTION:@ l
Do not put in any chemical addi-
tives. Engine oil also lubricates
the clutch and additives could
cause clutch slippage.
l
Be sure no foreign material en-
ters the crankcase.
@

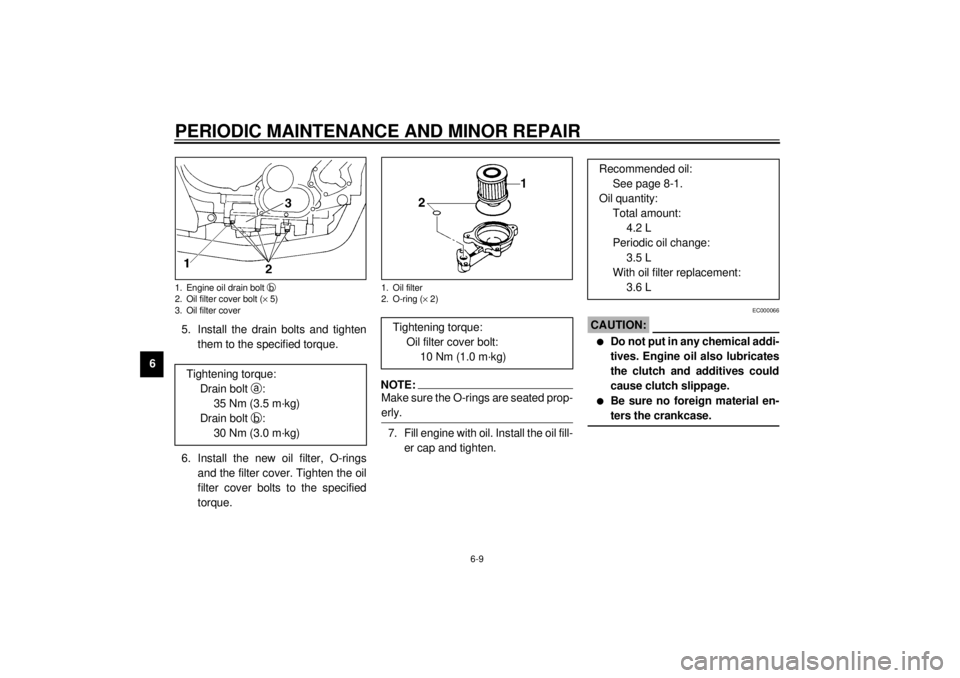

1. Engine oil drain bolt b
2. Oil filter cover bolt (´ 5)
3. Oil filter coverTightening torque:
Drain bolt
a:
35 Nm (3.5 m·kg)
Drain bolt
b:
30 Nm (3.0 m·kg)
1. Oil filter
2. O-ring (´ 2)
Tightening torque:
Oil filter cover bolt:
10 Nm (1.0 m·kg)
Recommended oil:
See page 8-1.
Oil quantity:
Total amount:
4.2 L
Periodic oil change:
3.5 L
With oil filter replacement:
3.6 L
E_4tx_Periodic.fm Page 9 Saturday, October 16, 1999 9:37 AM
Page 56 of 99
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6 8. Start the engine and warm up for a
few minutes. While warming up,
check for oil leakage. If oil leakage
is found, stop the engine immedi-
ately and check for the cause.
9. Stop the engine and check the oil
level.
EAU03024*
Cooling system1. Check the coolant level in the
coolant reservoir when the engine
is cold as the coolant level will vary
with engine temperature. The
coolant level should be between
the maximum and minimum
marks.
2. If the level is low, remove the seat.
(See page 3-12 for seat removal
and installation procedures.)
3. Remove the coolant reservoir cap,
then add coolant or distilled water
to raise it to the specified level.4. Install the coolant reservoir cap
and seat.
ECA00041
CAUTION:@ Hard water or salt water is harmful
to the engine. You may use soft wa-
ter if you can’t get distilled water. @
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
1. Coolant reservoir capCoolant reservoir capacity:
0.3 L
