3-1
ON
OFF
EAU00028
Main switchThe main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on.
The engine can be started. The key
cannot be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.EAU00027
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
EAU00063
High beam indicator light Ò
&Ó
This indicator comes on when the
headlight high beam is used.
EAU01313
Oil level indicator light Ò
7
Ó
This indicator comes on when the oil
level is low. This light circuit can be
checked by the procedure on page 3-
2.EC000000
cCDo not run the motorcycle until
you know it has sufficient engine
oil.NOTE
Even if the oil is filled to the specified
level, the indicator light may flicker
when riding on a slope or during sud-
den acceleration or deceleration, but
this is normal.
1
2
3
4
EAU00056
Indicator lights
EAU00057
Turn indicator light Ò5Ó
This indicator flashes when the turn
switch is moved to the left or right.
EAU00061
Neutral indicator light ÒNÓ
This indicator comes on when the
transmission is in neutral.1.Turn indicator light Ò5Ó
2.High beam indicator light Ò&Ó
3.Neutral indicator light ÒNÓ
4.Oil level indicator light Ò
7
Ó
3MB-9-E7 12/27/00 2:52 PM Page 13

EAU00075
Oil level indicator circuit check
3-2
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9Turn the main switch to ÒONÓ.
Put the transmission in neutral.
Oil level indicator light
does not come on.Ask a Yamaha dealer to
inspect electrical circuit.
Oil level indicator light
comes on.
Oil level indicator light
does not come on.
Supply engine oil.
Shift into gear.
Engine oil level and
electrical circuit are OK.
Go ahead with riding.
Oil level indicator light
comes on.
3MB-9-E7 12/27/00 2:52 PM Page 14

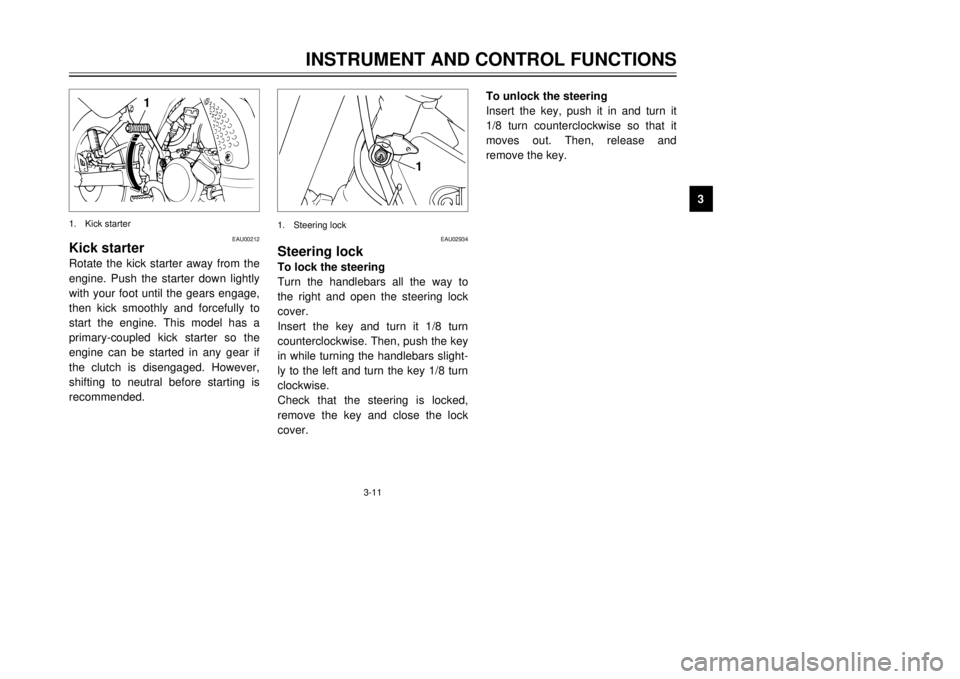

3-11
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
1
EAU00212
Kick starterRotate the kick starter away from the
engine. Push the starter down lightly
with your foot until the gears engage,
then kick smoothly and forcefully to
start the engine. This model has a
primary-coupled kick starter so the
engine can be started in any gear if
the clutch is disengaged. However,
shifting to neutral before starting is
recommended.1.Kick starter
EAU02934
Steering lockTo lock the steering
Turn the handlebars all the way to
the right and open the steering lock
cover.
Insert the key and turn it 1/8 turn
counterclockwise. Then, push the key
in while turning the handlebars slight-
ly to the left and turn the key 1/8 turn
clockwise.
Check that the steering is locked,
remove the key and close the lock
cover.
1
1.Steering lock
To unlock the steering
Insert the key, push it in and turn it
1/8 turn counterclockwise so that it
moves out. Then, release and
remove the key.
3MB-9-E7 12/27/00 2:52 PM Page 23

6-5
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EAU03884
NOTE:
8The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
8Hydraulic brake service
9Regularly check and, if necessary, correct the brake fluid level.
9Every two years replace the internal components of the brake master cylinders and calipers, and change the
brake fluid.
9Replace the brake hoses every four years and if cracked or damaged.21
*Carburetor¥Check starter (choke) operation.
¥Adjust engine idling speed.ÖÖÖÖÖÖ
22*Autolube pump¥Check operation.
¥Bleed if necessary.ÖÖÖÖ
23Transmission oil¥Check oil level.ÖÖÖÖÖÖ
¥Change.ÖÖ
24*Cooling system¥Check coolant level and vehicle for coolant leakage.ÖÖÖÖÖ
¥Change.Every 3 years
25*Front and rear brake
switches¥Check operation.ÖÖÖÖÖÖ
26Moving parts and cables¥Lubricate.ÖÖÖÖÖ
27*Lights, signals and
switches¥Check operation.
¥Adjust headlight beam.ÖÖÖÖÖÖ NO.ITEMCHECK OR MAINTENANCE JOBODOMETER READING (´ 1,000 km)
ANNUAL
CHECK
16121824
3MB-9-E7 12/27/00 2:52 PM Page 41

6-11
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9 Spark plug gap:
0.7 ~ 0.8 mm
Tightening torque:
Spark plug:
20 Nm (2.0 m
0kg)
1
3 2
EAU03109
Transmission oilOil level inspection
1.Place the motorcycle on a level
place and hold it in an upright
position. Warm up the engine for
several minutes.NOTE:
Be sure the motorcycle is positioned
straight up when checking the oil
level. A slight tilt toward the side can
result in false readings.1.Level window
2.Maximum level
3.Minimum level
Installation
1.Measure the electrode gap with
a wire thickness gauge and, if
necessary, adjust the gap to
specification.
2.Clean the gasket surface. Wipe
off any grime from the threads.
3.Install the spark plug and tighten
it to the specified torque.
1
1.Spark plug gap
NOTE:
If a torque wrench is not available
when you are installing a spark plug,
a good estimate of the correct torque
is 1/4 to 1/2 turn past finger tight.
Have the spark plug tightened to the
specified torque as soon as possible.4.Install the spark plug cap.
