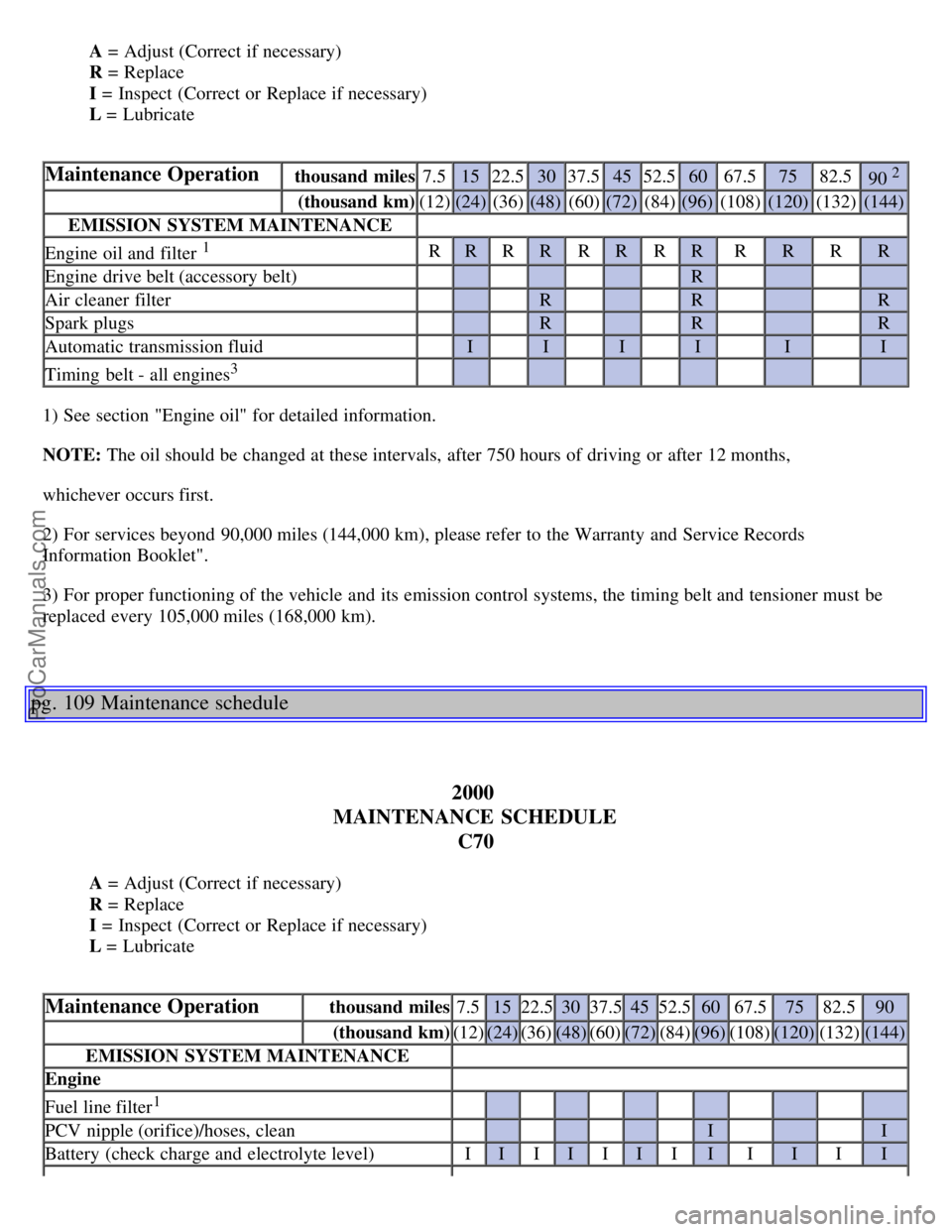

Page 56 of 89
A = Adjust (Correct if necessary)
R = Replace
I = Inspect (Correct or Replace if necessary)
L = Lubricate
Maintenance Operationthousand miles 7.51522.5 3037.5 4552.5 6067.5 7582.5
90 2
(thousand km)(12)(24) (36)(48) (60)(72) (84)(96) (108) (120)(132)(144)
EMISSION SYSTEM MAINTENANCE
Engine oil and filter
1R R RR RR RR R RRR
Engine drive belt (accessory belt) R
Air cleaner filter R R R
Spark plugs R R R
Automatic transmission fluid I I I I I I
Timing belt - all engines
3
1) See section "Engine oil" for detailed information.
NOTE: The oil should be changed at these intervals, after 750 hours of driving or after 12 months,
whichever occurs first.
2) For services beyond 90,000 miles (144,000 km), please refer to the Warranty and Service Records
Information Booklet".
3) For proper functioning of the vehicle and its emission control systems, the timing belt and tensioner must be
replaced every 105,000 miles (168,000 km).
pg. 109 Maintenance schedule
2000
MAINTENANCE SCHEDULE C70
A = Adjust (Correct if necessary)
R = Replace
I = Inspect (Correct or Replace if necessary)
L = Lubricate
Maintenance Operationthousand miles 7.51522.5 3037.5 4552.5 6067.5 7582.5 90
(thousand km)(12)(24)(36) (48)(60) (72)(84)(96)(108) (120) (132)(144)
EMISSION SYSTEM MAINTENANCE
Engine
Fuel line filter
1
PCV nipple (orifice)/hoses, clean I I
Battery (check charge and electrolyte level) II II II I I I II I
ProCarManuals.com
Page 62 of 89
Engine oilQuality:
Meeting API specification SJ, SJ/CF,
or SJ/Energy Conserving Capacity (incl. filter)
: 6.1 US
qts. (5.8 liters)*
Automatic transmission fluid Quality: AW4: ATF Dexron III and Mercon. Capacity:
8 US qts. (7.6
liters)
Manual transmission fluid AW5: Only Volvo gearbox oil (1161540-8). Do
not mix with other oils. Capacity:
8 US qts. (7.5
liters)
Power steering fluid Quality: Volvo synthetic gearbox oil 1161423 Capacity:
2.2 US qts. (2.1
liters)
Brake fluid Quality: ATF Capacity:
0.95 US qts. (0.9
liters)
All specifications are subject to
change without notice. Quality: DOT 4+ Capacity:
0.64 US qts. (0.6
liters)
* Add 0.95 qts. (0.9 liters) if the oil cooler has been drained
pg. 123 Engine specifications
Engine
Liquid-cooled gasoline, 5cylinder, inline engine. Aluminum alloy cylinder block with castiron cylinder liners cast
directly into the block. Aluminum alloy cylinder head with double overhead camshafts and separate intake and outlet
channels.
Engine lubrication is provided by an eccentric pump driven from the crankshaft. Fullflow type oil filter. Exhaust
emission control is accomplished by multiport fuel injection, heated oxygen sensor(s) and threeway catalytic converter. Designation: Volvo B 5234 T3 Designation:Volvo B 5244 T
Output 236 hp at 5400 rpm (176 kW/90 rps) Output190 hp at 5100 rpm (142 kW/85 rps)
Max. torque 243 ft. lbs. at 24005100 rpm (330
Nm/4592 rps) Max. torque199 ft. lbs. at 1600-5000 rpm (270
Nm/27-83 rps)
Number of
cylinders 5 Number of
cylinders5
Bore 3.19" (81 mm) Bore3.27" (83 mm)
Stroke 3.54" (90 mm) Stroke3.54" (90 mm)
Displacement 2.3 liters Displacement2.4 liters
Compression
ratio 8.5:1 Compression
ratio9.0:1
Number of
valves 20 Number of
valves20
ProCarManuals.com
Page 65 of 89
5th gear1.02:1
Reverse3.23:1 3.95:1
Capacities
Fuel tank17.9 US gal. (68 liters)
Cooling system 7.4 US qts. (7.0 liters)
Engine oil (incl. filter) 6.1 US qts. ( 5.8 liters) *
Automatic transmission 2 US gals (7.6 liters)
Manual transmission 2.2 US qts. (2.1 liters)
Power steering fluid 0.8 US qts (0.8 liters)
Washer fluid reservoir 4.7 US qts. (4.5 liters)
Brake/clutch system 0.6 US qts (0.6 liters)
* Add 0.95 US qt. (0.9 liters) if the oil cooler has been drained.
Vehicle loading
The tires on your Volvo should perform to specifications at all normal loads when inflated as recommended on the tire
information label. The label is located on the inside of the fuel filler flap. The label lists both tire and vehicle design
limits. Do not load your car beyond the load limits indicated.
WARNING!
Improperly inflated tires will reduce tire life, adversely affect vehicle handling and can possibly lead to failure
resulting in loss of vehicle control without prior warning.
All specifications are subject to change without notice.
pg. 126 Specifications
Electrical system
12 Volt, negative ground.
Voltagecontrolled generator. Singlewire system with chassis and engine used as conductors.
Battery
Voltage 12 Volt
Capacity 520 A/100 min
(certain markets) 420 A/75 min
The battery contains corrosive and poisonous acids. It is of the utmost importance that old batteries are disposed of
correctly. Your Volvo retailer can assist you in this matter.
ProCarManuals.com
Page 80 of 89

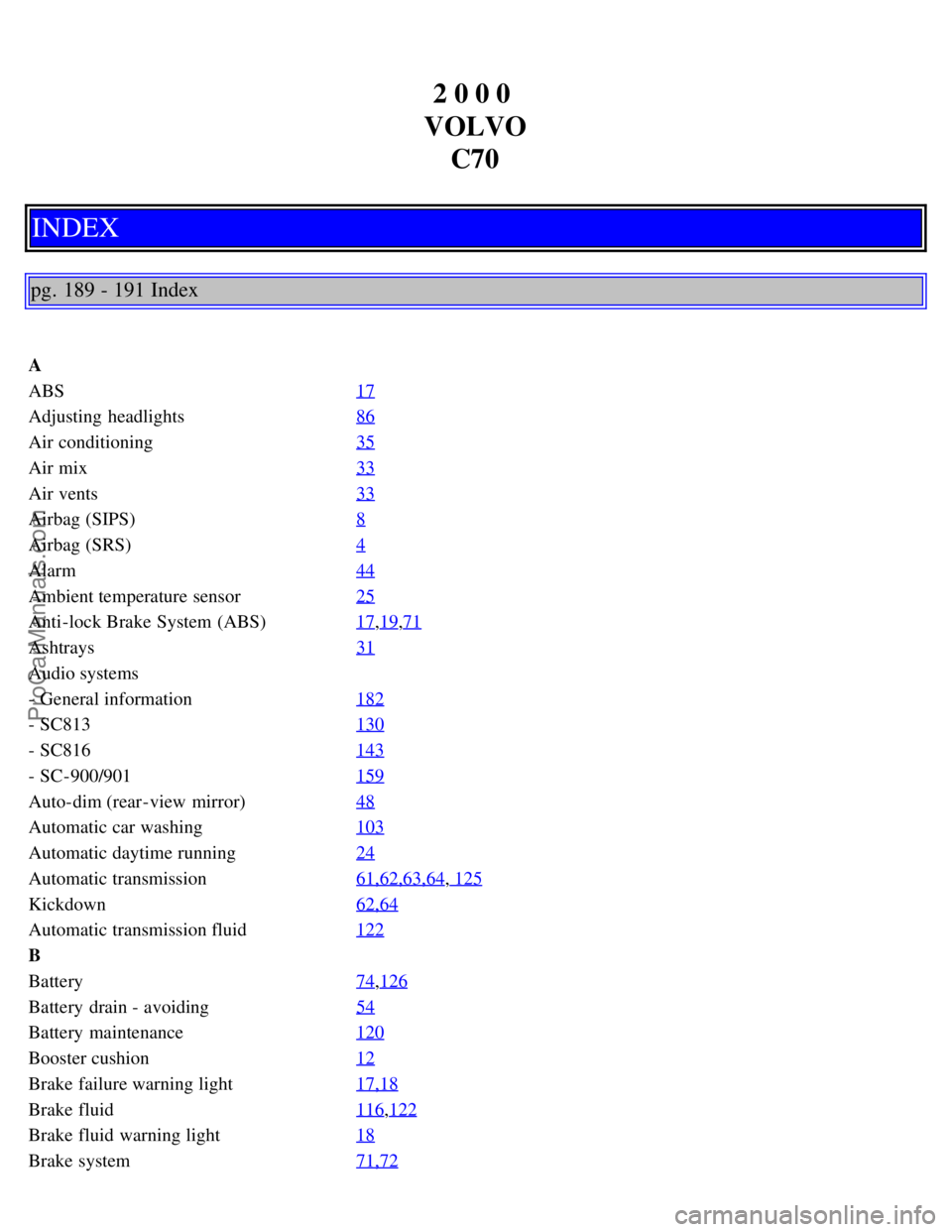

2 0 0 0
VOLVO C70
INDEX
pg. 189 - 191 Index
A
ABS 17
Adjusting headlights86
Air conditioning35
Air mix33
Air vents33
Airbag (SIPS)8
Airbag (SRS)4
Alarm44
Ambient temperature sensor25
Anti-lock Brake System (ABS)17,19,71
Ashtrays31
Audio systems
- General information182
- SC813130
- SC816143
- SC-900/901159
Auto-dim (rear -view mirror)48
Automatic car washing103
Automatic daytime running24
Automatic transmission61,62,63,64, 125
Kickdown62,64
Automatic transmission fluid122
B
Battery74
,126
Battery drain - avoiding54
Battery maintenance120
Booster cushion12
Brake failure warning light17,18
Brake fluid116,122
Brake fluid warning light18
Brake system71,72
