2000 Corolla(U)
54
This child restraint is designed for use
only by children who weigh between 10
and 30 kg (22.1 and 66.1 pounds), and
whose height is between 85 and 127 cm
(33.5 and 50.0 inches).
The child should be at least one year
old and must be capable of sitting up-
right alone and whose shoulder height
is at or below the maximum shoulder
height indicator.
It is important to use a rear- facing
child restraint until the child is about
a year old. A rear- facing restraint gives
the child's head, neck and body the
support they would need in a crash.
See ÐChild restraint systemº for more
information.
If your child's shoulders are above the
indicator position, do not use the built-
in child restraint. Your child should use
the vehicle's seat belts.
According to accident statistics, children
are safer when properly restrained in the
rear seat than in the front seat.CAUTION
Make sure the child is securely re-
strained with the built- in child re-
straint. WARNING! Failure to follow
the manufacturer 's instructions on the
use of this child restraint system can
result in your child striking the ve-
hicle's interior during a sudden stop
or crash. Snugly adjust the belts pro-
vided with this child restraint around
your child.
When using the built- in child re-
straint, observe the following:

Use the belts for only one child at
a time. Do not use the belts for two
or more children.

Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seatback.

Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the child restraint belt sys-
tem.

Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ersÐthey may severely weaken the
belts.

Replace the built- in child restraint
assembly if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

Do not use a separate child re-
straint system over the opened
built- in child restraint.

When the built- in child restraint is
in use, do not use the adult lap and
shoulder belt instead of the built- in
child restraint seat belt as it can
cause severe injury to the child in
a sudden stop or crash.
ProCarManuals.com

2000 Corolla(U)
62
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly
against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.
ProCarManuals.com

2000 Corolla(U)
63

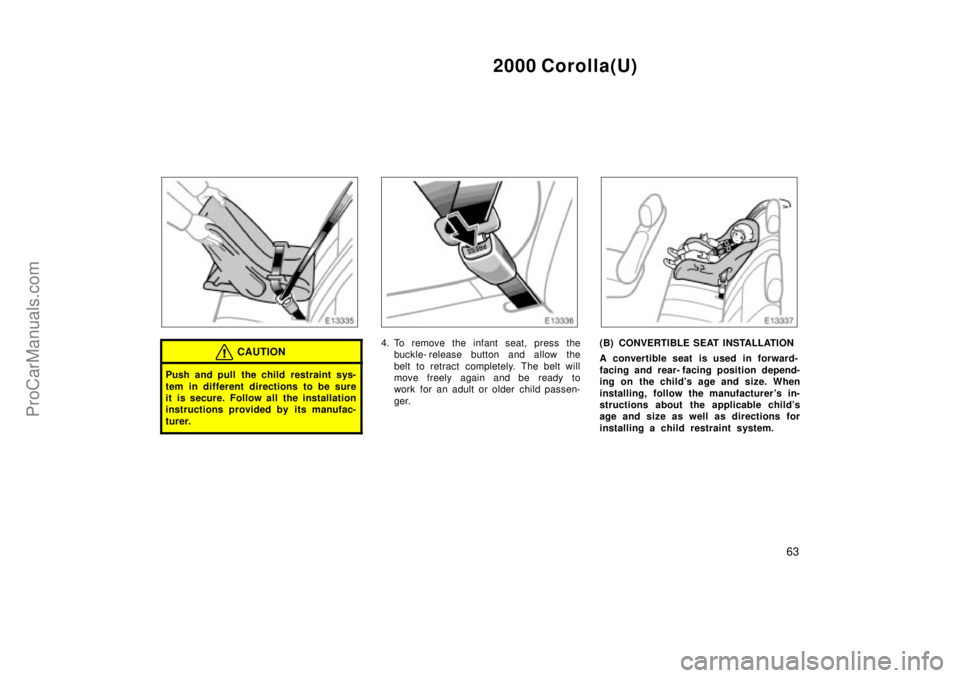

CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press the
buckle- release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward-
facing and rear- facing position depend-
ing on the child's age and size. When
installing, follow the manufacturer's in-
structions about the applicable child's
age and size as well as directions for
installing a child restraint system.
ProCarManuals.com

2000 Corolla(U)
65
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
ProCarManuals.com

2000 Corolla(U)
66
3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, press
the buckle- release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
ProCarManuals.com

2000 Corolla(U)
70

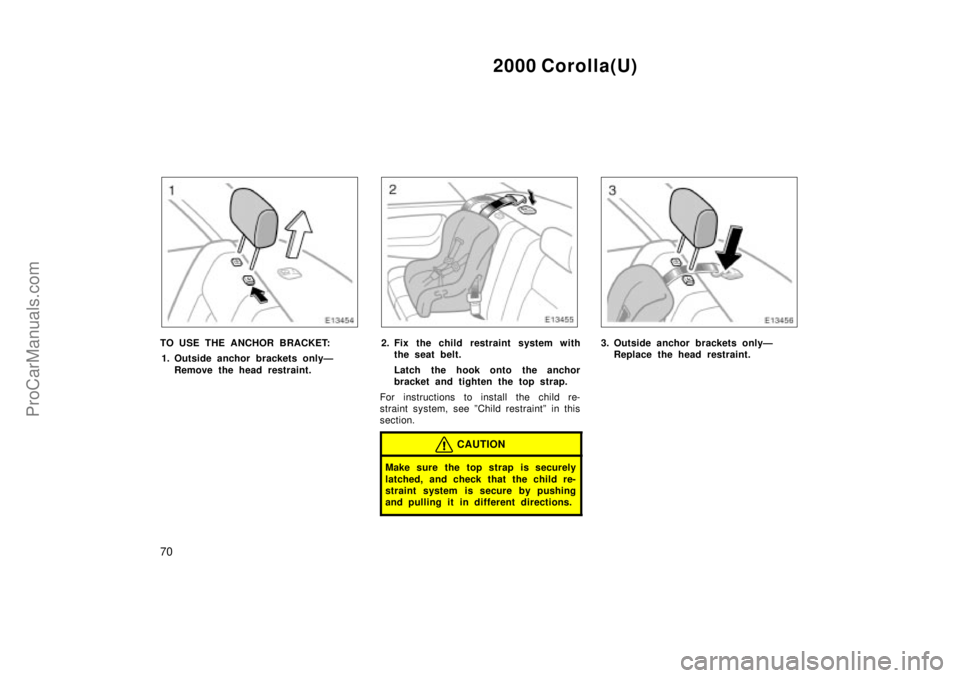

TO USE THE ANCHOR BRACKET:
1. Outside anchor brackets onlyÐ
Remove the head restraint.2. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see ºChild restraintº in this
section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
3. Outside anchor brackets onlyÐ
Replace the head restraint.
ProCarManuals.com

2000 Corolla(U)
95
(f) Parking
1. Bring the vehicle to a complete stop.
2. Pull the parking brake lever up fully to
securely apply the parking brake.
3. With the brake pedal pressed down,
shift the selector lever to the Pº posi-
tion.
CAUTION
Never attempt to move the selector
lever into Pº position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(g) Good driving practice
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Do not hold the vehicle on an up-
grade with the accelerator pedal. It
can cause the transmission to over-
heat. Always use the brake pedal or
parking brake.
(h) Rocking your vehicle if stuck
CAUTION
If your vehicle becomes stuck in
snow, mud, sand, etc., then you may
attempt to rock the vehicle free by
moving it forward and backward. Do
not attempt this procedure if people
or objects are anywhere near the ve-
hicle. During the rocking operation
the vehicle may suddenly move for-
ward or backward as it becomes un-
stuck, causing injury or damage to
nearby people or objects.
NOTICE
If your rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.

Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.

Do not race the engine and avoid
spinning the wheels.

If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
(i) If you cannot shift the selector le-
ver out of Pº position
If you cannot shift the selector lever from
Pº position even though the brake pedal
is depressed, use the shift lock override
button. For instructions, see If you cannot
shift automatic transmission selector leverº
in Section 4.
ProCarManuals.com

2000 Corolla(U)
98
For ways to decrease the vehicle speed,
see Cruise controlº in this section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using 2º and Lº positions
The 2º and Lº positions are used for
strong engine braking as described pre-
viously.
With the selector lever in 2º or Lº, you
can start the vehicle in motion as with the
lever in Dº.
With the selector lever in 2º, the vehicle
will start in the first gear and automatical-
ly shift to second gear.
With the selector lever in Lº, the trans-
mission is engaged in first gear.
NOTICE

Be careful not to overrev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
2º 123 km/h (76 mph). . . . . . . . . . . .
Lº 67 km/h (42 mph). . . . . . . . . . . .

Do not continue hill climbing or
hard towing for a long time in the
2º or Lº position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, Dº position should
be used in hill climbing or hard
towing.
(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with
your foot, shift the selector lever to the
Rº position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. Pull the parking brake lever up fully to
securely apply the parking brake.
3. With the brake pedal pressed down,
shift the selector lever to the Pº posi-
tion.
CAUTION
Never attempt to move the selector
lever into Pº position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(h) Good driving practice
If the transmission repeatedly shifts up
and down between the third gear and
overdrive when climbing a gentle slope,
the overdrive should be turned off. Be
sure to turn the switch on immediately
afterward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
