2000 TOYOTA COROLLA window

2000 Corolla(U)
18
Stopping the alarm
Turn the ignition key from the LOCKº to
ONº position. The alarm will be stopped
with the starter circuit cut kept on. Stop-
ping the alarm in this manner will keep
the alarm from being reactivated when any
of the doors, trunk or hood is opened.
Interrupting the setting
With the system set, the trunk can be
opened with the key without activating or
cancelling the system. While it is open,
the doors and hood may be opened in
addition. However, when the battery termi-
nal is disconnected and then reconnected,
the system is activated.
To resume the setting, close and lock all
the doors, trunk and hood. The trunk must
be closed with the key removed.
CANCELLING THE SYSTEM
Unlock either front door with the key. This
cancels the system completely and the
starter circuit cut will be cancelled at
once.INDICATOR LIGHT
The indicator light gives the following
three indications.
FLASHINGÐThe system is set. You need
the key to open the doors, trunk and
hood.
ONÐThe system will automatically be set
when the time comes. The doors, trunk
and hood may be opened without a key.
OFFÐThe system is inactive. You may
open any door, trunk and hood.TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with the
key. Be sure to wait until the indicator
light starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Cancel the system by unlocking any of
the doors with the key.
5. Repeat this operation for the other
doors, trunk and hood. When testing on
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
ProCarManuals.com

2000 Corolla(U)
75
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers77 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control78 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light78 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light79 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal light79 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer79 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1- 4
ProCarManuals.com

2000 Corolla(U)
80
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ONº position.
Ty p e A Ð
Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
Ty p e B Ð
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
With interval adjuster: The INT TIMEº
band lets you adjust the wiping time inter-
val when the wiper lever is in the intermit-
tent position (position 1). Twist the band
upward to increase the time between
sweeps, and downward to decrease it.To squirt washer fluid, pull the lever
toward you.
With interval adjuster: If the windshield
wipers are off, they will operate a couple
of times after the washer squirts.
For instructions on adding washer fluid,
see Adding washer fluidº in Section 7- 3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Rear window defogger
To defog or defrost the rear window,
push the switch.
The key must be in the ONº position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defogger off.
On some models, the system will automat-
ically shut off after the defogger has oper-
ated about 15 minutes.
ProCarManuals.com

2000 Corolla(U)
81
Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop- and-
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE

Without timer: To prevent the bat-
tery from being discharged, turn the
switch on when the engine is run-
ning.

When cleaning the inside of the
rear window, be careful not to
scratch or damage the heater wires.
ProCarManuals.com

2000 Corolla(U)
133

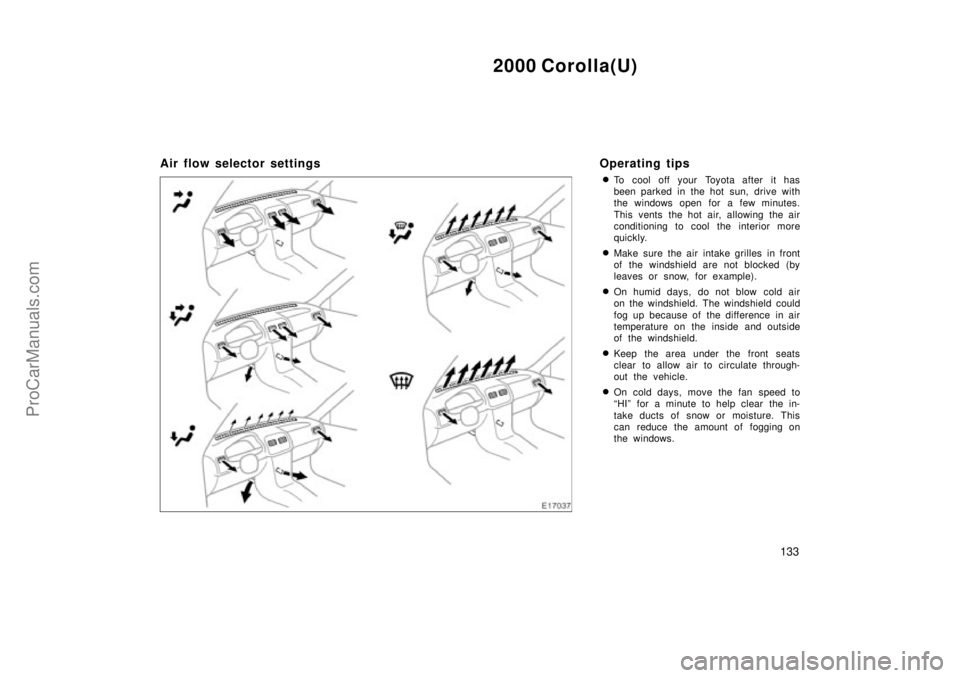

Air flow selector settings Operating tips

To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.

Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).

On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.

Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.

On cold days, move the fan speed to
HIº for a minute to help clear the in-
take ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
ProCarManuals.com

2000 Corolla(U)
134

When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except OFFº.

If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
Fan speedÐAny setting except OFFº
TemperatureÐTowards red zone
Air intakeÐFRESH (outside air)
Air flowÐFLOOR
Air conditioningÐOFF

For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.

Press the A/Cº button on for dehumidi-
fied heating.

Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.Air conditioning
For best results, set controls to:
Fan speedÐAny setting except OFFº
TemperatureÐTowards blue zone
Air intakeÐFRESH (outside air)
Air flowÐPANEL
Air conditioningÐON

For quick cooling, move the air intake
selector to recirculate for a few min-
utes.
Ventilation
For best results, set controls to:
Fan speedÐAny setting except OFFº
TemperatureÐTowards blue zone
Air intakeÐFRESH (outside air)
Air flowÐPANEL
Air conditioningÐOFF
