2000 TOYOTA COROLLA ignition

2000 Corolla(U)
3
1. Power rear view mirror control switch
2. Headlight and turn signal switch
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock
6. Rear window defogger switch
7. Car audio
8. Air conditioning controls
9. Auxiliary boxes
10. Cup holder
11. Cigarette lighter
12. Ashtray
13. Ignition switch
14. Cruise control switch
15. Tilt steering lock release lever
16. Instrument panel light control knob
ProCarManuals.com

2000 Corolla(U)
11
LOCKING AND UNLOCKING WITH
INSIDE LOCK BUTTON
Move the lock button.
To lock: Push the knob down.
To unlock: Pull the knob up.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Vehicles with power door lock sys-
temÐThe door cannot be locked if you
leave the key in the ignition switch.Vehicles with power windows (driver's
side)
Vehicles with power windows (passen-
ger's side)
Vehicles without power windows
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
Vehicles with power windowsÐ
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
Vehicles without power windowsÐ
To lock: Push the switch on the LOCKº
side.
To unlock: Push the switch on the oppo-
site side of the LOCKº side.
All the doors lock or unlock simultaneous-
ly.
ProCarManuals.com

2000 Corolla(U)
12

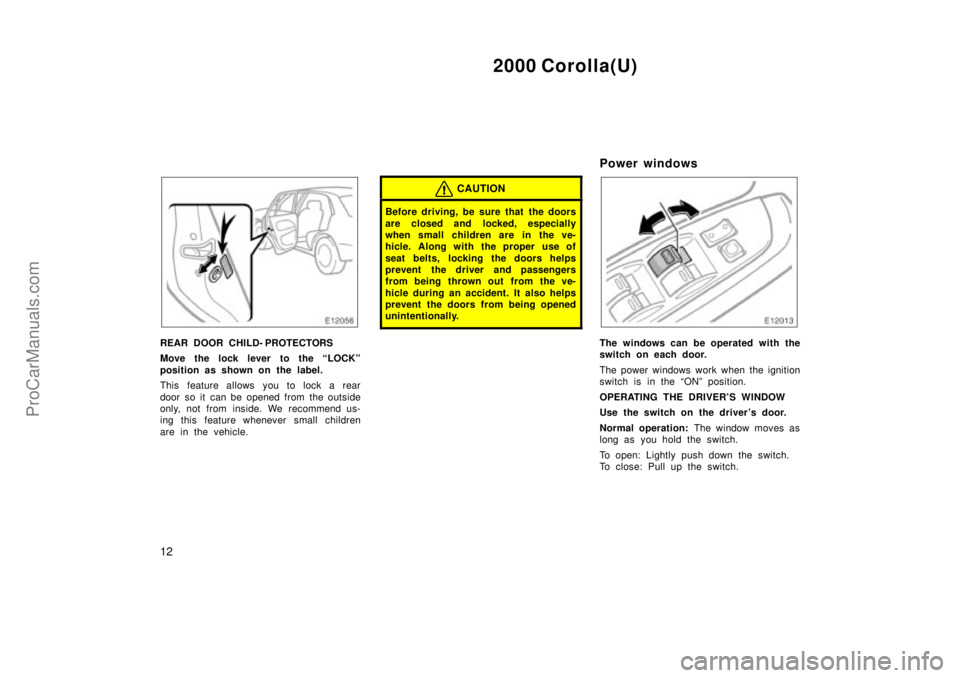

REAR DOOR CHILD- PROTECTORS
Move the lock lever to the LOCKº
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Power windows
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the ONº position.
OPERATING THE DRIVER'S WINDOW
Use the switch on the driver's door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
ProCarManuals.com

2000 Corolla(U)
17
SETTING THE SYSTEM
1. Turn the ignition key to the LOCKº
position and remove it.
2. Have all passengers get out of the
vehicle.
3. Close and lock all the doors, trunk and
hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked.As the doors are locked, the system will
give you a preparation time of 30 seconds
before the setting, during which the doors,
trunk and hood may be opened.
Be careful not to unlock any door with the
key during setting. This will cancel the
system.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
The system will automatically be set after
the preparation time passes. The indicator
light will flash to show the system is set.
If any of the doors, trunk or hood is open
at that time, the setting is interrupted until
it is closed and locked.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm and cut
the starter circuit under the following
conditions:

If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key

If the battery terminal is disconnected
and then reconnected
After one minute, the alarm will automati-
cally stop with the starter circuit cut kept
on.
Reactivating the alarm
Once set, the system automatically resets
the alarm each time all the doors, trunk
and hood are closed after the alarm
stops.
The alarm will be activated again under
the following conditions:

If any of the doors, trunk or hood is
opened

If the battery terminal is disconnected
and then reconnected
ProCarManuals.com

2000 Corolla(U)
18
Stopping the alarm
Turn the ignition key from the LOCKº to
ONº position. The alarm will be stopped
with the starter circuit cut kept on. Stop-
ping the alarm in this manner will keep
the alarm from being reactivated when any
of the doors, trunk or hood is opened.
Interrupting the setting
With the system set, the trunk can be
opened with the key without activating or
cancelling the system. While it is open,
the doors and hood may be opened in
addition. However, when the battery termi-
nal is disconnected and then reconnected,
the system is activated.
To resume the setting, close and lock all
the doors, trunk and hood. The trunk must
be closed with the key removed.
CANCELLING THE SYSTEM
Unlock either front door with the key. This
cancels the system completely and the
starter circuit cut will be cancelled at
once.INDICATOR LIGHT
The indicator light gives the following
three indications.
FLASHINGÐThe system is set. You need
the key to open the doors, trunk and
hood.
ONÐThe system will automatically be set
when the time comes. The doors, trunk
and hood may be opened without a key.
OFFÐThe system is inactive. You may
open any door, trunk and hood.TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with the
key. Be sure to wait until the indicator
light starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Cancel the system by unlocking any of
the doors with the key.
5. Repeat this operation for the other
doors, trunk and hood. When testing on
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
ProCarManuals.com

2000 Corolla(U)
20

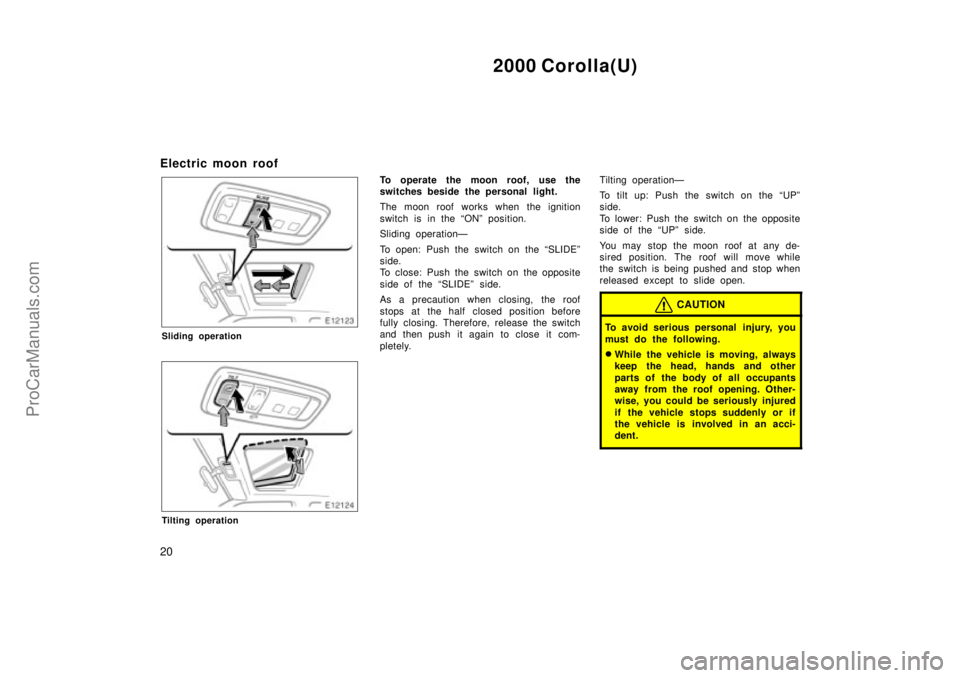

Electric moon roof
Sliding operation
Tilting operation
To operate the moon roof, use the
switches beside the personal light.
The moon roof works when the ignition
switch is in the ONº position.
Sliding operationÐ
To open: Push the switch on the SLIDEº
side.
To close: Push the switch on the opposite
side of the SLIDEº side.
As a precaution when closing, the roof
stops at the half closed position before
fully closing. Therefore, release the switch
and then push it again to close it com-
pletely.Tilting operationÐ
To tilt up: Push the switch on the UPº
side.
To lower: Push the switch on the opposite
side of the UPº side.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released except to slide open.
CAUTION
To avoid serious personal injury, you
must do the following.

While the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants
away from the roof opening. Other-
wise, you could be seriously injured
if the vehicle stops suddenly or if
the vehicle is involved in an acci-
dent.
ProCarManuals.com

2000 Corolla(U)
37
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.

Installation of electronic devices
such as a mobile two- way radio,
cassette tape player or compact
disc player

Repairs on or near the front seat
belt retractor assemblies

Modification of the suspension sys-
tem

Modification of the front end struc-
ture

Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end

Repairs made on or near the front
fenders, front end structure or con-
sole
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If either
of the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.

The light does not come on when the
ignition key is turned to the ACCº or
ONº position, or remains on.

The light comes on or flashes while
driving.

If either front seat belt does not retract
or can not be pulled out due to a
malfunction or activation of the preten-
sioner.

The front seat belt pretensioner assem-
bly or surrounding area has been dam-
aged.

The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the SRS airbags to inflate.

The front seat belt pretensioner assem-
bly is scratched, cracked, or otherwise
damaged.
ProCarManuals.com

2000 Corolla(U)
44

Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, front passen-
ger airbag cover, front passenger
airbag or airbag sensor assembly.
Doing any of these may cause sud-
den SRS airbag inflation or disable
the system, which could result in
death or serious injury.
Failure to follow these instructions
can result in death or serious injury.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS airbag system in some cases.

Installation of electronic devices
such as a mobile two- way radio,
cassette tape player or compact
disc player

Modification of the suspension sys-
tem

Modification of the front end struc-
ture

Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end

Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger 's airbag
This SRS airbag system has a service
reminder indicator to inform the driver of
operating problems. If either of the
following conditions occurs, this indicates
a malfunction of the airbags. Contact your
Toyota dealer as soon as possible to
service the vehicle.

The light does not come on when the
ignition key is turned to the ACCº or
ONº position, or the light remains on.

The light comes on while driving.
ProCarManuals.com
