2000 TOYOTA CELICA fuse

Celica_U
2032000 CELICA (OM20735U)
DO−IT −YOURSELF MAINTENANCE
Introduction
Engine compartment overview 204
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 206
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do −it− yourself service precautions 207
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools 208
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
SECTION 7− 1
ProCarManuals.com

Celica_U
2042000 CELICA (OM20735U)
1. Power steering fluid reservoir
2. Engine oil level dipstick
3. Engine coolant reservoir
4. Engine oil filler cap
5. Battery
6. Brake fluid reservoir
7. Fuse blocks
8. Electric cooling fans
9. Windshield and rear window washer fluid tank
Engine compartment overview
1ZZ −FE engine
ProCarManuals.com

Celica_U
2052000 CELICA (OM20735U)
1. Power steering fluid reservoir
2. Engine oil level dipstick
3. Engine coolant reservoir
4. Engine oil filler cap
5. Battery
6. Brake fluid reservoir
7. Fuse blocks
8. Electric cooling fans
9. Windshield and rear window washer fluid tank

2ZZ −GE engine
ProCarManuals.com

Celica_U
2062000 CELICA (OM20735U)

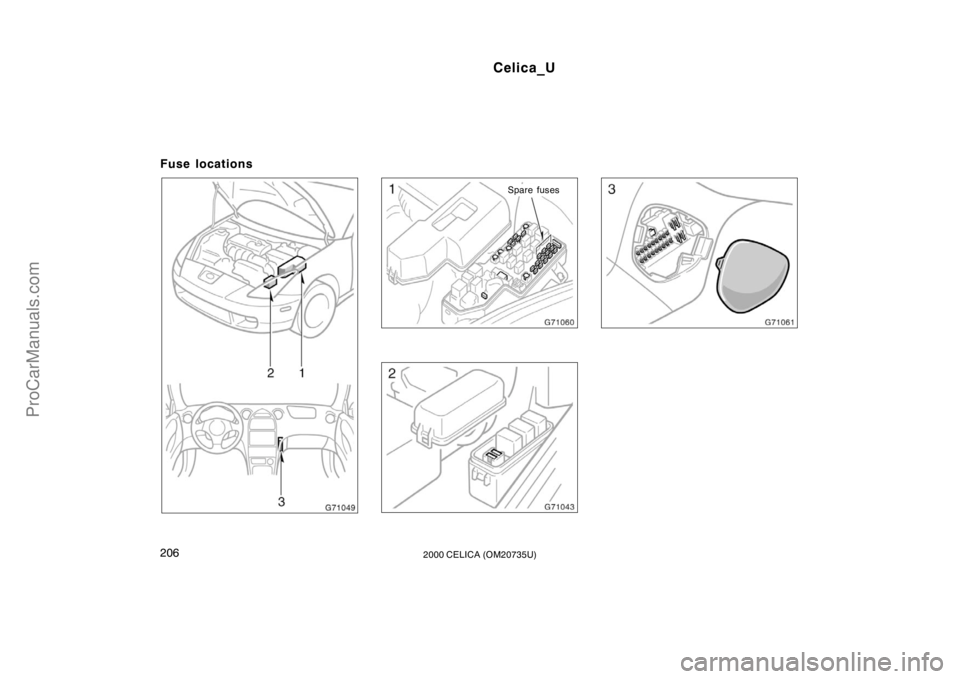

Fuse locations
Spare fuses
ProCarManuals.com

Celica_U
2092000 CELICA (OM20735U)
Tools:
Rag or paper towel
Funnel (only for adding fluid)
Checking power steering fluid
Parts (if level is low):
Automatic transmission fluid
DEXRON II or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
Checking battery condition
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts)
Checking and replacing fuses
Parts (if replacement is necessary):
Fuse with same amperage rating as
original
Adding washer fluid
Parts:
Water
Washer fluid containing antifreeze
(for winter use) Tools:
Funnel
Replacing light bulbs
Parts:
Bulb with same number and wattage
rating as original (See charts in
“Replacing light bulbs—” in Section
7 −3.)
Tools:
Screwdriver
ProCarManuals.com

Celica_U
2262000 CELICA (OM20735U)
Checking and replacing fuses231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ProCarManuals.com

Celica_U
2312000 CELICA (OM20735U)
Checking and replacing fuses
GoodBlown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
Good Blown
Ty p e D
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” in Section 7 −1 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
Section 8 of this manual for the functions
controlled by each circuit.
Type A fuses can be pulled out by the
pull −out tool. The location of the pull −out
tool is shown in the illustration.
ProCarManuals.com

Celica_U
2322000 CELICA (OM20735U)
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “RADIO”,
“CIG” or “HTR” fuse, which may be dis-
pensable for normal driving, and use it if
its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Adding washer fluid
If any washer does not work, the wash-
er tank may be empty. Check the wash-
er fluid level on the level gauge. If the
washer fluid level is below “LOW”, add
washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
