2000 RENAULT CLIO air conditioning



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page4
0.02
Brief overview
Tyre inflation pressures .................................................................................. 0.04 - 0.05
Adjusting the seats and driving position ................................................... 1.11
¬1.14
Child restraints .............................................................................................. 1.24
¬1.30
Tell-tale lights ................................................................................................ 1.36
¬1.49
Audible and visible signals ......................................................................... 1.55
¬1.58
De-icing/Demisting ..................................................................................................... 1.61
Running in, driving ...................................................................................... 2.02
¬2.14
Heating/Air conditioning ............................................................................. 3.04
¬3.14
Opening the bonnet ................................................................................................... 4.02
Levels (engine oil, windscreen washer, etc.) ............................................. 4.03
¬4.12
Emergency spare wheel ................................................................................ 5.02
¬5.05
Practical advice (changing the bulbs, fuses, repairs,
operating incidents) ..................................................................................... 5.02
¬5.34

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T2.WIN 30/9/2000 11:04-page8
2.08
ADVICE ON ANTIPOLLUTION AND HOW TO ECONOMISE ON FUEL WHEN DRIVING(continued)
General hints
•Electricity is “fuel”; switch off all
the electrical units which are not
really needed.
However,(with safety always in
mind), keep your lights on when
the visibility is bad (see and be
seen).
• Try to use the air vents. Driving at
a speed of 60 mph (100 km/h)
with the windows open will
increase the use of fuel by 4%.•For vehicles fitted with air
conditioning,morefuelmaybe
used during urban driving; switch
off the system when it is not really
needed.
• Never fill the fuel tank up to the
brim to avoid it overflowing.
• Do not leave an empty roof rack in
position.
• Use a trailer for carrying bulky
objects.
• When towing a caravan, fit a wind
deflector and adjust it properly.
• Avoid using the car for door to
door calls (short journeys with
long stops in between), as the
engine never reaches its ideal
temperature. Try to group your
calls.
Tyres
•Inflation pressures which are too
low may increase fuel
consumption.
• The use of non-recommended
tyres may also increase fuel
consumption.

ABC
HIDEFG
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page10

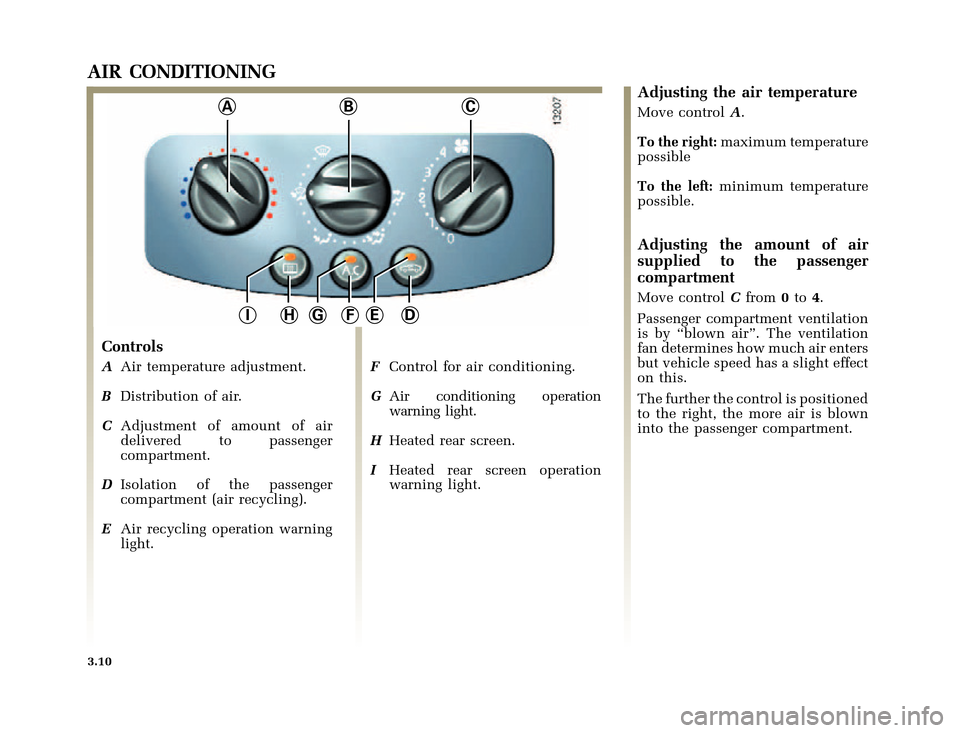

3.10
AIR CONDITIONING
Controls
AAir temperature adjustment.
BDistribution of air.
CAdjustment of amount of air
delivered to passenger
compartment.
DIsolation of the passenger
compartment (air recycling).
EAir recycling operation warning
light.FControl for air conditioning.
GAir conditioning operation
warning light.
HHeated rear screen.
IHeated rear screen operation
warning light.
Adjusting the air temperature
Move controlA.
To the right:maximum temperature
possible
To the left:minimum temperature
possible.
Adjusting the amount of air
supplied to the passenger
compartment
Move controlCfrom0to4.
Passenger compartment ventilation
is by “blown air”. The ventilation
fan determines how much air enters
but vehicle speed has a slight effect
on this.
The further the control is positioned
to the right, the more air is blown
into the passenger compartment.

B
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page11

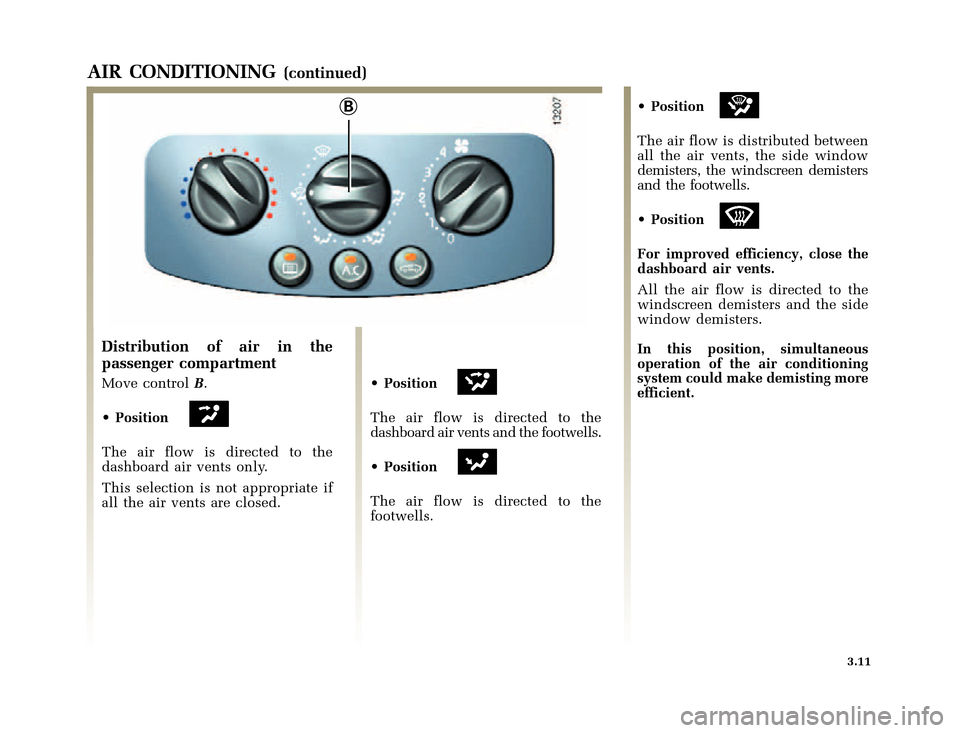

3.11
AIR CONDITIONING(continued)
Distribution of air in the
passenger compartment
Move controlB.
• Position
The air flow is directed to the
dashboard air vents only.
This selection is not appropriate if
all the air vents are closed.• Position
The air flow is directed to the
dashboard air vents and the footwells.
• Position
The air flow is directed to the
footwells.• Position
The air flow is distributed between
all the air vents, the side window
demisters, the windscreen demisters
and the footwells.
• Position
For improved efficiency, close the
dashboard air vents.
All the air flow is directed to the
windscreen demisters and the side
window demisters.
In this position, simultaneous
operation of the air conditioning
system could make demisting more
efficient.

HIDE
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page12
3.12
AIR CONDITIONING(continued)
Heated rear screen
With the engine running,
press buttonHand warning lightI
illuminates.
This function ensures the de-icing
and demisting of the rear screen and
the heated external rear view mirrors
(if the vehicle is fitted with them).
Thefunctionisstopped:
- automatically after 15 minutes
operation,
- by pressing buttonHagain (the
warning lightIextinguishes).
Isolating the passenger
compartment
ButtonD
Normal operation of the system is
obtained using external air.
The air recycling position allows
the passenger compartment to be
isolated from the external atmosphere
(driving in polluted areas, etc.).
To enter the isolation mode, press
buttonDThis function allows the desired
warmth of the passenger
compartment to be achieved as
quickly as possible.
This button switches the air recycling
system on or off. Warning lightE
illuminates when the function is
operational. In this position, air is
taken from within the passenger
compartment and is recycled without
outside air entering.
Prolonged use of the isolation mode
may cause odours due to the air not
being renewed and may cause the
windows to mist up.
Return to normal operation (external
air) by pressing buttonDas soon as
the polluted area is left behind.

C
FG
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page13

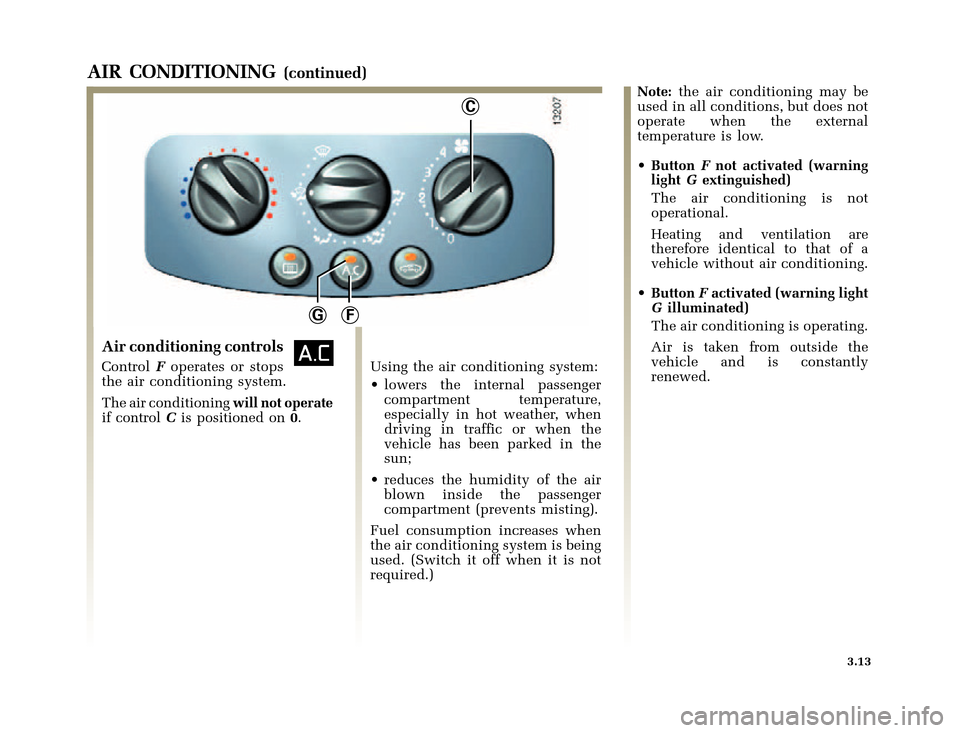

3.13
AIR CONDITIONING(continued)
Air conditioning controls
ControlFoperates or stops
the air conditioning system.
The air conditioningwill not operate
if controlCis positioned on0.Using the air conditioning system:
• lowers the internal passenger
compartment temperature,
especially in hot weather, when
driving in traffic or when the
vehicle has been parked in the
sun;
• reduces the humidity of the air
blown inside the passenger
compartment (prevents misting).
Fuel consumption increases when
the air conditioning system is being
used. (Switch it off when it is not
required.)Note:the air conditioning may be
used in all conditions, but does not
operate when the external
temperature is low.
•ButtonFnot activated (warning
lightGextinguished)
The air conditioning is not
operational.
Heating and ventilation are
therefore identical to that of a
vehicle without air conditioning.
•ButtonFactivated (warning light
Gilluminated)
The air conditioning is operating.
Air is taken from outside the
vehicle and is constantly
renewed.

C
FG
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page14
3.14
AIR CONDITIONING(continued)
In very hot weather, or when the
vehicle has been parked in the sun,
openthedoorsforafewmomentsto
allow the hot air to escape before
starting off.
To lower the temperature of the
passenger compartment as quickly
as possible to the required level, use
the “Isolation of the passenger
compartment” function. Once the
required comfort level has been
reached, turn the recycling function
off.When the air conditioning is
operating, all the windows must be
closed to give the best efficiency.
If there is an operating fault, contact
your Renault Dealer.
No cool air
Check that the controls are correctly
positioned and that the fuses are in
good condition. If not, stop the air
conditioning system (warning
lightGextinguished) and call for
the assistance of a Renault Dealer.
Do not open the refrigerant
circuit. The fluid is
dangerous to the eyes and
skin.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T6.WIN 16/10/2000 11:26-page16
ALPHABETICAL INDEX
AABS .......................................................................... 2.14
Accessories - installation ....................................... 5.28
Accessories .............................................................. 5.28
Additional driving lights ........................................ 5.12
Adjusting the driver's position ................... 1.13 - 1.14
Air bag ......................................................... 1.15
¬1.20
Air conditioning ................... 3.02 - 3.03 - 3.10¬3.14
Air filter .................................................................... 4.12
Air vents ....................................................... 3.02 - 3.03
Anti-lock braking system ....................................... 2.14
Anti-pollution (advice) .............................. 2.06
¬2.08
Ashtrays ................................................................... 3.24
Automatic transmission (use) .................... 2.10
¬2.12
Automatic transmission selector lever ..... 2.10¬2.12
BBattery ................................................ 4.10 - 5.18 - 5.19
Bodywork (maintenance) ............................. 4.12 - 4.13
Bonnet ...................................................................... 4.02
Brake fluid ............................................................... 4.08
Bulbs (changing) ......................................... 5.10
¬5.17
Buzzer (lights on) ......................................... 1.04 - 1.55
CCapacity of mechanical components .......... 4.07 - 4.09
Catalytic converter (special points) ....................... 2.04
Catalytic converter .................................................. 2.04
Central door locking ......................... 1.02 - 1.03 - 1.05
Changing a wheel ................................................... 5.05
Changing bulbs ........................................... 5.10
¬5.17
Child booster seat ....................................... 1.24¬1.28
Childproof locks 1.04 - 1.19 - 1.24¬1.30 - 3.17 - 3.20
Children ........... 1.04 - 1.19 - 1.24¬1.30 - 3.17 - 3.20
Cigar lighter ............................................................. 3.24
Clock ........................................................................ 1.31
Controls ....................................................... 1.32
¬1.35
Coolant ..................................................................... 4.09
Courtesy lights .............................................. 3.15 - 3.16Ddashboard .................................................... 1.32
¬1.35
Demisting: Windscreen ........................................... 1.57
Rear screen ........................................... 1.57
Dimensions .............................................................. 6.13
Dipstick ....................................................... 4.03
¬4.06
Direction indicators ..... 1.62 - 5.10 - 5.11 - 5.13 - 5.15
Door locking ............................................... 1.03
¬1.06
Doors ............................................................. 1.04 - 1.05
Driver's layout ..................... 1.32
¬1.35 - 1.50¬1.52
Driving ......................................................... 2.02¬2.12
EEmbellisher spanner .................................... 5.03 - 5.04
Embellishers ............................................................ 5.04
Emergency spare wheel .......................................... 5.02
Engine (technical specifications) ........................... 6.05
Engine coolant ......................................................... 4.09
Engine immobiliser ...................................... 1.07 - 1.08
Engine oil .................................................... 4.03
¬4.07
Engine specifications .............................................. 6.05
Environment ............................................................ 2.09
External lighting and signals ..................... 1.56
¬1.58
External temperature .............................................. 1.31
FFaults (operating faults) ............................. 5.29
¬5.34
Fitting a radio .......................................................... 5.27
Fog lights ...................................................... 1.56 - 5.12
Front seat adjustment .................................. 1.11 - 1.12
Front seat belt pretensioners .................................. 1.15
Front seats (adjustment) ............................ 1.09
¬1.12
Fuel (advice on economy) ......................... 2.06¬2.08
Fuel (filling) ............................................................ 1.64
Fuel (grade) ................................................... 1.64 - 6.05
Fuel cut-off in the event of a
severe impact ...................................................... 5.23
