2000 RENAULT CLIO key

1
2
18IUB*ET[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page26
3.26

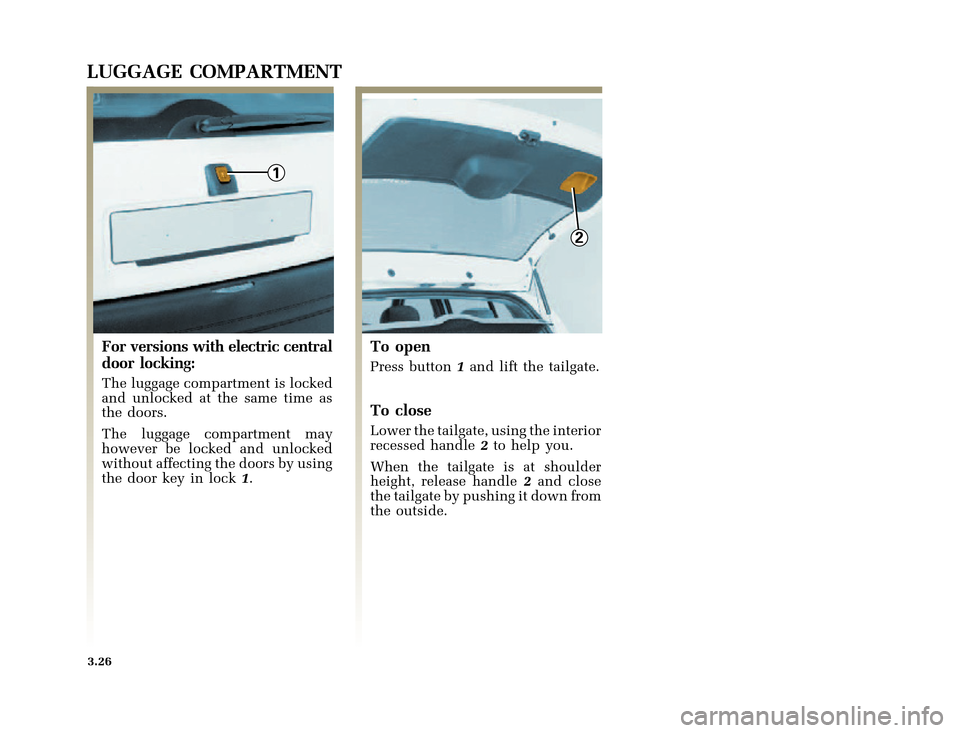

LUGGAGE COMPARTMENT
For versions with electric central
door locking:
The luggage compartment is locked
and unlocked at the same time as
the doors.
The luggage compartment may
however be locked and unlocked
without affecting the doors by using
the door key in lock1.
To open
Press button1and lift the tailgate.
To close
Lower the tailgate, using the interior
recessed handle2to help you.
When the tailgate is at shoulder
height, release handle2and close
the tailgate by pushing it down from
the outside.

1
2
18IUB*ET[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page22
5.22
REMOTE CONTROL LOCKING DEVICE(batteries)
Replacing the battery
Slide off the remote control cover1.
The batteries can be obtained
from your Renault Dealer.
These batteries should last about
two years. There is a delay of 1
second between locking and
unlocking actions.Replace the battery2according to
the direction marked on the cover.
Note:When replacing the battery, it
is advisable not to touch the
electronic circuit in the key cover.

1
2
23
2
5
4
18IUB*ET[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page24
5.24
TOWING breakdown
The steering lock must not be
applied; the ignition key must be in
position “M” (ignition) allowing
lights and signals to be used (stop
lights and direction indicators).
The vehicle lights must be used at
night.
It is also important to observe the
towing conditions defined by the
legislation for the particular country
you are in. Do not exceed the towing
weight for your vehicle. Consult
your Renault Dealer.Only use the towing ring2(in the
tool kit1) and the towing points at
the front3and rear4. (Never use
the drive shafts.) These towing
points may only be used for pulling
the vehicle, never for lifting it either
directly or indirectly.Front towing point3
Rear towing point4
Unclip the cover5.
First screw in the towing
ring2by hand as far as it
will go. Then use the
wheelbrace from the tool
kit to finish tightening it.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T6.WIN 16/10/2000 11:26-page17
ALPHABETICAL INDEX
FFuel cut-off system
Fuel economy ............................................ 2.06¬2.08
Fuel filler flap ........................................................ 1.63
Fuel level .................................................... 1.36
¬1.52
Fuel tank capacity .................................................. 1.63
Fuses ............................................................. 5.20 - 5.21
GGear lever ................................................................ 2.13
HHandbrake ............................................................... 2.13
Hazard warning lights ............................................ 1.62
Head restraint .............................................. 1.09 - 1.10
Headlight flashers ................................................... 1.62
Headlights .................................................. 1.55
¬1.58
Heated seats ............................................................ 1.12
Heating ....................................................... 3.04
¬3.09
Heating and ventilation ....... 3.02 - 3.03 - 3.10¬3.14
Horn ......................................................................... 1.62
IIgnition switch ........................................................ 2.02
Immobiliser (ignition switch) ................................ 2.02
In the event of a violent impact ........................... 5.23
Indicator lights ........................................... 1.36
¬1.52
Instrument panel (adjustment) .............................. 1.55
Instrument panel ....................................... 1.36
¬1.52
Instruments ................................................ 1.36¬1.52
Interior trim (maintenance) ................................... 4.14
JJack ............................................................... 5.03 - 5.05
KKeys ......................................................................... 1.02LLevels .......................................................... 4.03
¬4.11
Lifting the vehicle (changing a wheel) .... 5.02¬5.08
Lighting: External ............... 1.55¬1.58 - 5.10¬5.15
Interior ............................... 3.15 - 5.16 - 5.17
Lights: Fog lights .............................. 1.56 - 5.12 - 5.13
Dipped beam headlights ...... 1.55 - 5.10 - 5.11
Hazard warning lights ............................... 1.62
Direction
indicators .... 1.62 - 5.10 - 5.11 - 5.13 - 5.15
Side lights .................. 1.55 - 5.10 - 5.11 - 5.13
Reversing lights .......................................... 5.13
Main beam headlights ......... 1.55 - 5.10 - 5.11
Stop lights ....................................... 5.13 - 5.14
Adjustment ...................................... 1.57 - 1.58
Luggage compartment ............................... 3.26
¬3.29
MMap reading lights ...................................... 3.15 - 3.16
Maintenance:
Bodywork ................................................. 4.12 - 4.13
Interior trim ........................................................ 4.14
Mechanical ................................................. 4.03
¬4.11
OOil change ............................................................... 4.07
Oil filter .................................................................. 4.07
On-board computer ................................... 1.50
¬1.52
PPaintwork (maintenance) ............................ 4.12 - 4.13
Paintwork (reference) ............................................. 6.02
Power assisted steering ............................... 2.13 - 4.10
Power-assisted steering pump ............................... 4.11
Practical advice .......................................... 2.06
¬2.08
Puncture ..................................................... 5.02¬5.05
