3.04
HEATING - VENTILATION
Controls
AAir temperature adjustment.
BDistribution of air.
CAdjustment of amount of air
delivered to passenger
compartment.
DHeated rear screen.
EHeated rear screen operation
warning light.
Adjusting the air temperature
Move controlA.
The further the control is positioned
to the right, the higher the temperature.
Distribution of air in the
passenger compartment
Move controlB.
• Position
The air flow is directed to the
dashboard air vents only.
This selection is not appropriate if
all the air vents are closed.
• Position
The air flow is directed to the
dashboard air vents and the footwells.
• Position
The air flow is directed to the
footwells.
• Position
The air flow is distributed between
all the air vents, the side window
demisters, the windscreen demisters
and the footwells.

BC
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page5

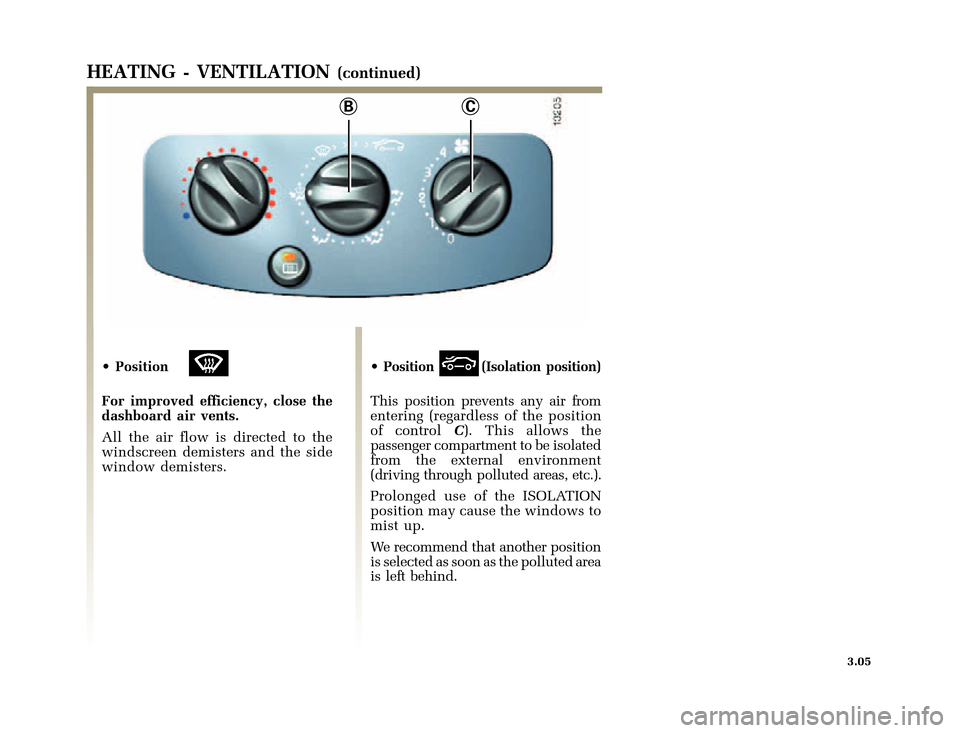

3.05
HEATING - VENTILATION(continued)
• Position
For improved efficiency, close the
dashboard air vents.
All the air flow is directed to the
windscreen demisters and the side
window demisters.• Position (Isolation position)
This position prevents any air from
entering (regardless of the position
of controlC). This allows the
passenger compartment to be isolated
from the external environment
(driving through polluted areas, etc.).
Prolonged use of the ISOLATION
position may cause the windows to
mist up.
We recommend that another position
is selected as soon as the polluted area
is left behind.

ABC
FGDE
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page7

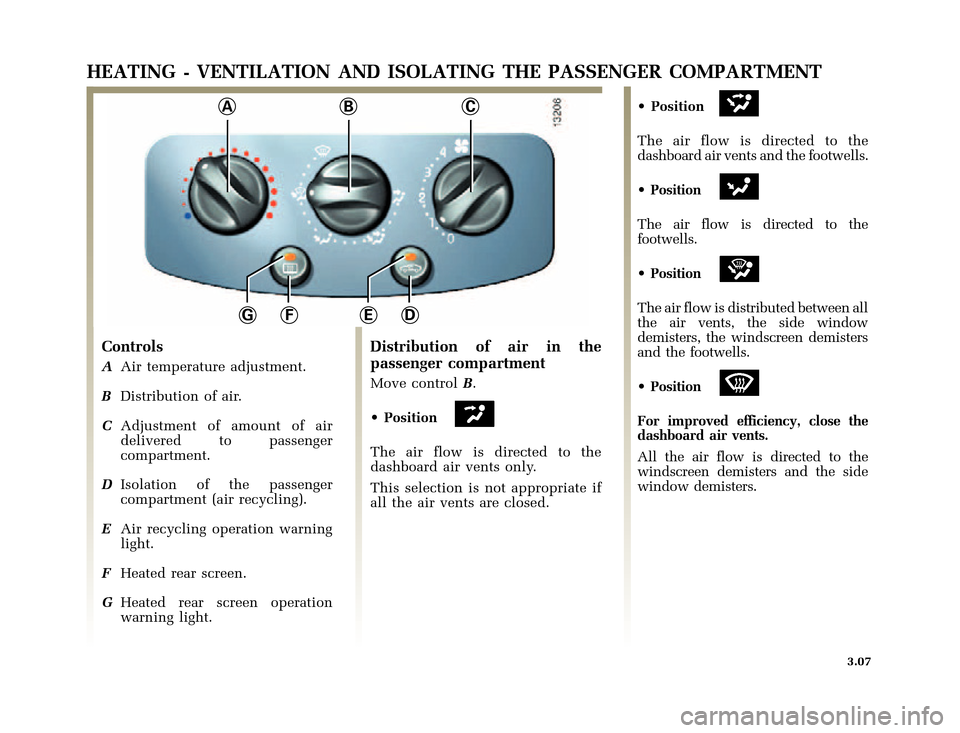

3.07
HEATING - VENTILATION AND ISOLATING THE PASSENGER COMPARTMENT
Controls
AAir temperature adjustment.
BDistribution of air.
CAdjustment of amount of air
delivered to passenger
compartment.
DIsolation of the passenger
compartment (air recycling).
EAir recycling operation warning
light.
FHeated rear screen.
GHeated rear screen operation
warning light.
Distribution of air in the
passenger compartment
Move controlB.
• Position
The air flow is directed to the
dashboard air vents only.
This selection is not appropriate if
all the air vents are closed.• Position
The air flow is directed to the
dashboard air vents and the footwells.
• Position
The air flow is directed to the
footwells.
• Position
The air flow is distributed between all
theairvents,thesidewindow
demisters, the windscreen demisters
and the footwells.
• Position
For improved efficiency, close the
dashboard air vents.
Alltheairflowisdirectedtothe
windscreen demisters and the side
window demisters.

DE
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page9

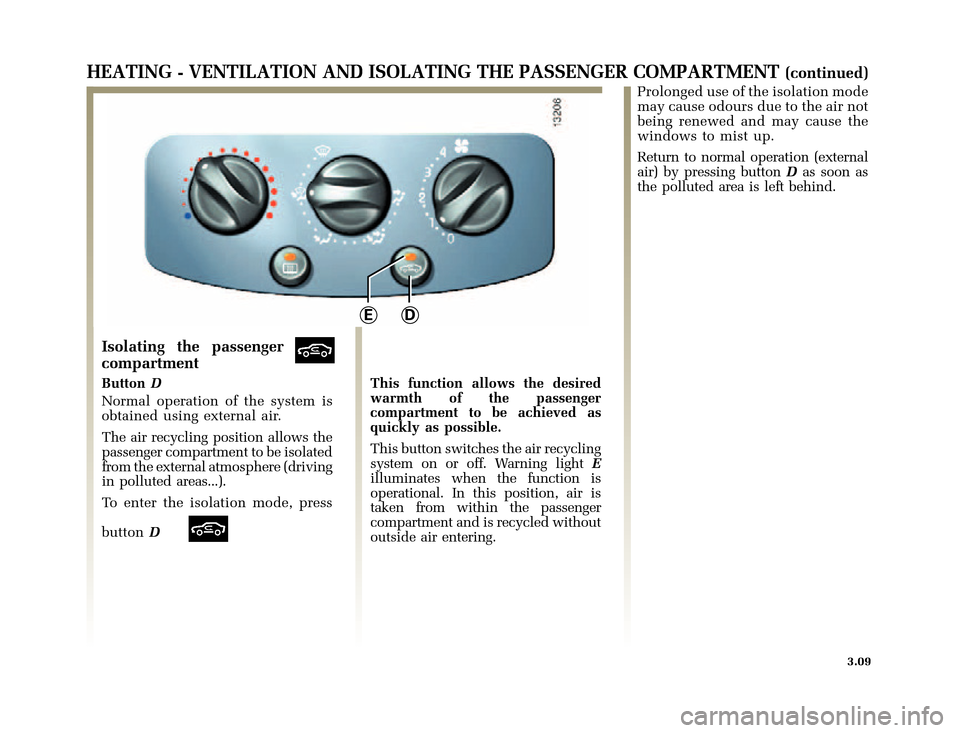

3.09
HEATING - VENTILATION AND ISOLATING THE PASSENGER COMPARTMENT(continued)
Isolating the passenger
compartment
ButtonD
Normal operation of the system is
obtained using external air.
The air recycling position allows the
passenger compartment to be isolated
from the external atmosphere (driving
in polluted areas...).
To enter the isolation mode, press
buttonDThis function allows the desired
warmth of the passenger
compartment to be achieved as
quickly as possible.
This button switches the air recycling
system on or off. Warning lightE
illuminates when the function is
operational. In this position, air is
taken from within the passenger
compartment and is recycled without
outside air entering.Prolonged use of the isolation mode
may cause odours due to the air not
being renewed and may cause the
windows to mist up.
Return to normal operation (external
air) by pressing buttonDas soon as
the polluted area is left behind.

B
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page11
3.11
AIR CONDITIONING(continued)
Distribution of air in the
passenger compartment
Move controlB.
• Position
The air flow is directed to the
dashboard air vents only.
This selection is not appropriate if
all the air vents are closed.• Position
The air flow is directed to the
dashboard air vents and the footwells.
• Position
The air flow is directed to the
footwells.• Position
The air flow is distributed between
all the air vents, the side window
demisters, the windscreen demisters
and the footwells.
• Position
For improved efficiency, close the
dashboard air vents.
All the air flow is directed to the
windscreen demisters and the side
window demisters.
In this position, simultaneous
operation of the air conditioning
system could make demisting more
efficient.

HIDE
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page12
3.12
AIR CONDITIONING(continued)
Heated rear screen
With the engine running,
press buttonHand warning lightI
illuminates.
This function ensures the de-icing
and demisting of the rear screen and
the heated external rear view mirrors
(if the vehicle is fitted with them).
Thefunctionisstopped:
- automatically after 15 minutes
operation,
- by pressing buttonHagain (the
warning lightIextinguishes).
Isolating the passenger
compartment
ButtonD
Normal operation of the system is
obtained using external air.
The air recycling position allows
the passenger compartment to be
isolated from the external atmosphere
(driving in polluted areas, etc.).
To enter the isolation mode, press
buttonDThis function allows the desired
warmth of the passenger
compartment to be achieved as
quickly as possible.
This button switches the air recycling
system on or off. Warning lightE
illuminates when the function is
operational. In this position, air is
taken from within the passenger
compartment and is recycled without
outside air entering.
Prolonged use of the isolation mode
may cause odours due to the air not
being renewed and may cause the
windows to mist up.
Return to normal operation (external
air) by pressing buttonDas soon as
the polluted area is left behind.

C
FG
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page14
3.14
AIR CONDITIONING(continued)
In very hot weather, or when the
vehicle has been parked in the sun,
openthedoorsforafewmomentsto
allow the hot air to escape before
starting off.
To lower the temperature of the
passenger compartment as quickly
as possible to the required level, use
the “Isolation of the passenger
compartment” function. Once the
required comfort level has been
reached, turn the recycling function
off.When the air conditioning is
operating, all the windows must be
closed to give the best efficiency.
If there is an operating fault, contact
your Renault Dealer.
No cool air
Check that the controls are correctly
positioned and that the fuses are in
good condition. If not, stop the air
conditioning system (warning
lightGextinguished) and call for
the assistance of a Renault Dealer.
Do not open the refrigerant
circuit. The fluid is
dangerous to the eyes and
skin.

2
11
2
3
18IUB*ET[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page17
3.17
WINDOW RISERS
Front driver's side electric
window
With the ignition on or off and the
driver’s door closed:
Press switch1to open the window
or lift switch1to close it.
Front passenger's side electric
window
With the ignition on,press switch2
to open the window or lift switch2
to close it.Automatic operation
This is in addition to the driver’s
window operation described above.
When the engine is running,briefly
pressing switch1allows the
window to be fully closed or
opened.
Anyactiononswitch1during this
operation will stop the window
moving.
Manual window risers
Operate window winder3.
Child safety
Never leave the key in
the ignition when there
is a child in the car(or
an animal). It would be possible
to operate the electric windows
and there is a risk that the child
could trap a part of his/her body
in the window (neck, arm, hand,
etc.), causing serious injury.
