2000 PONTIAC GRAND AM keyless

ii
Table of Contents
Keys and Door Locks
Remote Keyless Entry System
Trunk Release
Automatic Transmission (If Equipped)
Manual Transmission
Parking Brake
Windows
Tilt Wheel
Turn Signal/Multifunction LeverWindshield Wipers
Cruise Control
Interior and Exterior Lamps
Mirrors
Storage Compartments
Convenience Net (If Equipped)
Sunroof (If Equipped)
Instrument Panel, Warning Lights and Gages Seats and Seat Controls
Safety BeltsAir Bag Systems
Child Restraints
Section
1
Section
2
Seats and Restraint Systems
Features and Controls

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Keys
2
-4 Door Locks
2
-9 Keyless Entry System If Equipped)
2
-12 Trunk
2
-14 Theft
2
-15 Passlock

2-16 New Vehicle ªBreak-Inº
2
-16 Ignition Switch
2
-17 Starting Your Engine
2
-20 Engine Coolant Heater (If Equipped)
2
-22 Automatic Transaxle Operation
2
-25 Manual Transaxle Operation
2
-27 Parking Brake
2
-28 Shifting Into PARK (P)
(Automatic Transaxle Only)
2
-30 Shifting Out of PARK (P)
(Automatic Transaxle Only)
2
-30 Parking Your Vehicle
(Manual Transaxle Models Only)2
-30 Parking Over Things That Burn
2
-31 Engine Exhaust
2
-32 Running Your Engine While You're Parked
(Automatic Transaxle)
2
-33 Windows
2
-34 Tilt Wheel
2
-34 Turn Signal/Multifunction Lever
2
-41 Exterior Lamps
2
-44 Interior Lamps
2
-46 Mirrors
2
-48 Storage Compartments
2
-48 Ashtray and Lighter (If Equipped)
2
-49 Sun Visors
2
-49 Sunroof (If Equipped)
2
-50 The Instrument Panel-Your
Information System
2
-54 Warning Lights, Gages and Indicators

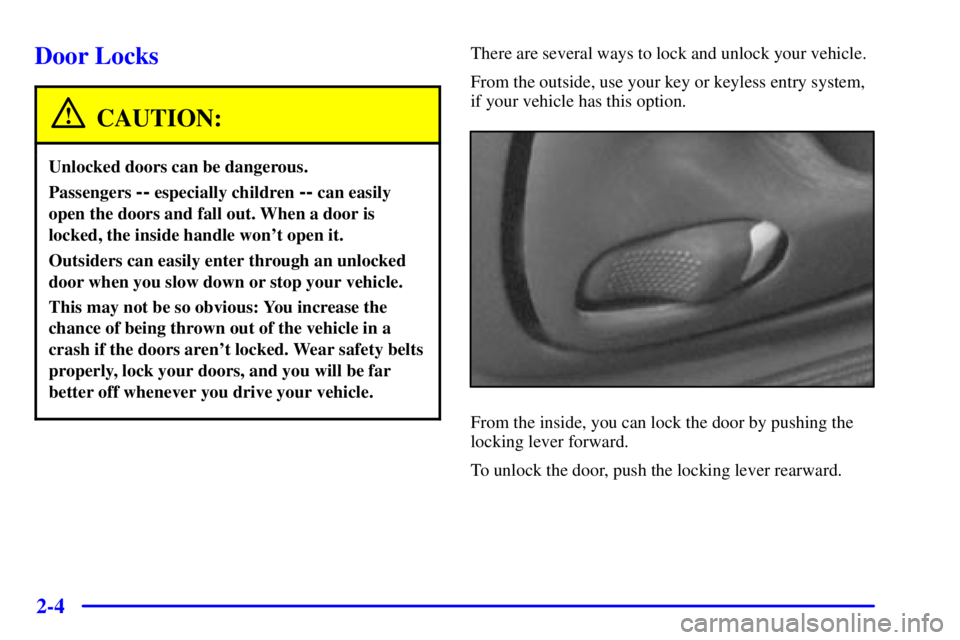

2-4
Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use your key or keyless entry system,
if your vehicle has this option.
From the inside, you can lock the door by pushing the
locking lever forward.
To unlock the door, push the locking lever rearward.

2-5 Power Door Locks
With the power door locks, you can unlock or lock all
of the doors of your vehicle from the driver or front
passenger door lock switch.
Push the top of the switch to unlock all of the doors.
Push the bottom of the switch to lock all the doors.
Automatic Door Locks
Just close your doors and turn on the ignition. All of
the doors will lock when you move your shift lever out
of PARK (P) to REVERSE (R) for an automatic
transaxle. All of the doors will lock when the vehicle
speed is greater than 5 mph (8 km/h) for a manual
transaxle. If someone needs to get out while the vehicle
is running, have that person use the door lock. When the
door is closed again, it will lock automatically when the
vehicle reaches about 5 mph (8 km/h). All doors will
automatically unlock when the shift lever is moved to
PARK (P) and when the key is turned to OFF.
Programmable Automatic Door Locks
Programmable Automatic Door Locks is a standard feature
intended to provide enhanced security and convenience by
automatically locking and unlocking the doors.
One of four operating modes may be selected and
programmed by the driver for an automatic transaxle:

Mode 1: All doors automatically lock when the
transaxle is shifted out of PARK (P). The doors will
remain locked unless manually unlocked or the lock
button is pressed. All doors will unlock when the
transaxle is shifted into PARK (P) and the key is
turned to OFF.

Mode 2: This mode is only available with the remote
keyless entry transmitter. All doors automatically
lock when the transaxle is shifted out of PARK (P).
Automatic driver's door only unlock when the
transaxle is shifted into PARK(P) and the key is
turned to OFF.

Mode 3: All doors automatically lock when the
transaxle is shifted out of PARK (P). No automatic
door unlock.

Mode 4: No automatic door lock or unlock.

2-6
One of the four operating modes may be selected and
programmed by the driver for a manual transaxle:

Mode 1: All doors automatically lock when the
vehicle speed is greater than 5 mph (8 km/h). The
doors will remain locked unless manually unlocked
or the lock button is pressed. All doors will unlock
when the transaxle is shifted into REVERSE (R)
and the key is turned to OFF.

Mode 2: This mode is only available with the remote
keyless entry transmitter. All doors automatically
lock when the vehicle speed is greater than 5 mph
(8 km/h). Automatic driver's door only unlock when
the transaxle is shifted into REVERSE (R) and the
key is turned to OFF.

Mode 3: All doors automatically lock when the
vehicle speed is greater than 5 mph (8 km/h).
No automatic door unlock.

Mode 4: No automatic door lock or unlock.
The Programmable Automatic Door Locks will be in
operating mode 1 when the vehicle is shipped from
the factory.Disconnecting the vehicle battery for up to one year will
not change the programmed mode of the Programmable
Automatic Door Locks.
The operating mode of the Programmable Automatic
Door Locks will be changed when the driver performs
the following sequence with the doors closed and the
vehicle's ignition key to ON.
To change the mode:
1. Press and hold LOCK on the power door lock
switch for 10 seconds. Release the switch when you
hear the chime.
2. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is in.
You can change the mode by pressing and holding
LOCK on the power door lock switch (two chimes
for mode 2, three chimes for mode 3 and four chimes
for mode 4).
3. Repeat Step 1 until you hear the number of chimes
that matches the mode you want.
The mode you selected is now set.

2-8
The rear doors of your vehicle cannot be opened from
the inside when this feature is in use. If you want to
open a rear door when the security lock is on:
1. Unlock the door from the inside.
2. Then open the door from the outside.
If you don't cancel the security lock feature, adults or
older children who ride in the rear won't be able to open
the rear door from the inside. You should let adults and
older children know how these security locks work, and
how to cancel the locks.
To cancel the rear door lock:
1. Unlock the door from the inside and open it from
the outside.
2. Move the switch down.
3. Do the same for the other rear door.
The rear doors will now work normally.Anti-Lockout Protection
Anti-Lockout Protection is a standard feature intended
to provide enhanced security and convenience. This
feature prevents a driver who has left the keys in the
ignition from locking the doors, using the power door
locks while any door is open.
To override this feature, when the key is in the ignition
and a door is open, hold the power door lock switch for
three seconds.
This feature cannot guarantee that you will never be
locked out of your vehicle. If you don't leave the keys
in the ignition, or if you use the manual door lock,
or if you use the remote keyless entry transmitter
(if equipped), you could still lock your keys inside your
vehicle. Always remember to take your keys with you.
Leaving Your Vehicle
If you are leaving your vehicle, open your door
and set the locks from the inside, then get out and
close the door.

2-9
Keyless Entry System (If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about 3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this devic e may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-10 Operation
The following functions are available with the keyless
entry system:
LOCK: All doors will automatically lock when the
LOCK button on the transmitter is pressed. The interior
lamps will turn off after all of the doors are closed. If all of
the doors are closed, the parking lamps will flash twice
and the horn will chirp to indicate locking has occurred.
UNLOCK: The driver's door will unlock automatically
when the UNLOCK button on the transmitter is pressed.
If the UNLOCK button is pressed again within five
seconds, all remaining doors will unlock. The interior
lamps will stay on for 10 seconds or until the ignition is
turned on. The parking lamps will flash twice to indicate
unlocking has occurred.
: The trunk will unlock anytime the vehicle
symbol on the transmitter is pressed, the trunk lockout is
not engaged and the ignition is to ON along with the
shift lever to PARK (P) and the parking brake is
engaged or the ignition is to OFF. The interior lamps
will come on for 10 seconds or until the ignition switch
is turned to ON.
: The horn will chirp and the headlamps and the
parking lamps will flash for up to one minute when the
horn symbol on the transmitter is pressed. The interior
lamps will come on for about 10 seconds or until the
ignition is turned to ON. This can be turned off by
pressing the horn symbol button again or by turning
the ignition to ON.
Programmable Horn Chirp
When you use the remote keyless entry transmitter to
lock the doors or use the delayed locking feature, the
parking lamps will flash and the horn will chirp.
The programmable horn chirp can be disabled by
pressing and holding either of the door lock switches in
the unlock position for 10 seconds with the ignition to
ON and all of the doors closed. When you hear the horn
chirp, programming is complete. To reactivate the horn
chirp feature, repeat the above procedure.
