Bulb Replacement
For any bulb changing procedure not listed in this
section, contact your dealer's service department.
Halogen Bulbs
CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
If you go through a high pressure car wash, or it is very
humid, your headlamps may ªfog up.º This is normal.
The lenses should clear by themselves in time.
Headlamps
For the proper bulb type, see ªReplacement Bulbsº in
the Index.

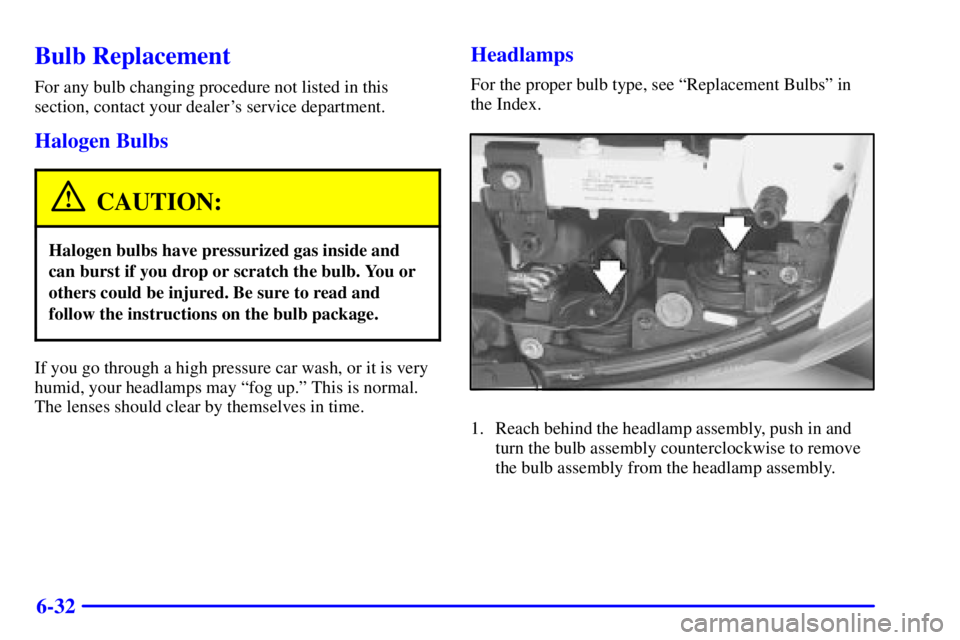

1. Reach behind the headlamp assembly, push in and
turn the bulb assembly counterclockwise to remove
the bulb assembly from the headlamp assembly.

6-33
2. Lift the tabs to remove the bulb from the assembly.
3. Replace the bulb. Push the bulb assembly in and turn
it clockwise to install the bulb assembly into the
headlamp assembly.Headlamp Aiming
Your vehicle has a visual optical headlamp aiming
system equipped with horizontal aim indicators. The
aim has been pre
-set at the factory and should need no
further adjustment. This is true even though your
horizontal aim indicators may not fall exactly on the ª0º
(zero) marks on their scales.

6-34
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment to the low beam
may be necessary if it is difficult to see lane markers
(for horizontal aim), or if oncoming drivers flash their
high beams at you (for vertical aim). If you believe your
headlamps need to be re
-aimed, we recommend that you
take your vehicle to your dealer for service. However, it
is possible for you to re
-aim your headlamps as
described in the following procedure.
NOTICE:
To make sure your headlamps are aimed
properly, read all the instructions before
beginning. Failure to follow these instructions
could cause damage to headlamp parts.
The vehicle should be properly prepared as follows:

The vehicle should be placed so the headlamps are
25 ft. (7.6 m) from a light colored wall or other
flat surface.
The vehicle must have all four tires on a perfectly
level surface which is level all the way to the wall or
other flat surface.

The vehicle should be placed so it is perpendicular to
the wall or other flat surface.

The vehicle should not have any snow, ice or mud
attached to it.

The vehicle should be fully assembled and all other
work stopped while headlamp aiming is being done.

The vehicle should be normally loaded with a full
tank of fuel and one person or 160 lbs. (75 kg) on the
driver's seat.

Tires should be properly inflated.
Headlamp aiming is done with the vehicle low beam
lamps. The high beam lamps will be correctly aimed if
the low beam lamps are aimed properly.
The headlamp aiming devices are under the hood near
the headlamps.

6-35
If you believe your headlamps need horizontal
(left/right) adjustment, follow the horizontal aiming
procedure. If you believe your headlamps need only
vertical (up/down) adjustment, follow only the vertical
aiming procedure.
Adjustment screws can be turned with an E8 Torx


socket or T15 Torx screwdriver.Headlamp Horizontal Aiming
Turn the horizontal aiming screw (A) until the
indicator (B) is lined up with zero.
Once the horizontal aim is adjusted, then adjust the
vertical aim.

6-36
Headlamp Vertical Aiming
1. Find the aim dot on the lens of the lamps.
2. Measure the distance from the ground to the aim dot
on each lamp; if left low beam, subtract two inches.
Record this distance.
3. At the wall or other flat surface, measure from the
floor to the recorded distance and draw a horizontal
line the width of the vehicle.4. Turn on the low beam headlamps and cover the lamp
not being evaluated. The ambient light should allow
the beam cut off to be seen on the wall.

6-37
5. Turn the vertical aiming screw (C) until the
headlamp beam is aimed to the horizontal line. It is
recommended to cover the lamp that is not being
evaluated to better see the beam being aimed.

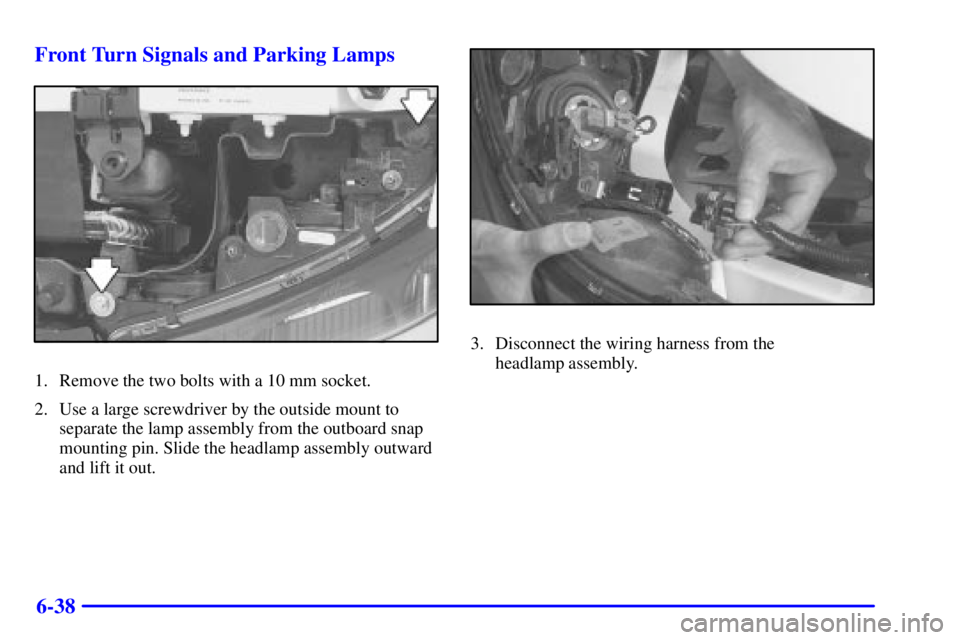

6-38 Front Turn Signals and Parking Lamps
1. Remove the two bolts with a 10 mm socket.
2. Use a large screwdriver by the outside mount to
separate the lamp assembly from the outboard snap
mounting pin. Slide the headlamp assembly outward
and lift it out.
3. Disconnect the wiring harness from the
headlamp assembly.

6-39

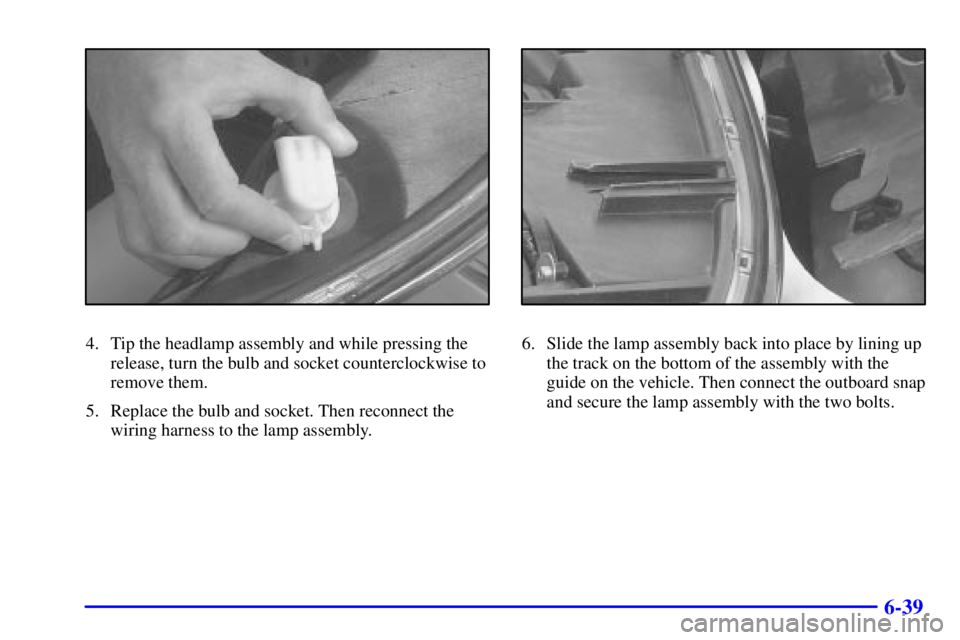

4. Tip the headlamp assembly and while pressing the
release, turn the bulb and socket counterclockwise to
remove them.
5. Replace the bulb and socket. Then reconnect the
wiring harness to the lamp assembly.6. Slide the lamp assembly back into place by lining up
the track on the bottom of the assembly with the
guide on the vehicle. Then connect the outboard snap
and secure the lamp assembly with the two bolts.
