1-21
Q:What's wrong with this?
A:The belt is twisted across the body.
CAUTION:
You can be seriously injured by a twisted belt.
In a crash, you wouldn't have the full width
of the belt to spread impact forces. If a belt is
twisted, make it straight so it can work properly,
or ask your dealer to fix it.

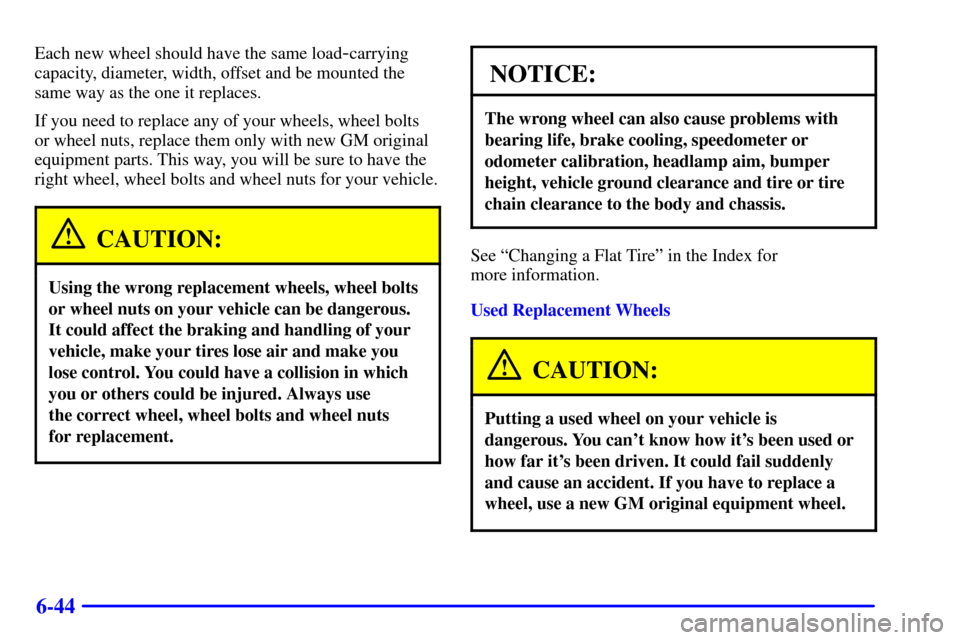

6-44
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your vehicle.
CAUTION:
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use
the correct wheel, wheel bolts and wheel nuts
for replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See ªChanging a Flat Tireº in the Index for
more information.
Used Replacement Wheels
CAUTION:
Putting a used wheel on your vehicle is
dangerous. You can't know how it's been used or
how far it's been driven. It could fail suddenly
and cause an accident. If you have to replace a
wheel, use a new GM original equipment wheel.
6-622.4L L4 Engine Specifications
VIN Engine Code T. . . . . . . . . . . . . . . . . . . . . . . . . . .
Type L4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 2.4 Liters. . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-3-4-2 . . . . . . . . . . . . . . . . . . . . . . . . . .
Horsepower 150. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3400 V6 Engine Specifications
VIN Engine Code E. . . . . . . . . . . . . . . . . . . . . . . . . . .
Type V6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 3.4 Liters. . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-2-3-4-5-6 . . . . . . . . . . . . . . . . . . . . . .
Horsepower 170. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Normal Maintenance
Replacement Parts
Air Cleaner Element
2.4L L4 AC Type A
-1279C . . . . . . . . . . . . . . . . . . . . .
3400 V6 AC Type A
-1279C . . . . . . . . . . . . . . . . . . . .
Engine Oil Filter
2.4L L4 AC Type PF
-44 . . . . . . . . . . . . . . . . . . . . . . . .
3400 V6 AC Type PF
-47 . . . . . . . . . . . . . . . . . . . . . . .
Spark Plugs
2.4L L4 AC Type 41
-942 (Platinum Plug) . . . . . . . . .
Gap: 0.050 inch (1.27 mm)
3400 V6 AC Type 41
-963 (Platinum Plug) . . . . . . . .
Gap: 0.060 inch (1.52 mm)
Windshield Wiper Blades (Shepherd's Hook Type)
Passenger's Side 17 inches (43 cm). . . . . . . . . . . . . . .
Driver's Side 22 inches (56 cm). . . . . . . . . . . . . . . . .
Vehicle Dimensions
Length 186.7 inches (474.2 cm). . . . . . . . . . . . . . . . .
Width 70.1 inches (178.0 cm). . . . . . . . . . . . . . . . . . .
Height 54.5 inches (138.4 cm). . . . . . . . . . . . . . . . . . .
Wheelbase 107.0 inches (271.9 cm). . . . . . . . . . . . . .
Front Tread 59.1inches (150.0 cm). . . . . . . . . . . . . . . .
Rear Tread 59.3 inches (150.7cm). . . . . . . . . . . . . . . .
