2000 HONDA ODYSSEY fuse

Fuses
The primary under-hood fuse box is
located in the back of the engine
compartment on the passenger's side.
To open it, push the tabs as shown. The secondary fuse box is in the
engine compartment next to the
battery.
Checkin g an d Replacin g Fuse s
If something electrical in your
vehicle stops working, the first thing
you should check for is a blown fuse. Determine from the chart on pages 315 and 316, or the diagram on the
fuse box lid (the diagram for the driver's side interior fuse box is on
the kick panel below the fuse box),
which fuse or fuses control that component. Check those fuses first,
but check all the fuses beforedeciding that a blown fuse is not the
cause. Replace any blown fuses and
check the component's operation.
1. Turn the ignition switch to LOCK (0). Make sure the headlights and
all other accessories are off.
2. Remove the cover from the fuse box.
Takin g Car e o f th e Unexpecte d
UNDER-HOO D
UNDER-HOOD

Fuses
3. Check each of the large fuses in
the primary under-hood fuse box
by looking through the top at the
wire inside. Removing these fuses requires a Phillips-head screw-driver. 4. Check the smaller fuses in the
under-hood fuse box and all the
fuses in the interior fuse boxes by
pulling out each fuse with the fuse
puller provided in the primary
under-hood fuse box.
5. Look for a burned wire inside the fuse. If it is burned, replace it with
one of the spare fuses of the same rating or lower.
CONTINUED
Takin g Car e o f th e Unexpecte d
BLOWNFUSE PULLE R
BLOWN

Fuses
If you cannot drive the vehicle
without fixing the problem, and you do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make sure you can do without that circuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as soon as you can.
Replacing a fuse with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a replace-
ment fuse with the proper rating for the circuit, install one with a lower rating.
6. If the replacement fuse of the same rating blows in a short time,
there is probably a serious electrical problem in your vehicle.
Leave the blown fuse in that
circuit and have your vehicle checked by a qualified mechanic.
On EX model
If the radio fuse is removed, theaudio system will disable itself. The
next time you turn on the radio you
will see in the frequency display. Use the Preset buttons to
enter the five-digit code (see page
186).
Takin g Car e o f th e Unexpecte d
NOTICE

Fuses

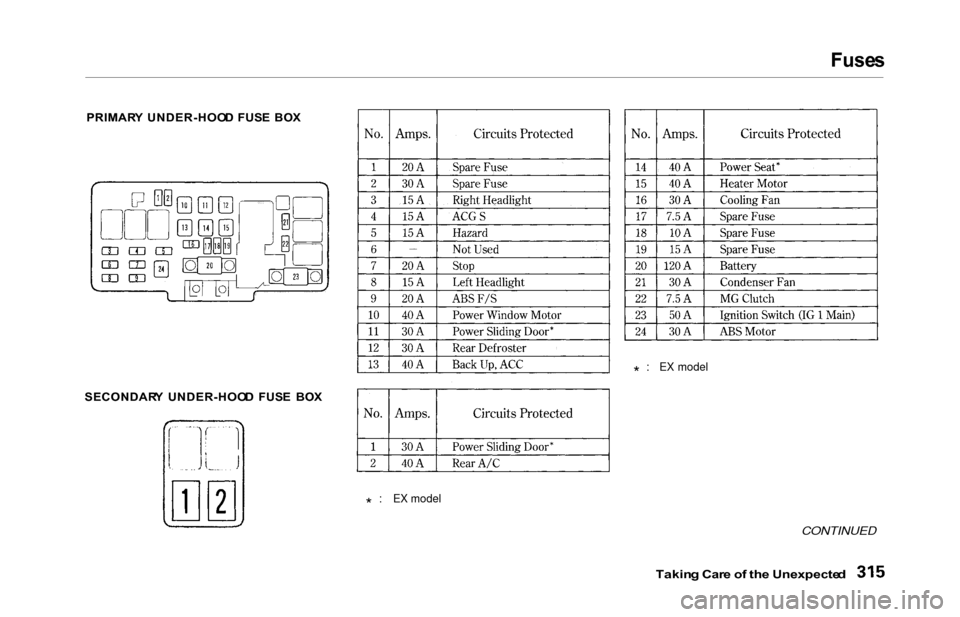

PRIMAR Y UNDER-HOO D FUS E BO X
SECONDAR Y UNDER-HOO D FUS E BO X
* : EX model
* : EX model
CONTINUED
Takin g Car e o f th e Unexpecte d

Fuses
INTERIO R FUS E BO X
Driver' s Sid e
* : On Canadian models
Passenger' s Sid e
*1 : EX
*2 : Canadian models
Takin g Car e o f th e Unexpecte d
