Vehicle Symbol Glossary
Child Safety Door
Lock/Unlock
Interior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Introduction
7
ProCarManuals.com

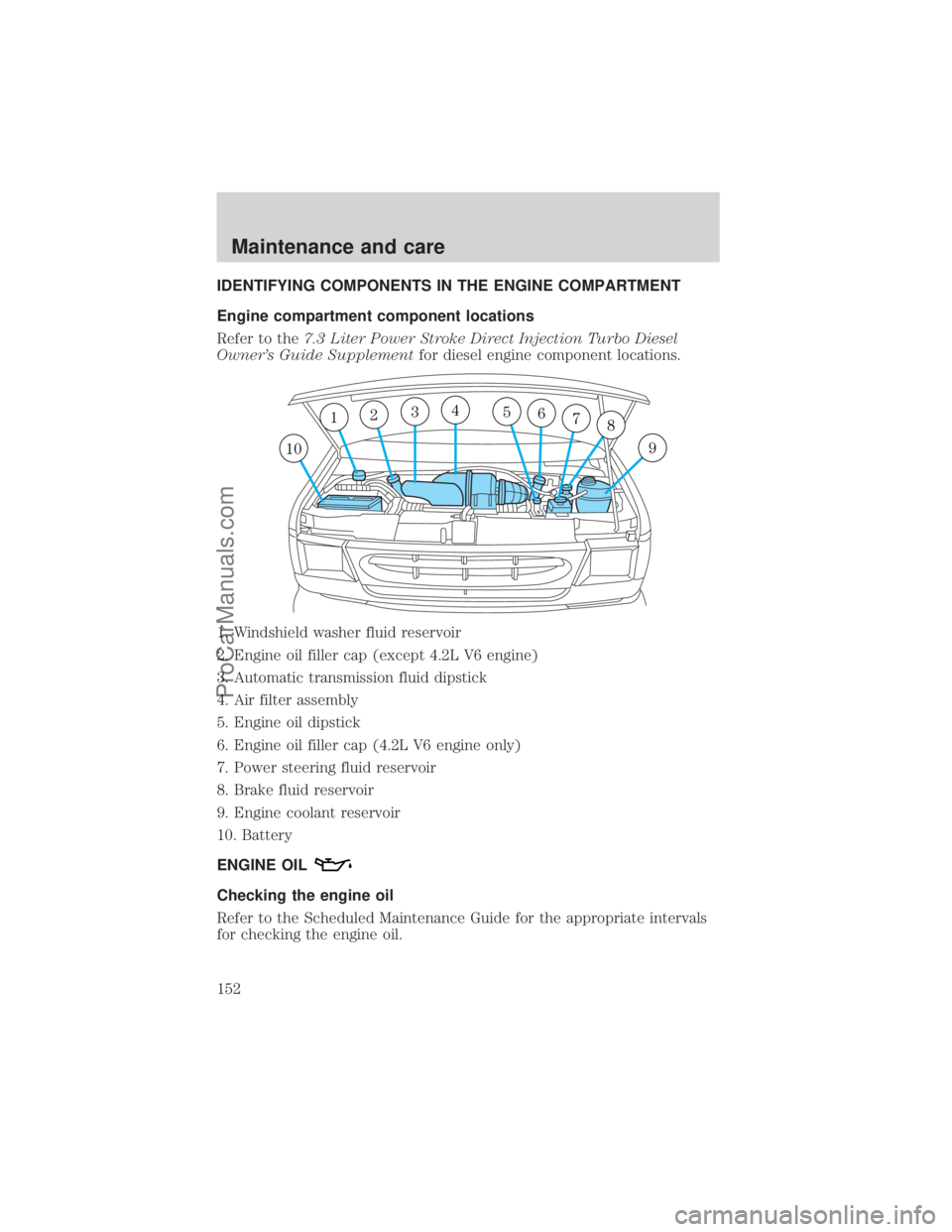

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
Engine compartment component locations
Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner's Guide Supplementfor diesel engine component locations.
1. Windshield washer fluid reservoir
2. Engine oil filler cap (except 4.2L V6 engine)
3. Automatic transmission fluid dipstick
4. Air filter assembly
5. Engine oil dipstick
6. Engine oil filler cap (4.2L V6 engine only)
7. Power steering fluid reservoir
8. Brake fluid reservoir
9. Engine coolant reservoir
10. Battery
ENGINE OIL
Checking the engine oil
Refer to the Scheduled Maintenance Guide for the appropriate intervals
for checking the engine oil.
12345678
910
Maintenance and care
152
ProCarManuals.com

²Oil levels above the MAX mark may cause engine damage. Some oil
must be removed from the engine by a service technician.
7. Put the indicator back in and ensure it is fully seated.
Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal range, add only certified
engine oil of the recommended viscosity. Remove the engine oil filler cap
and use a funnel to pour the engine oil into the opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
MAX mark on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
until three clicks can be heard.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-30 motor oil certified for gasoline engines by the American
Petroleum Institute (API).
Motor oil displaying the API certification trademark will meet all
requirements for your vehicle's engine.
Ford oil specification is WSS-M2C153-G.
Do not use supplemental engine oil additives, oil treatments or engine
treatments. They are unnecessary and could, under certain conditions,
lead to engine damage which is not covered by your warranty.
Maintenance and care
154
ProCarManuals.com

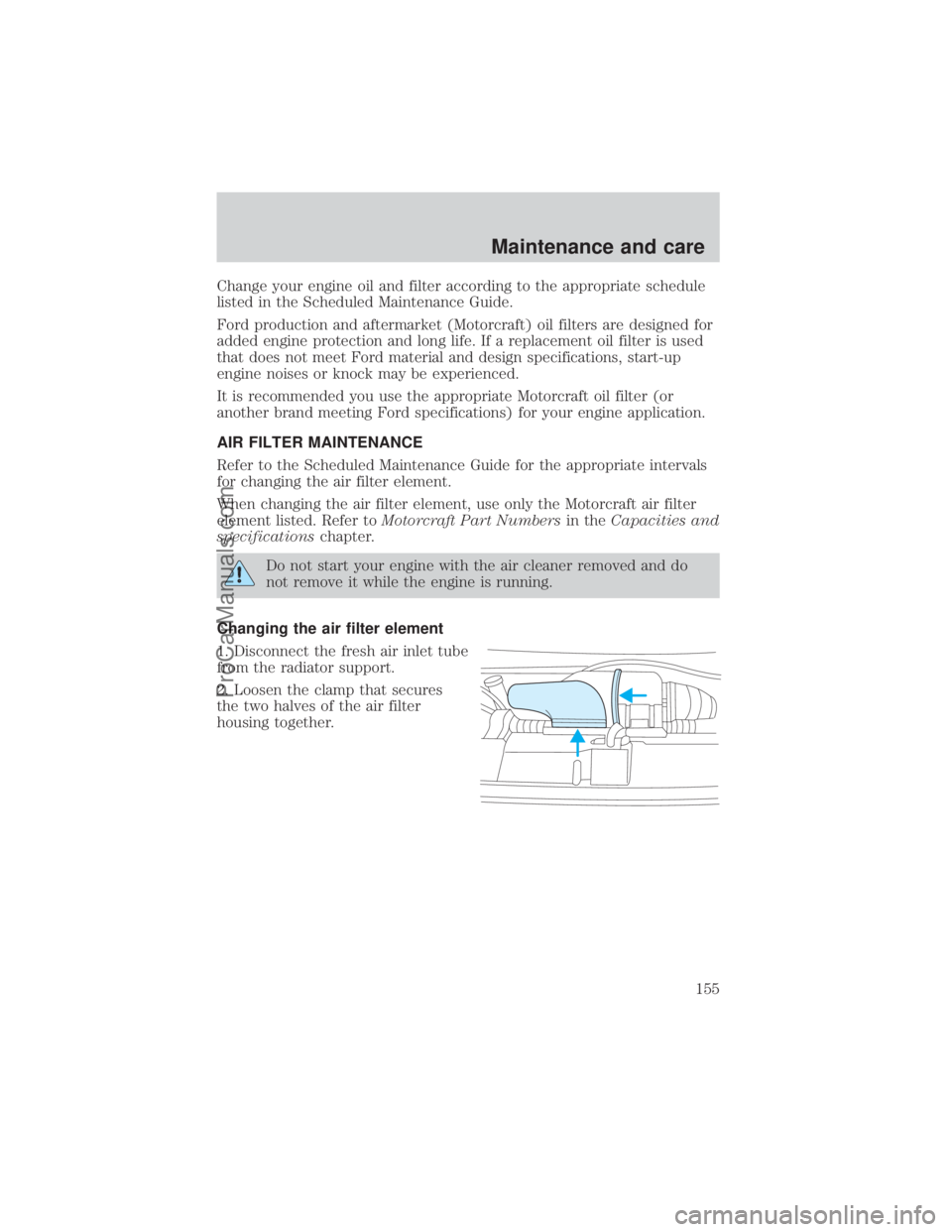

Change your engine oil and filter according to the appropriate schedule
listed in the Scheduled Maintenance Guide.
Ford production and aftermarket (Motorcraft) oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
It is recommended you use the appropriate Motorcraft oil filter (or
another brand meeting Ford specifications) for your engine application.
AIR FILTER MAINTENANCE
Refer to the Scheduled Maintenance Guide for the appropriate intervals
for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft Part Numbersin theCapacities and
specificationschapter.
Do not start your engine with the air cleaner removed and do
not remove it while the engine is running.
Changing the air filter element
1. Disconnect the fresh air inlet tube
from the radiator support.
2. Loosen the clamp that secures
the two halves of the air filter
housing together.
Maintenance and care
155
ProCarManuals.com

MOTORCRAFT PART NUMBERS
Component* 4.2L V6
engine4.6L V8
engine5.4L V8
engine6.8L V10
engine
Air filter
elementFA-1634 FA-1634 FA-1634 FA-1634
Battery
(standard)BXT-59 BXT-59 BXT-59
BXT-65-650
Battery
(optional)BXT-65-750 BXT-65-750BXT-65-750 BXT-65-750
Battery
(auxiliary)BH-65DC BH-65DC BH-65DC BH-65DC
Fuel filter FG-872 FG-872 FG-872 FG-872
Oil filter FL-400-S FL-820-S FL-820-S FL-820-S
PCV valve EV-251 EV-233 EV-233 EV-233
Spark plugs** AGSF-34EE***
AWSF-32PP****AWSF-22E AWSF-22E
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner's Guide Supplementfor Motorcraft diesel engine service part
numbers.
**Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
***If a spark plug is removed for inspection, it must be reinstalled in the
same cylinder. Cylinders No. 1, 2 and 3 have a ªEGº suffix. Cylinders No.
4, 5 and 6 have a ªEº suffix. If a spark plug needs to be replaced, use
only spark plugs with the service part number suffix letter9EE9as shown
on the engine decal.
**** If a spark plug is removed for inspection, it must be reinstalled in
the same cylinder. Cylinders No. 1, 2, 3 and 4 have a ªPGº suffix.
Cylinders No. 5, 6, 7 and 8 have a ªPº suffix. If a spark plug needs to be
replaced, use only spark plugs with the service part number suffix letter
as shown on the engine decal.
Capacities and specifications
199
ProCarManuals.com

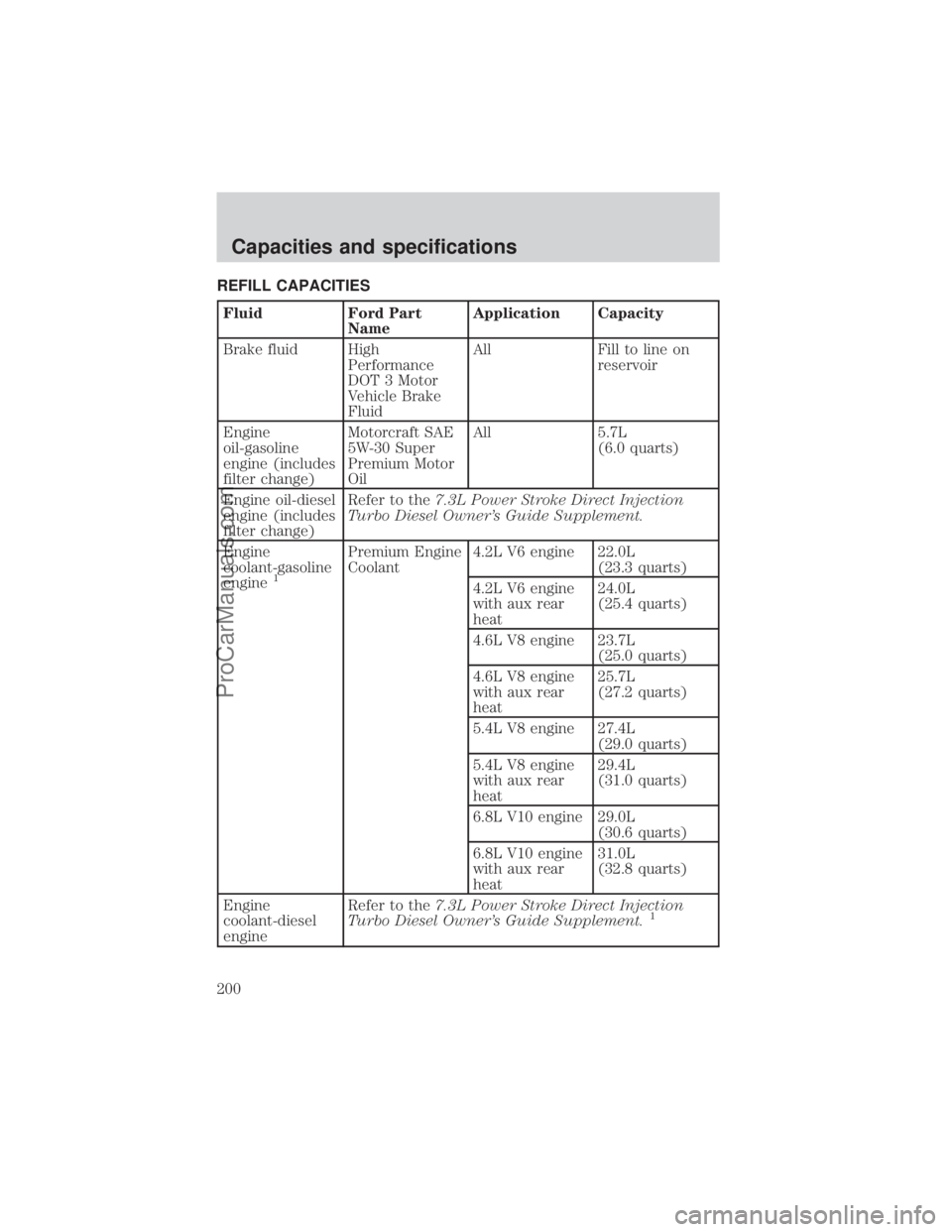

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine
oil-gasoline
engine (includes
filter change)Motorcraft SAE
5W-30 Super
Premium Motor
OilAll 5.7L
(6.0 quarts)
Engine oil-diesel
engine (includes
filter change)Refer to the7.3L Power Stroke Direct Injection
Turbo Diesel Owner's Guide Supplement.
Engine
coolant-gasoline
engine
1
Premium Engine
Coolant4.2L V6 engine 22.0L
(23.3 quarts)
4.2L V6 engine
with aux rear
heat24.0L
(25.4 quarts)
4.6L V8 engine 23.7L
(25.0 quarts)
4.6L V8 engine
with aux rear
heat25.7L
(27.2 quarts)
5.4L V8 engine 27.4L
(29.0 quarts)
5.4L V8 engine
with aux rear
heat29.4L
(31.0 quarts)
6.8L V10 engine 29.0L
(30.6 quarts)
6.8L V10 engine
with aux rear
heat31.0L
(32.8 quarts)
Engine
coolant-diesel
engineRefer to the7.3L Power Stroke Direct Injection
Turbo Diesel Owner's Guide Supplement.
1
Capacities and specifications
200
ProCarManuals.com

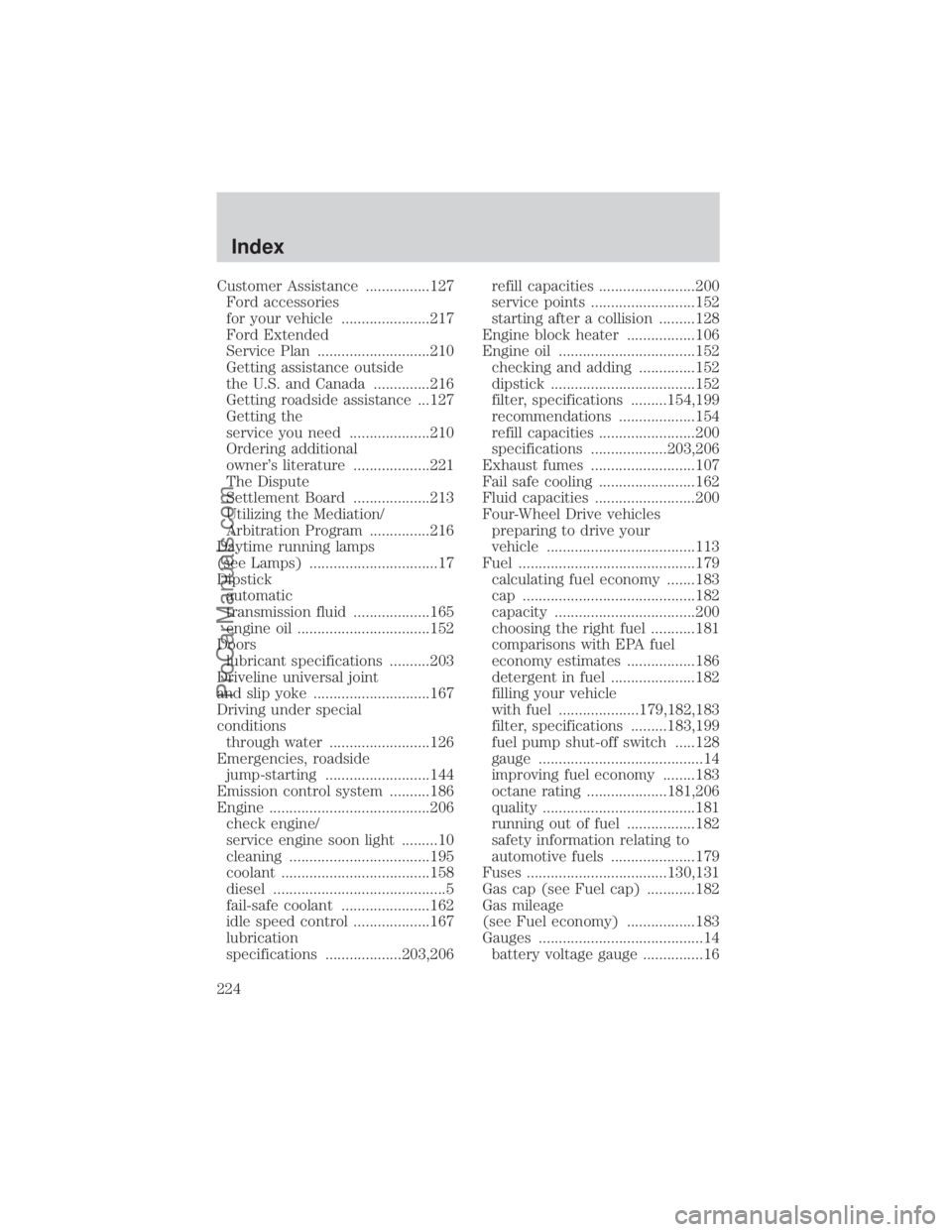

Customer Assistance ................127
Ford accessories
for your vehicle ......................217
Ford Extended
Service Plan ............................210
Getting assistance outside
the U.S. and Canada ..............216
Getting roadside assistance ...127
Getting the
service you need ....................210
Ordering additional
owner's literature ...................221
The Dispute
Settlement Board ...................213
Utilizing the Mediation/
Arbitration Program ...............216
Daytime running lamps
(see Lamps) ................................17
Dipstick
automatic
transmission fluid ...................165
engine oil .................................152
Doors
lubricant specifications ..........203
Driveline universal joint
and slip yoke .............................167
Driving under special
conditions
through water .........................126
Emergencies, roadside
jump-starting ..........................144
Emission control system ..........186
Engine ........................................206
check engine/
service engine soon light .........10
cleaning ...................................195
coolant .....................................158
diesel ...........................................5
fail-safe coolant ......................162
idle speed control ...................167
lubrication
specifications ...................203,206refill capacities ........................200
service points ..........................152
starting after a collision .........128
Engine block heater .................106
Engine oil ..................................152
checking and adding ..............152
dipstick ....................................152
filter, specifications .........154,199
recommendations ...................154
refill capacities ........................200
specifications ...................203,206
Exhaust fumes ..........................107
Fail safe cooling ........................162
Fluid capacities .........................200
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................113
Fuel ............................................179
calculating fuel economy .......183
cap ...........................................182
capacity ...................................200
choosing the right fuel ...........181
comparisons with EPA fuel
economy estimates .................186
detergent in fuel .....................182
filling your vehicle
with fuel ....................179,182,183
filter, specifications .........183,199
fuel pump shut-off switch .....128
gauge .........................................14
improving fuel economy ........183
octane rating ....................181,206
quality ......................................181
running out of fuel .................182
safety information relating to
automotive fuels .....................179
Fuses ...................................130,131
Gas cap (see Fuel cap) ............182
Gas mileage
(see Fuel economy) .................183
Gauges .........................................14
battery voltage gauge ...............16
Index
224
ProCarManuals.com

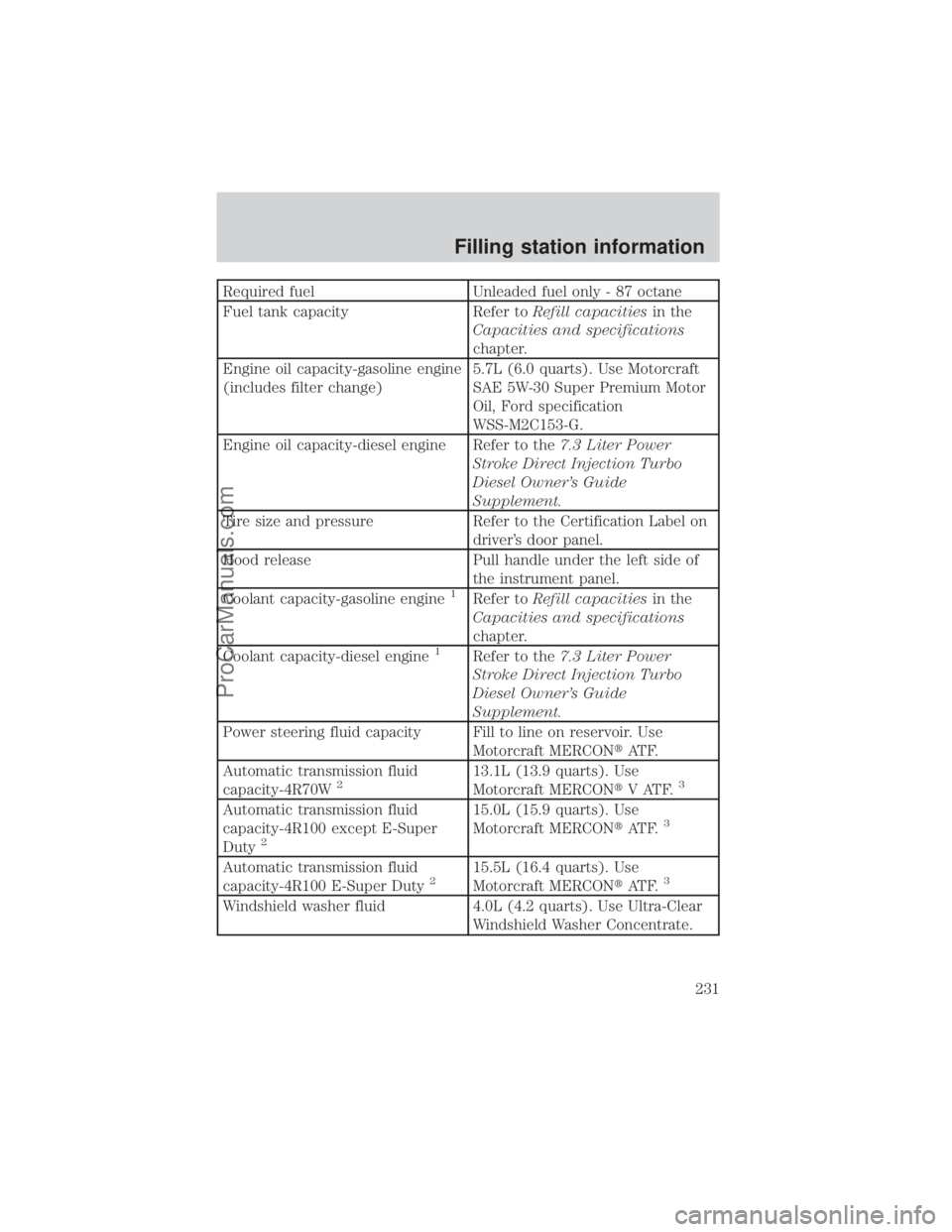

Required fuel Unleaded fuel only - 87 octane
Fuel tank capacity Refer toRefill capacitiesin the
Capacities and specifications
chapter.
Engine oil capacity-gasoline engine
(includes filter change)5.7L (6.0 quarts). Use Motorcraft
SAE 5W-30 Super Premium Motor
Oil, Ford specification
WSS-M2C153-G.
Engine oil capacity-diesel engine Refer to the7.3 Liter Power
Stroke Direct Injection Turbo
Diesel Owner's Guide
Supplement.
Tire size and pressure Refer to the Certification Label on
driver's door panel.
Hood release Pull handle under the left side of
the instrument panel.
Coolant capacity-gasoline engine
1Refer toRefill capacitiesin the
Capacities and specifications
chapter.
Coolant capacity-diesel engine
1Refer to the7.3 Liter Power
Stroke Direct Injection Turbo
Diesel Owner's Guide
Supplement.
Power steering fluid capacity Fill to line on reservoir. Use
Motorcraft MERCONtAT F.
Automatic transmission fluid
capacity-4R70W
213.1L (13.9 quarts). Use
Motorcraft MERCONtV ATF.3
Automatic transmission fluid
capacity-4R100 except E-Super
Duty
2
15.0L (15.9 quarts). Use
Motorcraft MERCONtAT F.3
Automatic transmission fluid
capacity-4R100 E-Super Duty215.5L (16.4 quarts). Use
Motorcraft MERCONtAT F.3
Windshield washer fluid 4.0L (4.2 quarts). Use Ultra-Clear
Windshield Washer Concentrate.
Filling station information
231
