2000 CHRYSLER VOYAGER relay

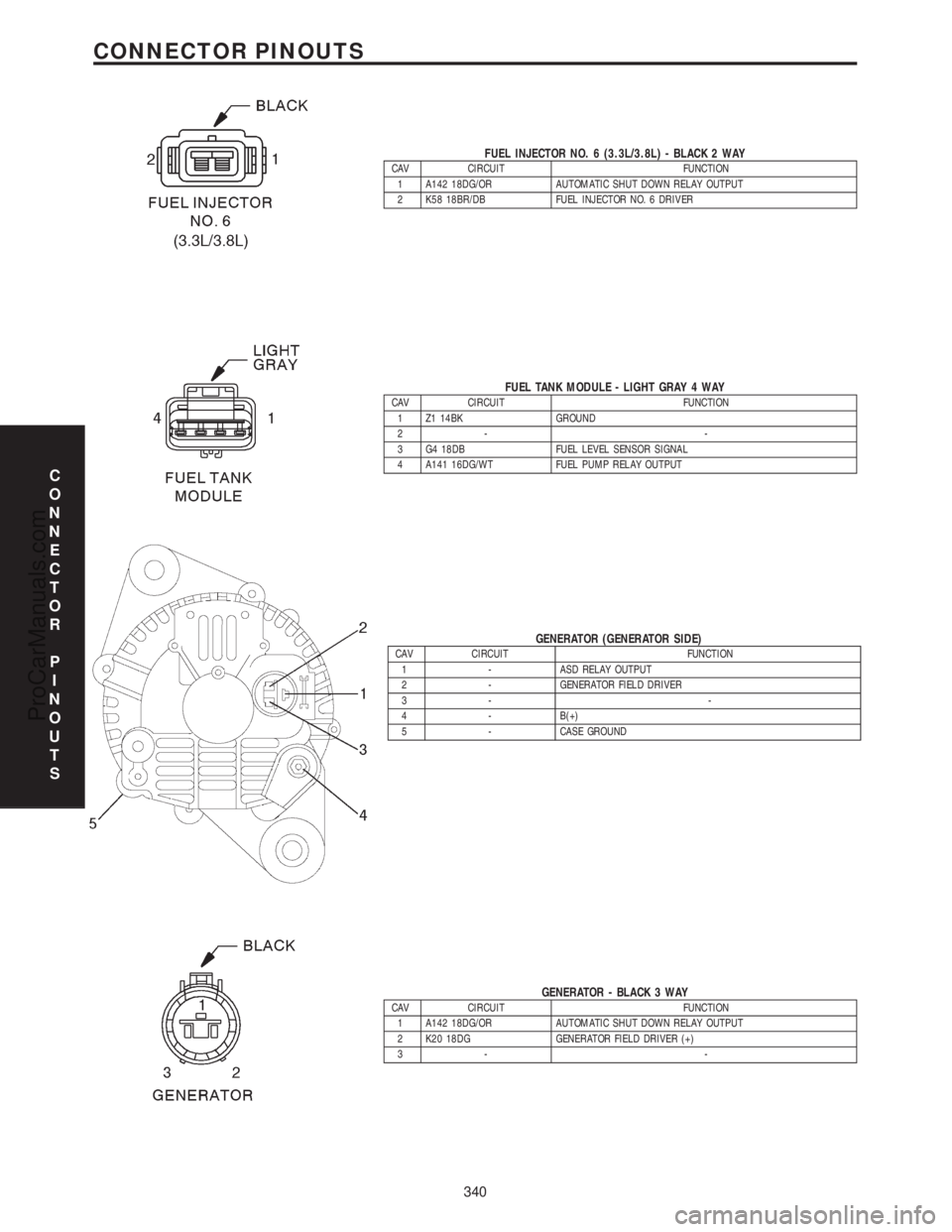

GENERATOR (GENERATOR SIDE)CAV CIRCUIT FUNCTION
1 - ASD RELAY OUTPUT
2 - GENERATOR FIELD DRIVER
3- -
4 - B(+)
5 - CASE GROUND
FUEL INJECTOR NO. 6 (3.3L/3.8L) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K58 18BR/DB FUEL INJECTOR NO. 6 DRIVER
FUEL TANK MODULE - LIGHT GRAY 4 WAYCAV CIRCUIT FUNCTION
1 Z1 14BK GROUND
2- -
3 G4 18DB FUEL LEVEL SENSOR SIGNAL
4 A141 16DG/WT FUEL PUMP RELAY OUTPUT
GENERATOR - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K20 18DG GENERATOR FIELD DRIVER (+)
3- -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
340
CONNECTOR PINOUTS
ProCarManuals.com

IDLE AIR CONTROL MOTOR - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 K59 18VT/BK IDLE AIR CONTROL NO. 4 DRIVER
2 K40 18BR/WT IDLE AIR CONTROL NO. 3 DRIVER
3 K60 18YL/BK IDLE AIR CONTROL NO. 2 DRIVER
4 K39 18GY/RD IDLE AIR CONTROL NO. 1 DRIVER
IGNITION COIL PACK (2.0L/2.4L) - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 K17 18DG/TN IGNITION COIL NO. 2 DRIVER
2 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
3 K19 18GY/RD IGNITION COIL NO. 1 DRIVER
IGNITION COIL PACK (3.3L/3.8L) - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 K17 18DB/TN (3.3L) IGNITION COIL NO 2 DRIVER
1 K18 18RD/YL (3.8L) IGNITION COIL NO 3 DRIVER
2 A142 18DG/OR (3.3L) AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K19 18GY/RD (3.8L) IGNITION COIL NO 1 DRIVER
3 A142 18DG/OR (3.8L) AUTOMATIC SHUT DOWN RELAY OUTPUT
3 K19 18GY/RD (3.3L) IGNITION COIL NO 1 DRIVER
4 K17 18DB/TN (3.8L) IGNITION COIL NO 2 DRIVER
4 K18 18RD/YL (3.3L) IGNITION COIL NO 3 DRIVER
INSTRUMENT CLUSTER - BLACK 13 WAYCAV CIRCUIT FUNCTION
1- -
2 M1 20PK FUSED B(+)
3- -
4- -
5- -
6 E2 20OR PANEL LAMPS FEED
7 Z2 20BK/LG GROUND
8- -
9 D2 20WT/BK CCD BUS (-)
10 D1 20VT/BR CCD BUS (+)
11 F11 20RD/WT FUSED IGNITION SWITCH OUTPUT (ST-RUN-OFF)
12 - -
13 Z1 20BK GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
341
CONNECTOR PINOUTS
ProCarManuals.com

MANIFOLD ABSOLUTE PRESSURE SENSOR (2.4L/3.3L/3.8L) - BLACK 3 WAYCAV CIRCUIT FUNCTION
A K4 18BK/LB SENSOR GROUND
B K6 18VT/WT 5V SUPPLY
C K1 18DG/RD MAP SENSOR SIGNAL
OUTPUT SPEED SENSOR - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 T13 18DB/BK SPEED SENSOR GROUND
2 T14 18LG/WT OUTPUT SPEED SENSOR SIGNAL
OXYGEN SENSOR (SENSOR SIDE)CAV CIRCUIT FUNCTION
1 - GROUND
2 - AUTOMATIC SHUT DOWN RELAY OUTPUT
3 - OXYGEN SENSOR GROUND
4 - OXYGEN SENSOR SIGNAL
OXYGEN SENSOR 1/1 UPSTREAM - GRAY 4 WAYCAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
3 K127 18BK/OR OXYGEN SENSOR GROUND
4 K41 18BK/DG OXYGEN SENSOR 1/1 SIGNAL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
343
CONNECTOR PINOUTS
ProCarManuals.com

OXYGEN SENSOR 1/2 DOWNSTREAM - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 Z12 20BK GROUND
2 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
3 K127 20BK/LB OXYGEN SENSOR GROUND
4 K141 20TN/WT OXYGEN SENSOR 1/2 SIGNAL
PARK/NEUTRAL POSITION SWITCH (ATX) - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 L1 18VT/BK BACK-UP LAMP FEED
2 T41 18BK/WT PARK/NEUTRAL POSITION SWITCH SENSE
3 F20 18WT FUSED IGNITION SWITCH OUTPUT (RUN)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
344
CONNECTOR PINOUTS
ProCarManuals.com

FUSESFUSE
NO.AMPS FUSED CIRCUIT FEED CIRCUIT
1 15A INTERNAL A0 6RD
2 20A (GAS/EATX) INTERNAL A0 6RD
3 20A INTERNAL A0 6RD
4 10A INTERNAL A0 6RD
5 10A INTERNAL A0 6RD
6 15A F41 20PK/VT A0 6RD
7 20A INTERNAL A0 6RD
8 20A L43 18VT INTERNAL
9 15A L44 20VT/RD INTERNAL
10 25A A20 12RD/DB A0 6RD
11 20A F32 18PK/DB A0 6RD
12 10A A22 12BK/OR F23 18DB/YL
13 10A F14 18LG/YL INTERNAL
14 20A L9 18BK/VT A0 6RD
15 10A M1 20PK A0 6RD
16 - SPARE A0 6RD
17 - SPARE A0 6RD
18 10A L33 20RD INTERNAL
19 10A L34 20RD/OR A0 6RD
19 10A L34 20RD/OR A0 6RD
101 40A INTERNAL A0 6RD
102 40A A10 12RD/DG A0 6RD
103 40A A2 12PK/BK A0 6RD
104 40A A1 12RD A0 6RD
105 40A (DIESEL) A17 12RD/BK A0 6RD
106 40A A16 12GY A0 6RD
107 40A INTERNAL A0 6RD
108 40A A4 12BK/RD A0 6RD
109 30A INTERNAL A0 6RD
A/C COMPRESSOR CLUTCH RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 C13 18DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL (GAS)
85 C13 20DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL (DIESEL)
86 F87 18WT/BK FUSED IGNITION SWITCH OUTPUT (ST-RUN) (GAS)
86 A142 18DG/OR DIESEL POWER RELAY OUTPUT (DIESEL)
87 C3 18DB/BK A/C COMPRESSOR CLUTCH RELAY OUTPUT
87A --
AUTOMATIC SHUT DOWN RELAY (GAS)CAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 K51 18DB/YL AUTOMATIC SHUT DOWN RELAY CONTROL
86 A0 6RD B(+)
87 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
87A --
CIGAR LIGHTER/ACCESSORY RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 Z1 18BK GROUND
86 F1 20DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
87 F30 16RD CIGAR LIGHTER/ACCESSORY RELAY OUTPUT
87A --
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
346
CONNECTOR PINOUTS
ProCarManuals.com

DIESEL POWER RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 K51 20DB/YL DIESEL POWER RELAY CONTROL
86 A0 6RD FUSED B(+)
87 A142 18DG/OR DIESEL POWER RELAY OUTPUT
87A --
ENGINE STARTER MOTOR RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 K90 18TN SMART START RELAY CONTROL
86 F45 20YL/RD (EATX) FUSED IGNITION SWITCH OUTPUT (START)
86 T141 20YL/RD (MTX) FUSED IGNITION SWITCH OUTPUT (START)
87 T40 12BR STARTER RELAY OUTPUT
87A --
FRONT BLOWER MOTOR RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 Z1 18BK GROUND
86 F20 20WT FUSED IGNITION SWITCH OUTPUT (RUN)
87 C71 12DB BLOWER MOTOR DRIVER
87A --
FUEL HEATER RELAY (DIESEL)CAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 Z1 20BK GROUND
86 INTERNAL FUSED IGNITION SWITCH OUTPUT (ST-RUN)
87 A141 16DG/WT FUEL HEATER RELAY OUTPUT
87A --
FUEL PUMP RELAY (GAS)CAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 K31 18BR FUEL PUMP RELAY CONTROL
86 F87 18WT/BK FUSED IGNITION SWITCH OUTPUT (ST-RUN)
87 A141 16DG/WT FUEL PUMP RELAY OUTPUT
87A --
HIGH BEAM RELAYCAV CIRCUIT FUNCTION
30 A0 6RD B(+)
85 L324 20WT/LG HIGH BEAM RELAY CONTROL
86 A0 6RD B(+)
87 INTERNAL HIGH BEAM RELAY OUTPUT
87A --
HORN RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 X4 18GY/OR (RHD DIE-
SEL)HORN RELAY CONTROL
85 X4 20GY/OR (EXCEPT RHD
DIESEL)HORN RELAY CONTROL
86 A0 6RD B(+)
87 X2 18DG/RD HORN RELAY OUTPUT
87A --
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
347
CONNECTOR PINOUTS
ProCarManuals.com

LOW BEAM RELAYCAV CIRCUIT FUNCTION
30 A0 6RD B(+)
85 L193 20OR/WT
(CHRYSLER)LOW BEAM RELAY CONTROL
85 L94 20OR/WT (EXCEPT
CHRYSLER)LOW BEAM RELAY CONTROL
86 A0 6RD B(+)
87 INTERNAL LOW BEAM RELAY OUTPUT
87A --
PARK LAMP RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 L97 18VT PARK LAMP RELAY CONTROL
86 INTERNAL FUSED B(+)
87 L7 12BK/YL PARK LAMP RELAY OUTPUT
87A --
TRANSMISSION CONTROL RELAY (EATX)CAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 Z16 18BK GROUND
86 T15 18LG TRANSMISSION CONTROL RELAY CONTROL
87 T16 18RD TRANSMISSION CONTROL RELAY OUTPUT
87A --
WIPER HIGH/LOW RELAYCAV CIRCUIT FUNCTION
30 INTERNAL WIPER RELAY OUTPUT
85 V16 20WT WIPER HIGH/LOW RELAY CONTROL
86 INTERNAL WIPER RELAY OUTPUT
87 V4 12RD/YL WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
87A V3 12BR/WT HIGH/LOW WIPER RELAY LOW SPEED OUTPUT
WIPER ON RELAYCAV CIRCUIT FUNCTION
30 INTERNAL WIPER ON RELAY OUTPUT
85 V14 18RD/VT WIPER ON/OFF RELAY CONTROL
86 INTERNAL FUSED B(+)
87 INTERNAL FUSED B(+)
87A Z1 18BK GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
348
CONNECTOR PINOUTS
ProCarManuals.com

POWERTRAIN CONTROL MODULE C1 - BLACK 40 WAYCAV CIRCUIT FUNCTION
1- -
2 K18 18RD/YL IGNITION COIL NO. 3 DRIVER
3 K17 18DB/TN IGNITION COIL NO. 2 DRIVER
4- -
5 V32 18YL/RD SPEED CONTROL ON/OFF SWITCH SENSE
6 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
7 K13 18YL/WT FUEL INJECTOR NO. 3 DRIVER
8 K20 18DG GENERATOR FIELD DRIVER (+)
9- -
10 Z12 18BK/TN GROUND
11 K19 18GY/RD IGNITION COIL NO. 1 DRIVER
12 - -
13 K11 18WT/DB FUEL INJECTOR NO. 1 DRIVER
14 K58 18BR/DB FUEL INJECTOR NO. 6 DRIVER
15 K38 18GY FUEL INJECTOR NO. 5 DRIVER
16 K14 18LB/BR FUEL INJECTOR NO. 4 DRIVER
17 K12 18TN/WT FUEL INJECTOR NO. 2 DRIVER
18 - -
19 - -
20 F87 18WT/BK FUSED IGNITION SWITCH OUTPUT (ST-RUN)
21 - -
22 G3 18BK/PK SERVICE ENGINE SOON INDICATOR DRIVER
23 - -
24 - -
25 K42 18DB/LG KNOCK SENSOR SIGNAL
26 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
27 K127 18BK/OR OXYGEN SENSOR GROUND
28 - -
29 - -
30 K41 18BK/DG OXYGEN SENSOR 1/1 SIGNAL
31 K90 18TN (EXCEPT 3.0L) SMART START RELAY CONTROL
32 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
33 K44 18TN/YL CAMSHAFT POSITION SENSOR SIGNAL
34 - -
35 K22 18OR/DB THROTTLE POSITION SENSOR SIGNAL
36 K1 18DG/RD MANIFOLD ABSOLUTE PRESSURE SENSOR SIGNAL
37 K21 18BK/RD (2.4L) INTAKE AIR TEMPERATURE SIGNAL
38 C103 18DG/LB (EXCEPT
3.0L)A/C SWITCH SIGNAL
39 - -
40 K35 18GY/YL EGR SOLENOID CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
349
CONNECTOR PINOUTS
