2000 CHEVROLET TRACKER turn signal bulb

2-32
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes your:

Turn Signal and Lane Change Indicator

Headlamp High/Low Beam Changer

Flash
-to-Pass
Turn Signal and Lane Change Indicator
The turn signal has an upward (for right) and a
downward (for left) position. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn is finished, the lever will return automatically.
An arrow on the instrument
panel cluster will flash in
the direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don't
flash but just stay on, a signal bulb may be burned out
and other drivers won't see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check the fuse (see ªFuses and Circuit
Breakersº in the Index) and for burned
-out bulbs.

4-53 Backing Up
Hold the bottom of the steering wheel with one hand.
Then, to move the trailer to the left, just move that hand
to the left. To move the trailer to the right, move your
hand to the right. Always back up slowly and, if
possible, have someone guide you.
Making Turns
NOTICE:
Making very sharp turns while trailering could
cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged.
Avoid making very sharp turns while trailering.
When you're turning with a trailer, make wider turns
than normal. Do this so your trailer won't strike soft
shoulders, curbs, road signs, trees or other objects.
Avoid jerky or sudden maneuvers. Signal well
in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have extra
wiring (included in the optional trailering package).
The arrows on your instrument panel will flash
whenever you signal a turn or lane change. Properly
hooked up, the trailer lamps will also flash, telling other
drivers you're about to turn, change lanes or stop.
When towing a trailer, the arrows on your instrument
panel will flash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind you
are seeing your signal when they are not. It's important
to check occasionally to be sure the trailer bulbs are
still working.
Driving On Grades
Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If you don't shift
down, you might have to use your brakes so much that
they would get hot and no longer work well.
If you are towing a trailer and you have a manual
transmission with FIFTH (5) gear, you may prefer not to
use FIFTH (5). Just drive in FOURTH (4) (or, as you
need to, a lower gear).

6-38
Bulb Replacement
See ªReplacement Bulbsº in the Index to check the size
and type of bulb you need to use.
Halogen Bulbs
CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
Headlamps
A. Headlamp
B. Turn Signal

6-40 Front Parking and Turn Signal Lamps
To replace the parking and turn signal bulb:
1. Open the hood and locate the turn signal bulb.
2. Turn the bulb socket counterclockwise and pull it out
of the lamp housing.
3. Push the bulb in, turn it counterclockwise and pull
the bulb straight out of the socket.
4. Reverse the steps with a new bulb.
Sidemarker Lamps
To replace the sidemarker bulb:
1. Remove the two screws
holding the sidemarker
lamp assembly using a
Phillips screwdriver. The
assembly should pull
away from the vehicle.
2. Turn the socket counterclockwise and pull it out of
the housing.
3. Pull the bulb out of the socket.
4. Reverse the steps with a new bulb.

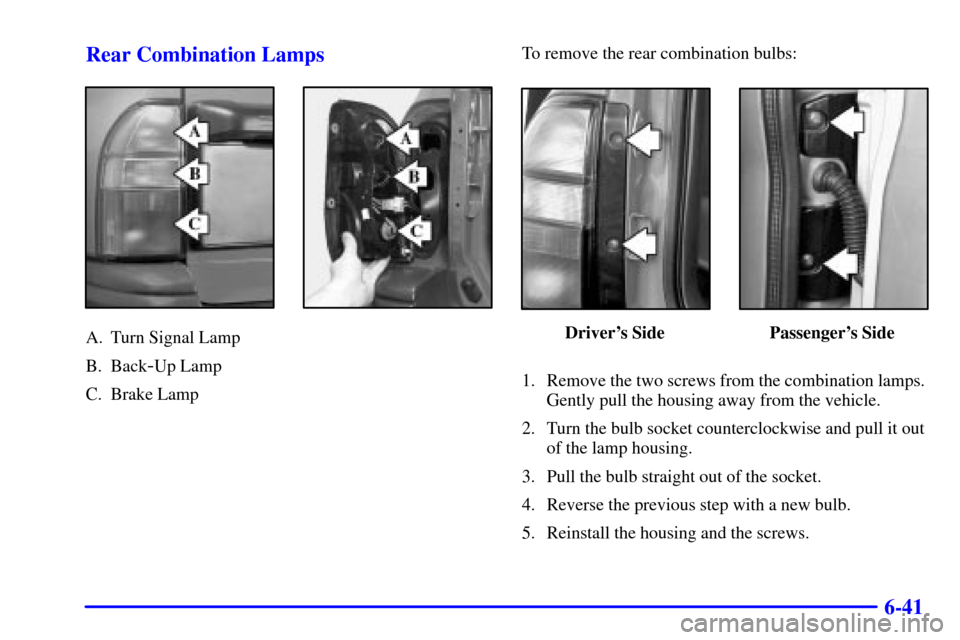

6-41 Rear Combination Lamps
A. Turn Signal Lamp
B. Back
-Up Lamp
C. Brake LampTo remove the rear combination bulbs:
Driver's Side Passenger's Side
1. Remove the two screws from the combination lamps.
Gently pull the housing away from the vehicle.
2. Turn the bulb socket counterclockwise and pull it out
of the lamp housing.
3. Pull the bulb straight out of the socket.
4. Reverse the previous step with a new bulb.
5. Reinstall the housing and the screws.

6-64
Replacement Bulbs
Lamps Bulb Number. . . . . . . . . . . . . . . . . . . . . . . . .
Back
-up Lamp 921. . . . . . . . . . . . . . . . . . . . . . . . . . .
Dome GM Part No. 96051559. . . . . . . . . . . . . . . . . . .
or equivalent
Front Parking and Turn Signal 1157 NA. . . . . . . . . . .
Headlamp (Halogen)
Right Hand GM Part No. 91174685. . . . . . . . . . . . .
or equivalent
Left Hand GM Part No. 91174687. . . . . . . . . . . . . .
or equivalent
Rear Hazard and Turn Signal 921. . . . . . . . . . . . . . . .
Rear Parking and Stop GM Part No. 91174349. . . . . .
or equivalent
Sidemarker 194. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions.
Air ConditioningSee the refrigerant . . . . . . . . . . . .
information label under the hood.Cooling System
1.6L Engine 5.8 quarts (5.5 L). . . . . . . . . . . . . . . . . .
2.0L Engine 6.9 quarts (6.5 L). . . . . . . . . . . . . . . . . .
Crankcase with Filter
1.6L Engine 4.4 quarts (4.2 L)**. . . . . . . . . . . . . . . .
2.0L Engine 5.5 quarts (5.2 L)**. . . . . . . . . . . . . . . .
Fuel Tank
Tw o
-Door Convertible 14.8 U.S. Gallons (56 L). . . . .
Four
-Door Hardtop 17.4 U.S. Gallons (66 L). . . . . . .
Automatic Transmission
Drain and Refill 2.6 quarts (2.5 L)*. . . . . . . . . . . . . .
Manual Transmission
Four
-Wheel Drive 1.6 quarts (1.5 L)*. . . . . . . . . . . .
Tw o
-Wheel Drive 2.0 quarts (1.9 L)*. . . . . . . . . . . .
Differential
Front 1.1 quarts (1.0 L)*. . . . . . . . . . . . . . . . . . . . . . .
Rear 2.3 quarts (2.2 L)*. . . . . . . . . . . . . . . . . . . . . . .
Transfer Case1.8 quarts (1.7 L) . . . . . . . . . . . . . . .
*Recheck fluid level after filling. See ªAutomatic
Transmission Fluidº or ªManual Transmission Fluidº in
the Index.
**When changing the oil filter, additional oil may be
needed. Recheck the oil level after filling. See ªEngine
Oilº in the Index.
