Page 125 of 411

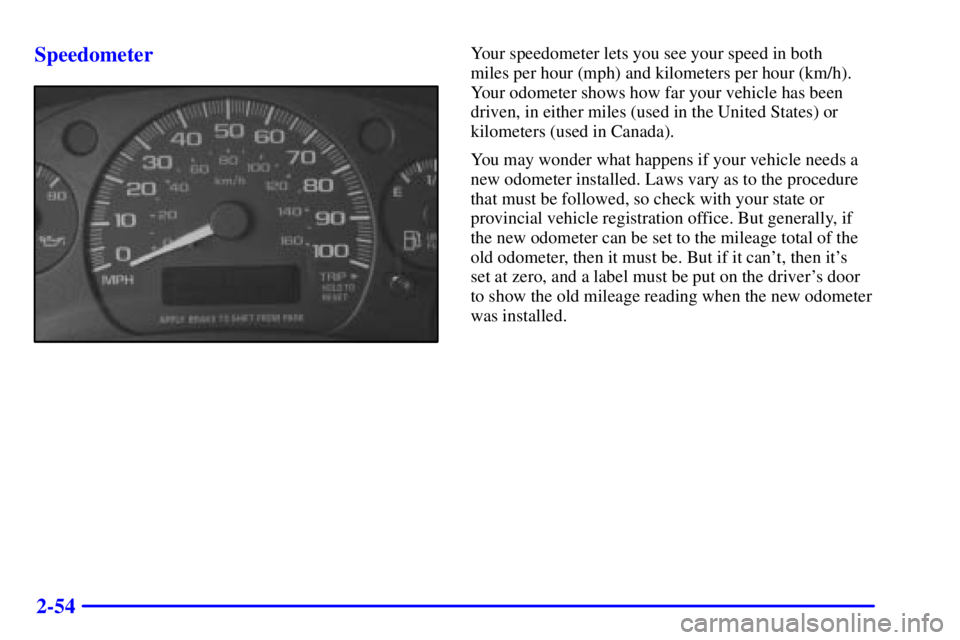

2-54 Speedometer
Your speedometer lets you see your speed in both
miles per hour (mph) and kilometers per hour (km/h).
Your odometer shows how far your vehicle has been
driven, in either miles (used in the United States) or
kilometers (used in Canada).
You may wonder what happens if your vehicle needs a
new odometer installed. Laws vary as to the procedure
that must be followed, so check with your state or
provincial vehicle registration office. But generally, if
the new odometer can be set to the mileage total of the
old odometer, then it must be. But if it can't, then it's
set at zero, and a label must be put on the driver's door
to show the old mileage reading when the new odometer
was installed.
Page 269 of 411
6-2
Service
Your dealer knows your vehicle best and wants you to
be happy with it. We hope you'll go to your dealer for
all your service needs. You'll get genuine GM parts and
GM
-trained and supported service people.
We hope you'll want to keep your GM vehicle all GM.
Genuine GM parts have one of these marks:
Doing Your Own Service Work
If you want to do some of your own service work, you'll
want to use the proper service manual. It tells you much
more about how to service your vehicle than this manual
can. To order the proper service manual, see ªService
and Owner Publicationsº in the Index.
Your vehicle may have an air bag system. If it does, see
ªServicing Your Air Bag
-Equipped Vehicleº in the
Index before attempting to do your own service work.
You should keep a record with all parts receipts and list
the mileage and the date of any service work you
perform. See ªMaintenance Recordº in the Index.
Page 349 of 411
Short Trip/City Scheduled Maintenance
7-10
3,000 Miles (5 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 3 months, whichever occurs first).
(See footnote #.)
Check axle fluid level and add fluid as needed. 2500 and 3500 Series Only:
If your vehicle has a locking differential, drain fluid and refill at first engine
oil change.
6,000 Miles (10 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 3 months, whichever occurs first).
(See footnote #.)
Check axle fluid level and add fluid as needed.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
Page 350 of 411
Short Trip/City Scheduled Maintenance
7-11
9,000 Miles (15 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 3 months, whichever occurs first).
(See footnote #.)
Check axle fluid level and add fluid as needed.
12,000 Miles (20 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 3 months, whichever occurs first).
(See footnote #.)
Check axle fluid level and add fluid as needed.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
Page 351 of 411

Short Trip/City Scheduled Maintenance
7-12
15,000 Miles (25 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 3 months, whichever occurs first).
(See footnote #.)
Diesel Engine Only: Inspect engine air cleaner filter if you are driving in
dusty conditions. Replace filter if necessary.
An Emission Control Service. (See footnote .)
Gasoline Engine Only: See ªEngine Air Cleaner Filter Restriction Indicator
Checkº in the Index.
Check axle fluid level and add fluid as needed. 2500 and 3500 Series Only:
If driving in dusty areas or when towing a trailer, drain fluid and refill every
15,000 miles (25 000 km).
Clean and repack the front wheel bearings (or at each brake relining,
whichever occurs first).
Vehicles With GVWR Above 10,000 lbs. or Equipped with Diesel Engine
Only: Inspect shields for damage or looseness. Adjust or replace as required.
This is a Noise Emission Control Service. Applicable only to vehicles sold
in the United States.ACTUAL
SERVICED BY:MILEAGE
DATE
Page 352 of 411

Short Trip/City Scheduled Maintenance
7-13
Diesel Engine Only: Check the air intake system installation to assure that
gaskets are properly sealed and that all hose connections, fasteners and other
components are tight. Also check to be sure that the air cleaner housing is
properly seated and the cover fits tightly. Tighten connections and fasteners or
replace damaged parts as necessary. This is a Noise Emission Control Service.
Applicable only to vehicles sold in the United States.
Diesel Engine Only: If your engine has a thermostatically controlled cooling
fan, inspect all hoses and ducts for proper hook
-up (or every 12 months,
whichever occurs first). Be sure the valve works properly. This is a Noise
Emission Control Service. Applicable only to vehicles sold in the
United States.
18,000 Miles (30 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 3 months, whichever occurs first).
(See footnote #.)
Check axle fluid level and add fluid as needed.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)ACTUAL
SERVICED BY:MILEAGE
DATE
Page 353 of 411
Short Trip/City Scheduled Maintenance
7-14
21,000 Miles (35 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 3 months, whichever occurs first).
(See footnote #.)
Check axle fluid level and add fluid as needed.
24,000 Miles (40 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 3 months, whichever occurs first).
(See footnote #.)
Check axle fluid level and add fluid as needed.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Diesel Engine Only: Replace fuel cap if driving in dusty conditions.
An Emission Control Service.
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
Page 354 of 411
Short Trip/City Scheduled Maintenance
7-15
27,000 Miles (45 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 3 months, whichever occurs first).
(See footnote #.)
Check axle fluid level and add fluid as needed.
30,000 Miles (50 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 3 months, whichever occurs first).
(See footnote #.)
Check axle fluid level and add fluid as needed. 2500 and 3500 Series Only:
If driving in dusty areas or when towing a trailer, drain fluid and refill every
15,000 miles (25 000 km).
Clean and repack the front wheel bearings (or at each brake relining,
whichever occurs first).
Replace fuel filter. An Emission Control Service. (See footnote .)
(Continued)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
