2000 CHEVROLET CORVETTE ignition

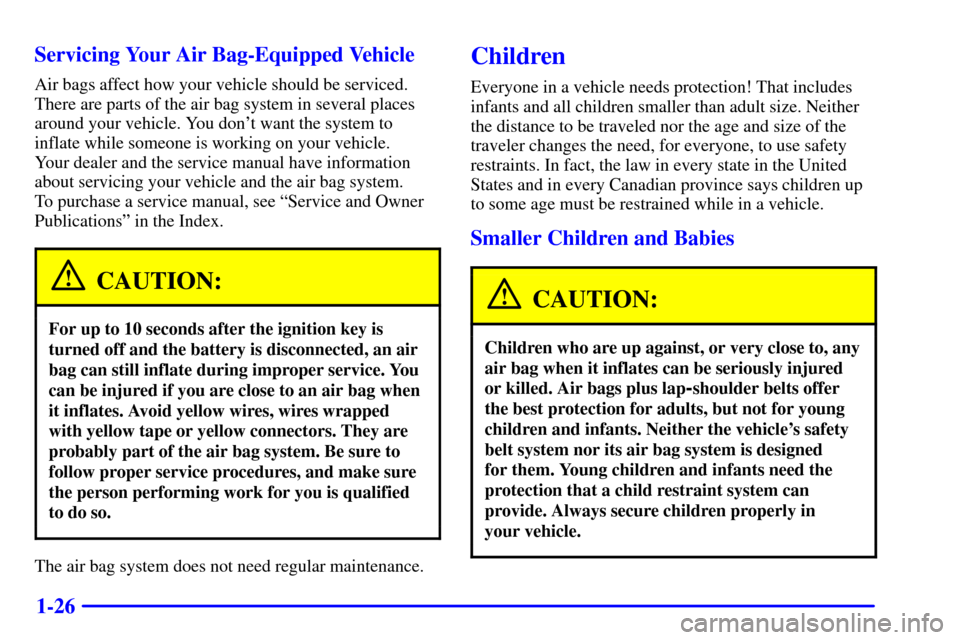

1-26 Servicing Your Air Bag-Equipped Vehicle
Air bags affect how your vehicle should be serviced.
There are parts of the air bag system in several places
around your vehicle. You don't want the system to
inflate while someone is working on your vehicle.
Your dealer and the service manual have information
about servicing your vehicle and the air bag system.
To purchase a service manual, see ªService and Owner
Publicationsº in the Index.
CAUTION:
For up to 10 seconds after the ignition key is
turned off and the battery is disconnected, an air
bag can still inflate during improper service. You
can be injured if you are close to an air bag when
it inflates. Avoid yellow wires, wires wrapped
with yellow tape or yellow connectors. They are
probably part of the air bag system. Be sure to
follow proper service procedures, and make sure
the person performing work for you is qualified
to do so.
The air bag system does not need regular maintenance.
Children
Everyone in a vehicle needs protection! That includes
infants and all children smaller than adult size. Neither
the distance to be traveled nor the age and size of the
traveler changes the need, for everyone, to use safety
restraints. In fact, the law in every state in the United
States and in every Canadian province says children up
to some age must be restrained while in a vehicle.
Smaller Children and Babies
CAUTION:
Children who are up against, or very close to, any
air bag when it inflates can be seriously injured
or killed. Air bags plus lap
-shoulder belts offer
the best protection for adults, but not for young
children and infants. Neither the vehicle's safety
belt system nor its air bag system is designed
for them. Young children and infants need the
protection that a child restraint system can
provide. Always secure children properly in
your vehicle.

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-4 Door Locks
2
-5 Memory (Option)
2
-7 Remote Keyless Entry System
2
-12 Hatch/Trunk Lid Release
2
-15 Theft-Deterrent System
2
-17 PASS-Key

2-18 New Vehicle ªBreak-Inº
2
-18 Ignition Switch
2
-20 Starting Your Engine
2
-22 Engine Coolant Heater (If Equipped)
2
-24 Automatic Transmission Operation
2
-27 Manual Transmission Operation
2
-31 Parking Brake
2
-32 Shifting Into PARK (P)
(Automatic Transmission Only)
2
-34 Shifting Out of PARK (P)
(Automatic Transmission)
2
-34 Parking Your Vehicle (Manual Transmission)2
-35 Parking Over Things That Burn
2
-35 Engine Exhaust
2
-36 Running Your Engine While You're Parked
(Automatic Transmission)
2
-36 Limited-Slip Rear Axle
2
-37 Selective Real Time Damping (SRTD) (Option)
2
-38 Windows
2
-40 Turn Signal/Multifunction Lever
2
-47 Exterior Lamps
2
-49 Interior Lamps
2
-51 Mirrors
2
-52 Storage Compartments
2
-57 Roof Panel (Option)
2
-63 Convertible Top (Option)
2
-70 The Instrument Panel -- Your
Information System
2
-73 Warning Lights, Gages and Messages
2
-88 Driver Information Center (DIC)

2-2

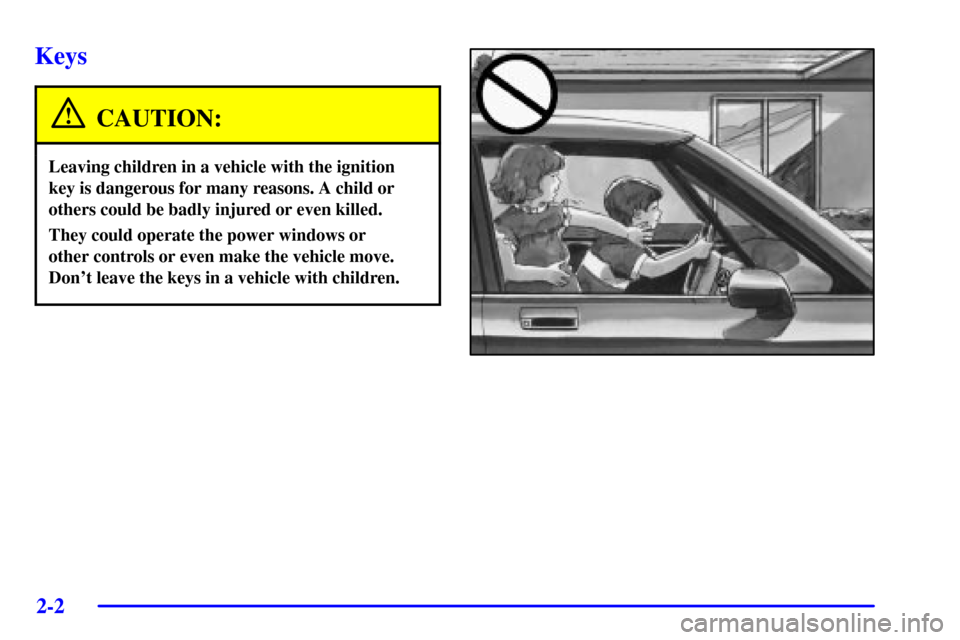

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
Don't leave the keys in a vehicle with children.

2-3
One key is used for the
ignition, the driver door
and all other locks.
When a new vehicle is delivered, the dealer gives the
first owner a key and a bar coded tag. Both the key and
the tag are attached to a key ring.
The heavy paper tag has a code on it that tells your
dealer or a qualified locksmith how to make an extra
key. Keep the bar
-coded tag in a safe place. If you lose
your key, you'll be able to have a new one made easily
using this tag. If your key doesn't have a tag and you
need a new ignition key, go to your Chevrolet dealer for
the correct key code.If you ever do get locked out of your vehicle,
call the Chevrolet Roadside Assistance Center at
1
-800-CHEV-USA
(1-800-243-8872).
(In Canada, call 1
-800-268-6800.)
NOTICE:
Your vehicle has a number of features that can
help prevent theft. But you can have a lot of
trouble getting into your vehicle if you ever lock
your key inside. You may even have to damage
your vehicle to get in. So be sure you have an
extra key.

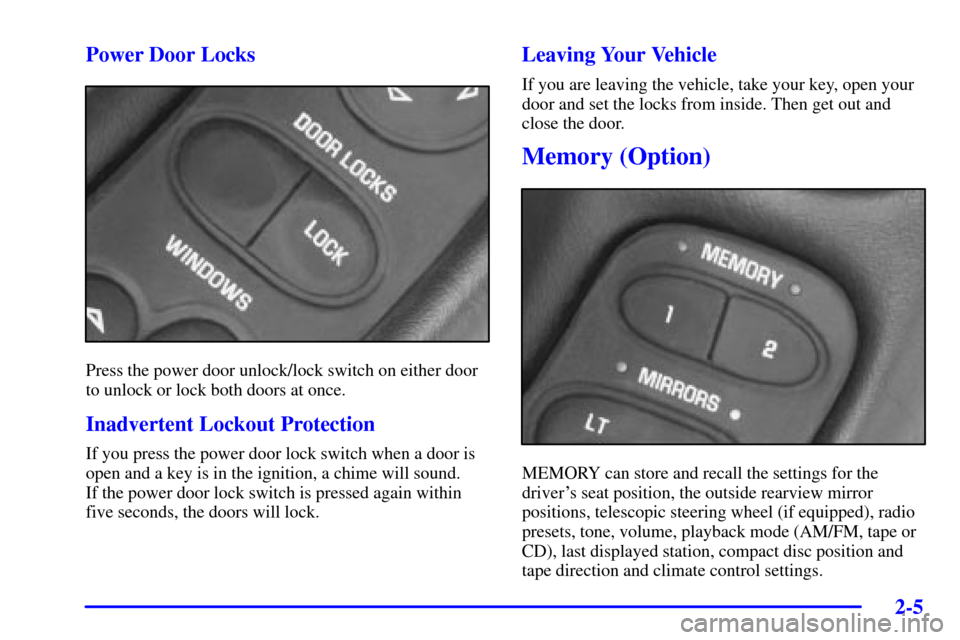

2-5 Power Door Locks
Press the power door unlock/lock switch on either door
to unlock or lock both doors at once.
Inadvertent Lockout Protection
If you press the power door lock switch when a door is
open and a key is in the ignition, a chime will sound.
If the power door lock switch is pressed again within
five seconds, the doors will lock.
Leaving Your Vehicle
If you are leaving the vehicle, take your key, open your
door and set the locks from inside. Then get out and
close the door.
Memory (Option)
MEMORY can store and recall the settings for the
driver's seat position, the outside rearview mirror
positions, telescopic steering wheel (if equipped), radio
presets, tone, volume, playback mode (AM/FM, tape or
CD), last displayed station, compact disc position and
tape direction and climate control settings.

2-6
The MEMORY buttons are located on the driver's side
door, above the power mirror controls. The MEMORY
buttons can store and recall settings for up to three
drivers. Use button ª1º to store the settings for the first
driver, button ª2º for a second driver or press buttons
1 and 2 at the same time for a third driver. To store your
memory settings:
1. Adjust your settings for the driver's seat position,
outside rearview mirror positions, and telescopic
steering wheel (if equipped).
2. Press and hold a MEMORY button. The light above
the MEMORY button will glow steady for one
second and then flash once when the settings are
complete. Then the light will go off.
3. Set the climate control temperature, fan speed and
mode settings, radio presets, tone, volume, playback
mode (AM/FM, tape or CD), tape direction and
compact disc position.
Your memory settings are now programmed. Any
changes that are made to the audio system and climate
controls while driving are automatically stored.When first entering your vehicle, after pressing the
UNLOCK button on your remote keyless entry
transmitter or a MEMORY button, a recall of your
settings will occur. As the memory settings are recalled,
the light above the button will flash until the correct
settings are achieved, then glow for five seconds
when complete.
A memory recall can be stopped by pressing any
memory seat, mirror or steering column position button.
Your memory settings can also be recalled when you
press the active door UNLOCK button on the remote
keyless transmitter. A memory recall can be stopped by
pressing any memory seat, mirror or steering column
position button.
When your remote keyless entry transmitter has been
programmed to driver 1, 2 or 3, and you insert the key
into the ignition, memory will also occur. Drivers 1, 2
and 3 correspond to the order in which your remote
keyless entry transmitters were programmed.
(See ªFob Trainingº in the Index.)
Memory recall will not work if the vehicle is moving.
Memory recall will be temporarily interrupted during
engine crank.

2-8
If you ever notice a decrease in the remote keyless entry
transmitter range, try doing one of the following:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

Check to make sure that an electronic device such
as a cellular phone or lap top computer is not
causing interference.

Try to resynchronize the transmitter. See
ªResynchronizing Your Transmitterº in this section.

If you're still having trouble, see your dealer or a
qualified technician for service.Operation
The driver's door will unlock when the UNLOCK
button on the remote keyless entry transmitter is
pressed, or press UNLOCK again within 10 seconds to
unlock both doors. Also, by pressing the UNLOCK
button, it will automatically disarm your theft
-deterrent
system, depending on how the theft
-deterrent system is
programmed. If it's dark enough outside, your interior
lamps will come on.
Your memory settings will also be recalled when you
press the UNLOCK button on the remote keyless
entry transmitter. See ªMemoryº in the Index for
more information.
The hatch/trunk lid will unlock when the button with the
trunk symbol is pressed, as long as the ignition is turned
to OFF.

2-9
The system has a feature that makes it difficult for you
to lock your keys in your vehicle. If you leave your keys
in the ignition and attempt to lock the doors, the vehicle
will not lock and a chime will sound to remind you that
the keys are in the ignition. If the door lock is pressed
again, within five seconds, the doors will lock and the
keys can be locked in the vehicle. This system can't
guarantee that you will never be locked out of your
vehicle. Always remember to take your keys with you.
Panic Alarm Button
When you press the horn button on the remote keyless
entry transmitter, the horn will sound. This panic alarm
button will allow you to attract attention, if needed.
If the horn alarm sounds, there are three ways to
turn it off:

Push the panic alarm button again on the remote
keyless entry transmitter.

Wait 90 seconds, and the horn will turn off by itself.

Turn the key to any position in the ignition,
except OFF.RKE Settings
You can adjust the settings on the system through the
Driver Information Center (DIC). You can change the
type of alarm used by the theft
-deterrent system.
See ªDriver Information Center Controls and Displaysº
in the Index for more information.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only three transmitters
matched to it.
