2000 BMW Z3M COUPE relay

K910
PASSENGER’S
SEAT TILT ADJUST
CUT–OFF RELAY


COMPONENT LOCATION VIEWS











K911
PASSENGER’S
SEAT LENGTH AD-
JUST CUT–OFF
RELAY
A113
SEAT OCCUPANCY
DETECTOR
X279
X737X740X10218X91009


X734X9995X10215X18518


B21
ON–BOARD
COMPUTER
TEMPERATURE
SENSOR
X770



X32X33X72X295
K46
HIGH BEAM LIGHT
RELAY
K6301w
FUEL PUMP RELAY
S8507
KICK–DOWN
SWITCH
X8507
COMPONENT LOCATION VIEWS











N17
CRASH CONTROL
MODULE



X322X1588

P97
AUXILIARY FUSE
BOX


X275
COMPONENT LOCATION VIEWS











X733
X726X728

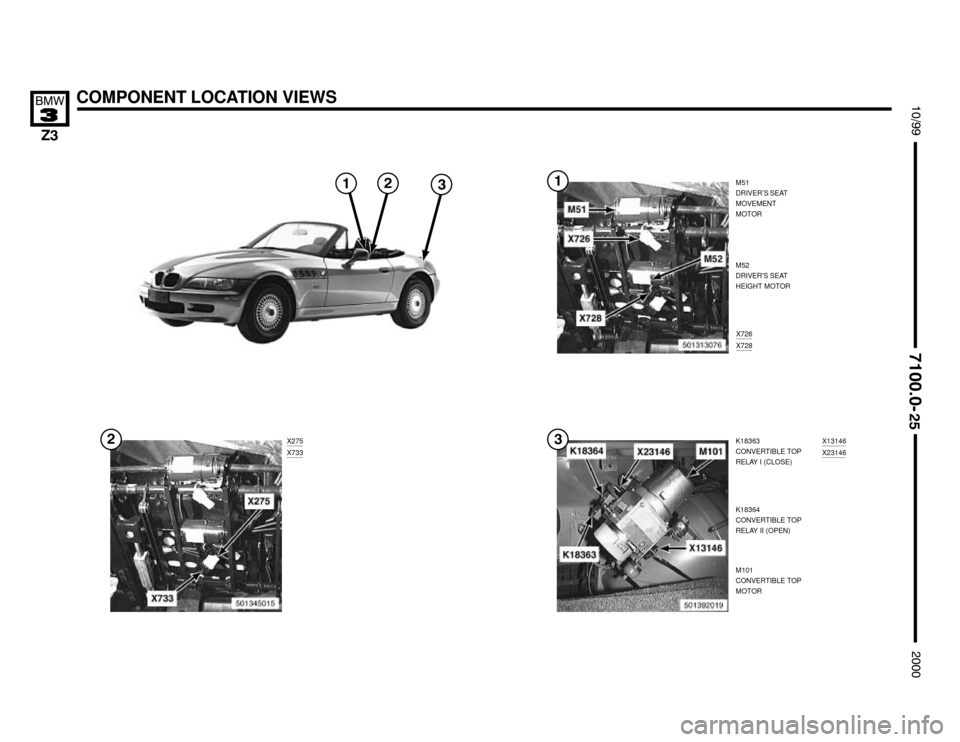

M51
DRIVER’S SEAT
MOVEMENT
MOTOR
M52
DRIVER’S SEAT
HEIGHT MOTOR
X13146
X23146K18363
CONVERTIBLE TOP
RELAY I (CLOSE)
K18364
CONVERTIBLE TOP
RELAY II (OPEN)
M101
CONVERTIBLE TOP
MOTOR

A8500
TRANSMISSION
CONTROL MODULE
(EGS)
X8500


X60001X60002X60003X60004X60005
COMPONENT LOCATION VIEWS











A6000
ENGINE CONTROL
MODULE (DME)K6300
ENGINE CONTROL
MODULE RELAY

K6304
SECONDARY AIR
PUMP RELAY

K6326
UNLOADER RELAY,
TERMINAL 15

X6054X6506





X65X19007
COMPONENT LOCATION VIEWS












A51
WIPER/WASHER
MODULE
A19007
THERMAL OIL
LEVEL SENSOR
(TOENS) CONTROL
MODULE
X285X13252X13253X13254

A104
BODY
ELECTRONICS
CONTROL MODULE
(ZKE IV)
K10485
BRAKE FLUID
LEVEL RELAY

N17
CRASH CONTROL
MODULE

X1143
