WARNING -
E39 cars are fitted with side-impact airbags in the front doors
and optional side impact
airbags in the rear doors. When
servicing doors, always disconnect the negative
(-) battery
terminal. See
721 Airbag System (SRS) for cautions and
procedures relating to the
airbag system.
Door trim panel, removing and installing
Disconnect negative (-) battery cable.
CAUTION--
Prior to disconnecting the battem read the batfew discon-
nection cautions given in
001 General Cautions and warn-
ings.
Q Open door, and remove screw (arrow) located
in air
duct.
< Pry out seat memory switch and disconnect wiring harness.

Downloaded from www.Manualslib.com manuals search engine
I
< Unclip door panel from door perimeter using a plastic trim
panel tool. Pry panel retaining clips off one at a time.
- Lift bottom of door trim panel up and away from window trim
to release clips.
- Pull door panel upwards to release center mount clip.
- Disconnect radio speaker wiring harness.
- Remove door trim panel.
< Before installing door trim panel, replace any damaged plas-
tic clips (arrows).
NOTE-
Yellow door trim clips (white arrows) at front are longer than
white door trim clips (blaclc arrows).
4 Checlt if support clip for door bracltet remains on door (ar-
row).
4 If so, remove support clip from door and replace in bracltet on
door trim panel (arrow).
- Remainder of installation is reverse of removal. Note the fol-
lowing:
Align metal retainers on window sill with openings on top
of door panel.
Checlc door-lock mechanism and window for ease of
movement.

Downloaded from www.Manualslib.com manuals search engine
41 2 Trunk Lid. Tailgate
........................... General
......................... Trunk Lid
Trunlc lid. removing and installing ........
Trunk lid. adjusting ...................
Trunk lid support strut.
removing and installing
................
Tailgate (Sport Wagon Models) .....
Tailgate. emergency release ...........
Tailgate and window strut diagram .......
Window strut removal diagram .......... 412-8
Rear window gas strut.
removing and installing
................ 412-9
Tailgate gas strut. removing and installing
............... 412-10
Tailgate. removing and installing
........ 412-1 1
Rear window. removing and installing
.... 412-12
Rear window and tailgate. alignment
..... 412-13

Downloaded from www.Manualslib.com manuals search engine
41 2-2
Trunk Lid, Tailgate
This repair group covers trunk lid and tailgate removal and in-
stallation. Also included here are replacement proceduresfor
the gas-charged support struts that hold the trunk lid or tail-
gate in the open position.
NO JE -
The body is painted at the factory after assembly. Realign-
ment of body panels may expose unpainted metal. Paint all
exposed metal once the
work is complete.
Trunk lid, removing and installing
4 Raise trunlc lid.
Open tool ltit cover and remove screws attaching tool kit to
trunlc lid (black arrows).
Disconnect tool ltit cover retaining strap from
trunk lid and
remove tool kit.
Remove insulating liner expansion rivets (white arrows).
4 Pry out moulded trim cover (arrow).

Downloaded from www.Manualslib.com manuals search engine
. .- -
l~runk Lid, Tailgate
Trunk lid support strut, removing and
installing
/ Make sure to supporf trunk lid before removing struts. I
Open trunk lid and support in open position.
Remove trunk strut retaining clip
(arrow) and disconnect
struts.
4 Remove spring clip (arrow) from lower end of strut and re-
move strut.
- Installation is reverse of removal. Replace retaining clips
damaged during removal.
Tailgate, emergency release
The tailgate of the E39 Sport Wagon has no ltey cylinder. An
emergency release mechanism is incorporated into the tail-
gate latch. This allows mechanical opening of the latch in
case of an electrical failure. The release is located in the rear
cargo area, along the lower edge of the rear apron behind a
small access cover.
Working inside car, at base of tailgate:
Open tool compartment cover.
Pry out emergency release cable cover.
Pull plastic cable to release rear tailgate latch

Downloaded from www.Manualslib.com manuals search engine
. .- -
Trunk Lid, Tailgate

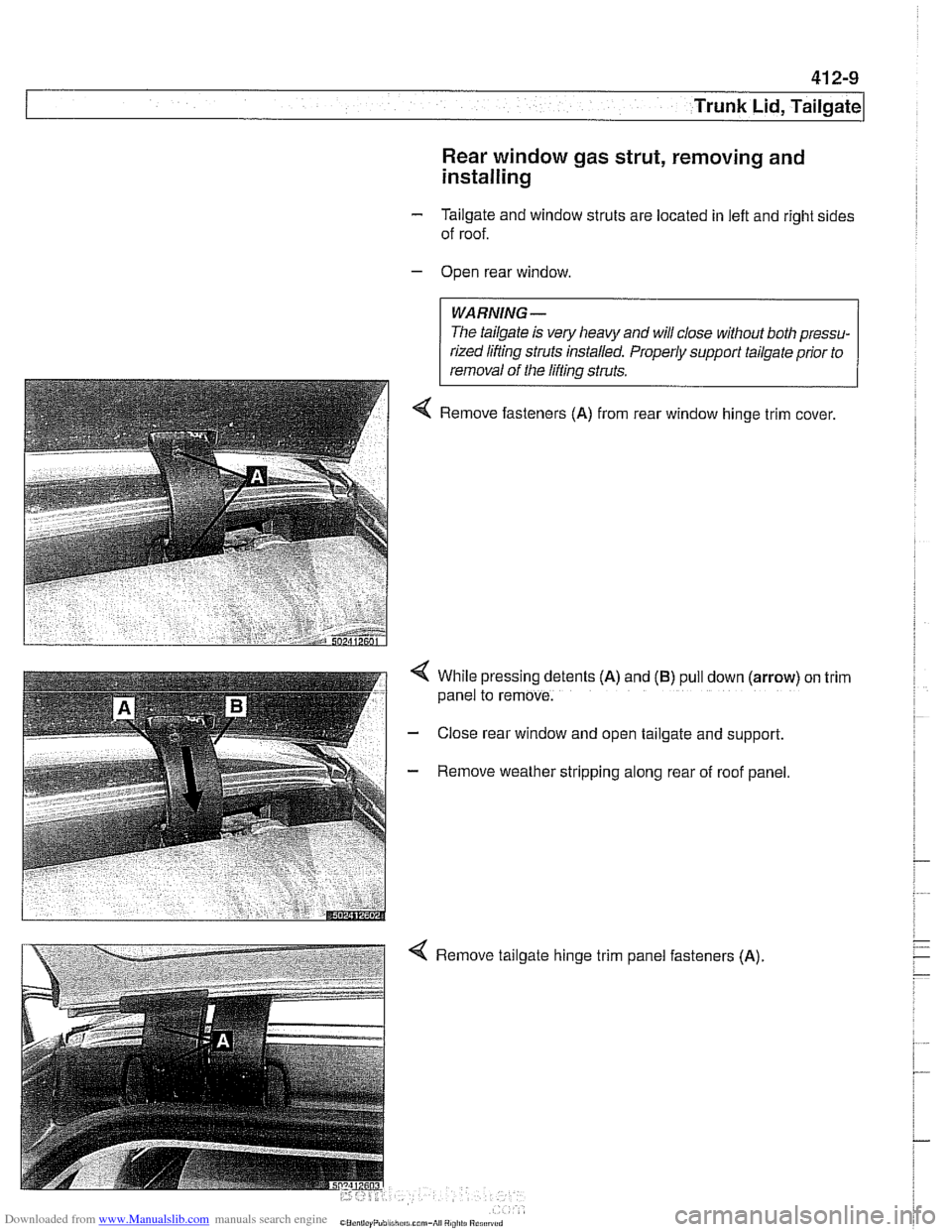

Rear window gas strut, removing and
installing
- Tailgate and window struts are located in left and right sides
of roof.
- Open rear window.
WARNING-
The tailgate is very heavy and will close without both pressu-
rized lifting struts installed. Properly support tailgate prior to
removal of the lifting struts.
< Remove fasteners (A) from rear window hinge trim cover,
< While pressing detents (A) and (6) pull down (arrow) on trim
panel to remove.
- Close rear window and open tailgate and support.
- Remove weather stripping along rear of roof panel.
< Remove tailgate hinge trim panel fasteners (A).

Downloaded from www.Manualslib.com manuals search engine
.-
l~runk Lid, Tailgate
Starting at top, pull down (arrow) on trim cover. Carefully re-
move wiring harness support clip from trim cover.
NOTE-
Tailgate window trim cover and weather stripping shown in
place.
Insert BMW special tool 51 2
153 into body cavity below
hinge.
WARNING-
Tlie tailgate is ve!y heavy and will close without both pressu-
rized liftinq struts installed. Properly support
tailgafe prior to r
1 removal of the lifting struts.
- Working at hinge end of strut, remove strut retaining clip and
remove strut from mounting pin.
Slide BMW special tool 51 2 152 over strut until end of tool is
aligned with strut pin
(arrow).
Press down on outer end of special tool to release inner
strut mount.
Remove special tool with strut.
When installing strut make sure ball cup is pointing straight
down.
Rema~nder of installation 1s reverse of removal.
Tailgate gas strut, removing and installing
- Open tailgate and support.
Remove tailgate hinge trim panel fasteners
(A).

Downloaded from www.Manualslib.com manuals search engine
Trunk Lid, Tailgate
Starting at top, pull down (arrow) on trim cover. Carefully re-
move wiring harness support clip from trim cover.
Install protective plate
(BMW special tool 51 2 153) between
roof panel and hinges.
WARNING -
The tailgate is very heavy and will close without both pressu-
rized lifting
struts installed. Properly support tailgate prior to
removal of the lifting struts.
Worlting at left side:
Remove gas strut retaining clip and pin (arrow).
4 Insert BMW special tool 51 2 151 over strut.
NOTE-
BMW special tool 51 2 151 must be chamfered in area (A).
Press tool down to release inner end of gas strut.
Push strut forward and toward center of vehicle to remove.
- When installing strut make sure ball cup is pointing straight
down.
- Remainder of installation is reverse of removal.
Tailgate, removing and installing
- Remove radio antenna amplifier. See 650 Radio.
- Disconnect outer end of window and tailgate gas struts. See
Rear window gas strut, removing and installing and Tail-
gate gas strut, removing and installing.
WARNING-
The tailgate is very heaq and will close without both pressu-
rized lifling struts installed. Properly support tailgate prior to
removal of the lifling struts.
- Remove trim panel from tailgate.
