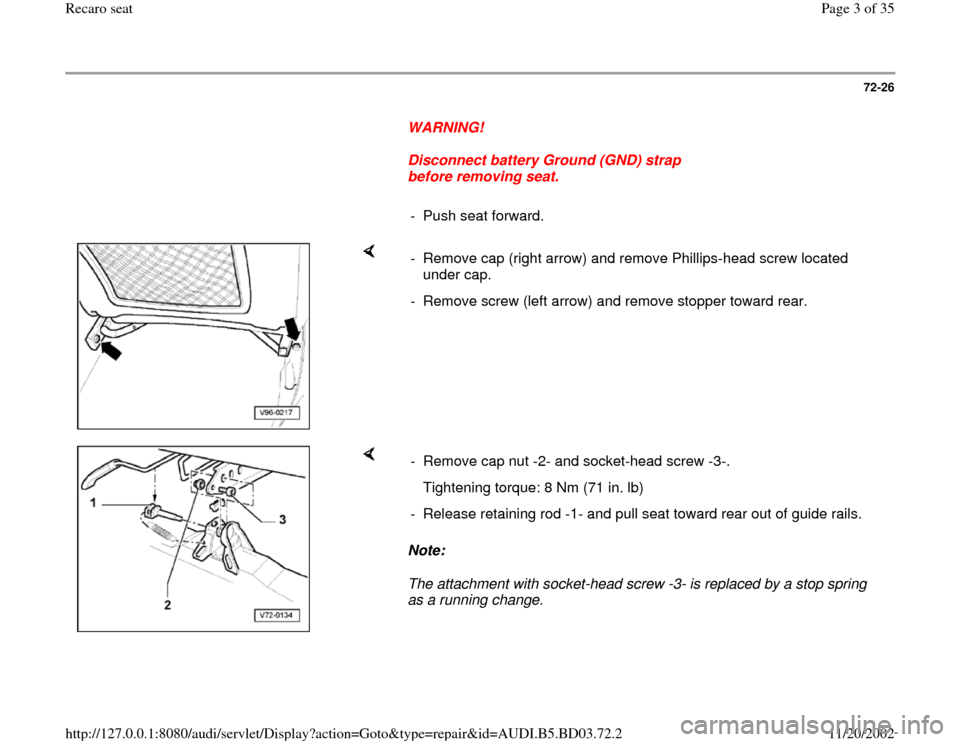

72-26
WARNING!
Disconnect battery Ground (GND) strap
before removing seat.
- Push seat forward.
- Remove cap (right arrow) and remove Phillips-head screw located
under cap.
- Remove screw (left arrow) and remove stopper toward rear.
Note:
The attachment with socket-head screw -3- is replaced by a stop spring
as a running change. - Remove cap nut -2- and socket-head screw -3-.
Tightening torque: 8 Nm (71 in. lb)
- Release retaining rod -1- and pull seat toward rear out of guide rails.
