2000 AUDI A4 remove seats

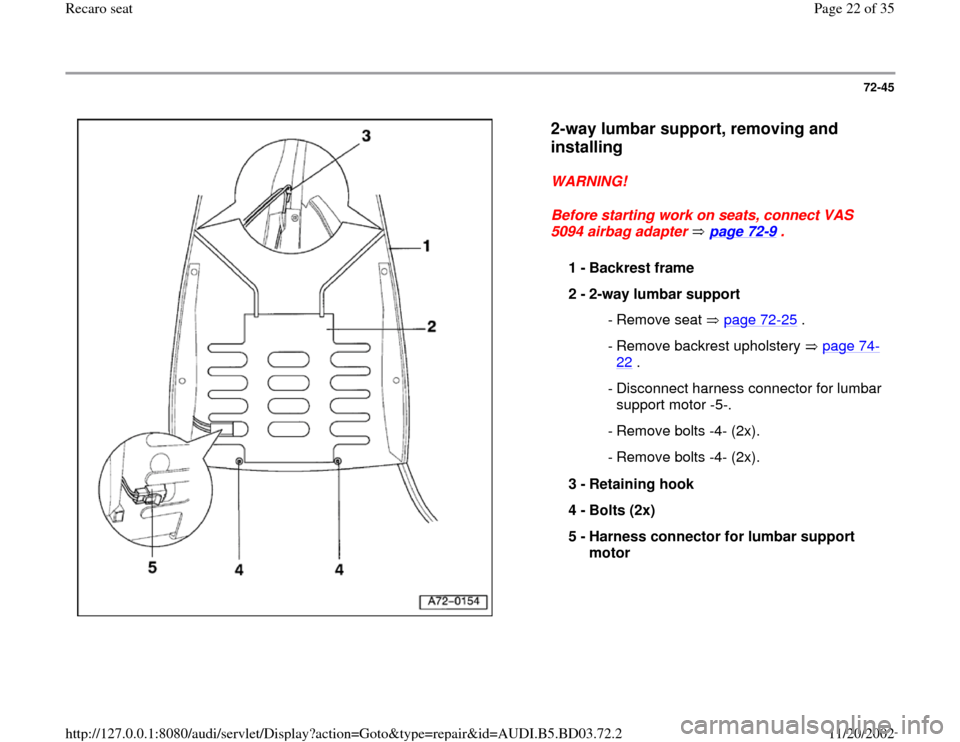

72-45


2-way lumbar support, removing and
installing

WARNING!
Before starting work on seats, connect VAS
5094 airbag adapter page 72
-9 .
1 -
Backrest frame
2 -
2-way lumbar support
- Remove seat page 72
-25
.
- Remove backrest upholstery page 74
-
22
.
- Disconnect harness connector for lumbar
support motor -5-.
- Remove bolts -4- (2x).
- Remove bolts -4- (2x).
3 -
Retaining hook
4 -
Bolts (2x)
5 -
Harness connector for lumbar support
motor
Pa
ge 22 of 35 Recaro seat11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.2

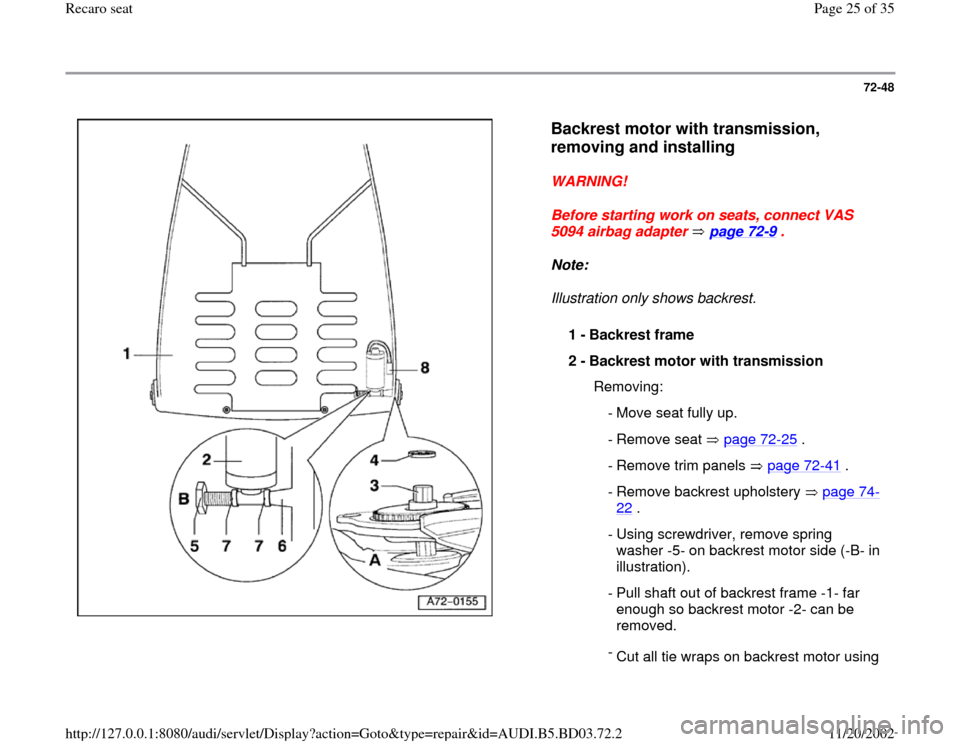

72-48


Backrest motor with transmission,
removing and installing

WARNING!
Before starting work on seats, connect VAS
5094 airbag adapter page 72
-9 .
Note:
Illustration only shows backrest.
1 -
Backrest frame
2 -
Backrest motor with transmission
Removing:
- Move seat fully up.
- Remove seat page 72
-25
.
- Remove trim panels page 72
-41
.
- Remove backrest upholstery page 74
-
22
.
- Using screwdriver, remove spring
washer -5- on backrest motor side (-B- in
illustration).
- Pull shaft out of backrest frame -1- far
enough so backrest motor -2- can be
removed.
-
Cut all tie wraps on backrest motor using
Pa
ge 25 of 35 Recaro seat11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.2

72-50


Motor for seat height adjustment,
removing and installing

WARNING!
Before starting work on seats, connect VAS
5094 airbag adapter page 72
-9 .
Note:
Ensure that bushings -4- are correctly seated in the
seat frame.
1 -
Seat frame
2 -
Seat height motor adjustment
Removing:
- Move seat fully up.
- Remove seat page 72
-25
.
- Remove seat cushion page 72
-32
.
- Disconnect harness connector -3-.
- Disconnect harness connector -3-
housing from seat frame.
- Using screwdriver, lift locking washer -5-
from shaft -6-.
- Remove motor -2-.
Installing:
Pa
ge 28 of 35 Recaro seat11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.2

72-53


Headrest guides, removing and installing

WARNING!
Before starting work on seats, connect VAS
5094 airbag adapter page 72
-9 .
CAUTION!
The locking pins for both headrest guides must
be on the inside so that they engage in the
height adjustment catches.
1 -
Headrest
2 -
Headrest guide
Removing:
- Remove headrest -1- page 72
-52
.
- Remove upholstery from backrest frame
- 3- page 74
-22
.
- Press catches -5- of headrest guide -2-
together and pull headrest guide -2- up
and off.
Installing:
- Install headrest guides -2- so locking
pins -4- of headrest guides are both on
inside.
Pa
ge 31 of 35 Recaro seat11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.2

72-55


Seat frame, removing and installing

WARNING!
Before starting work on seats, connect VAS
5094 airbag adapter page 72
-9 .
Note:
Always replace bolts -3-.
1 -
Seat frame
Removing:
- Remove seat page 72
-25
.
- Place seat so underside of seat cushion
is easily accessible.
- Disconnect tie wraps that are attached to
seat frame.
- Unbolt bracket for harness connecter
(two bolts).
- Unbolt both relays (2x).
- Unbolt bolts -3- (4x) on seat frame -1-.
- Remove seat frame -1- from seat -2-.
Installing:
- Place new seat frame -1- on seat -2-.
Pa
ge 33 of 35 Recaro seat11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.2
